Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
V.jpg)
|

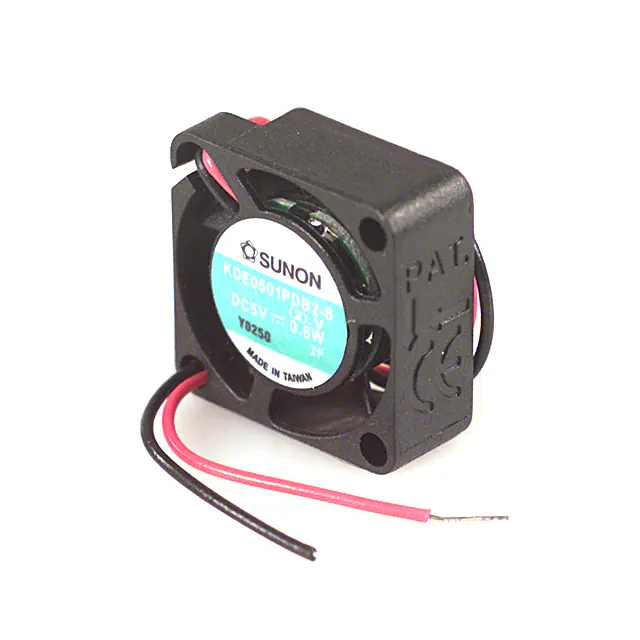

KDE0501PDB2-8(2)(V)FAN AXIAL 20X8MM BALL 5VDC WIRE |
0 |
|
Технический лист |
KDE | - | Obsolete | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.6 CFM (0.045m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 26.5dB(A) | 600 mW | 12000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
(V).jpg)
|

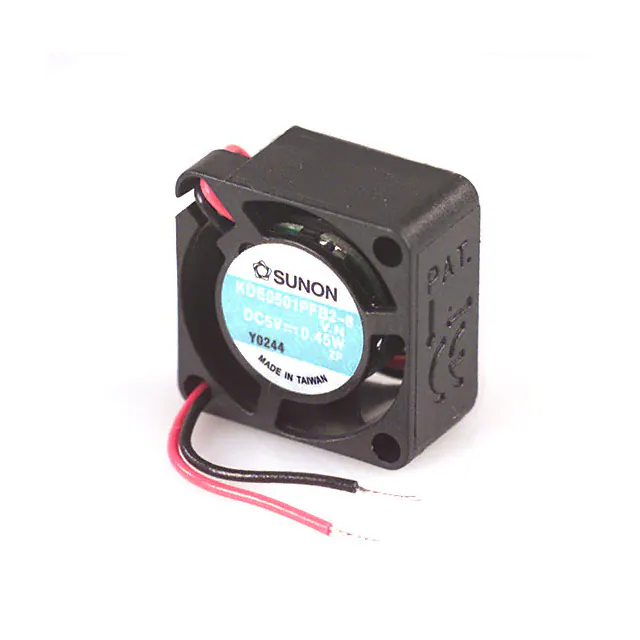

KDE0501PFB2-8.N(2)(V)FAN AXIAL 20X10MM BALL 5VDC WIRE |
0 |
|
Технический лист |
KDE | - | Obsolete | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 22.0dB(A) | 600 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
|
OD1225-48HSSFAN AXIAL 120X25MM 48VDC WIRE |
0 |
|
Технический лист |
OD1225 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 86.0 CFM (2.41m³/min) | 0.240 in H2O (59.8 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 42.0dB(A) | 4.5 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
OD3006-12MB01AFAN AXIAL 30X6MM BALL 12VDC WIRE |
0 |
|
Технический лист |
OD3006 | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 6.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
OD3010-05LLB01AFAN AXIAL 30X10.2MM 5VDC WIRE |
0 |
|
Технический лист |
OD3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.20mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
OD3010-12HB5FAN AXIAL 30X10.2MM 12VDC WIRE |
0 |
|
Технический лист |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 5.0 CFM (0.140m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | PWM Control | 30.2dB(A) | - | 11000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD3010-12LB5FAN AXIAL 30X10.2MM 12VDC WIRE |
0 |
|
Технический лист |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 3.5 CFM (0.098m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | PWM Control | 23.1dB(A) | - | 8000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD3010-12LLBFAN AXIAL 30X10.2MM 12VDC WIRE |
0 |
|
Технический лист |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 3.5 CFM (0.098m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 25.0dB | - | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD3010-12LLB01AFAN AXIAL 30X10.2MM 12VDC WIRE |
0 |
|
Технический лист |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 3.5 CFM (0.098m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.0dB | - | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD3010-12MB5FAN AXIAL 30X10.2MM 12VDC WIRE |
0 |
|
Технический лист |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 4.0 CFM (0.112m³/min) | 0.180 in H2O (45.0 Pa) | Ball | Tubeaxial | PWM Control | 28.4dB(A) | - | 9000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
OD3015-05HB01AFAN AXIAL 30X15MM BALL 5VDC WIRE |
0 |
|
Технический лист |
OD3015 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3015-05LB01AFAN AXIAL 30X15MM BALL 5VDC WIRE |
0 |
|
Технический лист |
OD3015 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3015-05MB01AFAN AXIAL 30X15MM BALL 5VDC WIRE |
0 |
|
Технический лист |
OD3015 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
OD3506-12HB01AFAN AXIAL 35X6MM BALL 12VDC WIRE |
0 |
|
Технический лист |
OD3506 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 6.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3506-12HB02AFAN AXIAL 35X6MM BALL 12VDC WIRE |
0 |
|
Технический лист |
OD3506 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 6.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3506-12MB01AFAN AXIAL 35X6MM BALL 12VDC WIRE |
0 |
|
Технический лист |
OD3506 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 6.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3506-12MB02AFAN AXIAL 35X6MM BALL 12VDC WIRE |
0 |
|
Технический лист |
OD3506 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 6.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | - | - |
|
OD3510-05HB02AFAN AXIAL 35X10MM BALL 5VDC WIRE |
0 |
|
Технический лист |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3510-05LB01AFAN AXIAL 35X10MM BALL 5VDC WIRE |
0 |
|
Технический лист |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3510-05LB02AFAN AXIAL 35X10MM BALL 5VDC WIRE |
0 |
|
Технический лист |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | - | - |
