Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

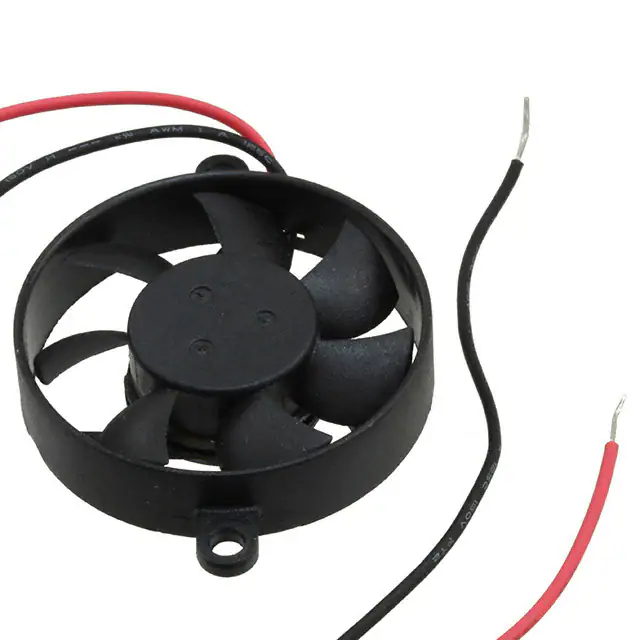

EF30080S2-E00U-A99FAN AXIAL 30.2X8MM 5VDC WIRE |
0 |
|
Технический лист |
EF | Tray | Obsolete | 5VDC | Round - 30.2mm Dia | 8.00mm | 3.0 CFM (0.084m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | Tubeaxial | Auto Restart | 17.0dB(A) | 400 mW | 7000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.009 lb (4.08 g) |
|
CFM-9238B-130-410FAN AXIAL 92X37.5MM 12VDC WIRE |
0 |
|
Технический лист |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.50mm | 57.5 CFM (1.61m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart | 41.1dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9238B-230-410FAN AXIAL 92X37.5MM 24VDC WIRE |
0 |
|
Технический лист |
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 37.50mm | 57.5 CFM (1.61m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart | 41.1dB(A) | 4.08 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EF60251B1-1000U-F9912VDC FAN 60X25MM TACH |
0 |
|
Технический лист |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 31.5dB(A) | 0.99 W | 5200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF60251B3-1000U-H9912VDC FAN 60X25MM PWM |
0 |
|
Технический лист |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.9 CFM (0.389m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 20.0dB(A) | 0.46 W | 3400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF60251B2-1000U-H9912VDC FAN 60X25MM PWM |
0 |
|
Технический лист |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.5 CFM (0.546m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 27.0dB(A) | 0.7 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF60251B2-1000U-F9912VDC FAN 60X25MM TACH |
0 |
|
Технический лист |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.5 CFM (0.546m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.0dB(A) | 0.7 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF60251B1-1000U-H9912VDC FAN 60X25MM PWM |
0 |
|
Технический лист |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 31.5dB(A) | 0.99 W | 5200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF60251B3-1000U-F9912VDC FAN 60X25MM TACH |
0 |
|
Технический лист |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.9 CFM (0.389m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.0dB(A) | 0.46 W | 3400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
AFB0612VHC-F00FAN AXIAL 60X13MM 12VDC WIRE |
0 |
|
Технический лист |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 13.00mm | 27.7 CFM (0.776m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 2.88 W | 5400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
|
CFM-6025BG-170-434DC AXIAL FAN, 60 MM SQUARE, 25 M |
0 |
|
Технический лист |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 29.8 CFM (0.834m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 43.4dB(A) | 5.4 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MS2006H12B2-RSRFAN AXIAL 20X6.5MM 12VDC WIRE |
0 |
|
Технический лист |
MS2006 | Box | Obsolete | 12VDC | Square - 20mm L x 20mm H | 6.50mm | 1.0 CFM (0.028m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.0dB(A) | - | 10000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.007 lb (3.18 g) |
|
|
MS2006M12B2-RSRFAN AXIAL 20X6.5MM 12VDC WIRE |
0 |
|
Технический лист |
MS2006 | Box | Obsolete | 12VDC | Square - 20mm L x 20mm H | 6.50mm | 0.780 CFM (0.022m³/min) | 0.080 in H2O (20.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 21.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.007 lb (3.18 g) |
|
OD8020-12HB10AFAN AXIAL 80X20MM 12VDC WIRE |
0 |
|
Технический лист |
OD8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | - | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | - | - | - | - |
|
OD9225-12HS02AFAN AXIAL 92.5X25MM 12VDC WIRE |
0 |
|
Технический лист |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | - | - | Sleeve | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
3610SB-05W-B20-E00FAN AXIAL 92X25MM 24VDC WIRE |
25 |
|
Технический лист |
09225SA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 35.7 CFM (1.00m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | - | 25.0dB | 840 mW | 2050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|
3610SB-04W-B30-B00FAN AXIAL 92X25MM 12VDC WIRE |
1 |
|
Технический лист |
09225SA | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 28.0dB | 1.2 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610SB-04W-B40-B00FAN AXIAL 92X25MM 12VDC WIRE |
1 |
|
Технический лист |
09225SA | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 48.4 CFM (1.35m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | - | 32.0dB | 1.56 W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|

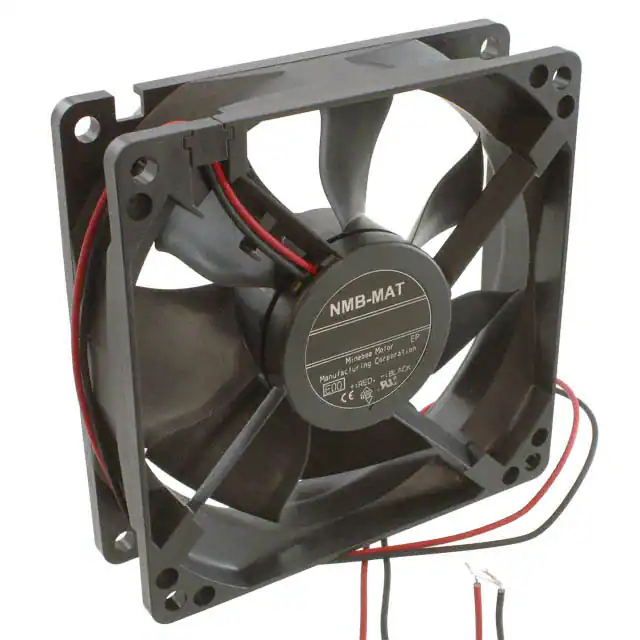

3610SB-04W-B50-E00FAN AXIAL 92X25MM 12VDC WIRE |
1 |
|
Технический лист |
09225SA | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 54.4 CFM (1.52m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 35.0dB | 1.8 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|
4710KL-04W-B10-L00FAN AXIAL 119X25.5MM 12VDC WIRE |
0 |
|
Технический лист |
4710KL | - | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.50mm | 63.5 CFM (1.78m³/min) | 0.072 in H2O (17.9 Pa) | Ball | Tubeaxial | - | 27.0dB | 1.44 W | 1600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
