Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-03010BAAW11FAN AXIAL 30X10MM 5VDC WIRE |
0 |
|
Технический лист |
FAD1-03010 | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 2.2 CFM (0.061m³/min) | 0.068 in H2O (17.0 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 19.0dB(A) | 225 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-03010BALW11FAN AXIAL 30X10MM 5VDC WIRE |
0 |
|
Технический лист |
FAD1-03010 | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.115 in H2O (28.7 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 26.0dB(A) | 350 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-03010BAMW11FAN AXIAL 30X10MM 5VDC WIRE |
0 |
|
Технический лист |
FAD1-03010 | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.3 CFM (0.092m³/min) | 0.148 in H2O (37.0 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 30.0dB(A) | 510 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-03010BAHW11FAN AXIAL 30X10MM 5VDC WIRE |
0 |
|
Технический лист |
FAD1-03010 | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.0 CFM (0.112m³/min) | 0.200 in H2O (49.8 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 34.0dB(A) | 475 mW | 10500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-03010CAAW11FAN AXIAL 30X10MM 12VDC WIRE |
0 |
|
Технический лист |
FAD1-03010 | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 2.2 CFM (0.061m³/min) | 0.068 in H2O (17.0 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 19.0dB(A) | 420 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-03010CALW11FAN AXIAL 30X10MM 12VDC WIRE |
0 |
|
Технический лист |
FAD1-03010 | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.115 in H2O (28.7 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 26.0dB(A) | 600 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-03010CAMW11FAN AXIAL 30X10MM 12VDC WIRE |
0 |
|
Технический лист |
FAD1-03010 | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.3 CFM (0.092m³/min) | 0.148 in H2O (37.0 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 30.0dB(A) | 540 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-03010CAHW11FAN AXIAL 30X10MM 12VDC WIRE |
0 |
|
Технический лист |
FAD1-03010 | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.0 CFM (0.112m³/min) | 0.200 in H2O (49.8 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 34.0dB(A) | 640 mW | 10500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
08015SS-12N-AA-00FAN AXIAL 80X15MM 12VDC WIRE |
0 |
|
- |
08015SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.9 CFM (0.949m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Auto Restart | 34.0dB(A) | 2.52 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08015SS-12L-AA-00FAN AXIAL 80X15MM 12VDC WIRE |
0 |
|
- |
08015SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 26.8 CFM (0.750m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | Tubeaxial | Auto Restart | 27.5dB(A) | 1.32 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08015SS-24M-AA-00FAN AXIAL 80X15MM 24VDC WIRE |
0 |
|
Технический лист |
08015SS | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart | 31.0dB | 2.4 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
B0502PFB1-8FAN BLOWER 25X9.8MM 5VDC WIRE |
0 |
|
Технический лист |
- | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 9.80mm | 0.880 CFM (0.025m³/min) | 0.360 in H2O (89.7 Pa) | Ball | Blower | - | 34.0dB(A) | 900 mW | 12000 RPM | 2 Wire Leads | - | - | - | 0.013 lb (5.9 g) |
|
|
B0503PFB1-8FAN BLOWER 30X10MM 5VDC WIRE |
0 |
|
Технический лист |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Blower | - | 31.0dB(A) | 950 mW | 9000 RPM | 2 Wire Leads | - | - | - | 0.02 lb (9.07 g) |
|

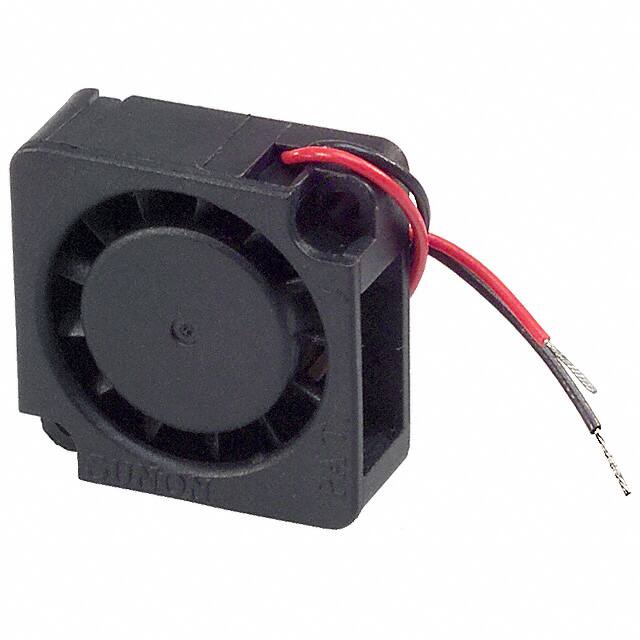

B0502PFB2-8FAN BLOWER 25X9.8MM 5VDC WIRE |
0 |
|
Технический лист |
- | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 9.80mm | 0.706 CFM (0.020m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Blower | - | 32.0dB(A) | 650 mW | 10000 RPM | 2 Wire Leads | - | - | - | 0.013 lb (5.9 g) |
|
|
B0503PFB2-8FAN BLOWER 30X10MM 5VDC WIRE |
0 |
|
Технический лист |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.0 CFM (0.028m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Blower | - | 29.0dB(A) | 650 mW | 7500 RPM | 2 Wire Leads | - | - | - | 0.02 lb (9.07 g) |
|
|
B0503AFB2-8FAN BLOWER 30X10MM 5VDC WIRE |
0 |
|
Технический лист |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.0 CFM (0.028m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Blower | - | 29.0dB(A) | 650 mW | 7500 RPM | 2 Wire Leads | - | - | - | 0.023 lb (10.43 g) |
|
|
KDE0502PFB1-8FAN AXIAL 25X10MM BALL 5VDC WIRE |
0 |
|
Технический лист |
KDE | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 25.5dB(A) | 900 mW | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
|
|
KDE0503PFB1-8FAN AXIAL 30X10MM BALL 5VDC WIRE |
0 |
|
Технический лист |
KDE | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 27.0dB(A) | 900 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.017 lb (7.71 g) |
|
|
KDE0503PFB3-8FAN AXIAL 30X10MM BALL 5VDC WIRE |
0 |
|
Технический лист |
KDE | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 2.3 CFM (0.064m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 19.0dB(A) | 300 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.017 lb (7.71 g) |
|
|
KD1206PHS1.GNFAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | - | 36.0dB(A) | 1.8 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
