Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9BMB24P2S01FAN BLOWER 97.1X33MM 24VDC WIRE |
179 |
|
Технический лист |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 43.1 CFM (1.21m³/min) | 2.450 in H2O (610.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 16.8 W | 5250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
4414FLFAN AXIAL 119X25.4MM 24VDC WIRE |
129 |
|
Технический лист |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 55.4 CFM (1.55m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 1.2 W | 1600 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.386 lb (175.09 g) |
|
GF92251B1-000U-SE9FAN AXIAL 92X25MM 12VDC WIRE |
229 |
|
Технический лист |
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.72 W | 4500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.249 lb (112.94 g) |
|
9GV1212P4G01FAN AXIAL 119X25.4MM 12VDC WIRE |
3,275 |
|
Технический лист |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 20.16 W | 5100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|

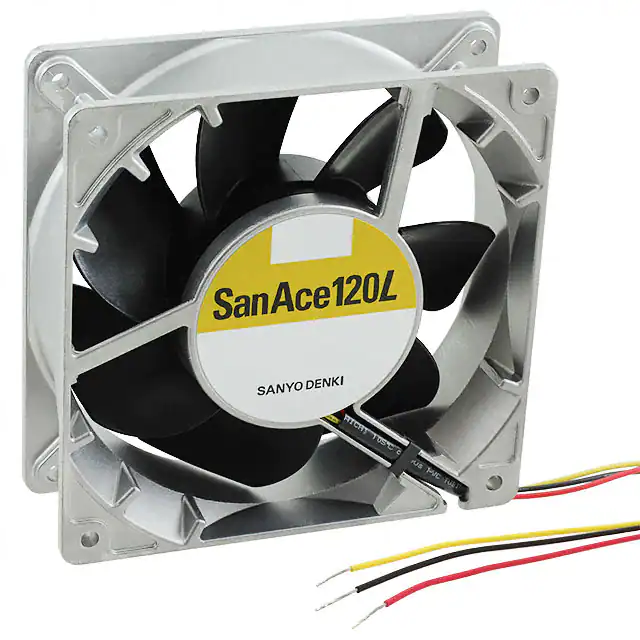

9GL1224G101FAN AXIAL 119X38MM 24VDC WIRE |
195 |
|
Технический лист |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
BFB1248GH-AFAN BLOWER 120X32MM 48VDC WIRE |
289 |
|
Технический лист |
BFB | Bulk | Not For New Designs | 48VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 4.094 in H2O (1019.8 Pa) | Ball | Blower | Locked Rotor Protection | 65.0dB(A) | 38.4 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|
QFR1224GHE-SP01FAN AXIAL 120X38MM 24VDC WIRE |
1,008 |
|
Технический лист |
QFR | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 210.4 CFM (5.89m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 22.56 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
4312FAN AXIAL 119X32MM 12VDC WIRE |
383 |
|
Технический лист |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|

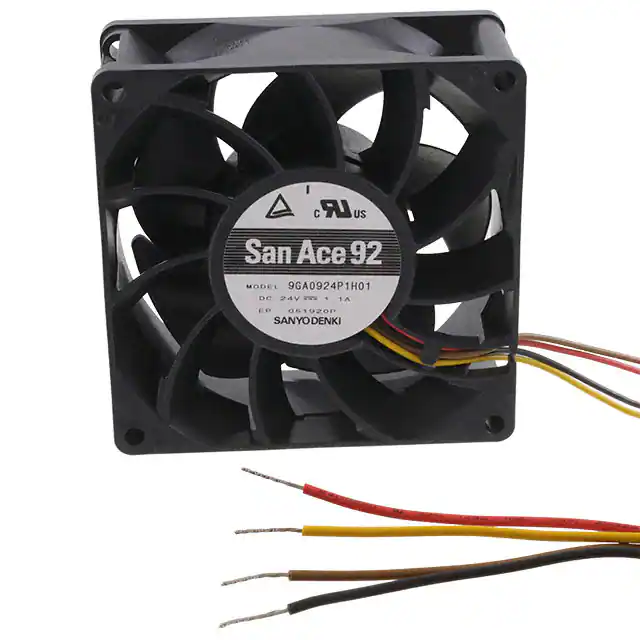

9GA0924P1H01FAN AXIAL 92X38MM 24VDC WIRE |
378 |
|
Технический лист |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 26.4 W | 9700 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.529 lb (240.00 g) |
|
9GA0912P1H03FAN AXIAL 92X38MM 12VDC WIRE |
129 |
|
Технический лист |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 141.2 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 25.2 W | 9700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
PFR0912XHE-SP00FAN AXIAL 92X38MM 12VDC WIRE |
336 |
|
Технический лист |
PFR | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 185.5 CFM (5.19m³/min) | 2.523 in H2O (628.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 44.4 W | 11500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.573 lb (260.00 g) |
|
|
4412FMFAN AXIAL 119X25.4MM 12VDC WIRE |
256 |
|
Технический лист |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 82.4 CFM (2.31m³/min) | - | Ball | Tubeaxial | - | 38.0dB(A) | 3.2 W | 2400 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.386 lb (175.09 g) |
|

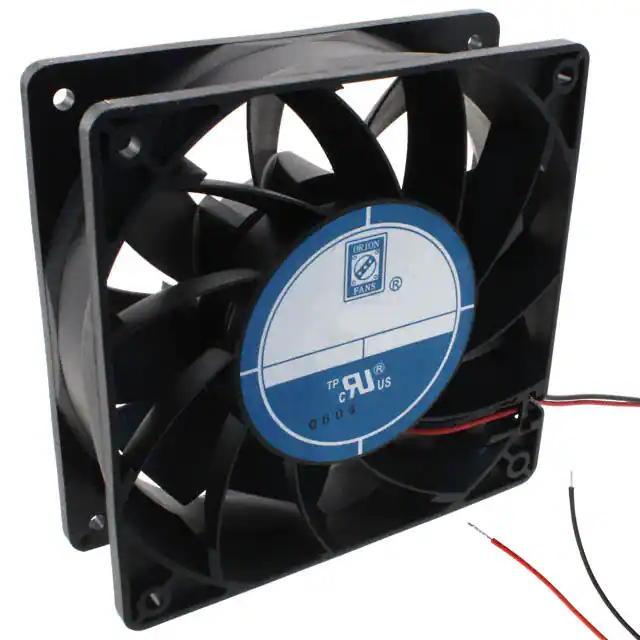

OD1238-12HBVXCFAN AXIAL 120X38MM 12VDC WIRE |
359 |
|
Технический лист |
OD1238 VA | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | Tubeaxial | Auto Restart | 65.0dB | 43.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|

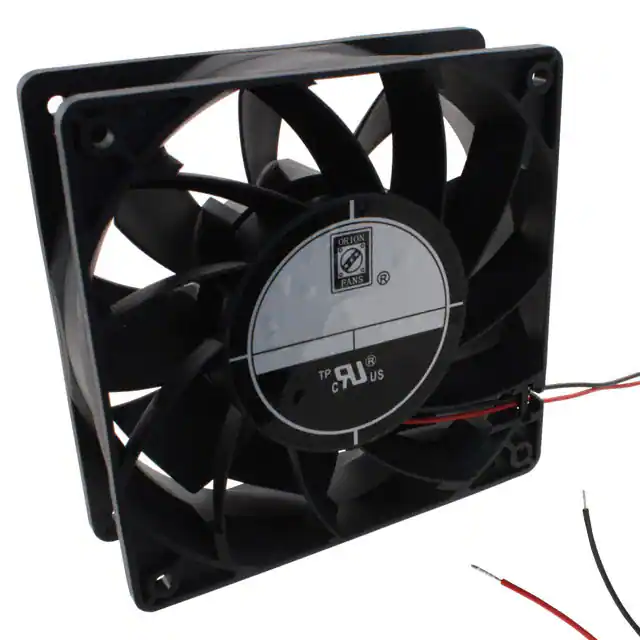

OD1238-24HBVXCFAN AXIAL 120X38MM 24VDC WIRE |
145 |
|
Технический лист |
OD1238 VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | Tubeaxial | Auto Restart | 65.0dB | 40.8 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
9BMB12P2K01FAN BLOWER 97.1X33MM 12VDC WIRE |
9,602 |
|
Технический лист |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 56.8 CFM (1.59m³/min) | 5.140 in H2O (1280.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 40.8 W | 6850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
4414F/2FAN AXIAL 119X25.4MM 24VDC WIRE |
351 |
|
Технический лист |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 5 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.386 lb (175.09 g) |
|
9GV0824P1G03FAN AXIAL 80X38MM 24VDC WIRE |
365 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 38.4 W | 10200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.485 lb (220.00 g) |
|

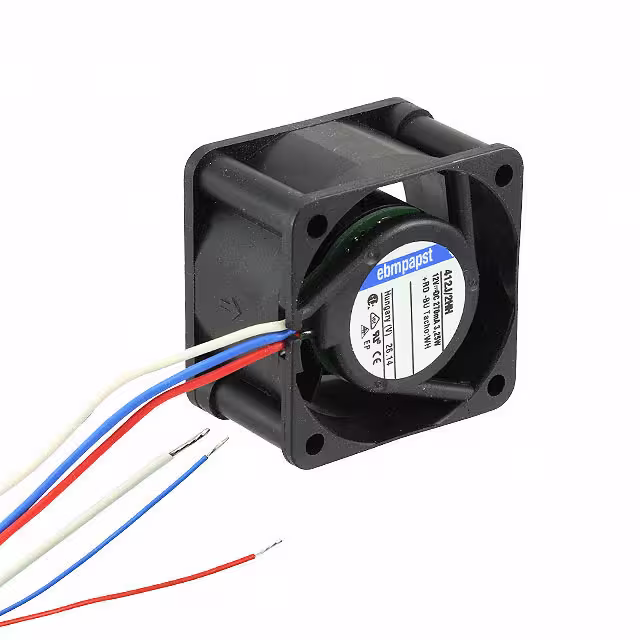

412J/2HHFAN AXIAL 40X25.4MM 12VDC WIRE |
475 |
|
Технический лист |
400J | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 25.40mm | 14.1 CFM (0.395m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 3.3 W | 13000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.111 lb (50.35 g) |
|
9CRA0612P6K001FAN AXIAL DUAL 60X56MM 12VDC |
3,120 |
|
Технический лист |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 56.00mm | 80.2 CFM (2.25m³/min) | 4.540 in H2O (1130.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 73.0dB(A) | 37.2 W | 18300 Front, 15800 Rear | 3 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.441 lb (200.00 g) |
|

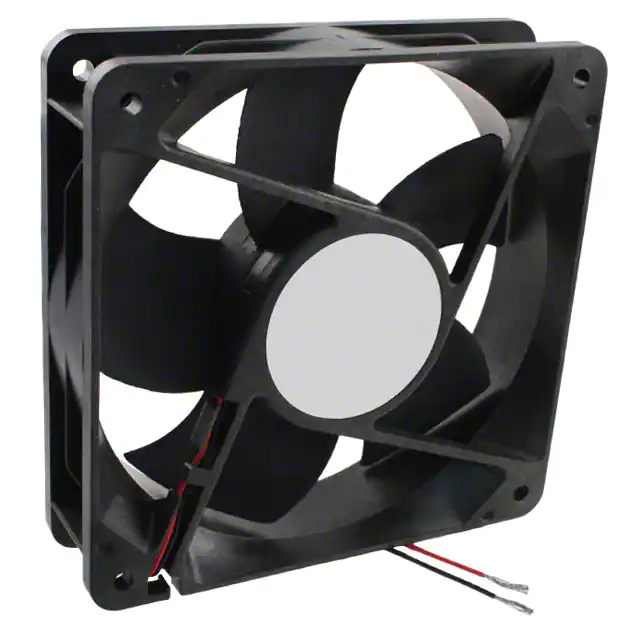

19030572AFAN AXIAL 120X32MM 24VDC MC24B3 |
639 |
|
Технический лист |
Muffin | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.8dB(A) | 6.7 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 0.529 lb (239.95 g) |
