Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCA1748ATP8FAN IMP MTRZD 176.5X69MM 48VDC |
0 |
|
Технический лист |
TCA | Box | Active | 48VDC | Round - 176.5mm Dia | 69.00mm | 382.0 CFM (10.70m³/min) | 2.114 in H2O (526.6 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.8dB(A) | 57.6 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9LG1412P5S001FAN AXIAL 140X51MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 140L | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 212.0 CFM (5.94m³/min) | 1.180 in H2O (294.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 22 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
MSI1769H48B1+7-BBRFAN IMP MTRZD 175X69MM 48VDC |
0 |
|
Технический лист |
MSI1769 | Box | Active | 48VDC | Round - 175mm Dia | 69.00mm | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 72.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|

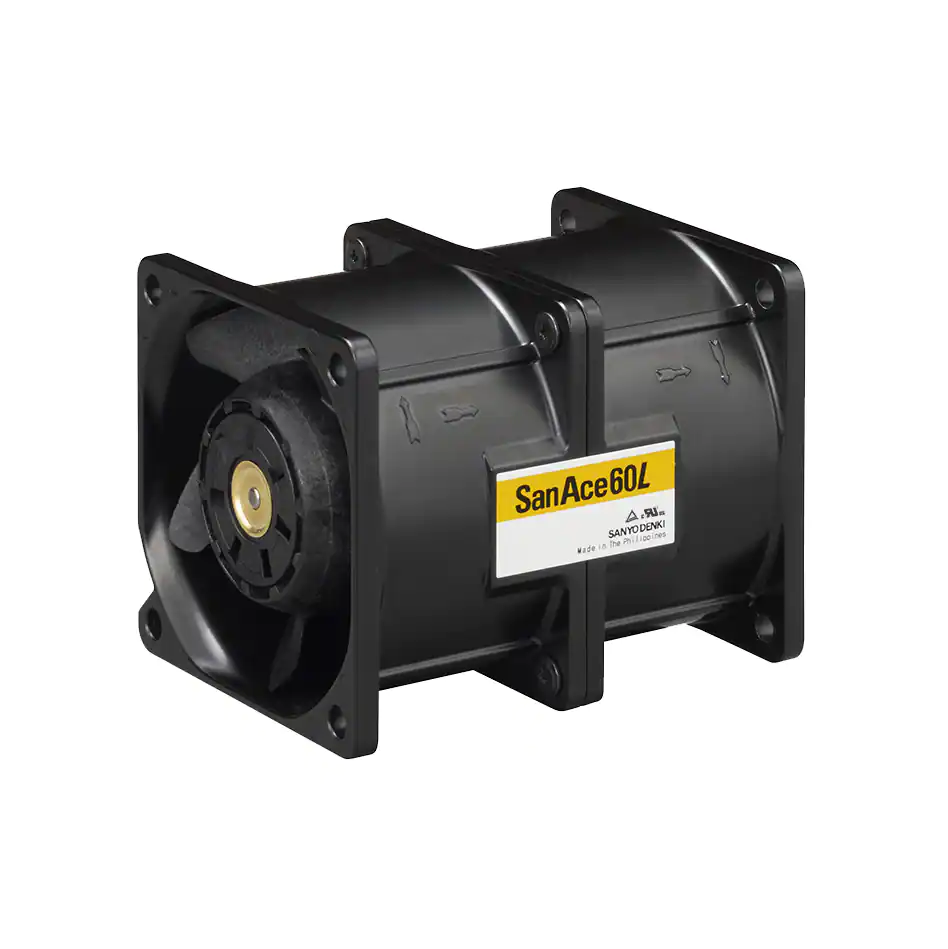

9CRLA0612P0G003FAN AXIAL DUAL 60X76MM 12VDC |
0 |
|
Технический лист |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 74.1 CFM (2.07m³/min) | 5.620 in H2O (1400.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 36 W | 16500 Front, 17800 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.684 lb (310.26 g) |
|
|
9LG1412P1H001FAN AXIAL 140X38MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 140L | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 282.0 CFM (7.90m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 20.4 W | 5200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.4 lbs (650.0 g) |
|
|
9LG1412P1A001FAN AXIAL 140X38MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 140L | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 282.0 CFM (7.90m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 44.64 W | 6900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.4 lbs (650.0 g) |
|
|
9LG1448P1M001FAN AXIAL 140X38MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 140L | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 7.2 W | 3300 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.4 lbs (650.0 g) |
|
|
109BG24HC1FAN BLOWER 160X40MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace B160 | Box | Active | 24VDC | Square/Rounded - 160mm L x 160mm H | 40.00mm | 57.2 CFM (1.60m³/min) | 1.259 in H2O (313.6 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 15.6 W | 2300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.3 lbs (589.7 g) |
|
|
9LG1424A5002FAN AXIAL 140X51MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 243.7 CFM (6.82m³/min) | 2.170 in H2O (540.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | - | 29.1 W | 5700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
_Series.JPG)
|
6224NMUFAN AXIAL 171.5X50.8MM 24VDC |
0 |
|
Технический лист |
6200NU | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 206.0 CFM (5.77m³/min) | - | Ball | Tubeaxial | - | 50.0dB(A) | 11.6 W | 2950 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | UL | 1.9 lbs (861.8 g) |
|
|
9LG1448P5S001FAN AXIAL 140X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 140L | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 212.0 CFM (5.94m³/min) | 1.180 in H2O (294.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 22 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
9WL1448P1M001FAN AXIAL 140X38MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 140W | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 7.2 W | 3300 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
MSI1967H48B1+7-BBRFAN IMP MTRZD 190X67MM 48VDC |
0 |
|
Технический лист |
MSI1967 | Box | Active | 48VDC | Round - 190mm Dia | 67.00mm | 358.0 CFM (10.02m³/min) | 1.830 in H2O (455.8 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 71.0dB(A) | - | 3000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
|
9LG1448P1H001FAN AXIAL 140X38MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 140L | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 20.16 W | 5200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.4 lbs (650.0 g) |
|
|
9WL1448P5S001FAN AXIAL 140X51MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 140W | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 212.0 CFM (5.94m³/min) | 1.180 in H2O (294.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 22 W | 5000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
|
9LG1412A5002FAN AXIAL 140X51MM 12VDC WIRE |
1 |
|
Технический лист |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 243.7 CFM (6.82m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | - | 31.4 W | 5700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|
|
THD0848VE-00FAN AXIAL 80X80MM 48VDC WIRE |
0 |
|
Технический лист |
- | Box | Active | 48VDC | Square - 80mm L x 80mm H | 80.00mm | 195.0 CFM (5.52m³/min) | 7.280 in H2O (1813.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 172.8 W | 15000 Front, 15000 Rear | 4 Wire Leads per Fan | IP51 - Dust Protected | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MSI1967H24B1+7-BBRFAN IMP MTRZD 190X67MM 24VDC |
0 |
|
Технический лист |
MSI1967 | Box | Active | 24VDC | Round - 190mm Dia | 67.00mm | 358.0 CFM (10.02m³/min) | 1.830 in H2O (455.8 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 71.0dB(A) | - | 3000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 2.9 lbs (1.3 kg) |
|
OD180APL-48HBIP69KFAN AXIAL 180X65MM 48VDC WIRE |
0 |
|
Технический лист |
OD180APL-IP69K | Box | Active | 48VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 50.2 W | 3375 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
R1G133-AA65-02FAN IMP MTRZD 133X91MM 48VDC |
0 |
|
Технический лист |
R1G133AA | Bulk | Active | 48VDC | Round - 133mm Dia | 91.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 28 W | 3900 RPM | 4 Wire Leads | - | -13 ~ 140°F (-25 ~ 60°C) | CCC, CSA, UL | 1.5 lbs (680.4 g) |
