Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WL0924P1F001FAN AXIAL 92X38MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 92W | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 12 W | 7000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.661 lb (299.82 g) |
|
9GT0824P4S001FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 80T | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 65.7 CFM (1.84m³/min) | 0.574 in H2O (143.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 5.28 W | 6700 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
19040396AFAN AXIAL 254X88.9MM 24V CD24R7X |
0 |
|
Технический лист |
Caravel | Box | Active | 24VDC | Round - 254mm Dia | 88.90mm | 550.0 CFM (15.40m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.5dB(A) | 29 W | 1650 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | - |
_Series.JPG)
|
6224NFAN AXL 171.5X50.8MM 24VDC TERM |
1 |
|
Технический лист |
6200N | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 18 W | 3400 RPM | 2 Terminals | - | -4 ~ 162°F (-20 ~ 72°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|

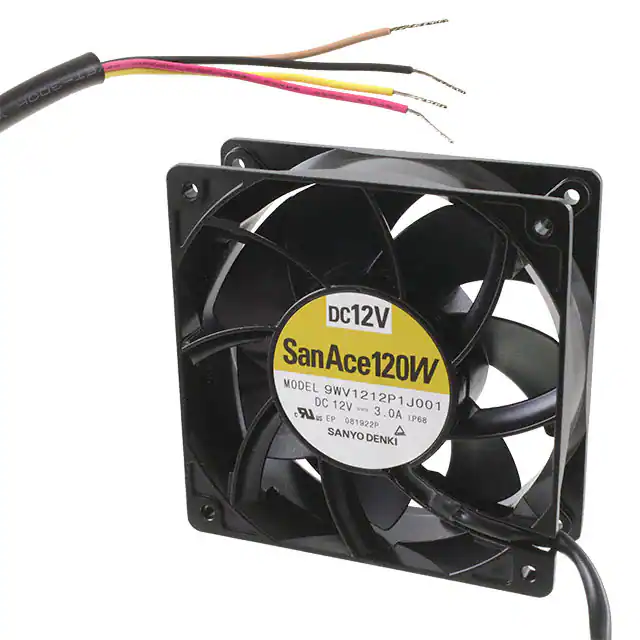

9WV1212P1J001FAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 36 W | 6400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.970 lb (440.00 g) |
|
9CRA0948P0G601FAN AXIAL DUAL 92X76MM 48VDC |
0 |
|
Технический лист |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 76.00mm | 205.0 CFM (5.74m³/min) | 6.630 in H2O (1651.4 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 81.0dB(A) | 105.6 W | 13300 Front, 12200 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.1 lbs (510.0 g) |
|
9LG1248P1G001FAN AXIAL 119X38MM 48VDC WIRE |
0 |
|
Технический лист |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 247.0 CFM (6.92m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 38.4 W | 6550 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|
OD254AP-24HB10AFAN AXIAL 254X89MM 24VDC WIRE |
0 |
|
Технический лист |
OD254 | Bulk | Active | 24VDC | Round - 254mm Dia | 89.00mm | 850.0 CFM (23.80m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 64.0dB | 64 W | 2500 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
4114N/2H8PFAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
Технический лист |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 336.0 CFM (9.41m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 120 W | 11000 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.937 lb (425.02 g) |
|
THD2348MU-00FAN AXIAL 240X100MM 48VDC WIRE |
0 |
|
Технический лист |
- | Box | Active | 48VDC | Round - 240mm Dia | 100.00mm | 915.0 CFM (25.62m³/min) | 2.291 in H2O (570.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 180 W | 5000 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | CE, cURus, TUV | - |
|
|
F175G3-061-D0540FAN IMP MTRZD 175X69MM 24VDC |
0 |
|
Технический лист |
F175 | Bulk | Active | 24VDC | Round - 175mm Dia | 69.00mm | 476.7 CFM (13.35m³/min) | 2.970 in H2O (740.0 Pa) | Ball | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 88.8 W | 4200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 140°F (-30 ~ 60°C) | CE, cURus | - |
|
|
9W2TJ24P0H001FAN IMP MTRZD 133X91MM 24VDC |
0 |
|
Технический лист |
San Ace 133W | Box | Active | 24VDC | Round - 133mm Dia | 91.00mm | 225.0 CFM (6.30m³/min) | 1.590 in H2O (396.1 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 28.8 W | 4150 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

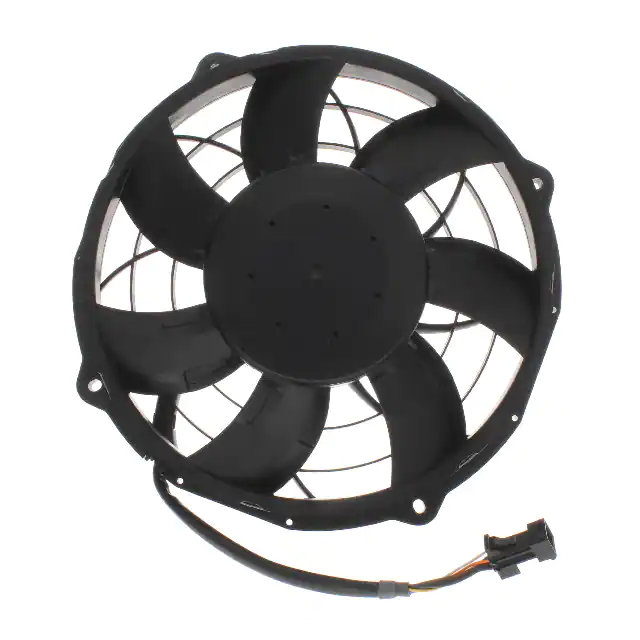

W3G300-BV12-41FAN AXIAL 340X76.5MM 13VDC RECT |
0 |
|
Технический лист |
W2G300 | Bulk | Active | 13VDC | Round - 340mm Dia | 76.50mm | 942.4 CFM (26.39m³/min) | - | Ball | Tubeaxial | - | 75.0dB(A) | 220 W | 3200 RPM | 6 Position Rectangular Connector | - | -40 ~ 185°F (-40 ~ 85°C) | EAC | - |
|
|
K3G097-AP46-01FAN BLOWER CF 139.5X351MM 26VDC |
0 |
|
Технический лист |
K3G097AP | Bulk | Active | 26VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 351.0mm | 294.5 CFM (8.25m³/min) | 2.377 in H2O (592.0 Pa) | Ball | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 70.0dB(A) | 320 W | 3500 RPM | 4 Position Rectangular Connector | - | - | EAC | - |
|
CFM-4010C-165-251FAN AXIAL 40X10.5MM 12VDC WIRE |
5 |
|
Технический лист |
CFM-40C | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 25.1dB(A) | 720 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

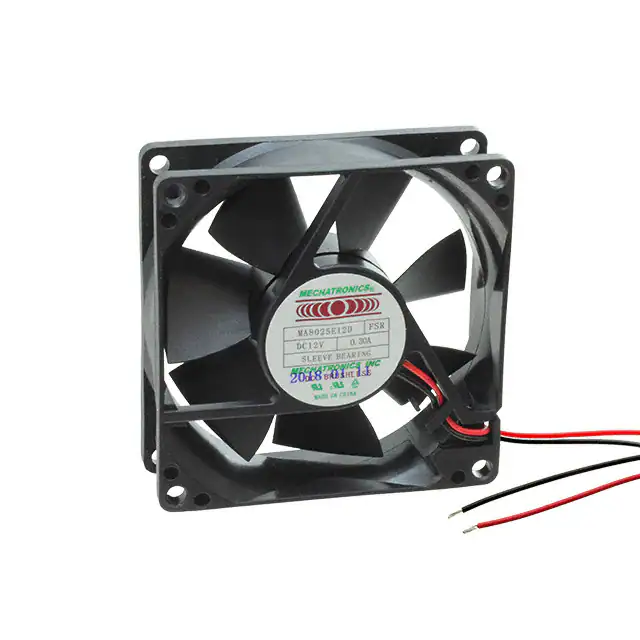

MA8025E12D-FSRFAN 80X25MM SLEEVE 12VDC WIRE |
25 |
|
Технический лист |
MA8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Sleeve | - | - | - | - | - | 2 Wire Leads | - | - | cUL, UL | - |
|
MF50151V1-1000U-G99FAN AXIAL 50X15MM 12VDC WIRE |
0 |
|
Технический лист |
MagLev® MF | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 870 mW | 6100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.073 lb (33.11 g) |
|
CFM-4010V-170-273-20FAN AXIAL 40X10MM 12VDC WIRE |
0 |
|
Технический лист |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.3dB(A) | 710 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.034 lb (15.42 g) |
|
CFM-4020CF-235-114FAN AXIAL 40X20MM 24VDC WIRE |
15 |
|
Технический лист |
CFM-40CF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 4.4 CFM (0.123m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 11.4dB(A) | 960 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020CF-095-342FAN AXIAL 40X20MM 5VDC WIRE |
21 |
|
Технический лист |
CFM-40CF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 34.2dB(A) | 2.35 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
