Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G9225E24B6-FSR-EM-L20FAN AXIAL 92X25MM 24VDC WIRE |
57 |
|
Технический лист |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 58.0 CFM (1.62m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | PWM Control, Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.218 lb (98.88 g) |
|
OD9238-12HHBXC10AFAN AXIAL 92X38MM 12VDC WIRE |
44 |
|
Технический лист |
OD9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.3dB(A) | 18.2 W | 8000 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
06038DA-12S-ECF-0FAN AXIAL 60X38MM 12VDC WIRE |
67 |
|
- |
06038DA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
MS6038M48B-FSR-2EMFAN AXIAL 60X38MM 48VDC WIRE |
100 |
|
Технический лист |
MS6038-S | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 44.0 CFM (1.23m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Auto Restart | 54.0dB(A) | - | 8000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.231 lb (104.78 g) |
|
NYW06025048BSS-W-6FAN AXIAL 60X25MM 48VDC WIRE |
20 |
|
Технический лист |
NYW06025-W | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 32.7 CFM (0.916m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 3.84 W | 6800 RPM | 2 Wire Leads | - | - | - | - |
|
1-NPT/603-1078FAN AXL 120X38MM 12VDC RECT CONN |
8 |
|
Технический лист |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 3200 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
9RA0648G40011FAN AXIAL 60X25MM 48VDC WIRE |
65 |
|
Технический лист |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 2.88 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
EYW08038012BL-EAK-1280X38MM 12V BALL 7000RPM W/PWM, |
36 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UB3C3-500BFAN BLOWER 12X3MM VAPO 3VDC WIRE |
21 |
|
Технический лист |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.094 CFM (0.003m³/min) | 0.092 in H2O (23.0 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 26.0dB(A) | 100 mW | 15500 RPM | 3 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
UB3C3-500FAN BLOWER 12X3MM VAPO 3VDC WIRE |
85 |
|
Технический лист |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.094 CFM (0.003m³/min) | 0.092 in H2O (23.0 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 26.0dB(A) | 100 mW | 15500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
|
MXB9733H24B-BSR-PCFAN BLOWER 97X33MM 24VDC WIRE |
50 |
|
Технический лист |
MXB9733 | Bulk | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.4mm H | 33.00mm | 28.5 CFM (0.798m³/min) | 1.060 in H2O (264.0 Pa) | Ball | Blower | Parylene Coating, Thermal Overload Protector (TOP) | 55.0dB(A) | - | 3300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.397 lb (180.08 g) |
|
MR1238M24B-FSRFAN AXIAL 120X38MM 24VDC WIRE |
40 |
|
Технический лист |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 210.0 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Tubeaxial | Auto Restart | 61.7dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|

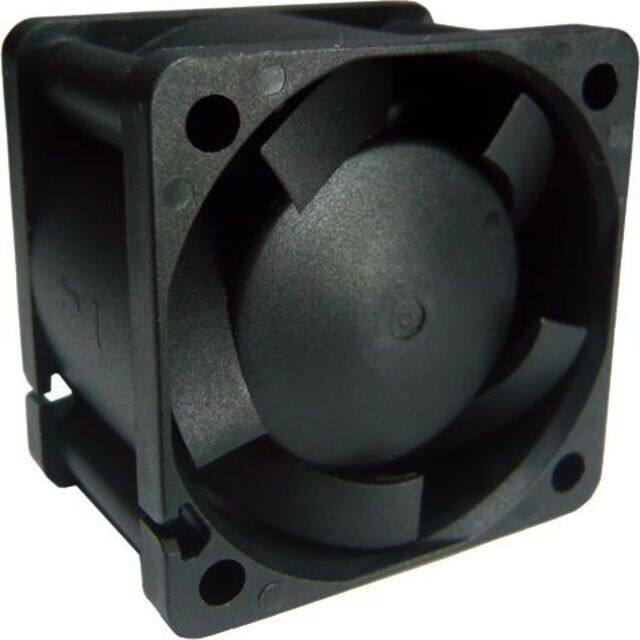

XYW03828012BU-12FAN AXIAL 38X28MM 12VDC WIRE |
20 |
|
Технический лист |
XYW03828 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|

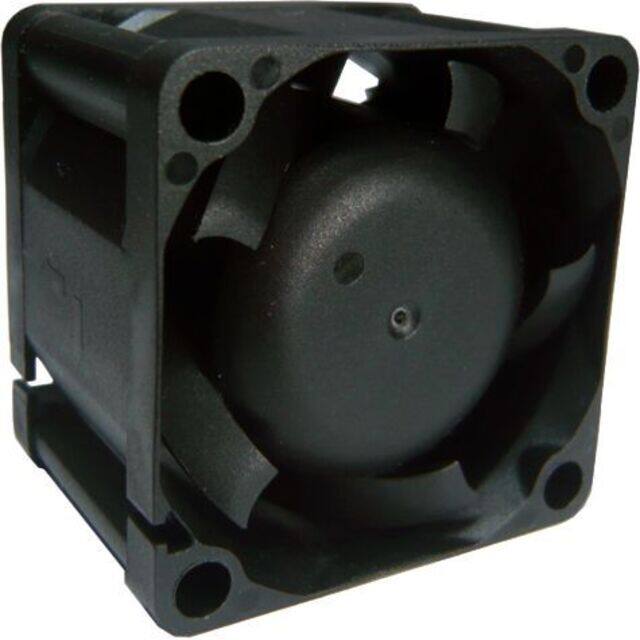

XYW03628012BSS-12FAN AXIAL 36X28MM 12VDC WIRE |
20 |
|
Технический лист |
XYW03628 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 25.0 CFM (0.700m³/min) | 2.600 in H2O (647.7 Pa) | Ball | Tubeaxial | - | 63.0dB(A) | 12 W | 23000 RPM | 2 Wire Leads | - | - | - | - |
|
XYW04028012BSS-E-12FAN AXIAL 40X28MM 12VDC WIRE |
20 |
|
Технический лист |
XYW04028-E | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 33.7 CFM (0.943m³/min) | 2.500 in H2O (622.7 Pa) | Ball | Tubeaxial | - | 61.0dB(A) | 21.6 W | 23500 RPM | 2 Wire Leads | - | - | - | - |
|
|
3414GFAN AXIAL 92X25.4MM 24VDC WIRE |
0 |
|
Технический лист |
3400 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 49.0 CFM (1.37m³/min) | - | Sleeve | Tubeaxial | - | 36.0dB(A) | 2.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
_Series.jpg)
|
3412NGLFAN AXIAL 92X25.4MM 12VDC WIRE |
0 |
|
Технический лист |
3400N | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 36.0 CFM (1.01m³/min) | - | Sintec | Tubeaxial | - | 23.0dB(A) | 1.2 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.31 lb (140.61 g) |
|
|
MS6038H48B-FSR-2EMFAN AXIAL 60X38MM 48VDC WIRE |
8 |
|
Технический лист |
MS6038-S | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 58.0 CFM (1.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart | 59.0dB(A) | - | 11000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.231 lb (104.78 g) |
|

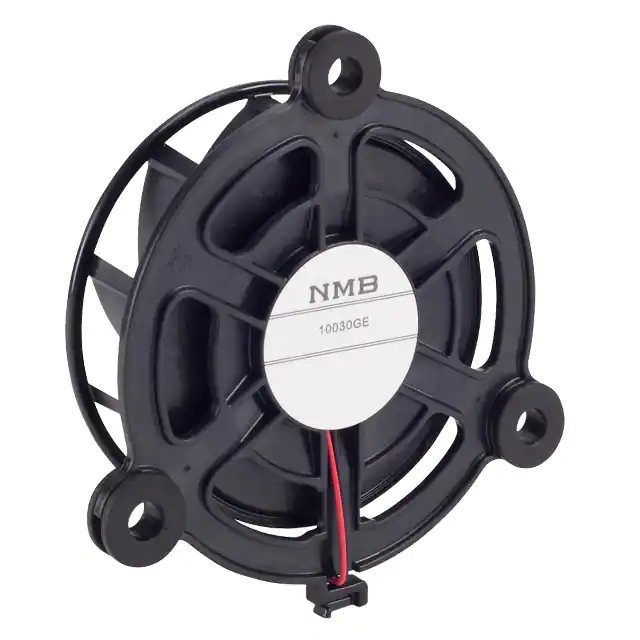

10030GE-12N-YA-F0FAN AXIAL 100X30MM 12VDC WIRE |
90 |
|
Технический лист |
10030GE | Bulk | Active | 12VDC | Round - 100mm Dia | 30.00mm | 37.1 CFM (1.04m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart | 35.5dB | 1.8 W | 2500 RPM | 2 Wire Leads | - | -40 ~ 104°F (-40 ~ 40°C) | - | - |
|

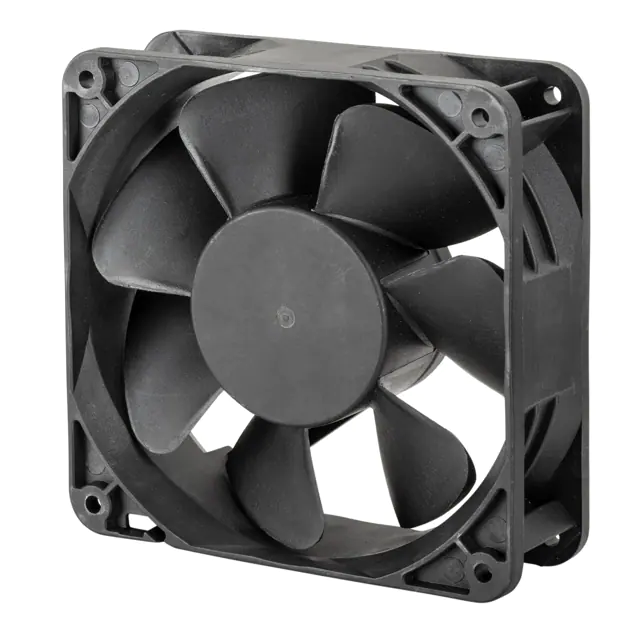

R1238L12BPLB2AFAN AXIAL 120X38MM 12VDC WIRE |
27 |
|
Технический лист |
Intelligent Motion | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 104.4 CFM (2.96m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 39.8dB(A) | 3.6 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
