Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9RA1224H10021120X38MM 24VDC RBLS |
42 |
|
Технический лист |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
9G0624P4H0011FAN AXIAL 60X25MM 24VDC WIRE |
77 |
|
Технический лист |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 6 W | 9500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9GA0924H4D0192X25MM 24V,HIGH PERF., LOW POWE |
54 |
|
Технический лист |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA1212H1D001120X38MM 12VDC LCKRTRSNS |
42 |
|
Технический лист |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA1224H1D001120X38MM 24VDC LCKRTRSNS |
42 |
|
Технический лист |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
OD1225-12HBVXE10ADC FAN - 12V 120 X 120 X 25MM - |
89 |
|
Технический лист |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 158.7 CFM (4.49m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.3dB(A) | 16.8 W | 4000 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, UR | - |
|
|
OD1225-24HBVXE10ADC FAN - 24V 120 X 120 X 25MM - |
62 |
|
Технический лист |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 158.7 CFM (4.49m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.3dB(A) | 20.4 W | 4000 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, UR | - |
|
|
9WP0848S4011FAN AXIAL 80X25MM 48VDC WIRE |
27 |
|
Технический лист |
San Ace 80W | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB(A) | 2.88 W | 3400 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9BMB24P2H01FAN BLOWER 97.1X33MM 24VDC WIRE |
19 |
|
Технический лист |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 13.2 W | 4850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9BMB12P2S01FAN BLOWER 97.1X33MM 12VDC WIRE |
16 |
|
Технический лист |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 43.1 CFM (1.21m³/min) | 2.450 in H2O (610.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 16.8 W | 5250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9G1248H1021FAN AXIAL 120X38MM 48VDC WIRE |
34 |
|
Технический лист |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
CFM-9238BF-2110-663-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
45 |
|
Технический лист |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 151.0 CFM (4.23m³/min) | 2.900 in H2O (722.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.3dB(A) | 33.36 W | 11000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

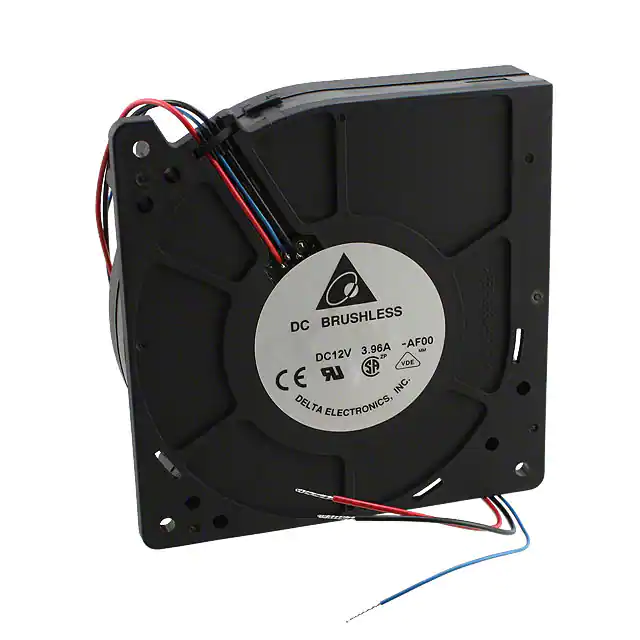

BFB1212GH-AF00FAN BLOWER 120X32MM 12VDC WIRE |
84 |
|
Технический лист |
BFB | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 4.094 in H2O (1019.8 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 39.6 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|
9G1224E1D01FAN AXIAL 119X38MM 24VDC WIRE |
17 |
|
Технический лист |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 8.16 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9RA1224G1002120X38MM 24VDC |
32 |
|
Технический лист |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9WG1212E102-EFAN AXIAL 120X38MM 12VDC WIRE |
42 |
|
Технический лист |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 7.32 W | 3100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9RA0924H1001FAN AXIAL 92X38MM 24VDC TACH |
56 |
|
Технический лист |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 83.4 CFM (2.36m³/min) | 0.409 in H2O (102.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 6.2 W | 4650 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0924G1001FAN AXIAL 92X38MM 24VDC TACH |
56 |
|
Технический лист |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.634 in H2O (157.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 11.5 W | 5800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0912H1001FAN AXIAL 92X38MM 12VDC TACH |
55 |
|
Технический лист |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 83.4 CFM (2.36m³/min) | 0.409 in H2O (102.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 6.2 W | 4650 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1224E1D001120X38MM 24VDC LCKRTRSNS |
42 |
|
Технический лист |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
