Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG1412M5002FAN AXIAL 140X51MM 12VDC WIRE |
12 |
|
Технический лист |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | - | 5.16 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|

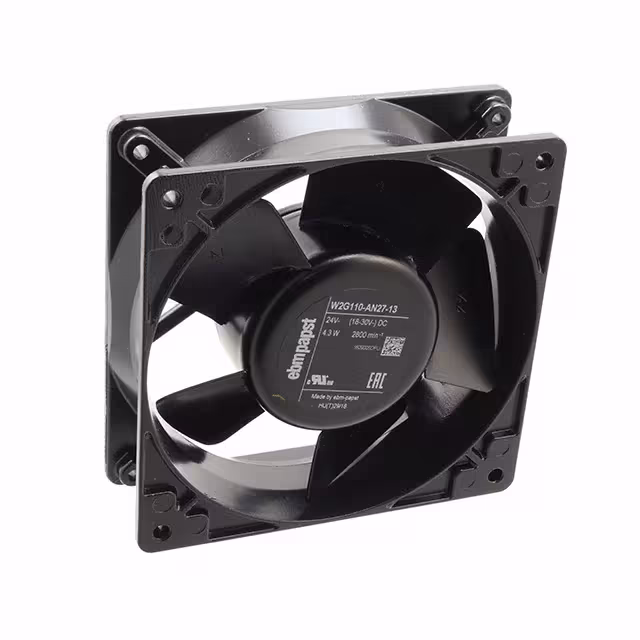

W2G110-AN27-13FAN AXIAL 119X38MM 24VDC TERM |
2 |
|
Технический лист |
W2G110 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Thermal Overload Protector (TOP) | - | 4.3 W | 2800 RPM | 2 Terminals | IP22 | -13 ~ 162°F (-25 ~ 72°C) | EAC, UL | - |
|
|
9LG1424M5001FAN AXIAL 140X51MM 24VDC WIRE |
2 |
|
Технический лист |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 5.52 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
FDD1-17251CBHW32FAN AXIAL 172X51MM 12VDC WIRE |
10 |
|
Технический лист |
HPLC, FDD1-17251 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 325.0 CFM (9.10m³/min) | 1.134 in H2O (282.5 Pa) | Ball | Tubeaxial | - | 64.0dB(A) | 44.8 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.3 lbs (1 kg) |
|
|
9LG1448A5002FAN AXIAL 140X51MM 48VDC WIRE |
19 |
|
Технический лист |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 243.7 CFM (6.82m³/min) | 2.170 in H2O (540.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | - | 31.7 W | 5700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9LG1448A5D001FAN AXIAL 140X51MM 48VDC WIRE |
23 |
|
Технический лист |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 243.7 CFM (6.82m³/min) | 2.170 in H2O (540.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | - | 31.7 W | 5700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9LG1448M5001FAN AXIAL 140X51MM 48VDC WIRE |
23 |
|
Технический лист |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 7.2 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9LG1448H5D001FAN AXIAL 140X51MM 48VDC WIRE |
12 |
|
Технический лист |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | - | 14.9 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|

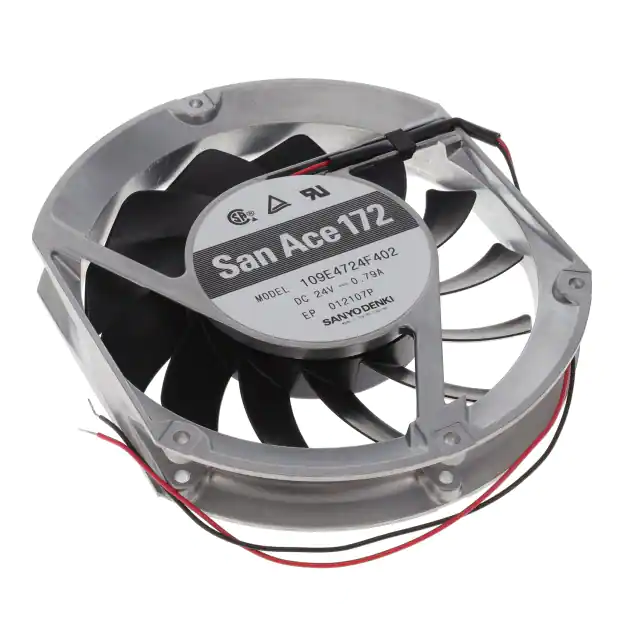

109E4724F402FAN AXIAL 172X25.4MM 24VDC WIRE |
21 |
|
Технический лист |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 204.0 CFM (5.71m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 19 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
7214N/17FAN AXIAL 150X55MM 24VDC WIRE |
6 |
|
Технический лист |
7200N | Bulk | Active | 24VDC | Round - 150mm Dia | 55.00mm | 212.0 CFM (5.94m³/min) | 0.642 in H2O (159.9 Pa) | Ball | Tubeaxial | - | 53.0dB(A) | 12 W | 3050 RPM | 3 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE, CSA, EAC, UL, VDE | - |
|
OD172SAP-48HHB10AFAN AXIAL 172X51MM 48VDC WIRE |
11 |
|
Технический лист |
OD172S | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.980 in H2O (244.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.0dB | - | 3900 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
9WL1448P5G001FAN AXIAL 140X51MM 48VDC WIRE |
14 |
|
Технический лист |
San Ace 140W | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 318.0 CFM (8.90m³/min) | 2.630 in H2O (655.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 62 W | 7500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
TCA1748BT-00P8FAN IMP MTRZD 176.5X69MM 48VDC |
11 |
|
Технический лист |
TCA | Box | Active | 48VDC | Round - 176.5mm Dia | 69.00mm | 540.0 CFM (15.12m³/min) | 3.799 in H2O (946.3 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 134.4 W | 5400 RPM | 4 Wire Leads | - | -13 ~ 167°F (-25 ~ 75°C) | CE, cURus, TUV | - |
|
|
109E5724K502FAN AXIAL 172X51MM 24VDC WIRE |
12 |
|
Технический лист |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 60.0dB(A) | 31.2 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
9LG1424L1002FAN AXIAL 140X38MM 24VDC WIRE |
14 |
|
Технический лист |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | - | 4.1 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.5 lbs (680.4 g) |
|
|
9LG1424M1D001FAN AXIAL 140X38MM 24VDC WIRE |
15 |
|
Технический лист |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 7.2 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.5 lbs (680.4 g) |
|
|
9LG1424L1001FAN AXIAL 140X38MM 24VDC WIRE |
13 |
|
Технический лист |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 4.1 W | 2300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.5 lbs (680.4 g) |
|
|
9LG1448P1A001FAN AXIAL 140X38MM 48VDC WIRE |
14 |
|
Технический лист |
San Ace 140L | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 282.0 CFM (7.90m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 44.16 W | 6900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.4 lbs (650.0 g) |
|
|
9LG1412H5002FAN AXIAL 140X51MM 12VDC WIRE |
13 |
|
Технический лист |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | - | 12 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|
|
9LG1412H5D001FAN AXIAL 140X51MM 12VDC WIRE |
12 |
|
Технический лист |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | - | 12 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
