Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1238M24B3-FSR-AB1FAN AXIAL 119X38MM 24VDC WIRE |
7 |
|
Технический лист |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 105.0 CFM (2.94m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Thermistor | 38.0dB(A) | - | 2300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
B1232H24B1-BSR-E-TTL-CC-IM4FAN BLOWER 120X32MM 24VDC WIRE |
41 |
|
Технический лист |
B1232 | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Blower | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.706 lb (320.24 g) |
|

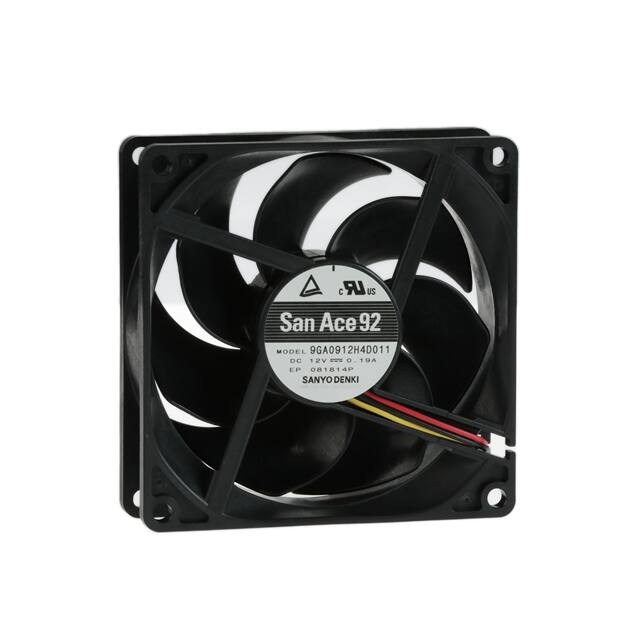

9GA0912H4D011FAN AXIAL 92X25MM 12VDC WIRE |
55 |
|
Технический лист |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 2.28 W | - | 3 Wire Leads | - | - | - | - |
|
9RA1224A40011FAN AXIAL 120X25MM 24VDC WIRE |
52 |
|
Технический лист |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 101.2 CFM (2.83m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 3.84 W | 3500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9GA0824P4J013FAN AXL 80X25.2MM 24VDC RECT |
23 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | - | 7400 RPM | 4 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
9RA0912M40011FAN AXIAL 92X25MM 12VDC WIRE |
55 |
|
Технический лист |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.0dB(A) | 840 mW | 2450 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9WP0824H4D01FAN AXIAL 80X25MM 24VDC WIRE |
36 |
|
Технический лист |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB(A) | 1.68 W | 2900 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
_Series.jpg)
|
3412NGFAN AXIAL 92X25.4MM 12VDC WIRE |
0 |
|
Технический лист |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 49.4 CFM (1.38m³/min) | - | Sintec | Tubeaxial | - | 32.0dB(A) | 2.2 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
|
9RA0912F40011FAN AXIAL 92X25MM 12VDC WIRE |
59 |
|
Технический лист |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 43.1 CFM (1.21m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.2 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0912F4001FAN AXIAL 92X25MM 12VDC WIRE |
45 |
|
Технический лист |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 43.1 CFM (1.21m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.2 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0924G40011FAN AXIAL 92X25MM 24VDC WIRE |
36 |
|
Технический лист |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.12 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9G1212M402FAN AXIAL 119X25MM 12VDC WIRE |
54 |
|
Технический лист |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.124 in H2O (30.9 Pa) | Ball | Tubeaxial | - | 29.0dB(A) | 1.68 W | 1950 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
MS8038H12B1+6-FHRFAN AXIAL 80X38MM 12VDC WIRE |
81 |
|
Технический лист |
MS8038-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | - | 9000 RPM | 4 Wire Leads | - | - | - | 0.391 lb (177.35 g) |
|
|
9G1212F4D01FAN AXIAL 119X25MM 12VDC WIRE |
80 |
|
Технический лист |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 35.0dB(A) | 2.28 W | 2250 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1212H4011FAN AXIAL 119X25MM 12VDC WIRE |
42 |
|
Технический лист |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 40.0dB(A) | 3.72 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
12537JE-12P-BA-F0FAN AXIAL 125.4X37MM 12VDC WIRE |
57 |
|
Технический лист |
12537JE | Box | Active | 12VDC | Square - 125.4mm L x 125.4mm H | 37.00mm | 76.6 CFM (2.14m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart | 35.0dB | 1.69 W | 2550 RPM | 2 Wire Leads | - | -40 ~ 104°F (-40 ~ 40°C) | - | - |
|
9G1212E402FAN AXIAL 119X25MM 12VDC WIRE |
58 |
|
Технический лист |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 6.96 W | 3650 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1224G402FAN AXIAL 119X25MM 24VDC WIRE |
41 |
|
Технический лист |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 11.28 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.529 lb (240.00 g) |
|
612N/2GHFAN AXIAL 60X25.4MM 12VDC WIRE |
0 |
|
Технический лист |
600NG | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 25.3 CFM (0.708m³/min) | - | Sintec | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 2.4 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9GA0824A2D001FAN AXIAL 80X32MM 24VDC WIRE |
49 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 3.6 W | - | 3 Wire Leads | - | - | - | - |
