Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1224E1D011FAN AXIAL 119X38MM 24VDC WIRE |
17 |
|
Технический лист |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 8.16 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9GA0824A20021FAN AXIAL 80X32MM 24VDC WIRE |
49 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 3.6 W | - | 2 Wire Leads | - | - | - | - |
|
OD9238-48HBIP69KFAN AXIAL 92X38MM 48VDC WIRE |
53 |
|
Технический лист |
OD9238-IP69K | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | 12 W | 4500 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
ODB600-12LBFAN BLOWER 120.5X32MM 12VDC WIRE |
32 |
|
Технический лист |
ODB600PT | Box | Active | 12VDC | Square/Rounded - 120.5mm L x 120.5mm H | 32.00mm | 20.0 CFM (0.560m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Blower | - | 30.0dB | - | 1800 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus | - |
|
|
9GA0824A2002FAN AXIAL 80X32MM 24VDC WIRE |
78 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 3.6 W | - | 2 Wire Leads | - | - | - | - |
|
|
9GA0824B20021FAN AXIAL 80X32MM 24VDC WIRE |
41 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 1.92 W | - | 2 Wire Leads | - | - | - | - |
|
9GA0824B2D0011FAN AXIAL 80X32MM 24VDC WIRE |
63 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 1.92 W | - | 3 Wire Leads | - | - | - | - |
|
|
9GA0824A20011FAN AXIAL 80X32MM 24VDC WIRE |
51 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 3.6 W | - | 3 Wire Leads | - | - | - | - |
|
08038RE-12R-GT-00FAN AXIAL 80X38MM 12VDC WIRE |
77 |
|
Технический лист |
08038RE | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.5dB(A) | 21 W | 7500 RPM | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|

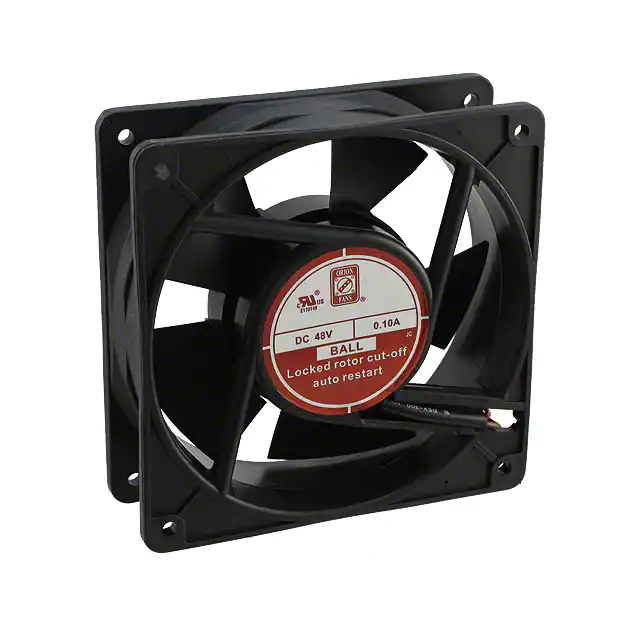

OD1238-48HTBFAN AXIAL 120X38MM 48VDC TERM |
19 |
|
Технический лист |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 42.0dB | 4.8 W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|

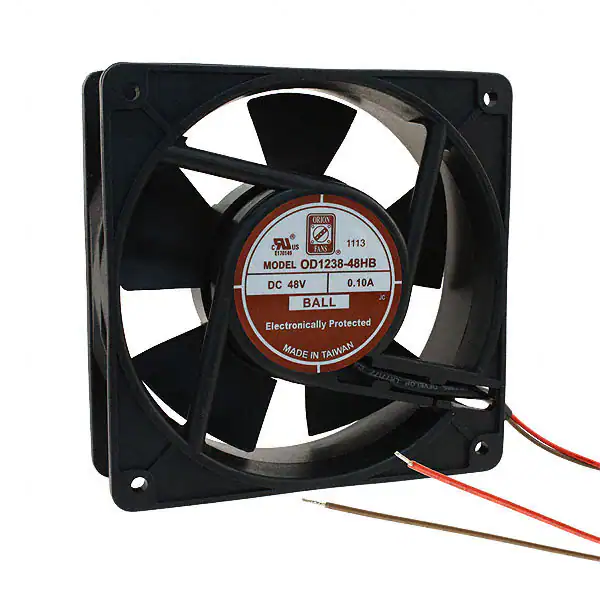

OD1238-48HBFAN AXIAL 120X38MM 48VDC WIRE |
8 |
|
Технический лист |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.1dB(A) | 14 W | 2895 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.572 lb (259.45 g) |
|
252/2NFAN AXIAL 25X8MM 12VDC WIRE |
75 |
|
Технический лист |
250 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 8.00mm | 1.9 CFM (0.053m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 15.0dB(A) | 500 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

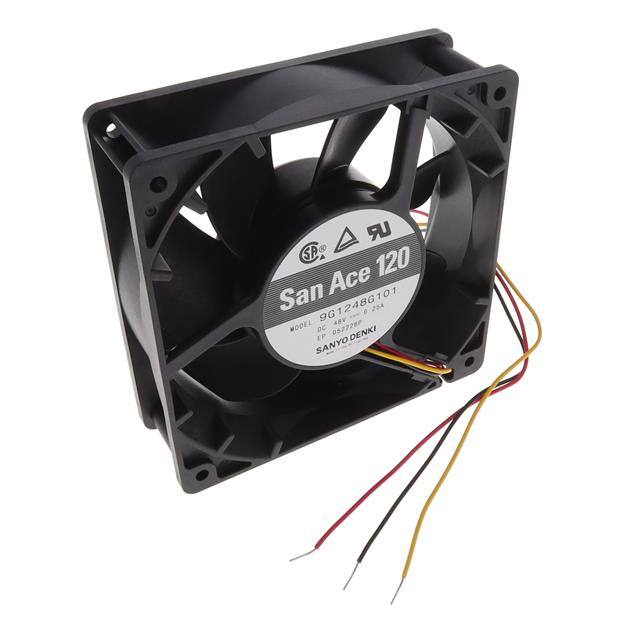

9G1248G101FAN AXIAL 119X38MM 48VDC WIRE |
37 |
|
Технический лист |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9G1248E101FAN AXIAL 119X38MM 48VDC WIRE |
19 |
|
Технический лист |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 8.16 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9RA0812P1K001FAN AXIAL 80X38MM 12VDC WIRE |
51 |
|
Технический лист |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 104.5 CFM (2.96m³/min) | 1.230 in H2O (306.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 18.24 W | 8250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9GA0824P1H611FAN AXIAL 80X38MM 24VDC WIRE |
15 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 79.5 CFM (2.23m³/min) | 1.528 in H2O (380.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 7.2 W | 8250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|
|
9RA0948P4G0011FAN AXIAL 92X25MM 48VDC WIRE |
34 |
|
Технический лист |
San Ace 92 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 3.36 W | 4200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0948P4G001FAN AXIAL 92X25MM 48VDC WIRE |
18 |
|
Технический лист |
San Ace 92 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 3.36 W | 4200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9CRA0412P4J03FAN AXIAL DUAL 40X48MM 12VDC |
67 |
|
Технический лист |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 30.0 CFM (0.840m³/min) | 2.250 in H2O (560.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 14.4 W | 16200 Front, 10800 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|

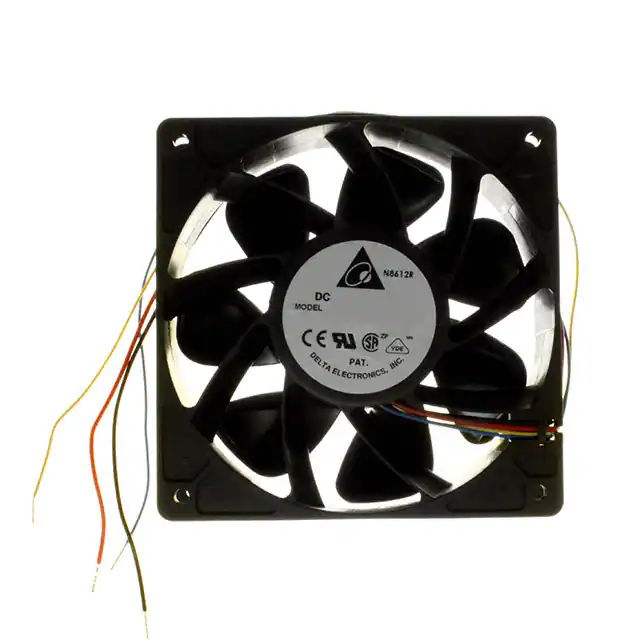

QFR1212EHEFAN AXIAL 120X38MM 12VDC WIRE |
59 |
|
Технический лист |
QFR | Box | Not For New Designs | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 173.8 CFM (4.87m³/min) | 0.844 in H2O (210.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 12 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
