Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

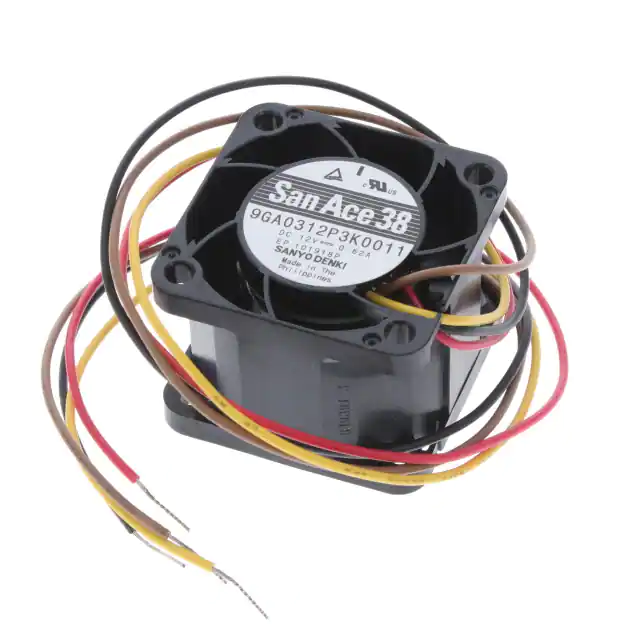

9GA0312P3K0011FAN AXIAL 38X28MM 12VDC WIRE |
63 |
|
Технический лист |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 21.2 CFM (0.594m³/min) | 3.210 in H2O (800.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 7.4 W | 25000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
9GA0624P7G01FAN AXIAL 60X15MM 24VDC WIRE |
52 |
|
Технический лист |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 1.92 W | 5900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL | 0.111 lb (50.35 g) |
|
109R0648J401FAN AXIAL 60X25MM 48VDC WIRE |
58 |
|
Технический лист |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 5.76 W | 7600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
9A0812G4D011FAN AXIAL 80X25MM 12VDC WIRE |
64 |
|
Технический лист |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 4.56 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
MR9238H48B-FSRFAN AXIAL 92X38MM 48VDC WIRE |
100 |
|
Технический лист |
MR9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 152.0 CFM (4.26m³/min) | 1.182 in H2O (294.4 Pa) | Ball | Tubeaxial | Auto Restart | 58.8dB(A) | - | 7000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
9RA0612P4J001FAN AXIAL 60X25MM 12VDC WIRE |
83 |
|
Технический лист |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.0dB(A) | 4.2 W | 7700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
.jpg)
|
9GA0612P6G001FAN AXIAL 60X20MM 12VDC WIRE |
76 |
|
Технический лист |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 31.1 CFM (0.871m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.12 W | 6850 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.154 lb (69.85 g) |
|

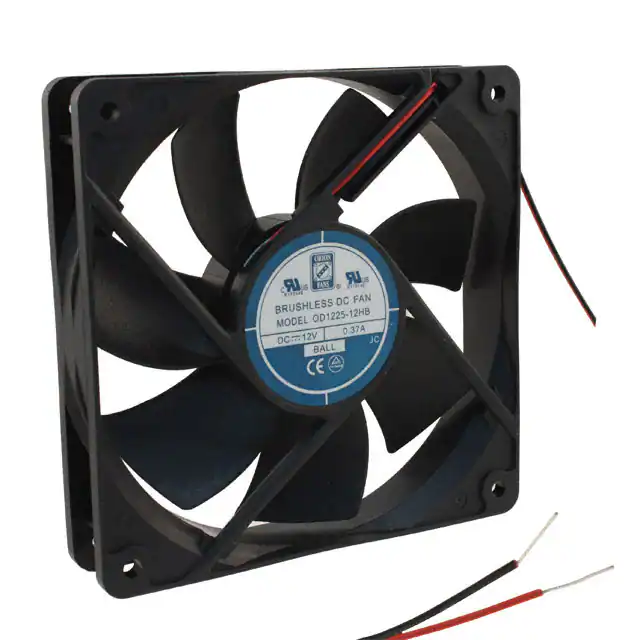

OD1225-12HBFAN AXIAL 120X25MM 12VDC WIRE |
37 |
|
Технический лист |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB(A) | 5.4 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
G1225H24B1+6-FSRFAN AXIAL 120X25MM 24VDC WIRE |
10 |
|
Технический лист |
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 87.0 CFM (2.44m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.0dB(A) | - | 2400 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
9G0912H101FAN AXIAL 92X38MM 12VDC WIRE |
64 |
|
Технический лист |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 6.96 W | 4000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
9GAX0412P3S003FAN AXIAL 40X28MM 12VDC WIRE |
13 |
|
Технический лист |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.8 CFM (0.890m³/min) | 4.017 in H2O (1000.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 15.6 W | 25000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|
9WP0624H4011FAN AXIAL 60X25MM 24VDC WIRE |
69 |
|
Технический лист |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.44 W | 3800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
G1238E24B1+6-FSR-WSFAN AXIAL 120X38MM 24VDC WIRE |
53 |
|
Технический лист |
G1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Alarm Sensor, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
G1238L24B1-FSR-EMFAN AXIAL 120X38MM 24VDC WIRE |
22 |
|
Технический лист |
G1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 107.0 CFM (3.00m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.0dB(A) | - | 2400 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
|
9G0624S4002FAN AXIAL 60X25MM 24VDC WIRE |
72 |
|
Технический лист |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 8.16 W | 11000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
PFB0624EHE-F00FAN AXIAL 60X38MM 24VDC WIRE |
38 |
|
Технический лист |
PFB | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 50.4 CFM (1.41m³/min) | 1.203 in H2O (299.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 8.64 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|
8412NLEFAN AXIAL 80X25.4MM 12VDC WIRE |
14 |
|
Технический лист |
8400N | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 19.4 CFM (0.543m³/min) | - | Ball | Tubeaxial | - | 17.0dB(A) | 300 mW | 1500 RPM | 2 Wire Leads | - | -4 ~ 185°F (-20 ~ 85°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
GF80251B1-000U-SC9FAN AXIAL 80X25MM 12VDC WIRE |
49 |
|
Технический лист |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 47.5dB(A) | 3.96 W | 4800 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.231 lb (104.78 g) |
|
9G0824G102FAN AXIAL 80X38MM 24VDC WIRE |
100 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 13.4 W | 6300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
MS9238H24B1+6-FHR-2EMFAN AXIAL 92X38MM 24VDC WIRE |
27 |
|
Технический лист |
MS9238-H | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 166.7 CFM (4.67m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | - | 8000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.446 lb (202.3 g) |
