Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

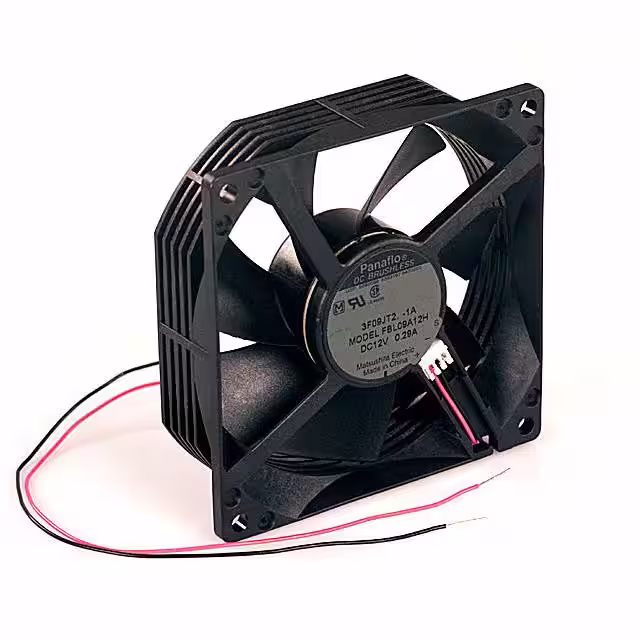

FBL09A12H1AFAN AXIAL 92X25.5MM 12VDC WIRE |
3,560 |
|
Технический лист |
FBL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.0dB | 2.7 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
EE45100S1-000U-999FAN AXIAL 45X10MM 5VDC WIRE |
518 |
|
Технический лист |
EE | Bulk | Obsolete | 5VDC | Square - 45mm L x 45mm H | 10.00mm | 11.0 CFM (0.308m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | - | 32.0dB(A) | 1.3 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.036 lb (16.33 g) |
|
CFM-7020V-126-260-20FAN AXIAL 70X20MM 12VDC WIRE |
183 |
|
Технический лист |
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 23.5 CFM (0.658m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.0dB(A) | 1.07 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.132 lb (59.87 g) |
|
|
CFM-7020V-129-300-20FAN AXIAL 70X20MM 12VDC WIRE |
159 |
|
Технический лист |
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 27.0 CFM (0.756m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.37 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.132 lb (59.87 g) |
|
CFM-8015V-127-320FAN AXIAL 80X15MM 12VDC WIRE |
233 |
|
Технический лист |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 32.0dB(A) | 1.79 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
|
AUB0812M-AFAN AXIAL 80X25.4MM 12VDC |
464 |
|
- |
AUB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 35.3 CFM (0.988m³/min) | 0.146 in H2O (36.4 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.8 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.195 lb (88.45 g) |
|
|
CFM-8020V-126-300-20FAN AXIAL 80X20MM 12VDC WIRE |
187 |
|
Технический лист |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 29.0 CFM (0.812m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.04 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.145 lb (65.77 g) |
|
|
CFM-8020V-133-380-20FAN AXIAL 80X20MM 12VDC WIRE |
133 |
|
Технический лист |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 36.0 CFM (1.01m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.0dB(A) | 1.8 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.145 lb (65.77 g) |
|
|
YW04010012BH40X10MM 12V BALL, 6500RPM, 2 WIR |
446 |
|
- |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.6 CFM (0.185m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 29.0dB(A) | 0.9 W | 6500 RPM | 2 Wire Leads | - | - | CE, cURus, TUV | - |
|
|
CFM-8020V-226-300FAN AXIAL 80X20MM 24VDC WIRE |
102 |
|
Технический лист |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 29.0 CFM (0.812m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 30.0dB(A) | 1.18 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.145 lb (65.77 g) |
|
|
CFM-8015V-130-347-20FAN AXIAL 80X15MM 12VDC WIRE |
205 |
|
Технический лист |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.1 CFM (1.04m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.7dB(A) | 2.26 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
|
|
5117HQ/MF40100V1-1000U-G99MF40100V1-1000U-G99 W/CONN |
195 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NYW09225012BH-6FAN AXIAL 92X25MM 12VDC WIRE |
467 |
|
Технический лист |
NYW | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Auto Restart | 40.0dB(A) | 3.12 W | 3100 RPM | 2 Wire Leads | - | - | - | - |
|
|
CFM-8020V-230-350-20FAN AXIAL 80X20MM 24VDC WIRE |
188 |
|
Технический лист |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 33.1 CFM (0.927m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB(A) | 1.42 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.145 lb (65.77 g) |
|
|
CFM-8020V-226-300-20FAN AXIAL 80X20MM 24VDC WIRE |
186 |
|
Технический лист |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 29.0 CFM (0.812m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.18 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.145 lb (65.77 g) |
|
|
CFM-8020V-233-380-20FAN AXIAL 80X20MM 24VDC WIRE |
162 |
|
Технический лист |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 36.0 CFM (1.01m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.0dB(A) | 1.78 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.145 lb (65.77 g) |
|
|
AUB0812L-AFAN AXIAL 80X25.4MM 12VDC |
166 |
|
- |
AUB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 31.1 CFM (0.871m³/min) | 0.118 in H2O (29.4 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.32 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.195 lb (88.45 g) |
|

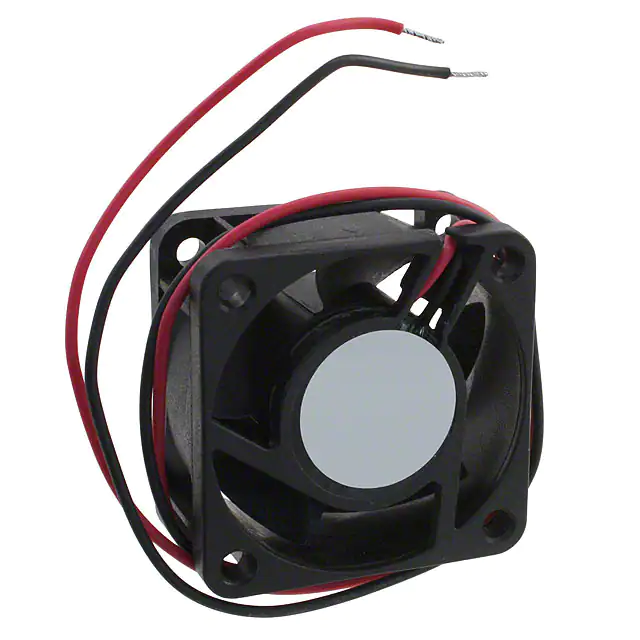

19032620AFAN AXIAL 40X20MM CR0405LB-C50 |
154 |
|
Технический лист |
Flight LT 40 | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.5 CFM (0.210m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 22.4dB(A) | 700 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUR, TUV, UR | 0.075 lb (34.02 g) |
|

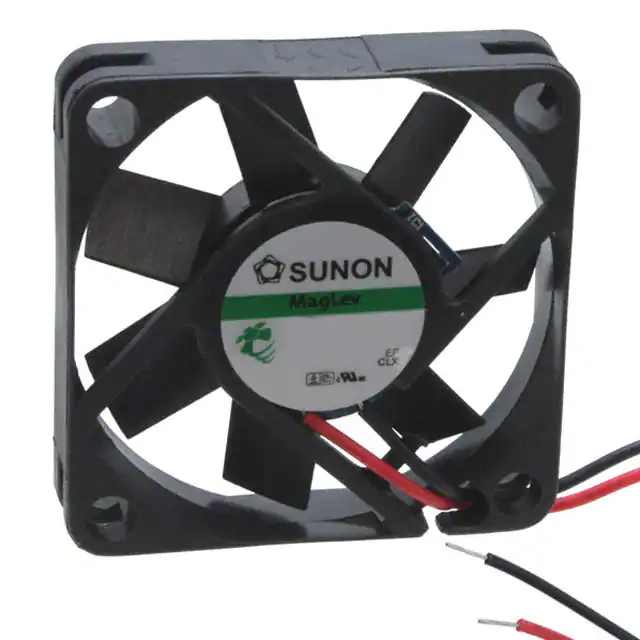

ME45101V1-000U-A99FAN AXIAL 45X10MM 12VDC WIRE |
715 |
|
Технический лист |
MagLev® ME | Tray | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 11.8 CFM (0.330m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.5dB(A) | 1.32 W | 6500 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.035 lb (15.88 g) |
|
|
ME80201V3-000U-A99FAN AXIAL 80X20MM 12VDC WIRE |
3,411 |
|
Технический лист |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 29.0 CFM (0.812m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.0dB(A) | 890 mW | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.146 lb (66.22 g) |
