Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0601012U2B-BT0FAN AXIAL 60X10.5MM 12VDC WIRE |
651 |
|
Технический лист |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.4 W | 4900 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.089 lb (40.37 g) |
|
DC0501512U2B-BT0FAN AXIAL 50X15MM 12VDC WIRE |
588 |
|
Технический лист |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.084 lb (38.1 g) |
|

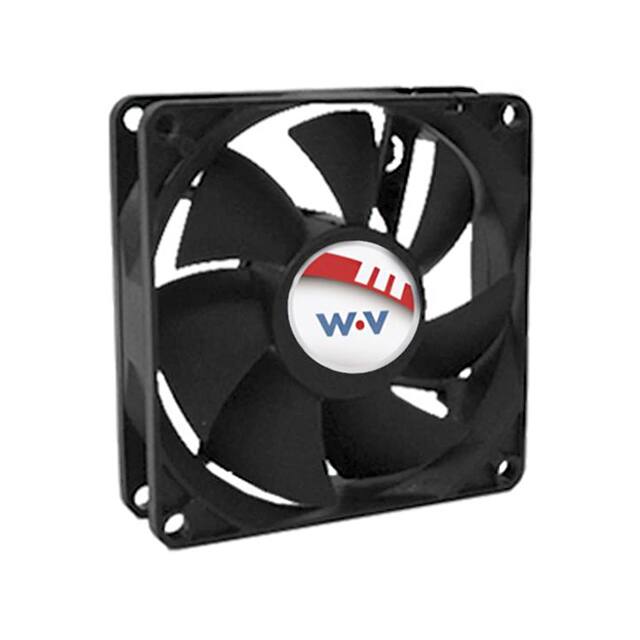

DC0602012U2B-BT0FAN AXIAL 60X20MM 12VDC WIRE |
578 |
|
Технический лист |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.6 CFM (0.549m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.0dB(A) | 2.04 W | 4800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.111 lb (50.35 g) |
|
|
CBM-7525B-245-494-20DC BLOWER, 75.2 X 74.2 X 25 MM, |
185 |
|
Технический лист |
CBM-75B-2 | Box | Active | 24VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 13.4 CFM (0.375m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 49.4dB(A) | 6.96 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109R0824G4D011FAN AXIAL 80X25MM 24VDC WIRE |
308 |
|
Технический лист |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 4.8 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
DC0801512U2B-BT0FAN AXIAL 80X15MM 12VDC WIRE |
533 |
|
Технический лист |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 45.2 CFM (1.27m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.6 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.121 lb (54.88 g) |
|
|
CFM-6025BG-270-434DC AXIAL FAN, 60 MM SQUARE, 25 M |
171 |
|
Технический лист |
CFM-60BG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 29.8 CFM (0.834m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 43.4dB(A) | 6 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0802012U2B-BT0FAN AXIAL 80X20MM 12VDC WIRE |
286 |
|
Технический лист |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 51.2 CFM (1.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.6 W | 4300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.171 lb (77.56 g) |
|
AFB0812MFAN AXIAL 80X25.4MM 12VDC WIRE |
135 |
|
Технический лист |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 31.4 CFM (0.879m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
DC0602524M2B-2T0FAN 60X25MM 24VDC |
599 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 3.6 W | 4250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
AFB0724LBFAN AXIAL 70X15MM 24VDC WIRE |
222 |
|
Технический лист |
AFB | Box | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 23.4 CFM (0.655m³/min) | 0.089 in H2O (22.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.5dB(A) | 1.44 W | 2800 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
AFB0824LBFAN AXIAL 80X15MM 24VDC WIRE |
167 |
|
Технический лист |
AFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 24.7 CFM (0.692m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.5dB(A) | 1.2 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
AFB0824SHBFAN AXIAL 80X15MM 24VDC WIRE |
104 |
|
Технический лист |
AFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 42.7 CFM (1.20m³/min) | 0.216 in H2O (53.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.5dB(A) | 4.08 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
|
CFM-A225BG-130-431-20DC AXIAL FAN, 120 MM SQUARE, 25 |
205 |
|
Технический лист |
CFM-A2BG | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 104.5 CFM (2.96m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.9dB(A) | 6.72 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0922512L2B-3T0FAN AXIAL 92X25MM 12VDC WIRE |
498 |
|
Технический лист |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 44.8 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.32 W | 2450 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
|
DC0602024U2B-BT0FAN 60X20MM 24VDC PWM/TACH |
591 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 19.6 CFM (0.549m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.0dB(A) | 3.46 W | 4800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601524U2B-BT0FAN 60X15MM 24VDC PWM/TACH |
589 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 26.5 CFM (0.742m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 6.24 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0701524H2B-BT0FAN 70X15MM 24VDC PWM/TACH |
584 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 33.5 CFM (0.938m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 6 W | 4300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
BUB0712HJ-00BLOWER 70X25 12V TACH |
527 |
|
Технический лист |
BUB | Box | Active | 12VDC | Square/Rounded - 70mm L x 70mm H | 25.00mm | 14.1 CFM (0.395m³/min) | 1.200 in H2O (298.9 Pa) | Sleeve | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 45.5dB(A) | 5.04 W | 4650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0301012H2B-2T0FAN AXIAL 30X10.5MM 12VDC WIRE |
589 |
|
Технический лист |
- | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 4.5 CFM (0.126m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 840 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
