Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1212M401FAN AXIAL 119X25MM 12VDC WIRE |
105 |
|
Технический лист |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 1.68 W | 1950 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
UF3H3-500BFAN AXIAL 17X3MM VAPO 3VDC WIRE |
252 |
|
Технический лист |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.575 CFM (0.016m³/min) | 0.085 in H2O (21.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 100 mW | 13000 RPM | 3 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
9GA0612P1K031FAN AXIAL 60X38MM 12VDC WIRE |
106 |
|
Технический лист |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 53.0 CFM (1.48m³/min) | 2.410 in H2O (600.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 11.4 W | 14800 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
3412NGLEFAN AXIAL 92X25MM 12VDC WIRE |
143 |
|
Технический лист |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 35.9 CFM (1.01m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 1.1 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | CSA, UL, VDE | 0.222 lb (100.7 g) |
|
9GA0812B20021FAN AXIAL 80X32MM 12VDC WIRE |
128 |
|
Технический лист |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 1.56 W | - | 2 Wire Leads | - | - | - | - |
|
CFM-8038BF-1110-595FAN AXIAL 80X38MM 12VDC WIRE |
212 |
|
Технический лист |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 83.8 CFM (2.35m³/min) | 1.960 in H2O (488.2 Pa) | Ball | Tubeaxial | Auto Restart | 59.5dB(A) | 19.68 W | 11000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
(8020BF)(8038BF).jpg)
|
CFM-8038BF-1130-631-22FAN AXIAL 80X38MM 12VDC WIRE |
159 |
|
Технический лист |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 98.4 CFM (2.75m³/min) | 2.700 in H2O (672.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 63.2dB(A) | 30.24 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

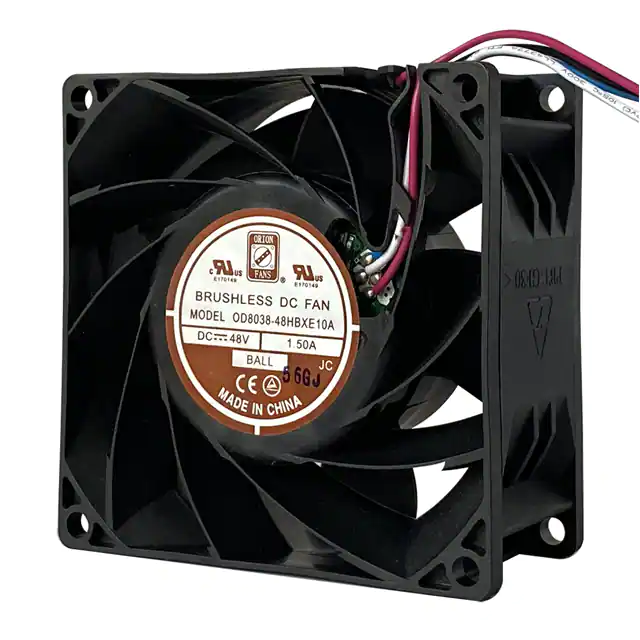

OD8038-48HBXE10AFAN AXIAL 80X38MM 48VDC WIRE |
259 |
|
Технический лист |
OD8038 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 141.2 CFM (3.95m³/min) | 3.900 in H2O (971.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 55 W | 13500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.483 lb (219.09 g) |
|
CFM-A225BF-158-597-20FAN AXIAL 120X25.4MM 12VDC WIRE |
223 |
|
Технический лист |
CFM-120 BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 185.5 CFM (5.19m³/min) | 0.980 in H2O (244.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.7dB(A) | 28.8 W | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225BF-258-597-20FAN AXIAL 120X25.4MM 24VDC WIRE |
204 |
|
Технический лист |
CFM-120 BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 185.5 CFM (5.19m³/min) | 0.980 in H2O (244.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.7dB(A) | 27.36 W | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
4412FMLFAN AXIAL 119X25.4MM 12VDC WIRE |
6 |
|
Технический лист |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 67.1 CFM (1.88m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 2 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.386 lb (175.09 g) |
|
|
CFM-8038BF-2130-631-22FAN AXIAL 80X38MM 24VDC WIRE |
214 |
|
Технический лист |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 98.4 CFM (2.75m³/min) | 2.700 in H2O (672.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 63.2dB(A) | 27.6 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
614N/39HH-110FAN AXIAL 60X25.4MM BALL 24VDC |
476 |
|
Технический лист |
600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | Alarm Sensor | 38.0dB(A) | 2.9 W | 6850 RPM | - | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.145 lb (65.77 g) |
|
9HV0412P3K009FAN AXL 40X28MM 12VDC RECT CONN |
126 |
|
Технический лист |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | - | 25000 RPM | 4 Position Rectangular Connector | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.133 lb (60.33 g) |
|
8318/2FAN AXIAL 80X32MM 48VDC WIRE |
130 |
|
Технический лист |
8300 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 32.00mm | 32.0 CFM (0.896m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 2.6 W | - | 3 Wire Leads | - | - | - | 0.38 lb (172.37 g) |
|
|
OD4056-12MB10AFAN AXIAL DUAL 40X56MM 12VDC |
196 |
|
Технический лист |
OD4056 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 32.0 CFM (0.896m³/min) | 3.300 in H2O (822.0 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Speed Sensor (Tach) | 72.5dB(A) | 19.2 W | 21000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
CFM-A225BF-253-577FAN AXIAL 120X25.4MM 24VDC WIRE |
128 |
|
Технический лист |
CFM-120 BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 169.5 CFM (4.75m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Auto Restart | 57.8dB(A) | 19.44 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD1238-24HBXEFAN AXIAL 120X38MM 24VDC WIRE |
243 |
|
Технический лист |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 238.8 CFM (6.69m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 62.1dB(A) | 46 W | 5175 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
BF.jpg)
|
CFM-A225BF-253-577-22FAN AXIAL 120X25.4MM 24VDC WIRE |
136 |
|
Технический лист |
CFM-120BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 169.5 CFM (4.75m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.8dB(A) | 19.44 W | 5300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
19031104AFAN BLOWER 80X32.4MM 24V WT24M3 |
131 |
|
Технический лист |
Whiffet | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.40mm | 8.7 CFM (0.244m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection | 36.0dB(A) | 1.4 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 0.369 lb (167.38 g) |
