Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

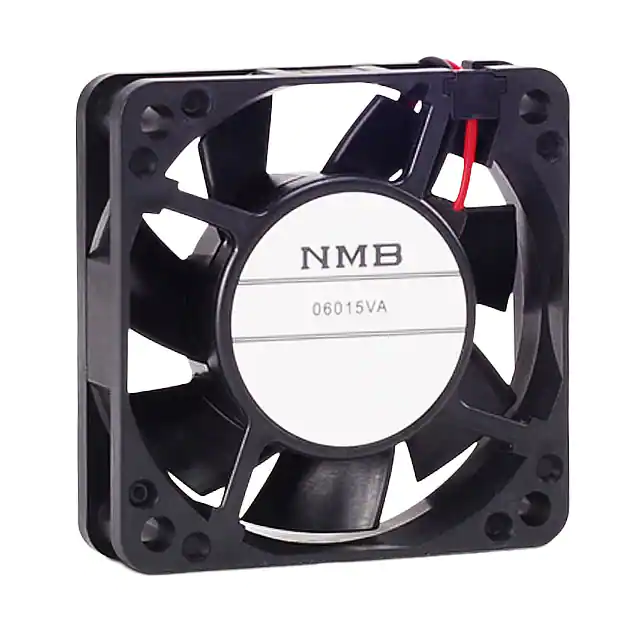

2406VL-04W-B40-B00FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 31.0dB | 1.32 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-04W-B49-B00FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB | 1.32 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-04W-B49-B50FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB | 1.32 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-04W-B50-B00FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.6 CFM (0.493m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | - | 33.5dB | 1.44 W | 5100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-04W-B59-B00FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.6 CFM (0.493m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.5dB | 1.44 W | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-04W-B59-B50FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.6 CFM (0.493m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.5dB | 1.44 W | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-04W-B60-B00FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | - | 36.5dB | 1.56 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-04W-B69-B00FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 36.5dB | 1.56 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-05W-B30-B00FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 14.5 CFM (0.406m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 28.5dB | 960 mW | 4100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-05W-B39-B00FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 14.5 CFM (0.406m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.5dB | 960 mW | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-05W-B40-B00FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 31.0dB | 1.2 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-05W-B49-B00FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB | 1.2 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-05W-B49-B50FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB | 1.2 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-05W-B50-B00FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 17.6 CFM (0.493m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | - | 33.5dB | 1.44 W | 5100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-05W-B59-B00FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 17.6 CFM (0.493m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.5dB | 1.44 W | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-05W-B59-B50FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 17.6 CFM (0.493m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.5dB | 1.44 W | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-05W-B60-B00FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | - | 36.5dB | 1.68 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
|
2406VL-05W-B69-B00FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015VA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 36.5dB | 1.68 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
06023GA-12L-AA-00FAN BLOWER BALL 12VDC WIRE |
0 |
|
Технический лист |
06023GA | Box | Active | 12VDC | - | - | 6.0 CFM (0.168m³/min) | - | Ball | Blower | - | 30.0dB | 1.32 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.132 lb (59.87 g) |
|

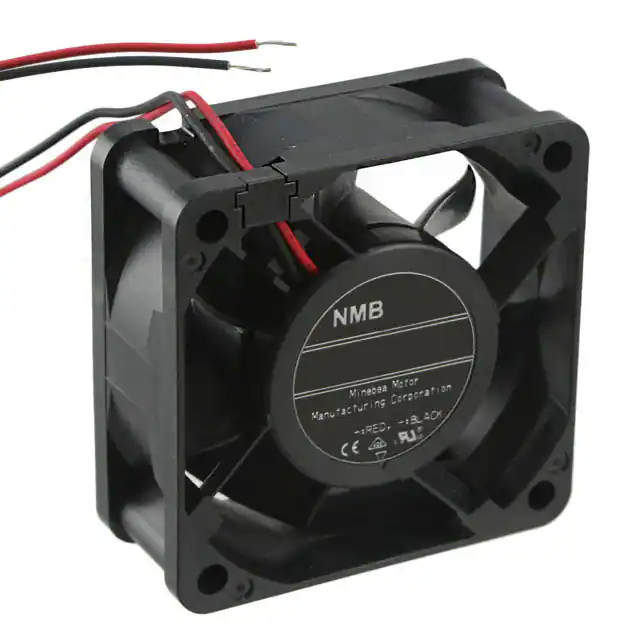

06025SA-12P-AA-00FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Технический лист |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UR, VDE | 0.123 lb (55.79 g) |
