Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

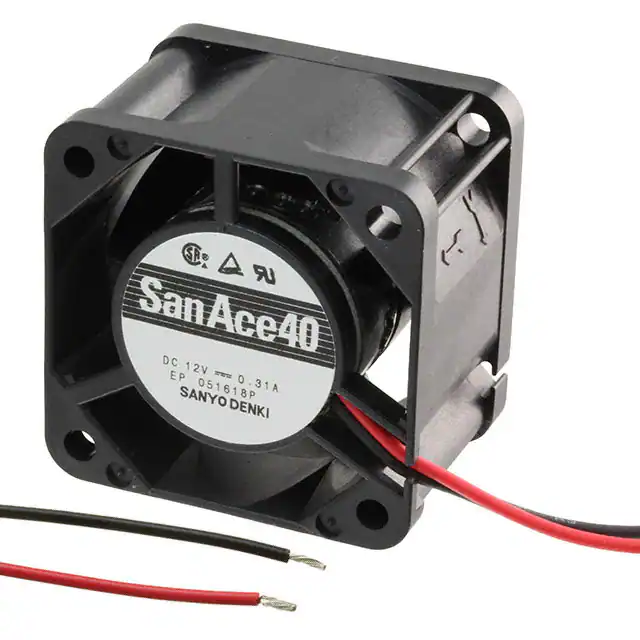

109P0412H702FAN AXIAL 40X15MM 12VDC WIRE |
180 |
|
Технический лист |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.56 W | 7700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|

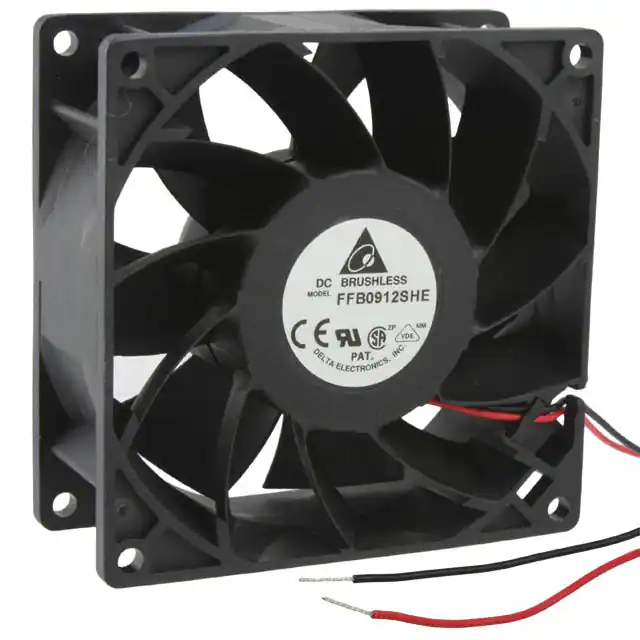

FFB0912SHEFAN AXIAL 92X38MM 12VDC WIRE |
612 |
|
Технический лист |
FFB | Bulk | Not For New Designs | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 100.3 CFM (2.81m³/min) | 0.572 in H2O (142.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.5dB(A) | 9 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

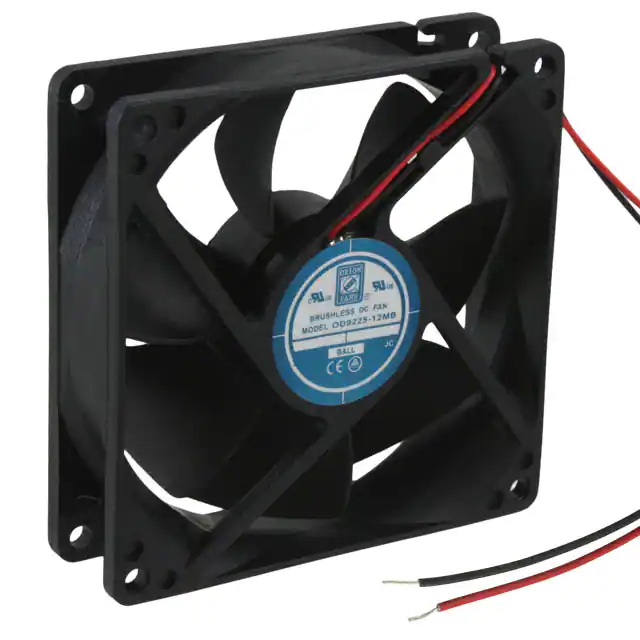

OD9225-12MBFAN AXIAL 92.5X25MM 12VDC WIRE |
121 |
|
Технический лист |
OD9225 | Box | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 44.0 CFM (1.23m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 31.0dB | - | 2400 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
MR9225H24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
222 |
|
Технический лист |
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|

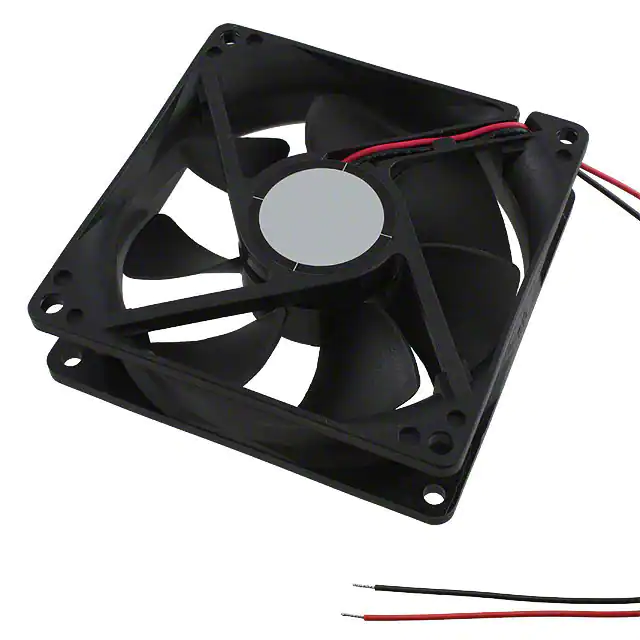

OD9225-24MBFAN AXIAL 92.5X25MM 24VDC WIRE |
150 |
|
Технический лист |
OD9225 | Box | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 44.0 CFM (1.23m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 31.0dB | - | 2400 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
04028DA-12P-AAF-0FAN AXIAL 40X28MM 12VDC WIRE |
215 |
|
Технический лист |
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 13.1 CFM (0.367m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Auto Restart | 45.0dB | 2.16 W | 12000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-9232B-230-398FAN AXIAL 92.2X32MM 24VDC WIRE |
143 |
|
Технический лист |
CFM-92B | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 32.00mm | 61.7 CFM (1.73m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 39.9dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
G4020M05B-RSR-EMFAN AXIAL 40X20MM BALL 5VDC WIRE |
187 |
|
Технический лист |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 26.0dB(A) | - | 6000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
109P0412S702FAN AXIAL 40X15MM 12VDC WIRE |
126 |
|
Технический лист |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 7.1 CFM (0.199m³/min) | 0.369 in H2O (91.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.16 W | 8600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|
9A0624S4021FAN AXIAL 60X25MM 24VDC WIRE |
880 |
|
Технический лист |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.92 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|

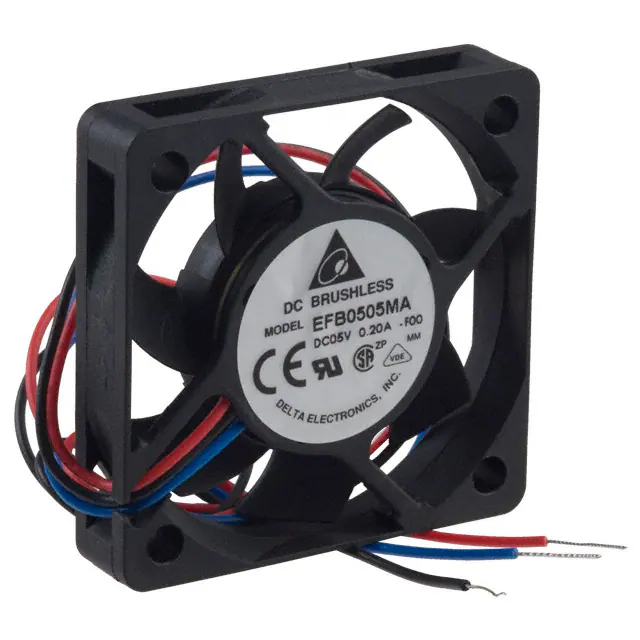

EFB0505MA-F00FAN AXIAL 50X10MM BALL 5VDC WIRE |
1,386 |
|
Технический лист |
EFB | Tray | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 9.2 CFM (0.258m³/min) | 0.113 in H2O (28.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 650 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|

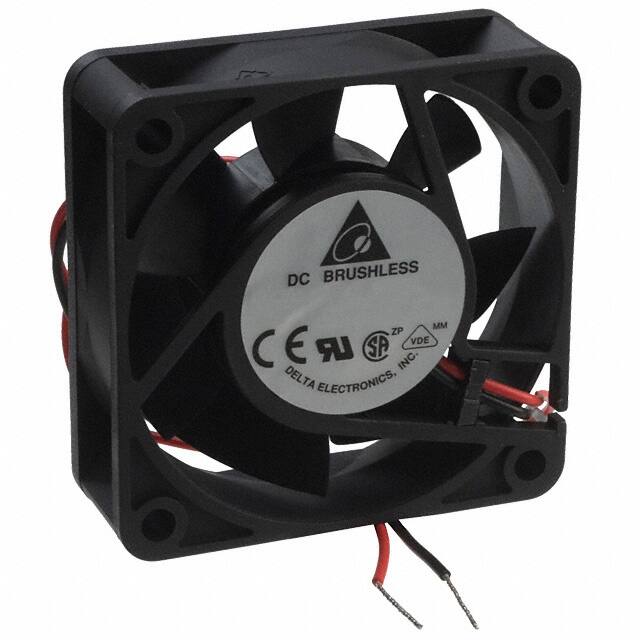

AFB0612HHDFAN AXIAL 60X20MM 12VDC WIRE |
669 |
|
Технический лист |
AFB | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.229 in H2O (57.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.8 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.137 lb (62.14 g) |
|
DC1202512V2B-2T0FAN AXIAL 120X25MM 12VDC WIRE |
526 |
|
Технический лист |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 121.0 CFM (3.39m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 7.8 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9GV3612J301FAN AXIAL 36X28MM 12VDC WIRE |
2,073 |
|
Технический лист |
San Ace 36 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 19.4 CFM (0.543m³/min) | 2.108 in H2O (525.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.5dB(A) | 9 W | 19000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.102 lb (46.27 g) |
|

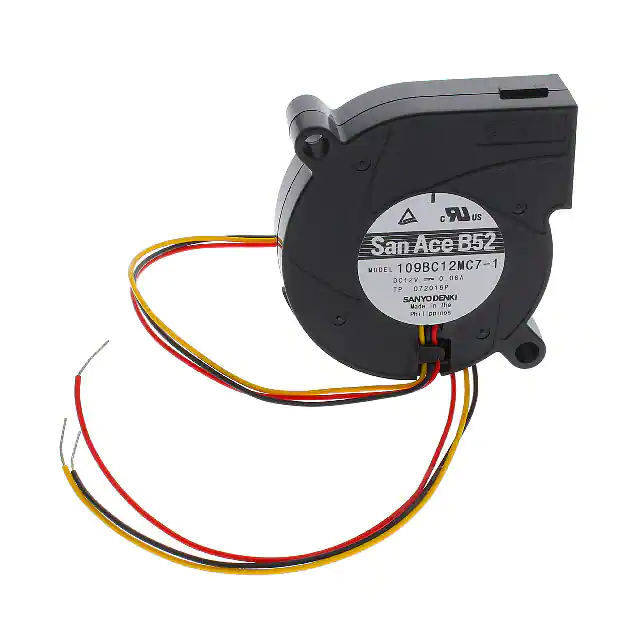

109BC12MC7-1FAN BLOWER 51X15MM 12VDC WIRE |
1,407 |
|
Технический лист |
San Ace B52 | Box | Active | 12VDC | Square/Rounded - 51mm L x 52.6mm H | 15.00mm | 3.2 CFM (0.090m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 720 mW | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.073 lb (33.11 g) |
|
DC0301012U2B-2T0FAN AXIAL 30X10.5MM 12VDC WIRE |
281 |
|
Технический лист |
- | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 5.7 CFM (0.160m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.08 W | 11000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9G1212A401FAN AXIAL 119X25MM 12VDC WIRE |
218 |
|
Технический лист |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 100.0 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 44.0dB(A) | 4.8 W | 3150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|

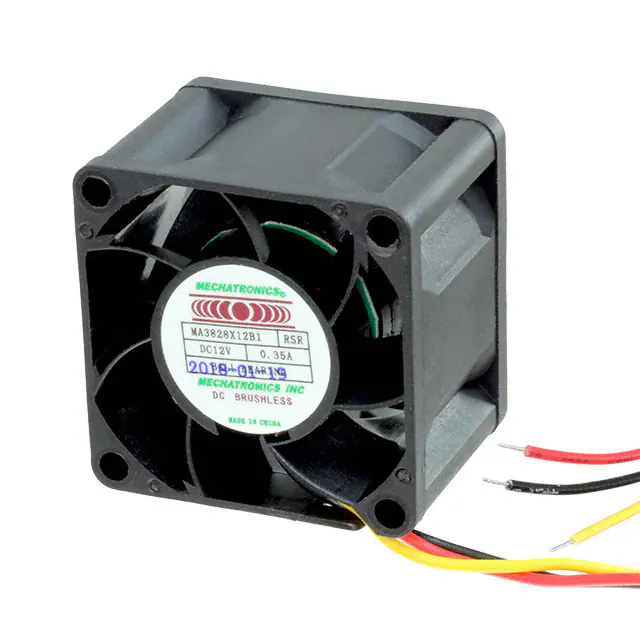

MA3828X12B1-RSRFAN AXIAL 38X28MM 12VDC WIRE |
1,820 |
|
Технический лист |
MA3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 15.0 CFM (0.420m³/min) | 0.698 in H2O (173.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 43.0dB(A) | - | 11500 RPM | 3 Wire Leads | - | - | cUL, UL | 0.078 lb (35.38 g) |
|
CFM-8025BG-290-572-20FAN AXIAL 80X25.4MM 24VDC WIRE |
252 |
|
Технический лист |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 93.0 CFM (2.60m³/min) | 1.380 in H2O (343.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 57.3dB(A) | 18.24 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

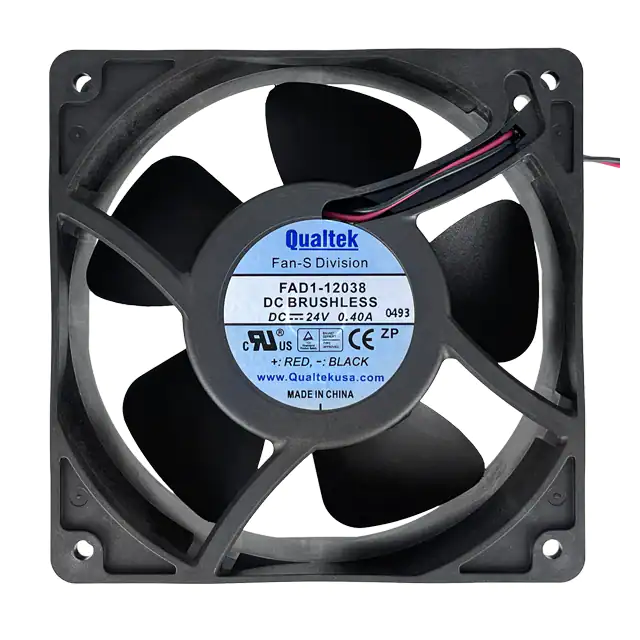

FAD1-12038DBJW12FAN AXIAL 120X38.5MM 24VDC WIRE |
258 |
|
Технический лист |
FAD1-12038 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.50mm | 120.1 CFM (3.36m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 9.12 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.518 lb (234.96 g) |
