Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2106KL-04W-B39-L50FAN AXIAL 52X15MM 12VDC WIRE |
0 |
|
Технический лист |
2106KL | Box | Obsolete | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 9.9 CFM (0.277m³/min) | 0.072 in H2O (17.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 21.0dB | 840 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
2106KL-04W-B49-L00FAN AXIAL 52X15MM 12VDC WIRE |
0 |
|
Технический лист |
2106KL | Box | Obsolete | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 12.0 CFM (0.336m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.5dB | 1.08 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
2106KL-04W-B49-L50FAN AXIAL 52X15MM 12VDC WIRE |
0 |
|
Технический лист |
2106KL | Box | Obsolete | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 12.0 CFM (0.336m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.5dB | 1.08 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
2106KL-04W-B59-L50FAN AXIAL 52X15MM 12VDC WIRE |
0 |
|
Технический лист |
2106KL | Box | Obsolete | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.0dB | 1.56 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
2404KL-04W-B30-B00FAN AXIAL 60X10.3MM 12VDC WIRE |
0 |
|
Технический лист |
2404KL | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.30mm | 13.7 CFM (0.384m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | - | 29.0dB | 1.2 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
2404KL-04W-B39-B50FAN AXIAL 60X10.3MM 12VDC WIRE |
0 |
|
Технический лист |
2404KL | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.30mm | 13.7 CFM (0.384m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 1.2 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|

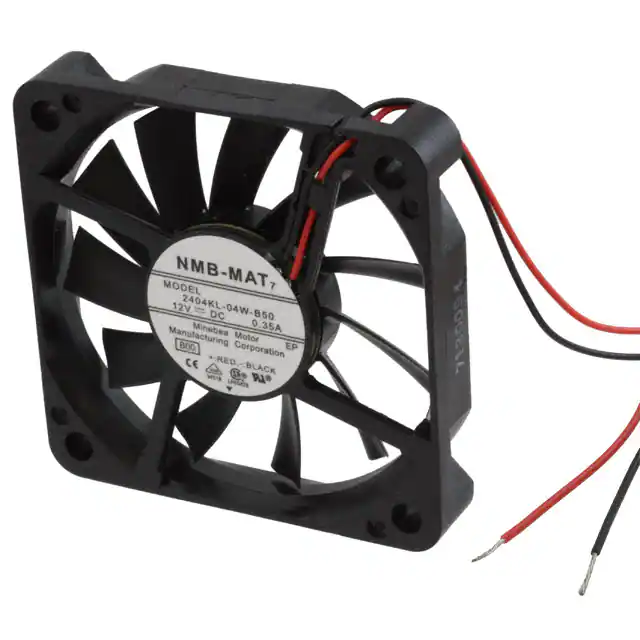

2404KL-04W-B50-B00FAN AXIAL 60X10.3MM 12VDC WIRE |
0 |
|
Технический лист |
2404KL | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.30mm | 19.0 CFM (0.532m³/min) | 0.121 in H2O (30.1 Pa) | Ball | Tubeaxial | - | 36.0dB | 3.24 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
2406KL-04W-B19-L00FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015KA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 6.7 CFM (0.188m³/min) | 0.034 in H2O (8.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 19.0dB | 480 mW | 1800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
2406KL-04W-B29-L00FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015KA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 11.6 CFM (0.325m³/min) | 0.094 in H2O (23.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB | 840 mW | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
2406KL-04W-B39-L50FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015KA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.125 in H2O (31.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB | 1.08 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
2406KL-04W-B49-L00FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015KA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB | 1.56 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
2406KL-04W-B49-L50FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015KA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB | 1.56 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
2406KL-04W-B59-L50FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Технический лист |
06015KA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.3 CFM (0.512m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB | 1.92 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
2406KL-05W-B39-L00FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015KA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.125 in H2O (31.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB | 1.44 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
2406KL-05W-B39-L50FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015KA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.125 in H2O (31.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB | 1.44 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
2406KL-05W-B49-L00FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015KA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB | 1.68 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
2406KL-05W-B49-L50FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015KA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB | 1.68 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
2406KL-05W-B59-L00FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015KA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 18.3 CFM (0.512m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB | 2.4 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
2406KL-05W-B59-L50FAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
Технический лист |
06015KA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 18.3 CFM (0.512m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB | 2.4 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
2408NL-04W-B19-L00FAN AXIAL 60X20MM 12VDC WIRE |
0 |
|
Технический лист |
2408NL | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 10.9 CFM (0.305m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.5dB | 600 mW | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
