Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9CRL0812P8G001FAN AXIAL DUAL 80X80MM 12VDC |
0 |
|
Технический лист |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 158.9 CFM (4.45m³/min) | 4.620 in H2O (1150.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 63.6 W | 12000 Front, 11300 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.1 lbs (499.0 g) |
|
|
109BG12HC1FAN BLOWER 160X40MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace B160 | Box | Active | 12VDC | Square/Rounded - 160mm L x 160mm H | 40.00mm | 57.2 CFM (1.60m³/min) | 1.259 in H2O (313.6 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 15.6 W | 2300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109BG12HD1FAN BLOWER 160X40MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace B160 | Box | Active | 12VDC | Square/Rounded - 160mm L x 160mm H | 40.00mm | 57.2 CFM (1.60m³/min) | 1.259 in H2O (313.6 Pa) | Ball | Blower | Locked Rotor Sensor | 55.0dB(A) | 15.6 W | 2300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109BG12MD1FAN BLOWER 160X40MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace B160 | Box | Active | 12VDC | Square/Rounded - 160mm L x 160mm H | 40.00mm | 44.5 CFM (1.25m³/min) | 0.629 in H2O (156.7 Pa) | Ball | Blower | Locked Rotor Sensor | 50.0dB(A) | 7.68 W | 1800 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109BG12MC1FAN BLOWER 160X40MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace B160 | Box | Active | 12VDC | Square/Rounded - 160mm L x 160mm H | 40.00mm | 44.5 CFM (1.25m³/min) | 0.629 in H2O (156.7 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 7.68 W | 1800 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.3 lbs (589.7 g) |
|
|
W2G110-AG43-01FAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
- |
W2G110 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 15 W | 4200 RPM | 2 Wire Leads | IP22 | -13 ~ 162°F (-25 ~ 72°C) | - | - |
|
|
7214N/12DC TUBEAXIAL FAN |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9LG1448M1D001140X38MM 48V, HIGH PERF LONG LIF |
0 |
|
Технический лист |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG1448L1D001140X38MM 48V, HIGH PERF LONG LIF |
0 |
|
Технический лист |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|

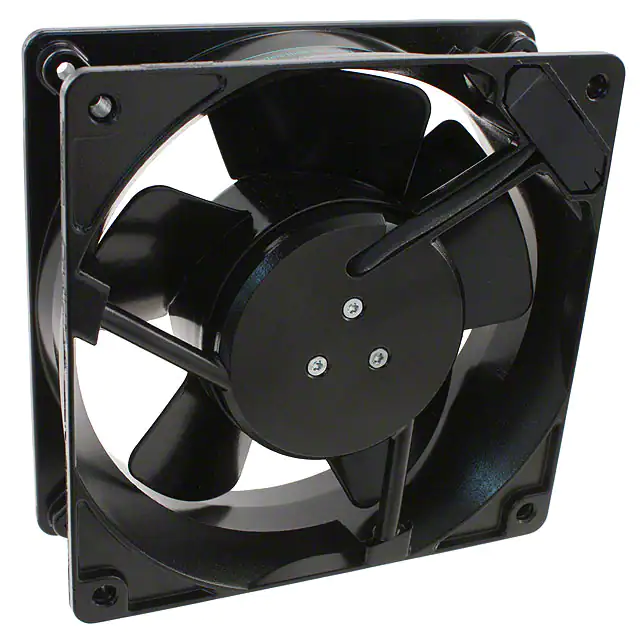

W2G110-AK43-31FAN AXIAL 119X38MM 24VDC TERM |
0 |
|
Технический лист |
W1G110 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | - | 61.0dB(A) | 15 W | 4400 RPM | 2 Terminals | IP22 | -13 ~ 162°F (-25 ~ 72°C) | CSA, UL | 1.1 lbs (500.0 g) |
|
|
109BG24HA1FAN BLOWER 160X40MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace B160 | Box | Active | 24VDC | Square/Rounded - 160mm L x 160mm H | 40.00mm | 57.2 CFM (1.60m³/min) | 1.259 in H2O (313.6 Pa) | Ball | Blower | Locked Rotor Protection | 55.0dB(A) | 15.6 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109BG24MA1FAN BLOWER 160X40MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace B160 | Box | Active | 24VDC | Square/Rounded - 160mm L x 160mm H | 40.00mm | 44.5 CFM (1.25m³/min) | 0.629 in H2O (156.7 Pa) | Ball | Blower | Locked Rotor Protection | 50.0dB(A) | 7.44 W | 1800 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109BG24HD1FAN BLOWER 160X40MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace B160 | Box | Active | 24VDC | Square/Rounded - 160mm L x 160mm H | 40.00mm | 57.2 CFM (1.60m³/min) | 1.259 in H2O (313.6 Pa) | Ball | Blower | Locked Rotor Sensor | 55.0dB(A) | 15.6 W | 2300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109BG24MD1FAN BLOWER 160X40MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace B160 | Box | Active | 24VDC | Square/Rounded - 160mm L x 160mm H | 40.00mm | 44.5 CFM (1.25m³/min) | 0.629 in H2O (156.7 Pa) | Ball | Blower | Locked Rotor Sensor | 50.0dB(A) | 7.44 W | 1800 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109BG24MC1FAN BLOWER 160X40MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace B160 | Box | Active | 24VDC | Square/Rounded - 160mm L x 160mm H | 40.00mm | 44.5 CFM (1.25m³/min) | 0.629 in H2O (156.7 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 7.44 W | 1800 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.3 lbs (589.7 g) |
|
|
4118NHHU-302FAN AXIAL 119X38MM 48VDC WIRE |
0 |
|
- |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 153.0 CFM (4.28m³/min) | - | Ball | Tubeaxial | - | 60.0dB(A) | 12 W | 5000 RPM | 2 Wire Leads | - | - | - | - |
|
|
6312/2MP-204FAN AXIAL 171.5X50.8MM 12VDC |
0 |
|
- |
6300, S-Force | Bulk | Active | 12VDC | Round - 171.5mm Dia | 50.80mm | 232.7 CFM (6.51m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | - | - | - | - | - |
|
|
6448/19H-398DC TUBEAXIAL FAN |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RER101-36/14NHHDC FLATPAK - RADIAL BLOWER |
0 |
|
- |
RER101 | Bulk | Active | 24VDC | Round - 101mm Dia | 51.70mm | 111.9 CFM (3.13m³/min) | - | Ball | Blower, Centrifugal | - | - | 22.5 W | 6050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
RER101-36/18NHHDC FLATPAK - RADIAL BLOWER |
0 |
|
- |
RER101 | Bulk | Active | 48VDC | Round - 101mm Dia | 51.70mm | 111.9 CFM (3.13m³/min) | - | Ball | Tubeaxial | Alarm Sensor | - | 19.4 W | 5850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
