Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9LG0924L400192X25MM 24V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 30.7 CFM (0.860m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 19.0dB(A) | 720 mW | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9LG0912H4D00192X25MM 12V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0924M400192X25MM 24V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.097 in H2O (24.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 960 mW | 2400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9LG0924H400192X25MM 24V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
AFB1248SHEB8TFAN AXIAL 120X38MM 48VDC |
0 |
|
Технический лист |
AFB | Bag | Not For New Designs | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | - | Tubeaxial | - | - | - | - | - | - | - | CE, CSA, UL, VDE | - |
|
|
PF60761B1-000U-Q9912VDC FAN 60X76MM ALARM/PWM |
0 |
|
Технический лист |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 58.8 CFM (1.64m³/min) | 2.540 in H2O (632.7 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Locked Rotor Sensor, PWM Control | 62.8dB(A) | 19.2 W | 14600 RPM Front, 11700 RPM Rear | 4 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60761BX-000U-Q9912VDC FAN 60X76MM ALARM/PWM |
0 |
|
Технический лист |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 73.1 CFM (2.05m³/min) | 3.960 in H2O (986.4 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Locked Rotor Sensor, PWM Control | 68.6dB(A) | 33.6 W | 18200 RPM Front, 14700 RPM Rear | 4 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
9GT0412P3K00340X28MM 12V, WIDE TEMPERATURE RA |
0 |
|
Технический лист |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 23.3 CFM (0.652m³/min) | 1.350 in H2O (336.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 7.68 W | 15000 RPM | 4 Wire Leads | - | -40 ~ 176°F (-40 ~ 80°C) | cURus, TUV | - |
|
19032196AFAN BLOWER 160.7X50.2MM SPD48B1 |
0 |
|
Технический лист |
Spinnaker | Box | Active | 48VDC | Rectangular/Rounded - 160.7mm L x 161.3mm H | 50.20mm | 60.0 CFM (1.68m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection | 57.0dB(A) | 24 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 2.1 lbs (952.5 g) |
|

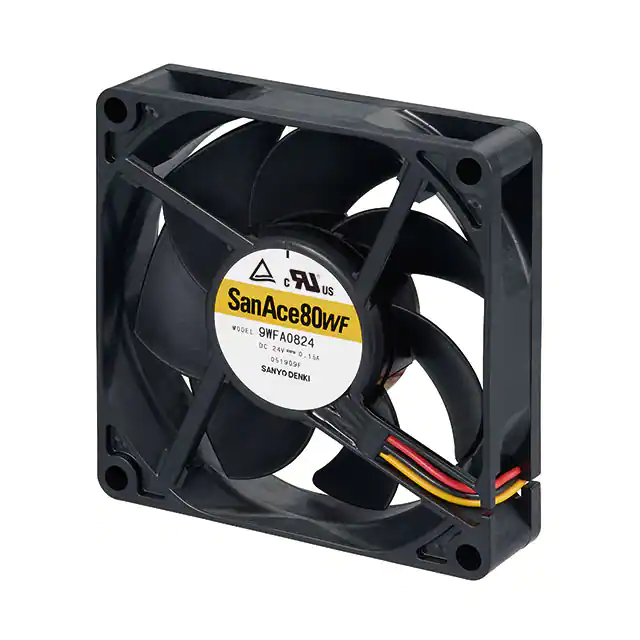

9WFA0824G6002FAN AXIAL 80X20MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 50.6 CFM (1.42m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 3.6 W | 6000 RPM | 2 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.232 lb (105.23 g) |
|
|
9LG0824L400180X25MM 24V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 22.6 CFM (0.633m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 720 mW | 2300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9LG0824F400180X25MM 24V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.08 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9LG0812M400180X25MM 12V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 28.3 CFM (0.792m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 960 mW | 2900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9LG0824F4D00180X25MM 24V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0812F4D00180X25MM 12V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0812L400180X25MM 12V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 22.6 CFM (0.633m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 720 mW | 2300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9LG0812L4D00180X25MM 12V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0824M4D00180X25MM 24V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0812H4D00180X25MM 12V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0812M4D00180X25MM 12V, HIGH PERF LONG LIFE |
0 |
|
Технический лист |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
