Вентиляторы переменного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

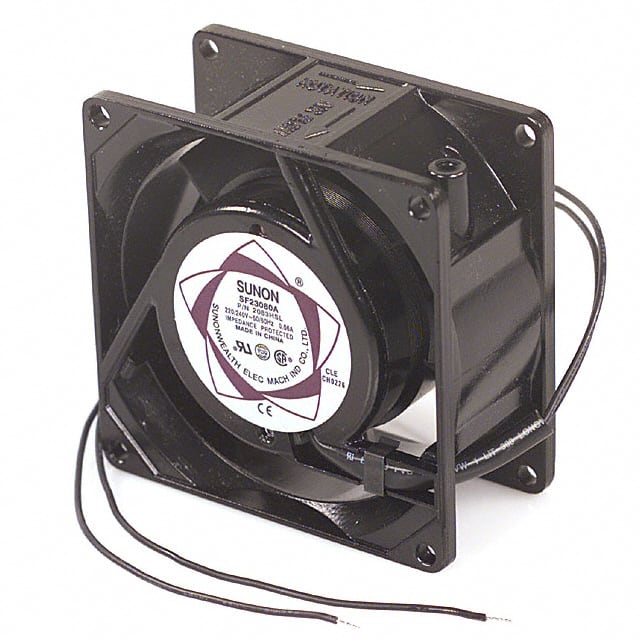

SF23080A-2083HSLFAN AXIAL 80X38MM 220/240VAC |
0 |
|
Технический лист |
SF | - | Obsolete | 240VAC | Square - 80mm L x 80mm H | 38.00mm | 30.0 CFM (0.840m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | - | 35.0dB(A) | 16.00W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.75 lb (340.19 g) |
|

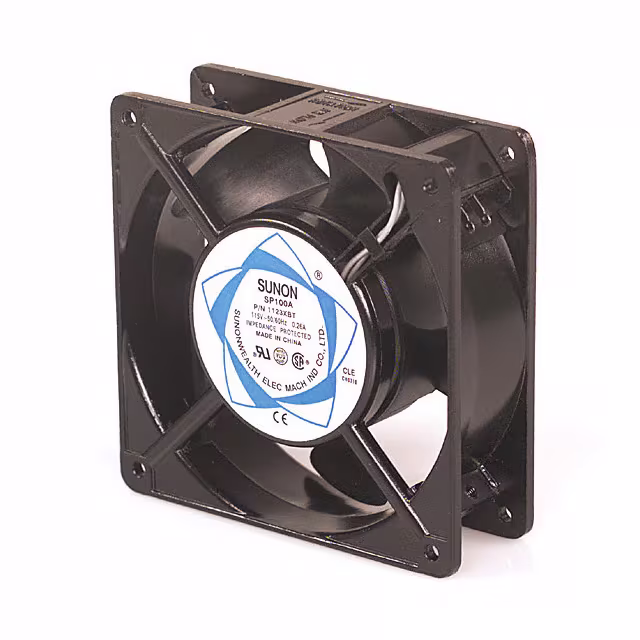

SP100A-1123XBTFAN AXIAL 120X38MM 115VAC TERM |
0 |
|
Технический лист |
SP | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 117.0 CFM (3.28m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 20.00W | 3150 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (550 g) |
|

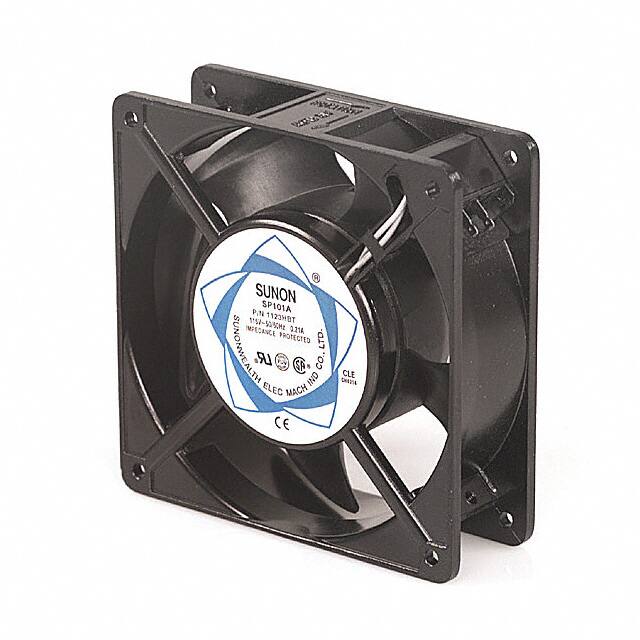

SP101A-1123HBTFAN AXIAL 120X38MM 115VAC TERM |
0 |
|
Технический лист |
SP | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 107.0 CFM (3.00m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 18.00W | 3050 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 1.2 lbs (544.3 g) |
|

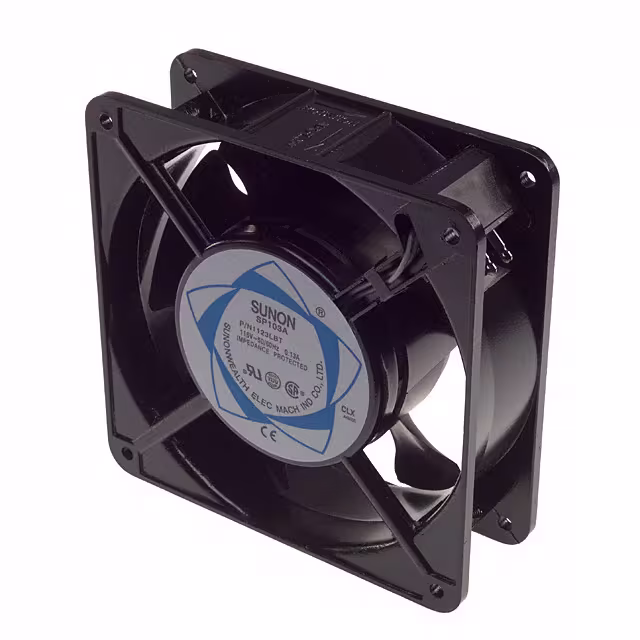

SP103A-1123LBTFAN AXIAL 120X38MM 115VAC TERM |
0 |
|
Технический лист |
SP | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 78.0 CFM (2.18m³/min) | 0.130 in H2O (32.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 11.00W | 2300 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 1.2 lbs (550 g) |
|
SF11592A-1092HBTFAN AXIAL 92X25MM 115VAC TERM |
0 |
|
Технический лист |
SF | - | Obsolete | 115VAC | Square - 92mm L x 92mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 12.00W | 2850 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.613 lb (278.05 g) |
|

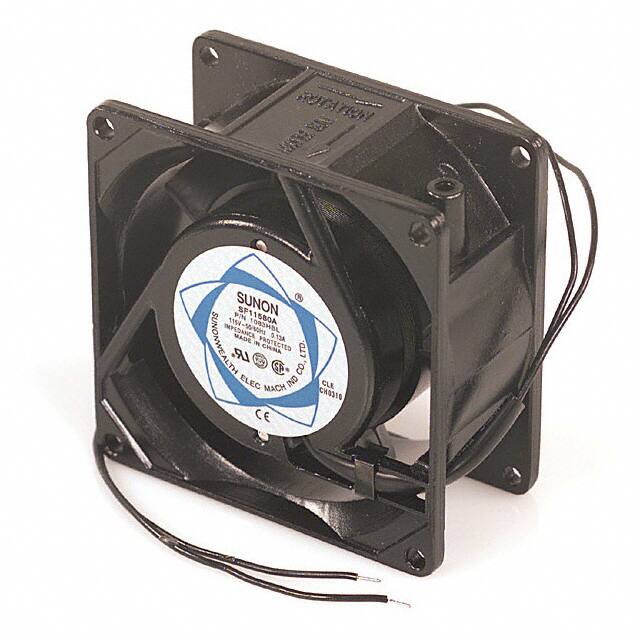

SF11580A-1083HBLFAN AXIAL 80X38MM 115VAC WIRE |
0 |
|
Технический лист |
SF | - | Obsolete | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 31.0 CFM (0.868m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 36.5dB(A) | 12.00W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.75 lb (340.19 g) |
|

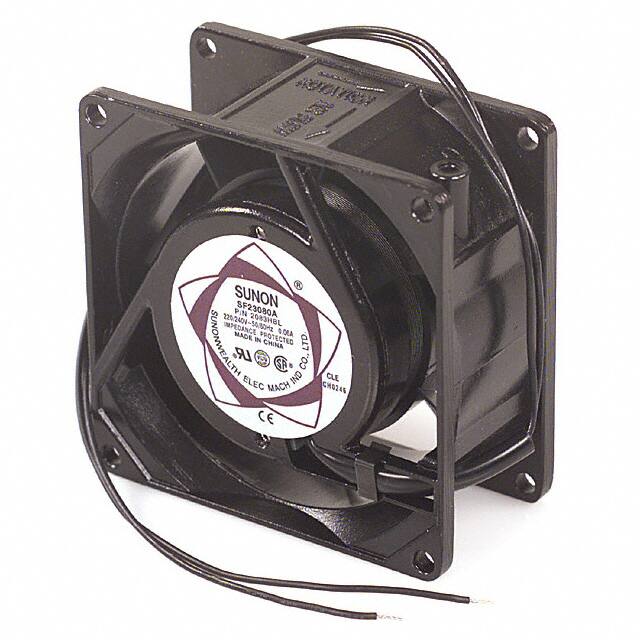

SF23080A-2083HBLFAN AXIAL 80X38MM 220/240VAC |
0 |
|
Технический лист |
SF | - | Obsolete | 240VAC | Square - 80mm L x 80mm H | 38.00mm | 31.0 CFM (0.868m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 36.5dB(A) | 13.50W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.75 lb (340.19 g) |
|

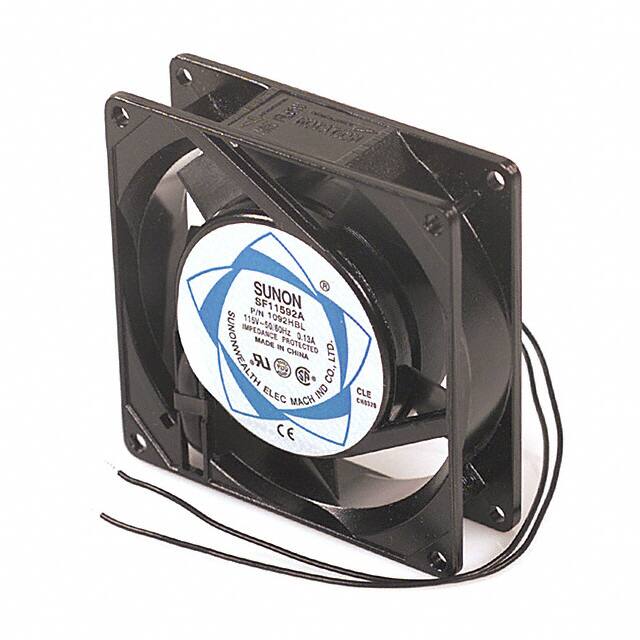

SF11592A-1092HBLFAN AXIAL 92X25MM 115VAC WIRE |
0 |
|
Технический лист |
SF | - | Obsolete | 115VAC | Square - 91.5mm L x 91.5mm H | 25.50mm | 37.0 CFM (1.04m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 12.00W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.617 lb (280.00 g) |
|
|
SF23092A-2092HBTFAN AXIAL 92X25MM 220/240VAC |
0 |
|
Технический лист |
SF | - | Obsolete | 240VAC | Square - 91.5mm L x 91.5mm H | 25.50mm | 37.0 CFM (1.04m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 14.00W | 2850 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | BSMI, CCC, CE, cUL, TUV, UL | 0.613 lb (278.05 g) |
|
FAA1-12038NBMW31-AFAN AXIAL 119.5X38.5MM 115VAC |
0 |
|
Технический лист |
FAA1-12038 | Bulk | Obsolete | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 87.0 CFM (2.44m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 12.40W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.2 lbs (544.3 g) |
|
|
FAA1-12038NBHT31FAN AXIAL 119.5X38.5MM 115VAC |
0 |
|
Технический лист |
FAA1-12038 | Bulk | Obsolete | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 94.5 CFM (2.65m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 44.5dB(A) | 14.00W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.2 lbs (544.3 g) |
|

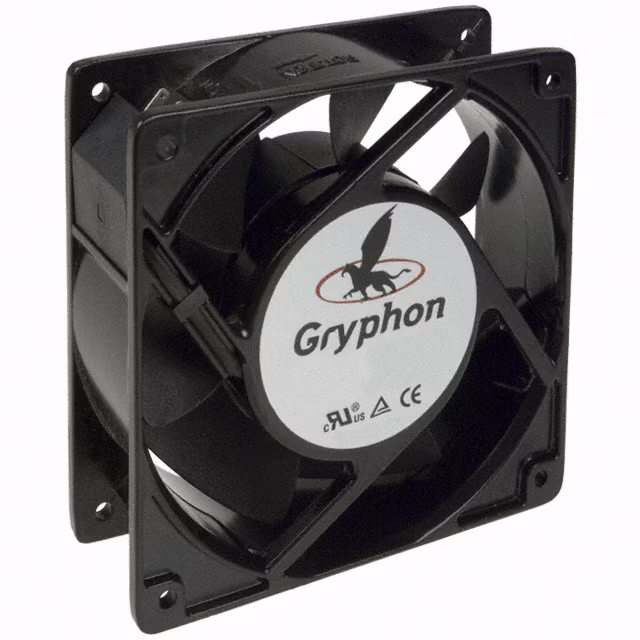

GAA1238-115BBFAN AXIAL 120X38MM 115VAC TERM |
0 |
|
Технический лист |
Gryphon | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 111.0 CFM (3.11m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 24.00W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.2 lbs (544.3 g) |
|
OA1238AP-22-1TBFAN AC, 120X38 230V BALL |
0 |
|
- |
OA1238AP | Bulk | Obsolete | 230VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 97.0 CFM (2.72m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | - | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|

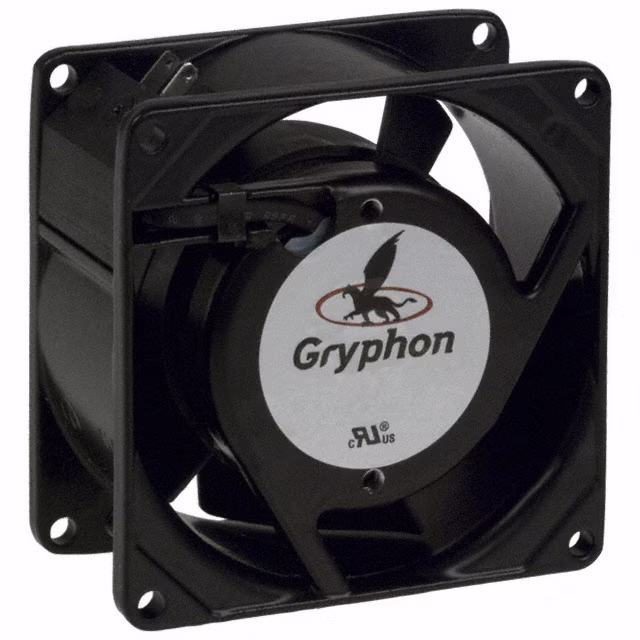

GAA8038-115BBFAN AXIAL 80X38MM 115VAC TERM |
0 |
|
Технический лист |
Gryphon | - | Obsolete | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 29.0 CFM (0.812m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 34.0dB(A) | 14.00W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.75 lb (340.19 g) |
|
|
GAA1238-230BBFAN AXIAL 120X38MM 230VAC TERM |
0 |
|
Технический лист |
Gryphon | - | Obsolete | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 111.0 CFM (3.11m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 10.00W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.2 lbs (544.3 g) |
|

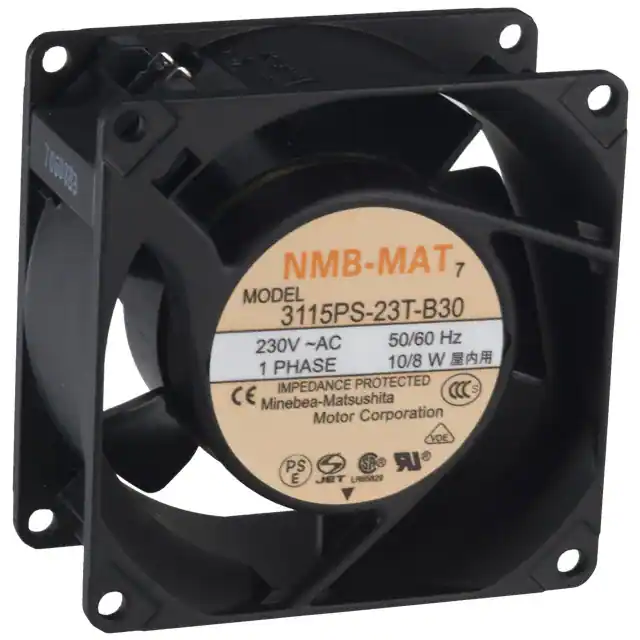

3115PS-23T-B30-A00FAN AXIAL 80X38MM 230VAC TERM |
0 |
|
Технический лист |
PS | Bulk | Obsolete | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 32.0 CFM (0.896m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 38.0dB | 8.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 0.59 lb (267.62 g) |
|

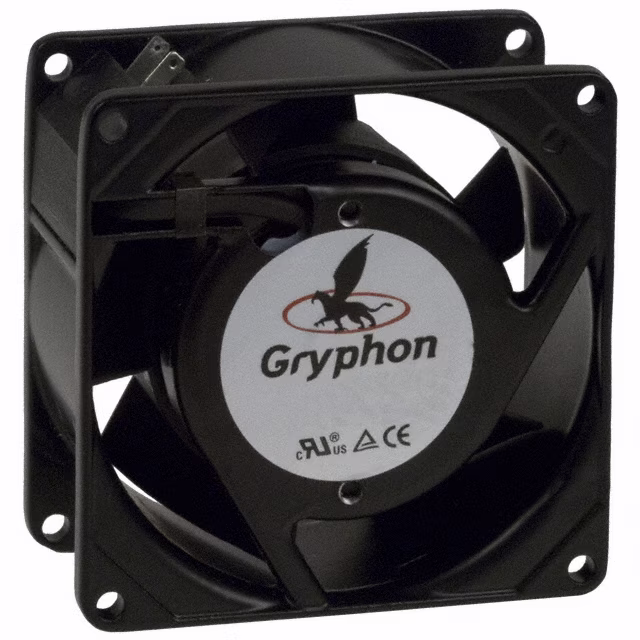

GAA8038-230BBFAN AXIAL 80X38MM 230VAC TERM |
0 |
|
Технический лист |
Gryphon | - | Obsolete | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 29.0 CFM (0.812m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 34.0dB(A) | 10.00W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.75 lb (340.19 g) |
|
4715MS-12T-B50-A00FAN AXIAL 119X38MM 115VAC TERM |
0 |
|
Технический лист |
MS | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 0.306 in H2O (76.4 Pa) | Ball | Tubeaxial | - | 41.0dB | 14.50W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
CAF-A225S-120-350AC FAN, 120 X 120 X 25 MM, 100 ~ |
0 |
|
Технический лист |
CAF-A2S | Box | Active | 110VAC | Square - 120mm L x 120mm H | 25.8mm | 53.9 CFM (1.51m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | Tubeaxial | - | 37.3dB(A) | 10.80W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DP202AT 2122MSL.GNFAN AXIAL 120X25MM 220/240VAC |
0 |
|
Технический лист |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 25.50mm | 65.0 CFM (1.82m³/min) | - | Sleeve | Tubeaxial | - | 42.0dB(A) | 14.00W | 2100 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.728 lb (330.22 g) |
