Вентиляторы переменного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19028420AFAN AXIAL 120X38MM 110VAC MX2B1 |
277 |
|
Технический лист |
Muffin XL AC | Box | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 18.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.03 lbs (467.2 g) |
|
19028268AFAN AXIAL 80X38MM 115VAC SU2B1 |
131 |
|
Технический лист |
Sprite AC | Box | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 31.0 CFM (0.868m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 13.00W | 2800 RPM | 2 Wire Leads | IP44 | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 0.573 lb (260.00 g) |
|
9AD1201H12FAN 120X38MM 90/264VAC |
305 |
|
Технический лист |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 4.40W | 3250 RPM | 2 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, PSE, TUV, UL | 0.639 lb (289.85 g) |
|

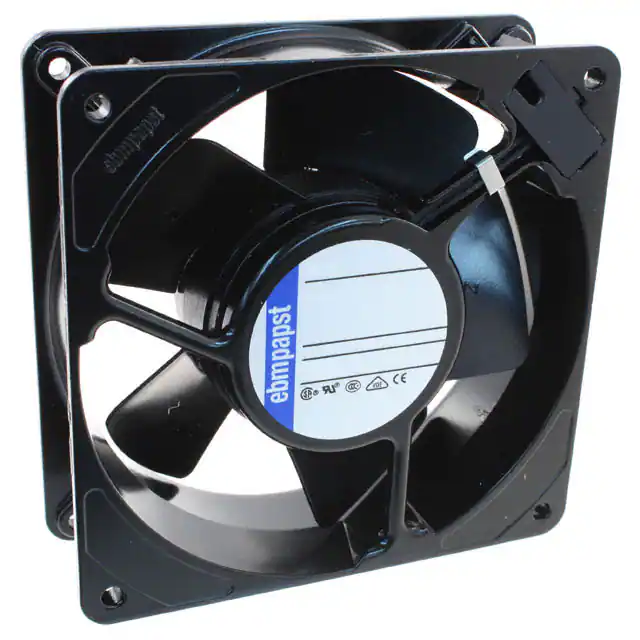

4606ZFAN AXIAL 119X38MM 115VAC TERM |
0 |
|
Технический лист |
4000Z | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 18.00W | 3100 RPM | 2 Terminals | - | -40 ~ 185°F (-40 ~ 85°C) | CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
RL90-18/00FAN BLWR FLATPAK 121X37MM 115VAC |
65 |
|
Технический лист |
RL90N | Bulk | Active | 115VAC | Square - 121mm L x 121mm H | 37.00mm | 24.7 CFM (0.692m³/min) | - | Sleeve | Blower, Flatpak | - | 60.0dB(A) | 19.50W | 2550 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 1.5 lbs (680.4 g) |
|

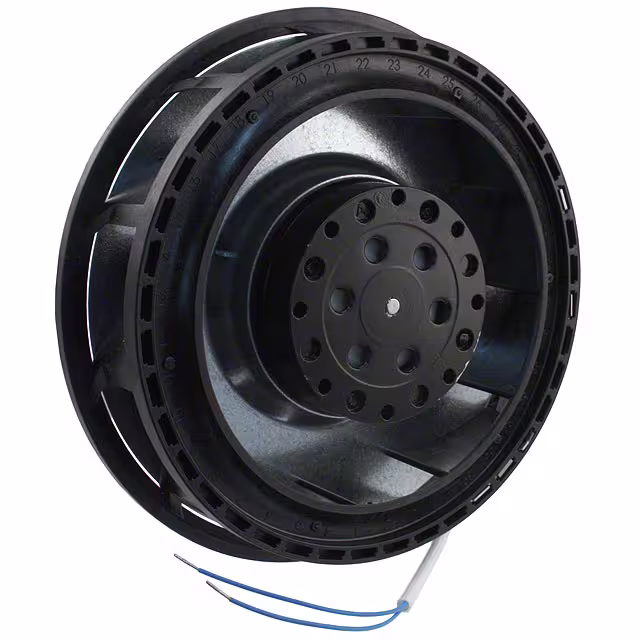

RER125-19/56FAN IMP MTRZD 138X40MM 230VAC |
225 |
|
Технический лист |
RER125 | Box | Active | 230VAC | Round - 138mm Dia | 40.00mm | 61.2 CFM (1.71m³/min) | - | Ball | Motorized Impellers | - | 65.0dB(A) | 19.00W | 2600 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|

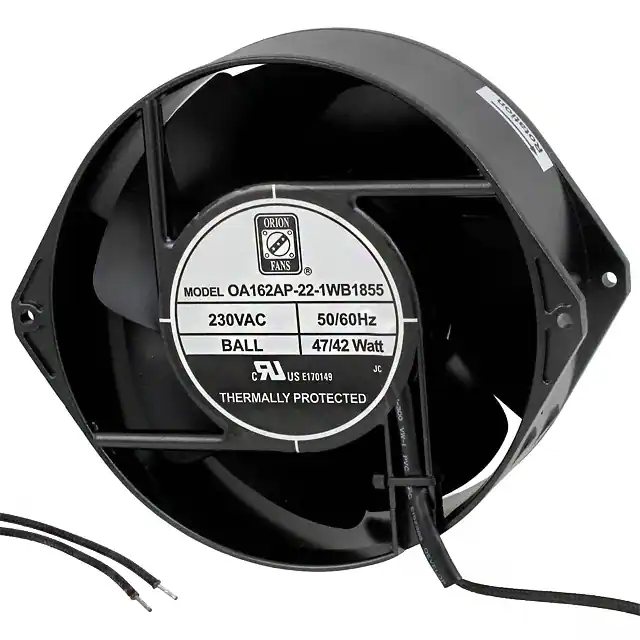

OA162AP-22-1WB1855FAN AXIAL 172X55MM 230VAC WIRE |
30 |
|
Технический лист |
OA162 | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 210.0 CFM (5.88m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 54.0dB | 42.00W | 3200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus | 2.7 lbs (1.2 kg) |
|
RL90-18/50FAN BLWR FLATPAK 121X37MM 230VAC |
65 |
|
Технический лист |
RL90 | Bulk | Active | 230VAC | Square - 121mm L x 121mm H | 37.00mm | 23.5 CFM (0.658m³/min) | - | Sleeve | Blower, Flatpak | - | 60.0dB(A) | 20.00W | 2450 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | - | 1.5 lbs (680.4 g) |
|

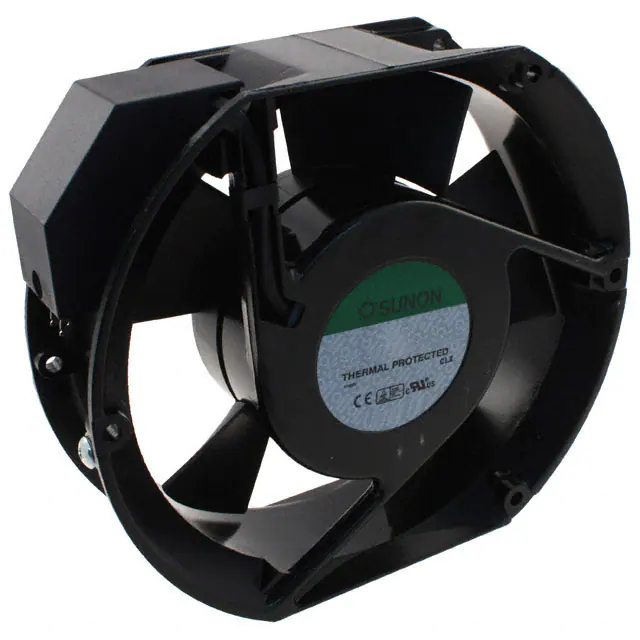

A2175-HBT.TC.GNFAN AXIAL 171.5X51MM 220/240VAC |
2,740 |
|
Технический лист |
A | Bulk | Active | 240VAC | Rectangular/Rounded - 171.5mm L x 151.5mm H | 51.00mm | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 26.00W | 3200 RPM | 2 Terminals | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CUR, TUV, UL | 2 lbs (907.2 g) |
|

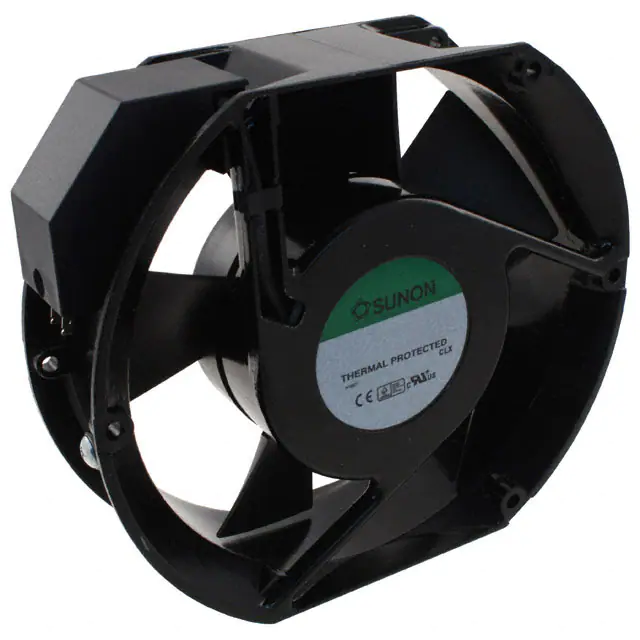

A1175-HBT.TC.GNFAN AXIAL 171X51MM 115VAC TERM |
763 |
|
Технический лист |
A | Bulk | Active | 115VAC | Rectangular/Rounded - 171.5mm L x 151mm H | 51.00mm | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 27.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 2 lbs (907.2 g) |
|
19028254AFAN AXIAL 171.5X50.8MM PT2B3 |
631 |
|
Технический лист |
Patriot AC | Box | Active | 115VAC | Round - 171.5mm Dia | 50.80mm | 230.0 CFM (6.44m³/min) | 0.772 in H2O (192.3 Pa) | Ball | Tubeaxial | - | 54.0dB(A) | 31.00W | 3400 RPM | 2 Terminals | - | - | CE, cUL, UL | 1.8 lbs (816.5 g) |
|

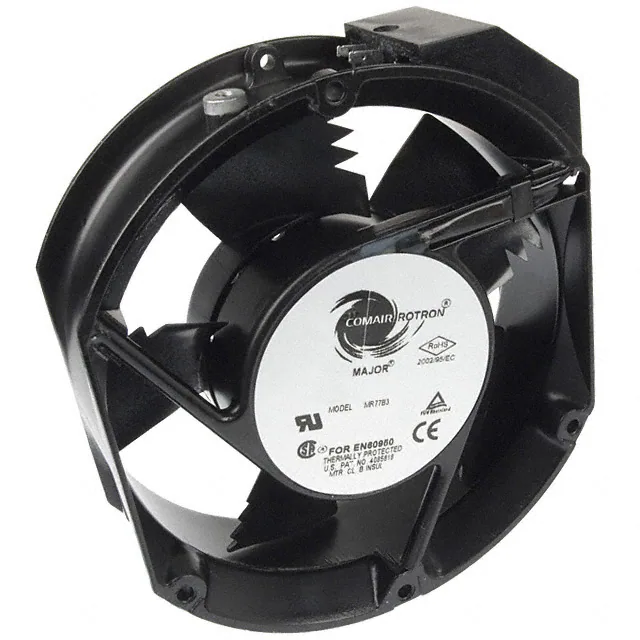

19028309AFAN AXIAL 172X50.8MM 230V MR77B3 |
210 |
|
Технический лист |
Major AC | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 231.0 CFM (6.47m³/min) | 0.769 in H2O (191.5 Pa) | Ball | Tubeaxial | - | 56.6dB(A) | 30.00W | 3400 RPM | 2 Terminals | - | - | CE, cUL, UL | 1.8 lbs (816.5 g) |
|

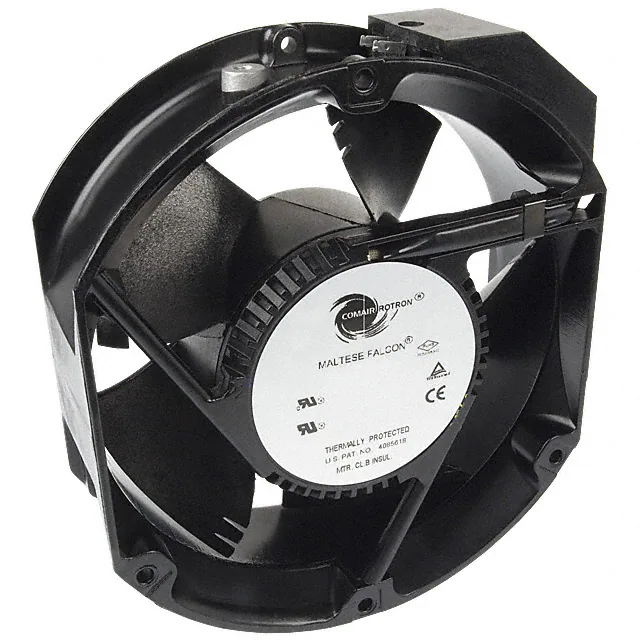

19031844AFAN AXIAL 172X55MM 230VAC MA77B3 |
307 |
|
Технический лист |
Maltese AC | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 300.0 CFM (8.40m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 41.40W | 3400 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.3 lbs (1 kg) |
|
|
19028245AFAN AXIAL 172X50.8MM 115V MR2B3 |
226 |
|
Технический лист |
Major AC | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | Tubeaxial | - | 55.8dB(A) | 31.00W | 3400 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.8 lbs (816.5 g) |
|
|
19028312AFAN AXIAL 171.5X50.8MM PT77B3 |
339 |
|
Технический лист |
Patriot AC | Bulk | Active | 230VAC | Round - 171.5mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | 0.772 in H2O (192.3 Pa) | Ball | Tubeaxial | - | 54.0dB(A) | 30.00W | 3400 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.8 lbs (816.5 g) |
|
AC3200JHFAN AXIAL 92X38MM 85/265VAC WIRE |
127 |
|
Технический лист |
Green Tech ACmaxx, AC3200J | Box | Active | 115VAC | Square - 92mm L x 92mm H | 38.00mm | 86.0 CFM (2.41m³/min) | - | Ball | Tubeaxial | Electronic Commutation (EC), Locked Rotor Protection | 55.0dB(A) | 11.00W | 6800 RPM | 2 Wire Leads | IP20 | -4 ~ 158°F (-20 ~ 70°C) | CCC, CE, CSA, UL, VDE | 0.716 lb (324.77 g) |
|

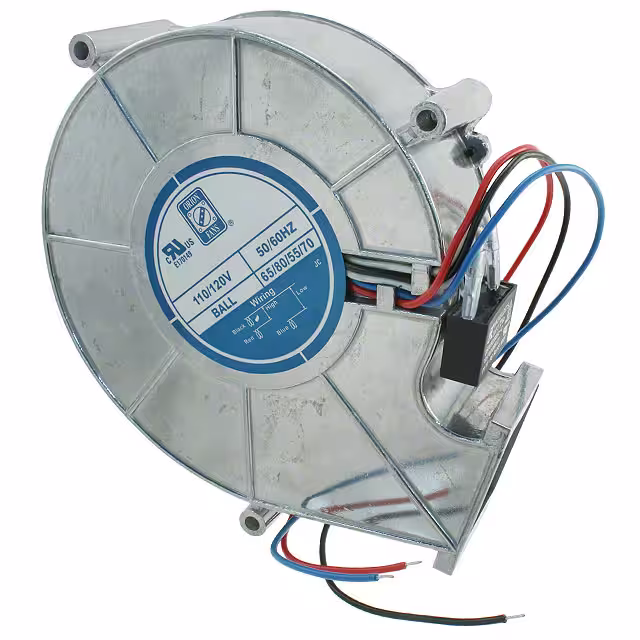

OAB908AN-11-1/2FAN BLOWER 183X70MM 120VAC WIRE |
214 |
|
Технический лист |
OAB908 | Box | Active | 115VAC | Rectangular/Rounded - 183mm L x 189.8mm H | 70.00mm | 75.0 ~ 100.0 CFM (2.10 ~ 2.80m³/min) | 1.40/1.80 in H2O (348.7/448.4 Pa) | Ball | Blower | Dual Speed, Thermal Overload Protector (TOP) | 55/68dB | 65.0W, 80.0W | 2400/3100 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus | - |
|

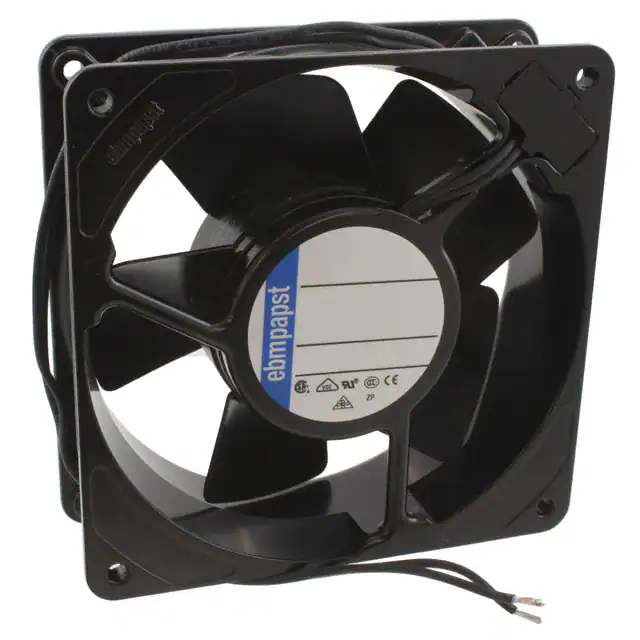

4656ZWUFAN AXIAL 119X38MM 230VAC WIRE |
86 |
|
Технический лист |
4000ZU | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.321 in H2O (80.0 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 17.00W | 3100 RPM | 2 Wire Leads | IP65 - Dust Tight, Water Resistant | -40 ~ 176°F (-40 ~ 80°C) | CCC, CE, CSA, UL, VDE | - |
|

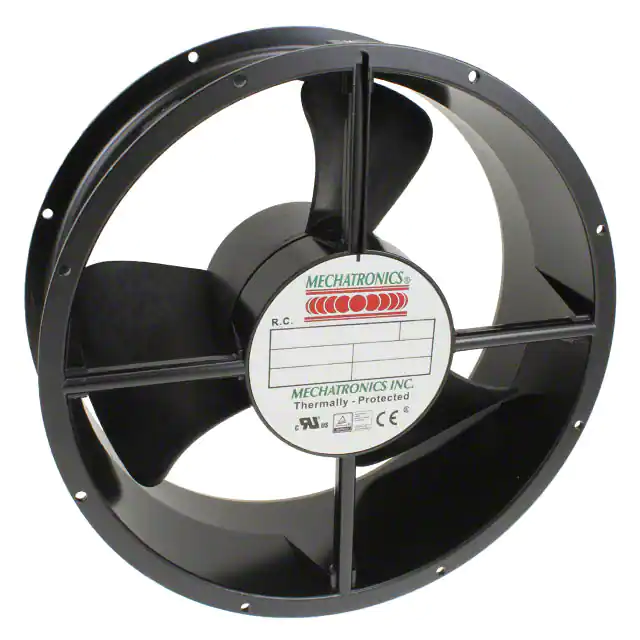

UF25GC12-BTHRFAN AXIAL 254X89MM 115VAC |
412 |
|
Технический лист |
UF25GC | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.0dB(A) | 33.00W | 1650 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
|
UF25GC23-BTHRFAN AXIAL 254X89MM 230VAC |
71 |
|
Технический лист |
UF25GC | Bulk | Active | 230VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.0dB(A) | 33.00W | 1650 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
