Вентиляторы переменного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
109S496-3092X25MM 100V,MINI ACE, SNSR VLT |
0 |
|
Технический лист |
San Ace 92 | Box | Active | 100VAC | Square - 92mm L x 92mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.065 in H2O (16.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 6.00W | 1700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S495-3092X25MM 100V,MINI ACE, SNSR VLT |
0 |
|
Технический лист |
San Ace 92 | Box | Active | 100VAC | Square - 92mm L x 92mm H | 25.00mm | 34.6 CFM (0.969m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 7.00W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
109S484-30FAN 120X25MM 115VAC ALARM |
0 |
|
Технический лист |
San Ace 120 | Box | Active | 115VAC | Square - 119mm L x 119mm H | 25.00mm | 81.3 CFM (2.28m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | Alarm | 41.0dB(A) | 12.00W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, PSE, TUV, UL | 0.86 lb (390.09 g) |
|

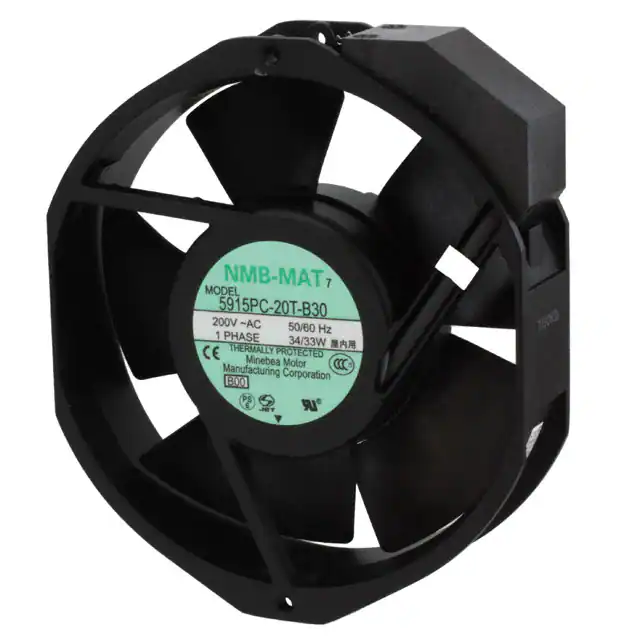

5915PC-20T-B30-B00FAN AXIAL 172X38MM 200VAC TERM |
0 |
|
Технический лист |
PC | Bulk | Obsolete | 200VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | - | 56.0dB | 33.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
5915PC-22T-B30-B00FAN AXIAL 172X38MM 220VAC TERM |
0 |
|
Технический лист |
PC | Bulk | Obsolete | 220VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | - | 56.0dB | 38.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
5915PC-24T-B20-A00FAN AXIAL 172X38MM 240VAC TERM |
0 |
|
Технический лист |
PC | Bulk | Active | 240VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 166.0 CFM (4.65m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 26.00W | 2600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
15038PB-B2J-EA-00FAN 150MM X 172MM X 38MM 200VAC |
0 |
|
Технический лист |
15038PB | Bulk | Active | 220VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 102.3 CFM (2.86m³/min) | 0.243 in H2O (60.5 Pa) | Ball | Tubeaxial | - | 38.0dB | 18.00W | 1650 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-A0L-EP-00FAN 150MM X 172MM X 38MM 100VAC |
0 |
|
Технический лист |
15038PB | Bulk | Active | 100VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 33.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-B2L-AP-00FAN 150MM X 172MM X 38MM 220VAC |
0 |
|
Технический лист |
15038PB | Bulk | Active | 220VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 38.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-B0J-EA-00FAN 150MM X 172MM X 38MM 200VAC |
0 |
|
Технический лист |
15038PB | Bulk | Active | 200VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 102.3 CFM (2.86m³/min) | 0.243 in H2O (60.5 Pa) | Ball | Tubeaxial | - | 38.0dB | 18.00W | 1650 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-B4J-EA-00FAN 150MM X 172MM X 38MM 240VAC |
0 |
|
Технический лист |
15038PB | Bulk | Active | 240VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 102.3 CFM (2.86m³/min) | 0.243 in H2O (60.5 Pa) | Ball | Tubeaxial | - | 38.0dB | 18.00W | 1650 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-A0K-EA-00FAN 150MM X 172MM X 38MM 100VAC |
0 |
|
Технический лист |
15038PB | Bulk | Active | 100VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 166.0 CFM (4.65m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 23.00W | 2600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-B4K-EA-00FAN 150MM X 172MM X 38MM 240VAC |
0 |
|
Технический лист |
15038PB | Bulk | Active | 240VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 166.0 CFM (4.65m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 26.00W | 2600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-B4L-EP-00FAN 150MM X 172MM X 38MM 240VAC |
0 |
|
Технический лист |
15038PB | Bulk | Active | 240VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 34.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-A0J-EA-00FAN 150MM X 172MM X 38MM 100VAC |
0 |
|
Технический лист |
15038PB | Bulk | Active | 100VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 102.3 CFM (2.86m³/min) | 0.243 in H2O (60.5 Pa) | Ball | Tubeaxial | - | 38.0dB | 18.00W | 1650 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-B2K-EA-00FAN 150MM X 172MM X 38MM 200VAC |
0 |
|
Технический лист |
15038PB | Bulk | Active | 220VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 166.0 CFM (4.65m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 26.00W | 2600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15038PB-B0L-AP-00FAN AXIAL 172X38MM 200VAC WIRE |
0 |
|
Технический лист |
15038PB | Bulk | Active | 200VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 214.3 CFM (6.00m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 33.00W | 3200 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
OAB13391-11-1WBFAN IMP MTRZD 133X91MM 115VAC W/ |
0 |
|
Технический лист |
OAB13391 | Box | Active | 115VAC | Round - 133mm Dia | 91.50mm | 188.0 CFM (5.26m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Motorized Impellers | Thermal Overload Protector (TOP) | 60.0dB | 41.00W | 3200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 140°F (-40 ~ 60°C) | - | 2.7 lbs (1.2 kg) |
|
|
AC4300UACMAXX TUBEAXIAL FAN |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

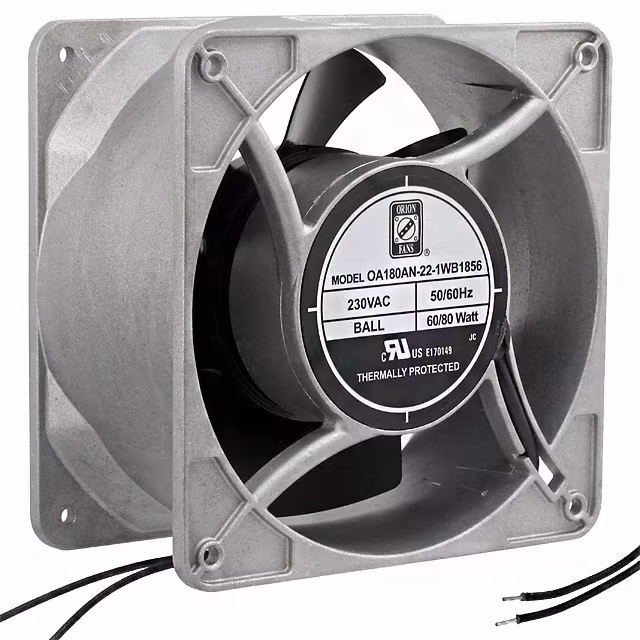

OA180AN-22-1WB1856FAN AXIAL 176X89MM 230VAC WIRE |
0 |
|
Технический лист |
OA180AN | Box | Active | 230VAC | Square - 176mm L x 176mm H | 89.00mm | 380.0 CFM (10.64m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 63.0dB | 80.0W | 3250 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 4.1 lbs (1.9 kg) |
