Оценочные платы DC/DC и AC/DC (автономные) ИБП
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Основное назначение | Выходы и тип | Напряжение - выход | Ток - выход | Напряжение - Вход | Топология регулятора | Частота - Переключение | Содержимое | Используемая ИС/деталь | Мощность - Выход |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

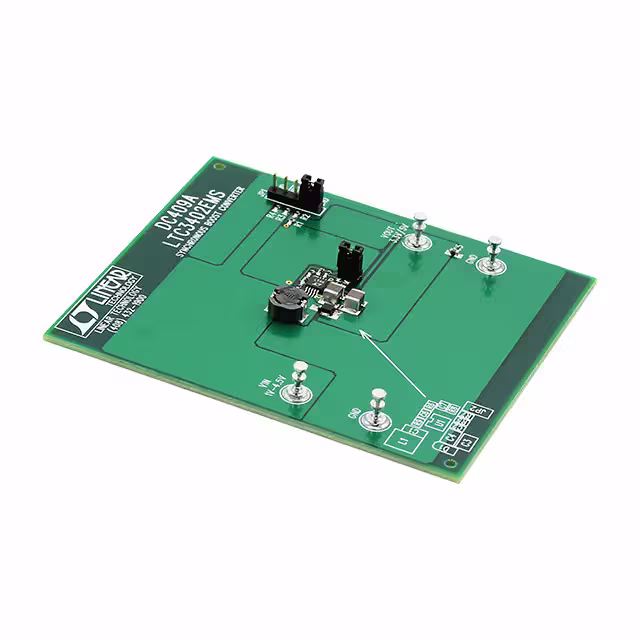

DC409AEVAL BOARD FOR LTC3402 |
2 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 850mA | 1V ~ 4.5V | Boost | 600kHz | Board(s) | LTC3402 |
|

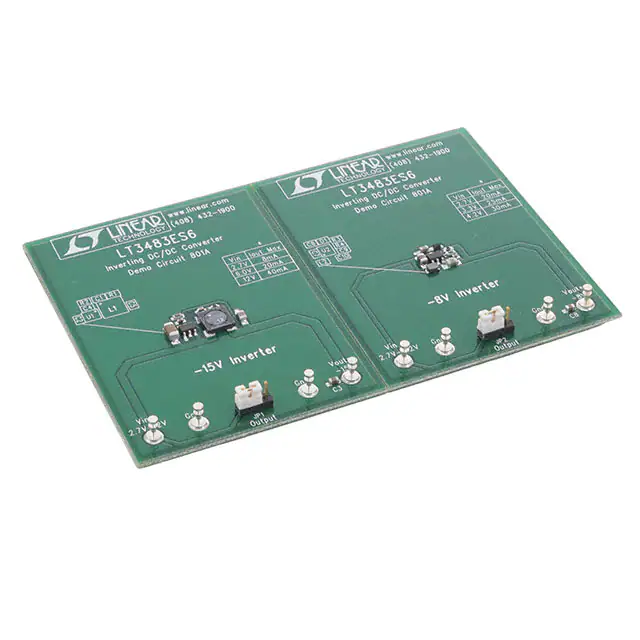

DC801AEVAL BOARD FOR LT3483 |
3 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | -8V, -15V | 40mA, 30mA | 2.7V ~ 12V | Inverting | - | Board(s) | LT3483 |
|
EV1703-3300-AEVAL BOARD FOR FS1703 |
5 |
|
Технический лист |
µPOL™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 5V | Buck | 580kHz | Board(s) | FS1703 |
|
NCP1060BUCKGEVBEVAL BOARD FOR NCP1060 |
2 |
|
Технический лист |
- | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | - | - | 90 ~ 265 VAC | Buck | 60kHz | Board(s) | NCP1060 |
|
CSD87384MEVM-603EVAL BOARD CSD87384M TPS51219 |
5 |
|
Технический лист |
NexFET™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 30A | 8V ~ 20V | Buck | 300kHz | Board(s) | CSD87384M, TPS51219 |
|
CSD87355Q5DEVM-820EVAL BOARD CSD87355Q5D TPS51218 |
2 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 8V ~ 13V | Buck | 290kHz | Board(s) | CSD87355Q5D, TPS51218 |
|

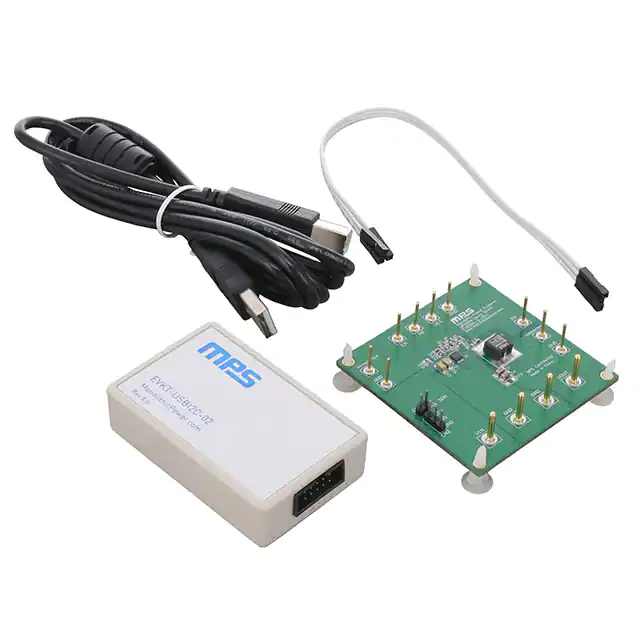

EVKT-8864EVAL BOARD FOR MP8864 |
4 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 4.5V ~ 21V | Buck | - | Board(s), Cable(s), Accessories | MP8864 |
|

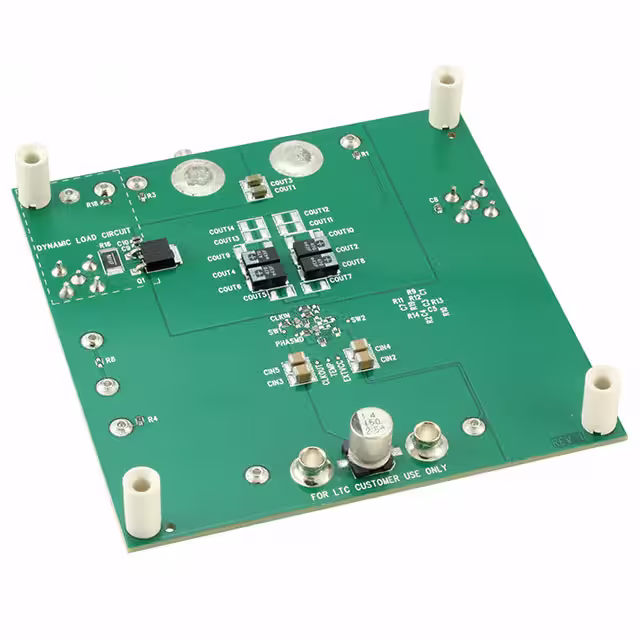

DC2081A-AEVAL BOARD FOR LTM4630 |
4 |
|
Технический лист |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 36A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630 |
|

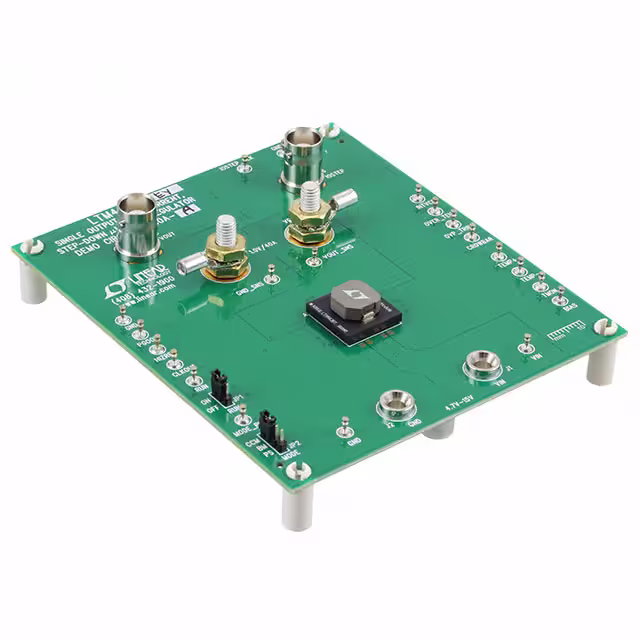

DC2230A-AEVAL BOARD FOR LTM4636 |
1 |
|
Технический лист |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 40A | 4.7V ~ 15V | Buck | 350kHz | Board(s) | LTM4636 |
|

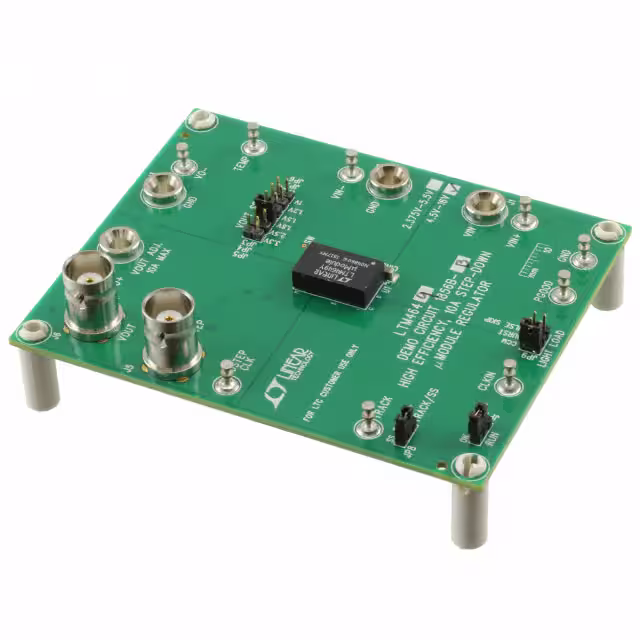

DC1856B-BEVAL BOARD FOR LTM4649 |
0 |
|
Технический лист |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V, 1.8V, 2.5V or 3.3V | 10A | 4.5V ~ 16V | Buck | 450kHz | Board(s) | LTM4649 |
|

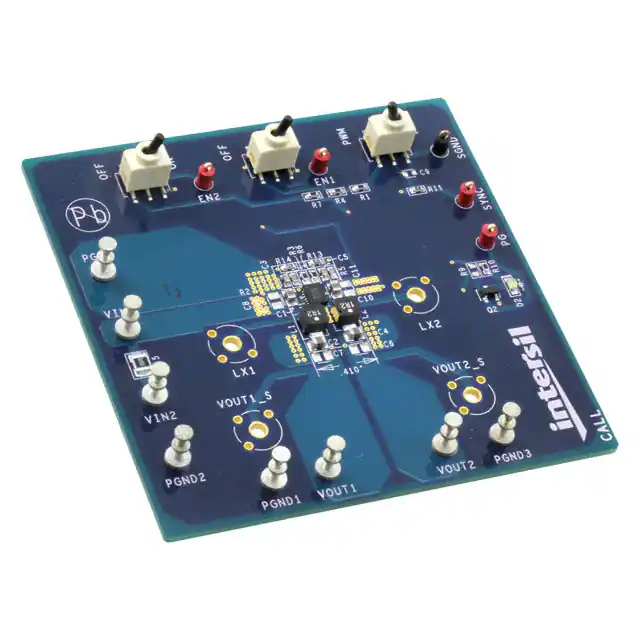

ISL8022EVAL1ZEVAL BOARD FOR ISL8022 |
2 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 2A, 1.7A | 2.8V ~ 5.5V | Buck | 2.25MHz | Board(s) | ISL8022 |
|

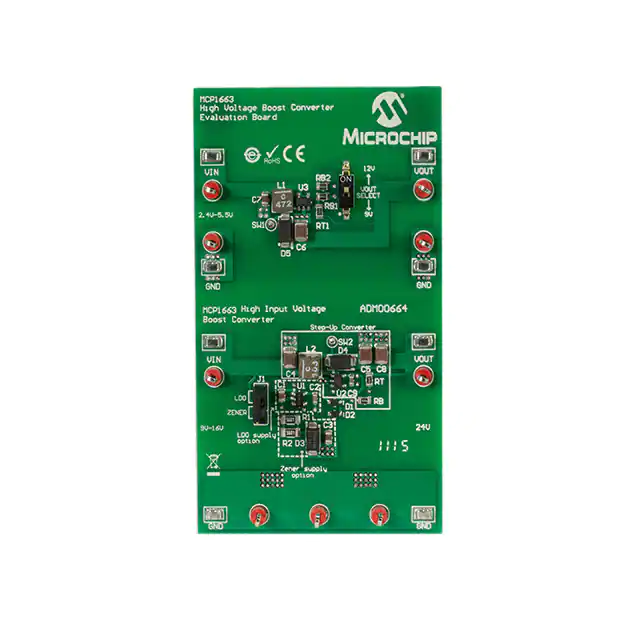

ADM00664EVAL BOARD FOR MCP1663 |
4 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | 2.4V ~ 5.5V | Boost | 500kHz | Board(s) | MCP1663 |
|
DC627A-AEVAL BOARD FOR LT3461 |
2 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 70mA | 3V ~ 6V | Boost | 3MHz | Board(s) | LT3461 |
|

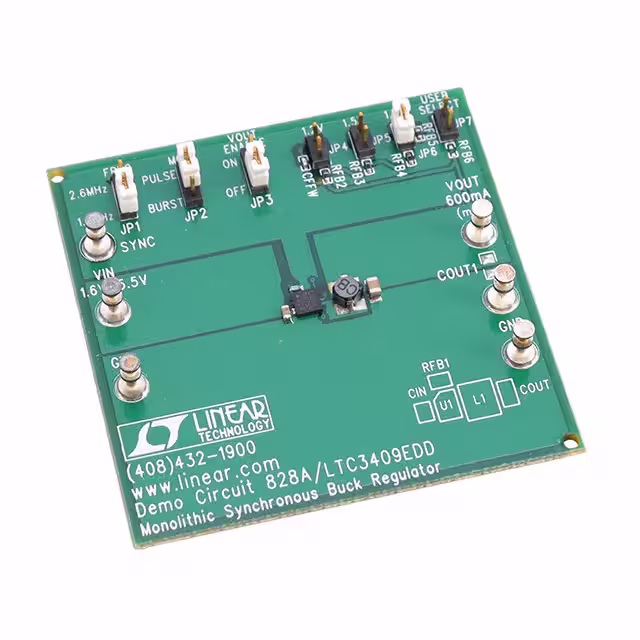

DC828AEVAL BOARD FOR LTC3409 |
2 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 1.6V ~ 5.5V | Buck | 2.6MHz | Board(s) | LTC3409 |
|

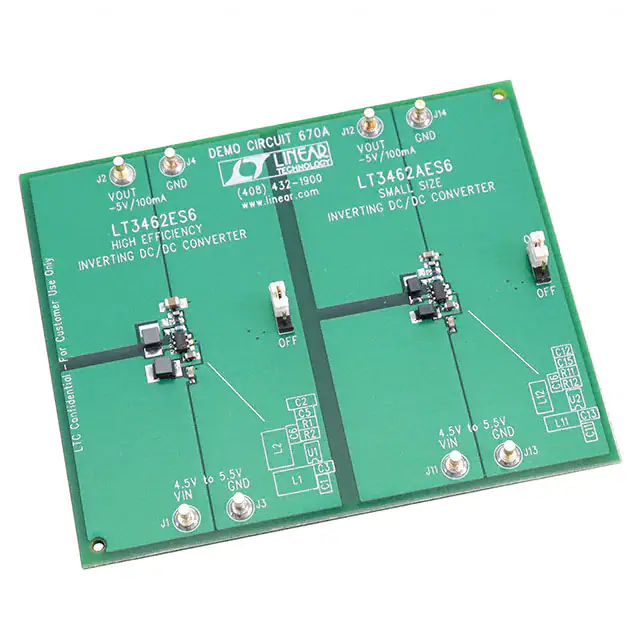

DC670AEVAL BOARD FOR LT3462 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 100mA | 5V | SEPIC, Inverting | 1.2MHz | Board(s) | LT3462 |
|

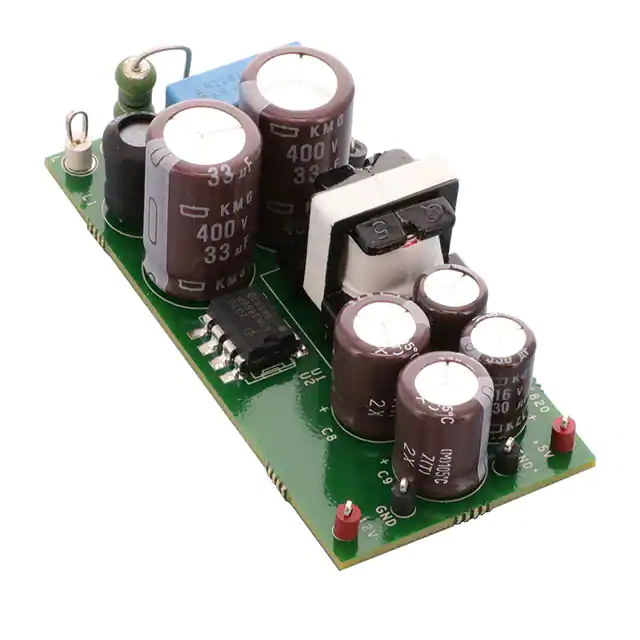

RDK-736EVAL BOARD FOR LNK3696 |
5 |
|
Технический лист |
LinkSwitch™-XT2 | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | 7 W | 5V, 12V | 500mA, 200mA | 85 ~ 440 VAC | Flyback | - | Board(s) | LNK3696 |
|
RDK-866EVAL BOARD FOR LNK3307D |
4 |
|
Технический лист |
LinkSwitch®-TNZ | Box | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 2.5 W | 5V | 500mA | 90 ~ 300 VAC | Buck | - | Board(s) | LNK3307D |
|
|
RDK-874EVAL BOARD FOR LNK3302D |
4 |
|
Технический лист |
LinkSwitch®-TNZ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 6V | - | 90 ~ 305 VAC | Buck | - | Board(s) | LNK3302D |
|

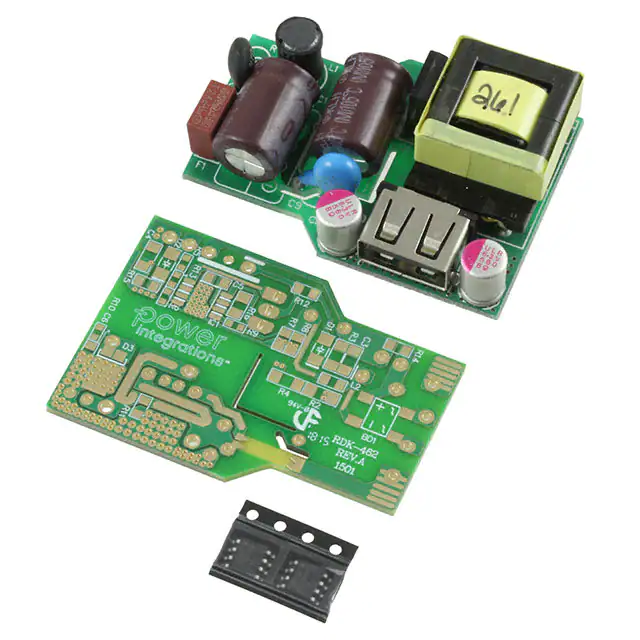

RDK-462EVAL BOARD FOR LNK4023D |
3 |
|
Технический лист |
LinkSwitch™-4 | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 10 W | 5V | 2A | 90 ~ 265 VAC | Flyback | - | Board(s) | LNK4023D |
|

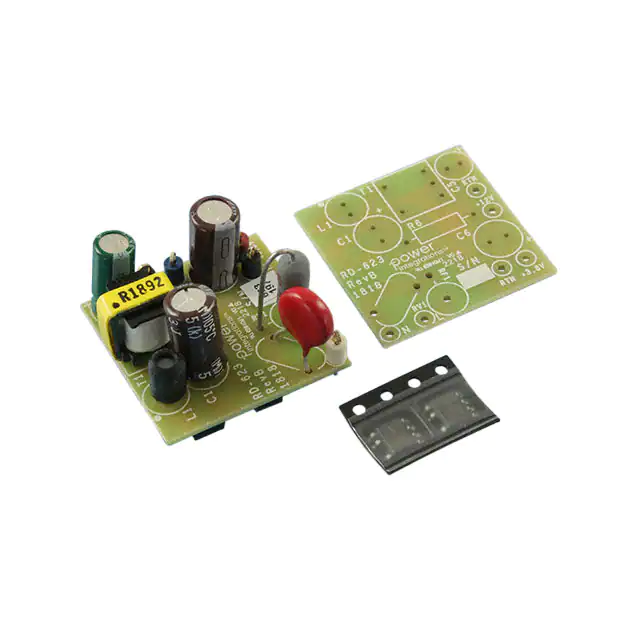

RDK-623EVAL BOARD FOR LNK3202D |
2 |
|
Технический лист |
LinkSwitch®-TN2 | Box | Active | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | - | 3.8V, 12V | 20mA, 20mA | 85 ~ 277 VAC | Flyback | 50Hz ~ 60Hz | Board(s) | LNK3202D |
