Оценочные платы DC/DC и AC/DC (автономные) ИБП
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Основное назначение | Выходы и тип | Напряжение - выход | Ток - выход | Напряжение - Вход | Топология регулятора | Частота - Переключение | Содержимое | Используемая ИС/деталь | Мощность - Выход |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

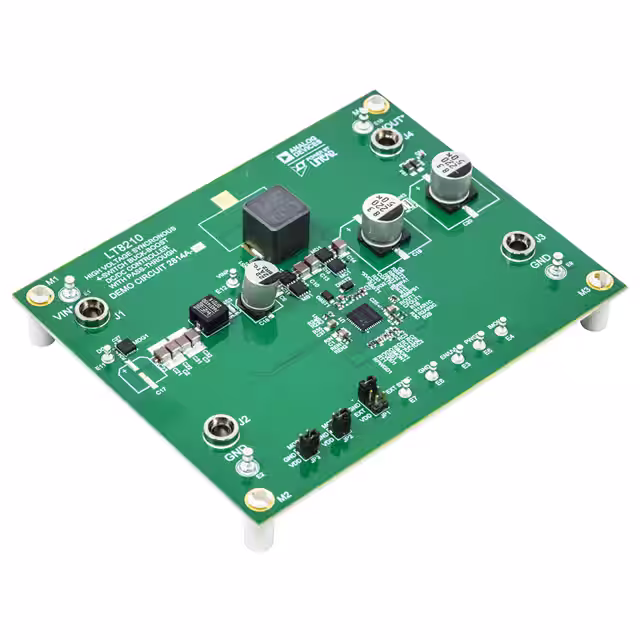

DC2814A-AEVAL BOARD FOR LT8210 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 8V ~ 16V | 3A | 8V ~ 80V | Boost, Buck | 385kHz | Board(s) | LT8210 |
|

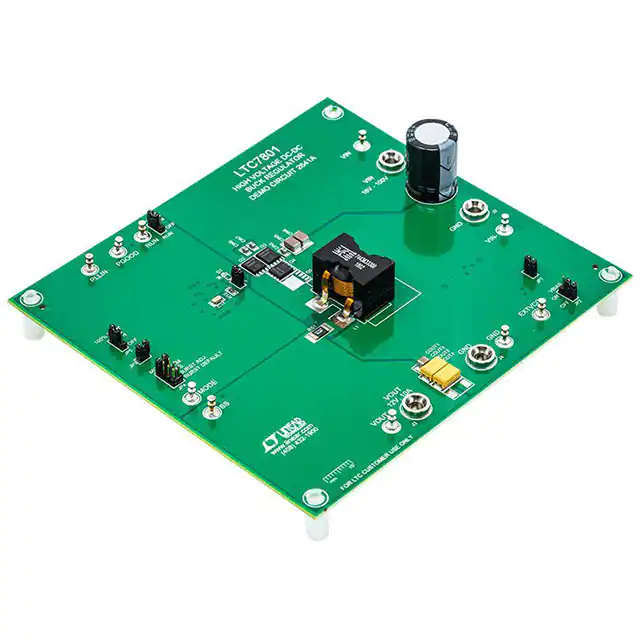

DC2641AEVAL BOARD FOR LTC7801 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 10A | 16V ~ 100V | Buck | 150kHz | Board(s) | LTC7801 |
|

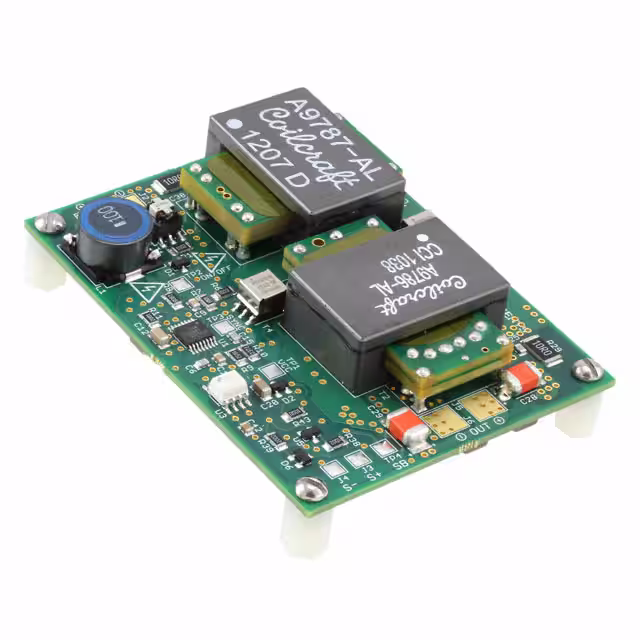

LM5041EVAL/NOPBEVAL BOARD FOR LM5041 |
2 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 50A | 35V ~ 80V | Buck | - | Board(s) | LM5041 |
|

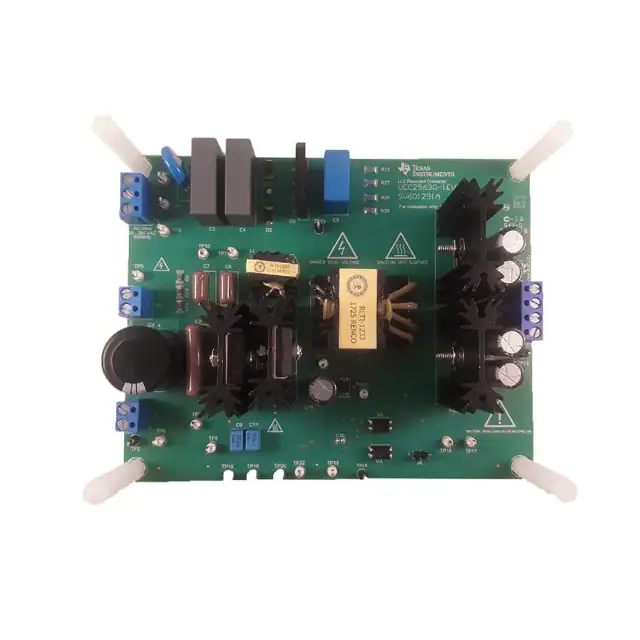

UCC25630-1EVM-291EVAL BOARD FOR UCC256301 |
2 |
|
Технический лист |
- | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | 120 W | 12V | 10A | 85 ~ 264 VAC, 340V ~ 410V | Resonant | - | Board(s) | UCC256301 |
|
ROA1283835EVAL BOARD FOR BMR453 BMR454 |
4 |
|
Технический лист |
- | Box | Active | - | - | - | - | - | - | - | - | Partially Populated Board(s) | BMR453, BMR454, BMR456, BMR457, BMR458 |
|

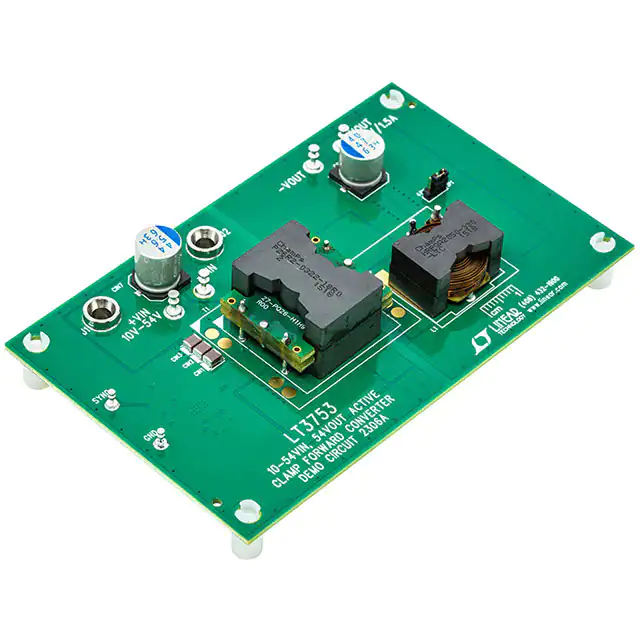

DC2306AEVAL BOARD FOR LT3753 |
3 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 54V | 1.5A | 10V ~ 54V | Forward Converter | 100kHz | Board(s) | LT3753 |
|

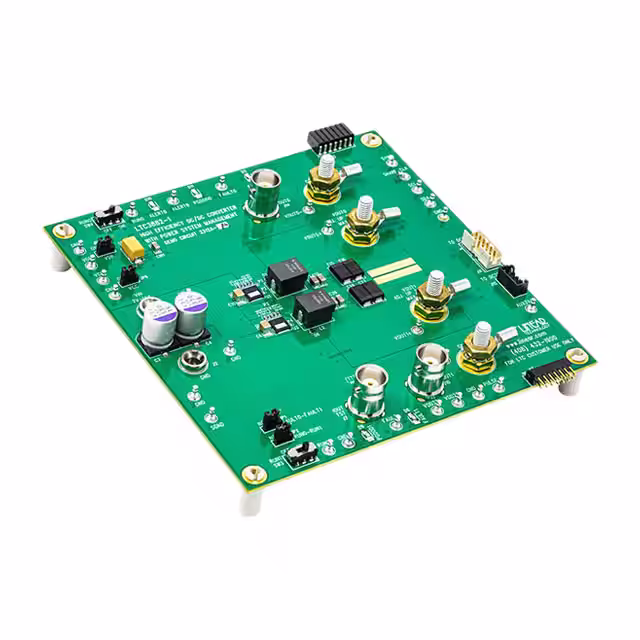

DC2312A-BEVAL BOARD FOR LTC3882EUJ1 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 70A | 7V ~ 14V | Buck | 450kHz | Board(s) | LTC3882EUJ-1 |
|
EV66P64AEVAL BOARD FOR MIC2133 |
9 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 32V | 50A | 4.5V ~ 75V | Buck | 800kHz | Board(s) | MIC2133 |
|

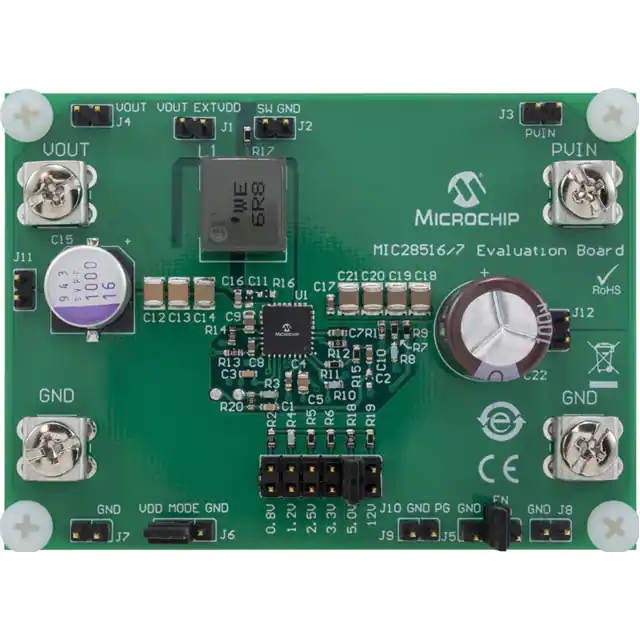

ADM00995EVAL BOARD FOR MIC28517 |
2 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 32V | 8A | 4.5V ~ 70V | Buck | - | Board(s) | MIC28517 |
|

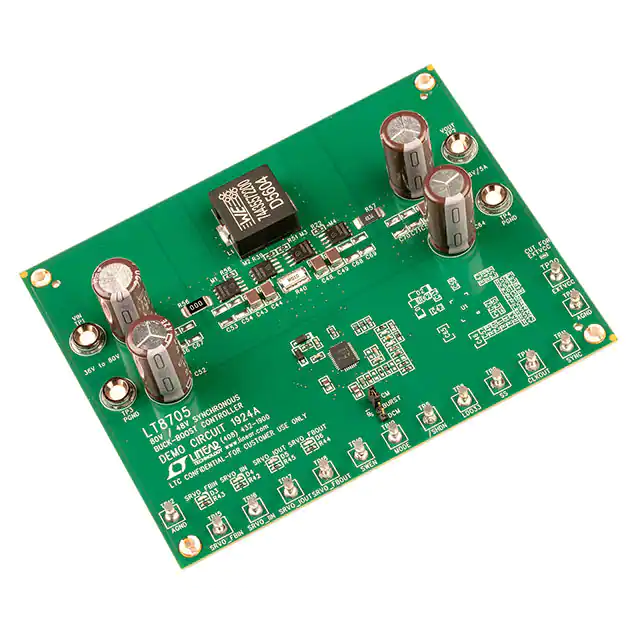

DC1924AEVAL BOARD FOR LT8705 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 48V | 5A | 36V ~ 80V | Buck-Boost | 200kHz | Board(s) | LT8705 |
|

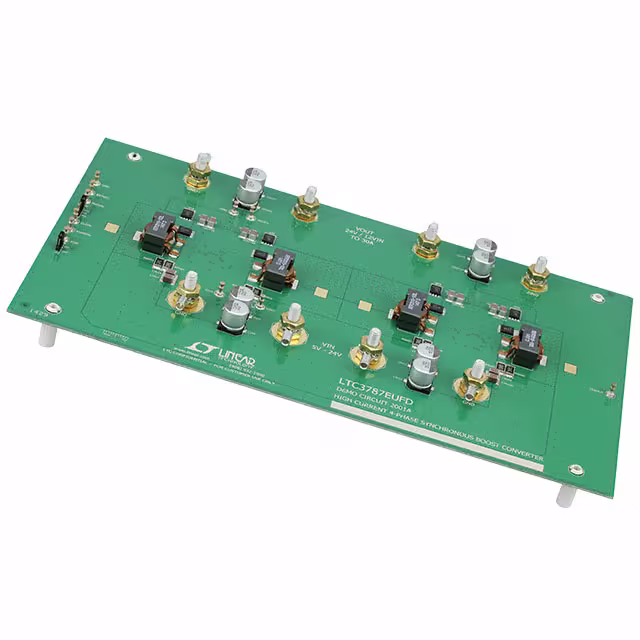

DC2001AEVAL BOARD FOR LTC3787 |
1 |
|
Технический лист |
PolyPhase® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 24V | 30A | 6V ~ 24V | Buck | 350kHz | Board(s) | LTC3787 |
|
|
MAX16731EVKIT#EVAL BOARD FOR MAX16731 |
2 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 5.8V | 30A | 2.7V ~ 16V | Buck | 1.5MHz | Board(s) | MAX16731 |
|

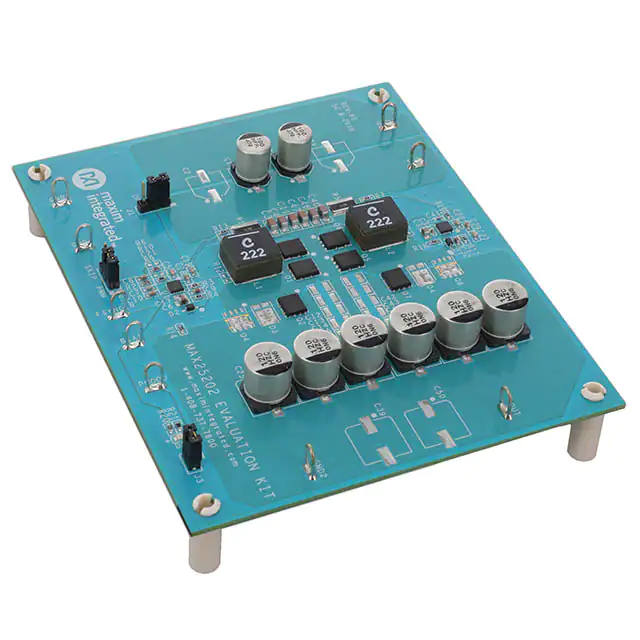

MAX25202EVKIT#EVAL BOARD FOR MAX25202 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 4.5V ~ 60V | - | 4.5V ~ 36V | Boost | 400kHz | Board(s) | MAX25202 |
|
|
EVAL-LT8334-AZEVAL BOARD FOR LT8334 |
2 |
|
Технический лист |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 12V | 2.2A, 2A, 1.75A | 3V ~ 26V | Boost, Inverting, SEPTIC | 2MHz | Board(s) | LT8334 |
|

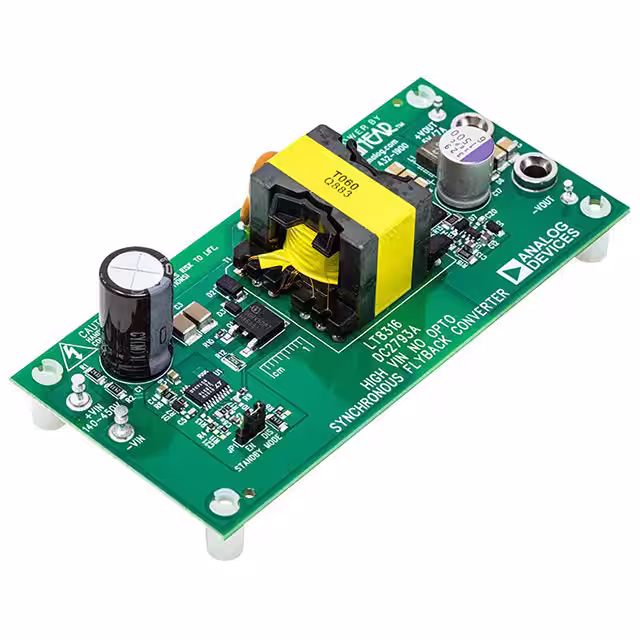

DC2793AEVAL BOARD FOR LT8316 |
3 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 7A | 140V ~ 450V | Flyback | - | Board(s) | LT8316 |
|

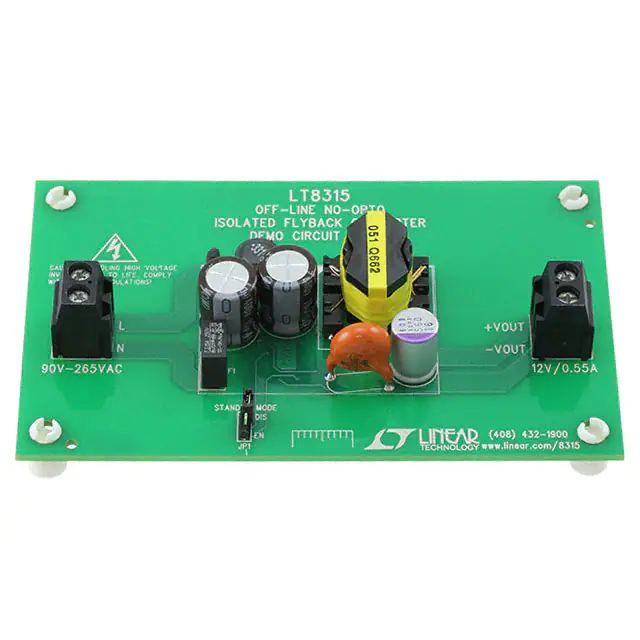

DC2337AEVAL BOARD FOR LT8315 |
2 |
|
Технический лист |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | - | 12V | 550mA | 90 ~ 265 VAC | Flyback | - | Board(s) | LT8315 |
|

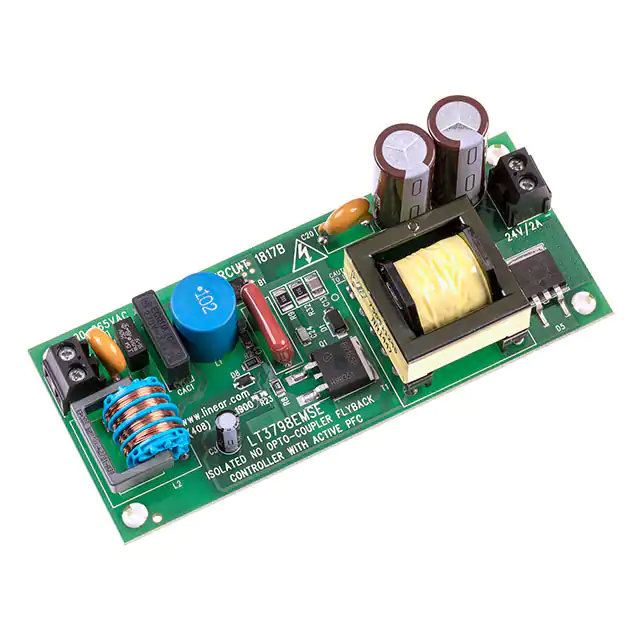

DC1817BEVAL BOARD FOR LT3798 |
1 |
|
Технический лист |
- | Box | Active | AC/DC, Primary Side and PFC | 1 Isolated Output | - | 24V | 2A | 90 ~ 265 VAC | Flyback | - | Board(s) | LT3798 |
|

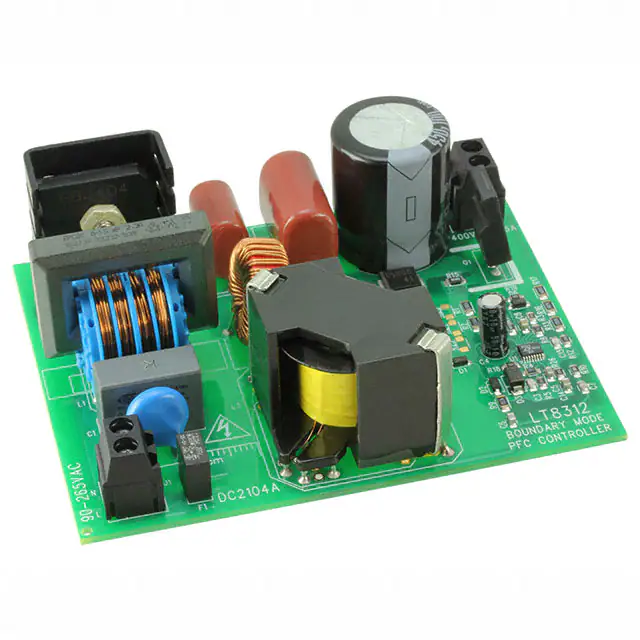

DC2104AEVAL BOARD FOR LT8312 |
1 |
|
Технический лист |
- | Box | Active | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 150 W | 400V | 375mA | 90 ~ 265 VAC | Boost | - | Board(s) | LT8312 |
|

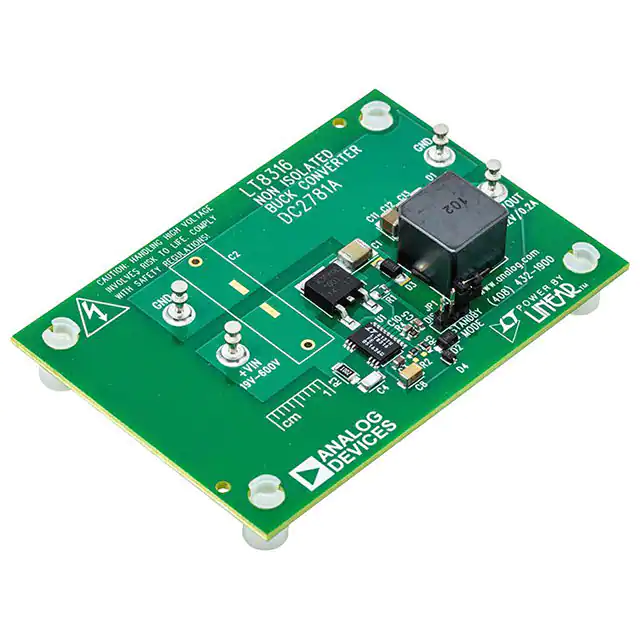

DC2781ANONISOLATED BUCK CONV, 19V TO 60 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | - |
|

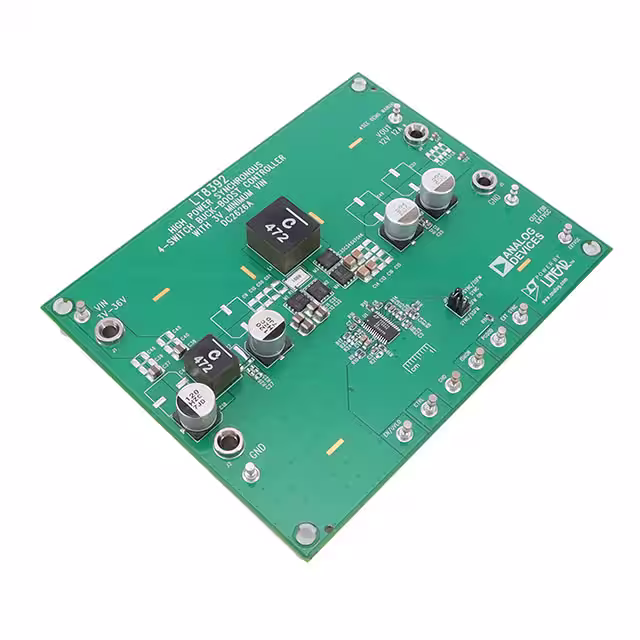

DC2626AEVAL BOARD FOR LT8392 |
1 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 144 W | 12V | 12A | 3V ~ 36V | Buck-Boost | 200kHz | Board(s) | LT8392 |
