Оценочные платы DC/DC и AC/DC (автономные) ИБП
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Основное назначение | Выходы и тип | Напряжение - выход | Ток - выход | Напряжение - Вход | Топология регулятора | Частота - Переключение | Содержимое | Используемая ИС/деталь | Мощность - Выход |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCM3623EA5N17B4T70EVAL BOARD DCM3623XA5N17B4Y7Z |
0 |
|
Технический лист |
VI Chip® DCM® | Box | Active | DC/DC, Step Down | 1 Isolated Output | 240 W | 15V | 16A | 43V ~ 154V | Buck | - | Board(s) | DCM3623xA5N17B4y7z |
|
|
DCM3623E50M06A8M00EVAL BOARD DCM3623X50M06A8YZZ |
0 |
|
Технический лист |
VI Chip® DCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 180 W | 5V | 36A | 16V ~ 50V | Buck | - | Board(s) | DCM3623x50M06A8yzz |
|
MDCD28AP050M180A50EVAL BOARD MDCM28AP050M180A50 |
0 |
|
Технический лист |
VI Chip® DCM® | Box | Active | DC/DC, Step Down | 1 Isolated Output | 180 W | 5V | 36A | 16V ~ 50V | Buck | - | Board(s) | MDCM28AP050M180A50 |
|

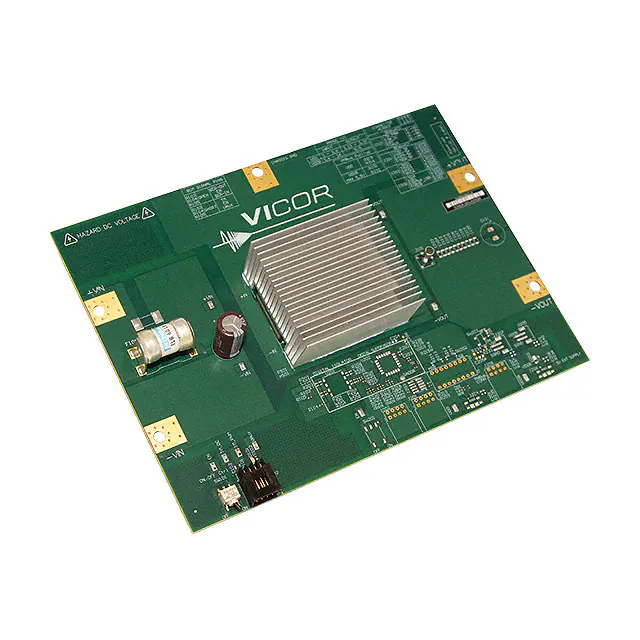

NBM6123E60E12A7T0REVAL BOARD NBM6123X60E12A7YZZ |
0 |
|
Технический лист |
VI Chip® NBM™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10.8V | 170A | 36V ~ 60V | Buck | 1.07MHz | Board(s) | NBM6123x60E12A7yzz |
|

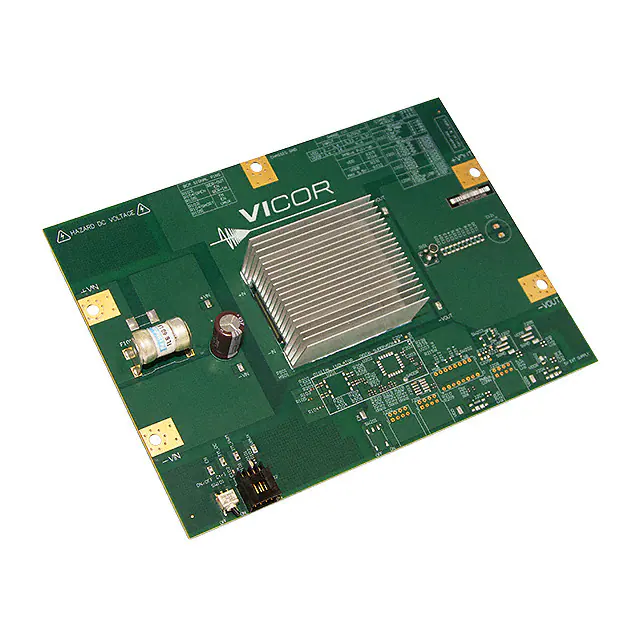

NBM6123E46C15A6T0REVAL BOARD NBM6123X46C15A6YZZ |
0 |
|
Технический лист |
VI Chip® NBM™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 14V | 160A | 36V ~ 46V | Buck | - | Board(s) | NBM6123x46C15A6yzz |
|

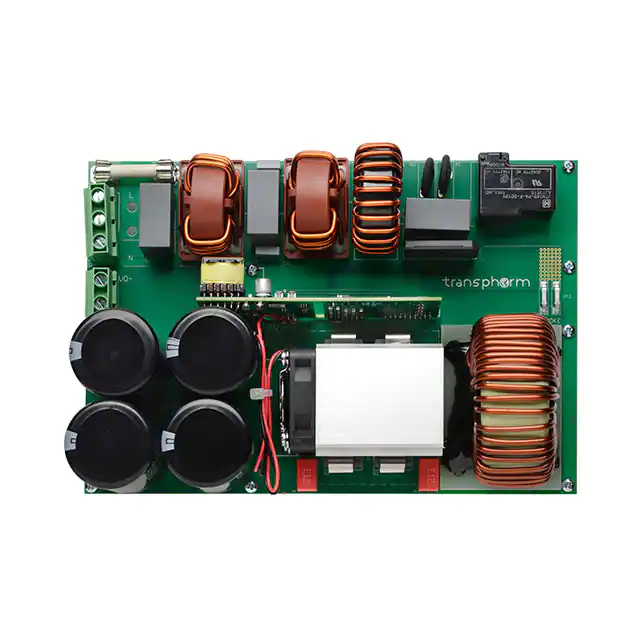

TDTTP4000W065AN-KITEVAL BOARD FOR TDTTP4000W065AN |
1 |
|
Технический лист |
- | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 4 kW | 387V | - | 85 ~ 265 VAC | - | 65kHz | Board(s) | TDTTP4000W065AN |
|

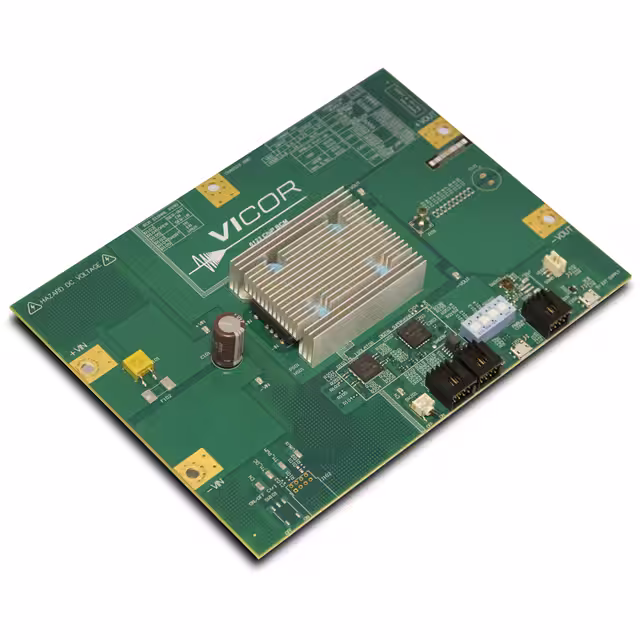

BCM6123E60E10A5T01EVAL BOARD BCM6123X60E10A5YZZ |
0 |
|
Технический лист |
VI Chip® BCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 9V | 150A | 36V ~ 60V | Buck | 900kHz | Board(s) | BCM6123x60E10A5yzz |
|
BCD384P120T1K5AC1EVAL BOARD BCM6123XD1E13A2YZZ |
0 |
|
- |
- | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 1.5 kW | 12V | 125A | 260V ~ 410V | Buck | 1MHz | Board(s) | BCM6123xD1E13A2yzz |
|
|
BCM6123ED1E2663T01EVAL BOARD BCM6123XD1E2663YZZ |
0 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 1.5 kW | 24V | 62.5A | 260V ~ 410V | Buck | 1.05MHz | Board(s) | BCM6123xD1E2663yzz |
|
|
BCM6123E60E15A3T01EVAL BOARD BCM6123X60E15A3YZZ |
0 |
|
Технический лист |
VI Chip® BCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 13.5V | 130A | 36V ~ 60V | Buck | 950kHz | Board(s) | BCM6123x60E15A3yzz |
|

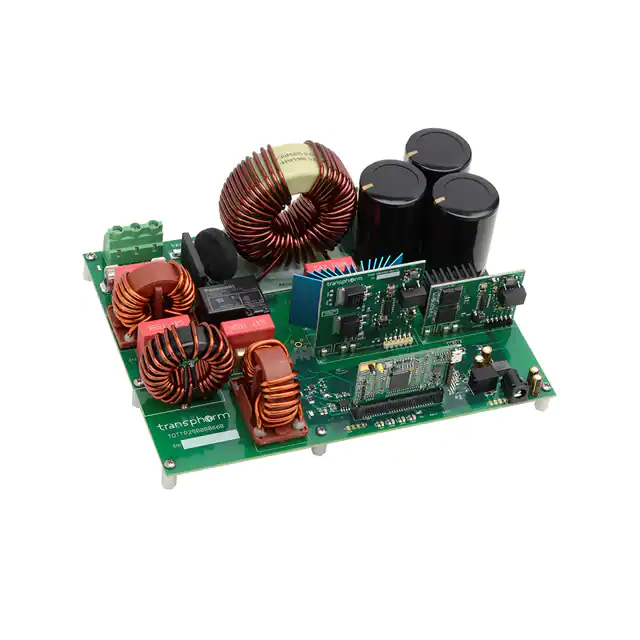

TDTTP2500B066B-KITEVAL BOARD FOR TP65H050G4BS |
0 |
|
Технический лист |
- | Bulk | Discontinued | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 2.5 kW | 390V | - | - | - | 66kHz | Board(s) | TP65H050G4BS |
|
|
BCM6123ED1E5117T01EVAL BOARD BCM6123XD1E5117YZZ |
0 |
|
Технический лист |
VI Chip® BCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 47.5V | 16.9A | 260V ~ 410V | Buck | 1.18MHz | Board(s) | BCM6123xD1E5117yzz |
|
|
BCM6123ED1E5135T01EVAL BOARD BCM6123XD1E5135YZZ |
0 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 1.75 kW | 50V | 35A | 260V ~ 410V | Buck | 1.1MHz | Board(s) | BCM6123xD1E5135yzz |
|
DCM4623ED2K04A5M70EVAL BOARD DCM4623XD2K04A5YZZ |
0 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 150 W | 3.3V | 45.46A | 160V ~ 420V | Buck | - | Board(s) | DCM4623xD2K04A5yzz |
|
|
TPS50602EVM-CVALEVAL BOARD FOR TPS50602SP |
1 |
|
- |
SWIFT™ | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 6A, 6A | 4.5V ~ 7V | Buck | 500kHz | Board(s) | TPS50602-SP |
|
DKIT-AC-48-POL-00EVAL BOARD FOR PI354300 PI354500 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V, 5V, 12V | - | - | Buck-Boost | - | Board(s) | PI3543-00, PI3545-00, PI3546-00 |
|
|
DKIT-AC-24-POL-00EVAL BOARD FOR PI330100 PI330200 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V, 5V, 12V | - | - | Buck | - | Board(s) | PI3301-00, PI3302-00, PI3303-00 |
|
|
APA105-KJ-004EVAL BOARD FOR AK80A |
0 |
|
Технический лист |
AMPSS® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Partially Populated Board(s) | AK80A |
|

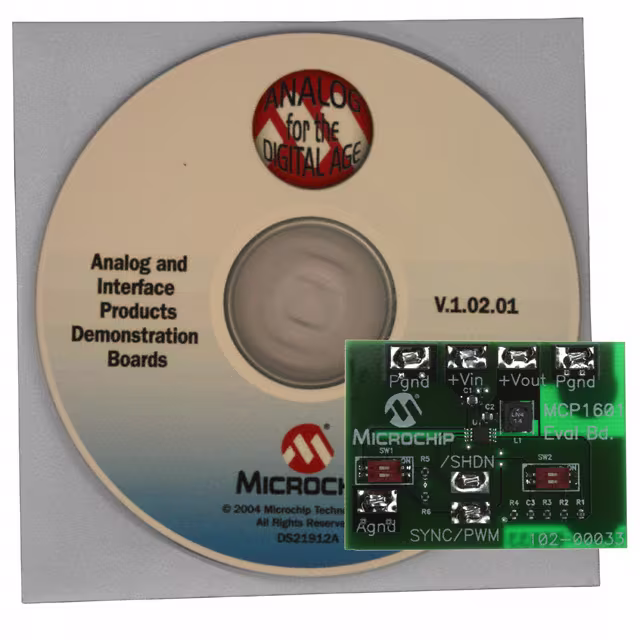

MCP1601EVEVAL BOARD FOR MCP1601 |
0 |
|
Технический лист |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.05V, 2.45V or 3.28V | 500mA | 2.7V ~ 5.5V | Buck | 750kHz | Board(s) | MCP1601 |
|

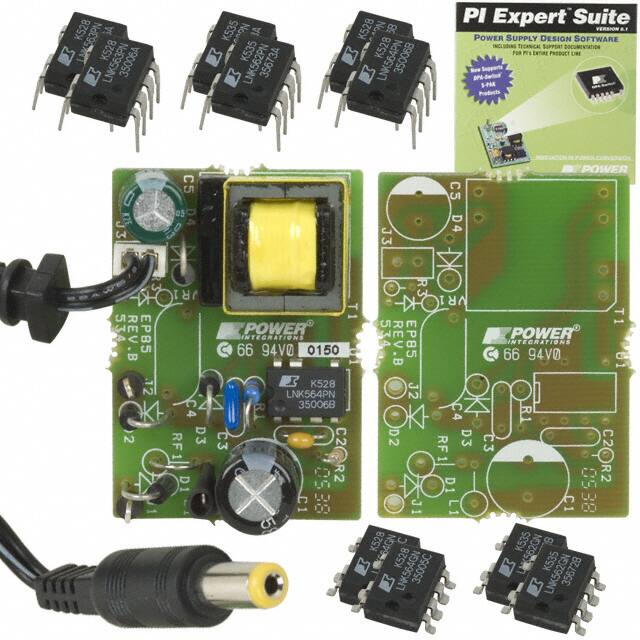

DAK-85EVAL BOARD LNK562 LNK563 LNK564 |
0 |
|
Технический лист |
LinkSwitch®-LP | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 2 W | 6V | 330mA | 90 ~ 265 VAC | Flyback | 100kHz | Board(s) | LNK562, LNK563, LNK564 |
