Оценочные платы DC/DC и AC/DC (автономные) ИБП
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Основное назначение | Выходы и тип | Напряжение - выход | Ток - выход | Напряжение - Вход | Топология регулятора | Частота - Переключение | Содержимое | Используемая ИС/деталь | Мощность - Выход |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

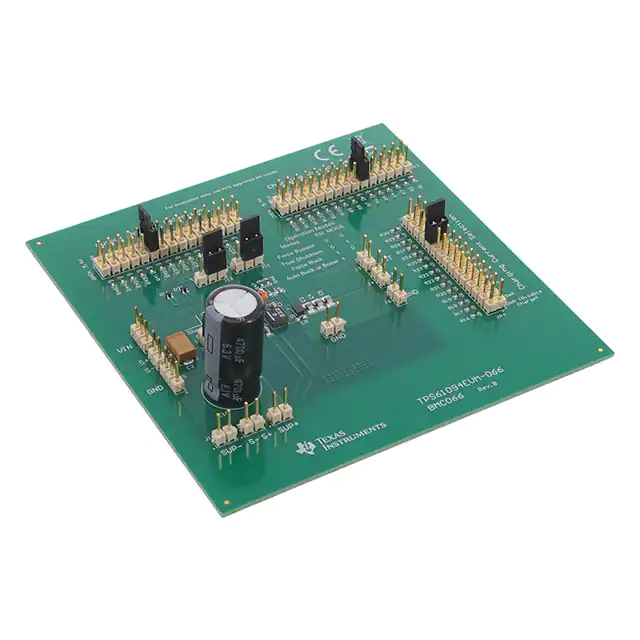

TPS61094EVM-066EVAL BOARD FOR TPS61094 |
16 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 2.7V ~ 5.4V | 500mA, 250mA | 0.7V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | TPS61094 |
|
UCC14240EVM-052EVAL BOARD FOR UCC14240Q1 |
14 |
|
Технический лист |
- | Box | Active | DC/DC Converter | 2 Isolated Outputs | 1.5 W | - | - | 21V ~ 27V | - | - | Board(s) | UCC14240-Q1 |
|

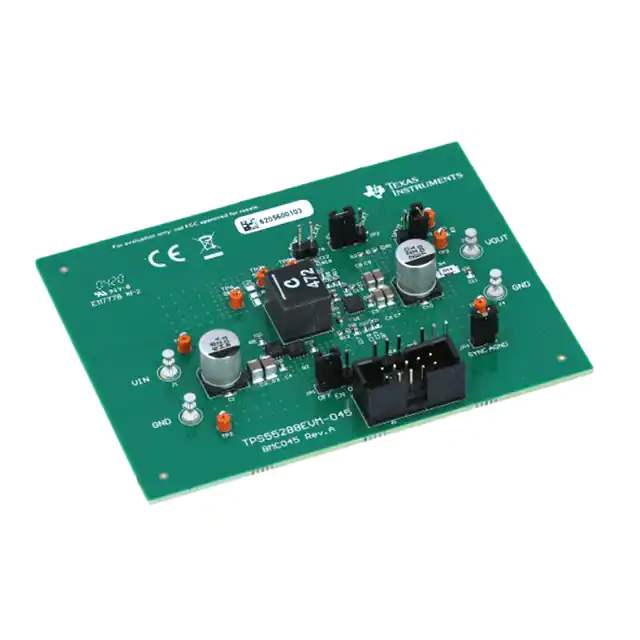

TPS55288EVM-045EVAL BOARD FOR TPS55288 |
11 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 20V | 5A | 2.7V ~ 36V | Buck-Boost | 400kHz | Board(s) | TPS55288 |
|

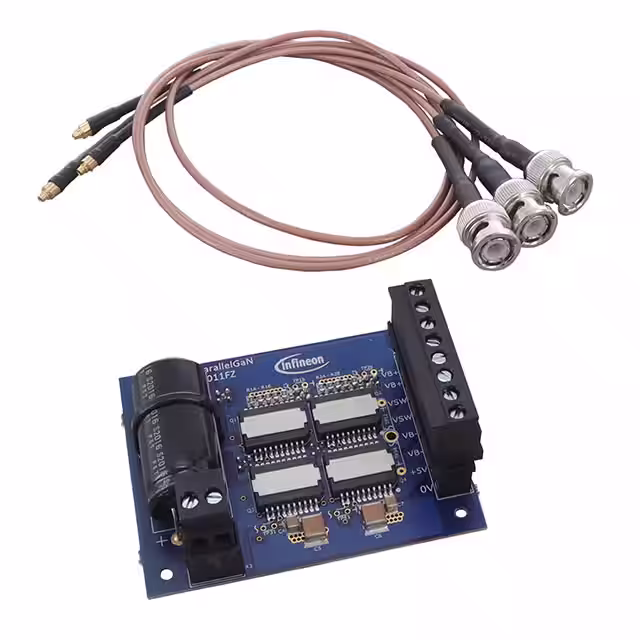

EVALHBPARALLELGANTOBO1EVAL_HB_PARALLELGAN |
2 |
|
Технический лист |
CoolGaN™, EiceDRIVER™ | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | - | - | 24A | - | Buck-Boost | - | Board(s) | - |
|

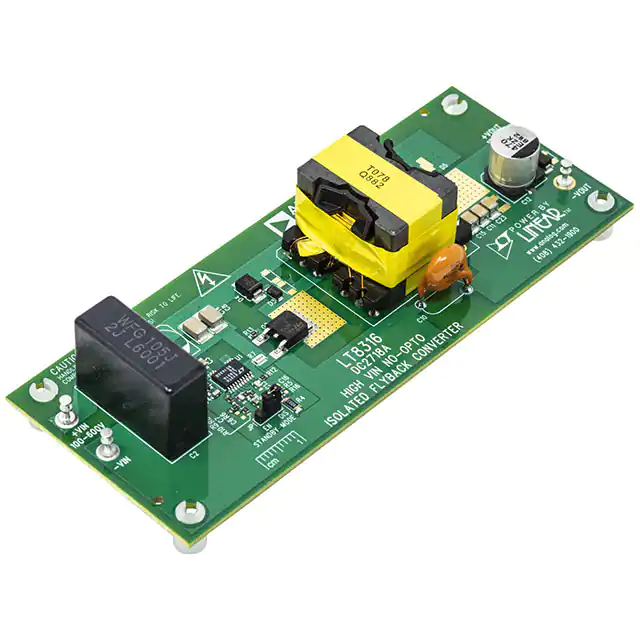

DC2718AEVAL BOARD FOR LT8316 |
15 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 3A | 100V ~ 600V | Flyback | - | Board(s) | LT8316 |
|
|
UCC28C56EVM-066EVAL BOARD FOR UCC28C56HQ1 |
20 |
|
Технический лист |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 40 W | 15V | 2.7A | 40V ~ 1000V | Flyback | 42.5kHz | Board(s) | UCC28C56H-Q1 |
|

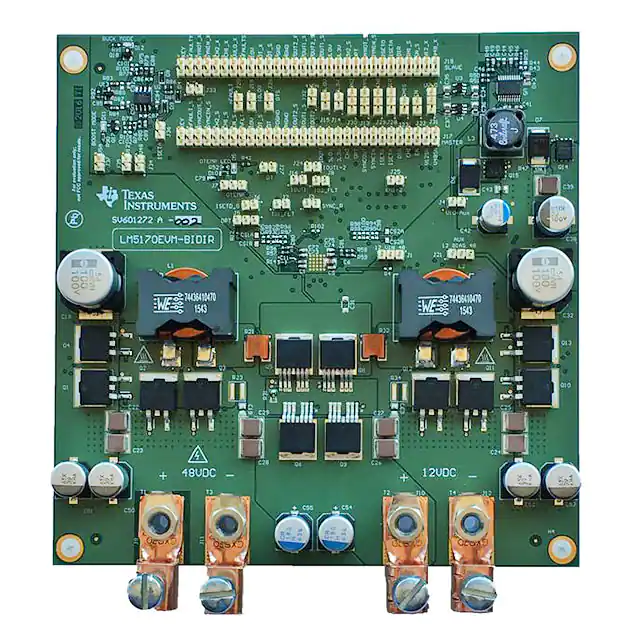

LM5170EVM-BIDIREVAL BOARD FOR LM5170Q1 |
17 |
|
Технический лист |
- | Bulk | Active | DC/DC, Bidirectional | 2 Non-Isolated Outputs | - | 12V or 48V | 60A | 3V ~ 48V or 6V ~ 70V | Boost, Buck | 100kHz | Board(s) | LM5170-Q1 |
|

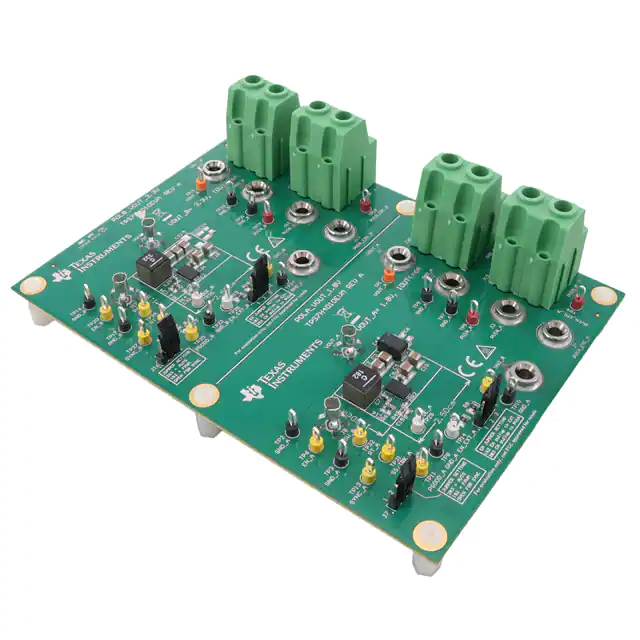

TPS7H4010EVMEVAL BOARD FOR TPS7H4010SEP |
15 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 6A, 6A | 5V ~ 30V | Buck | 500kHz | Board(s) | TPS7H4010-SEP |
|

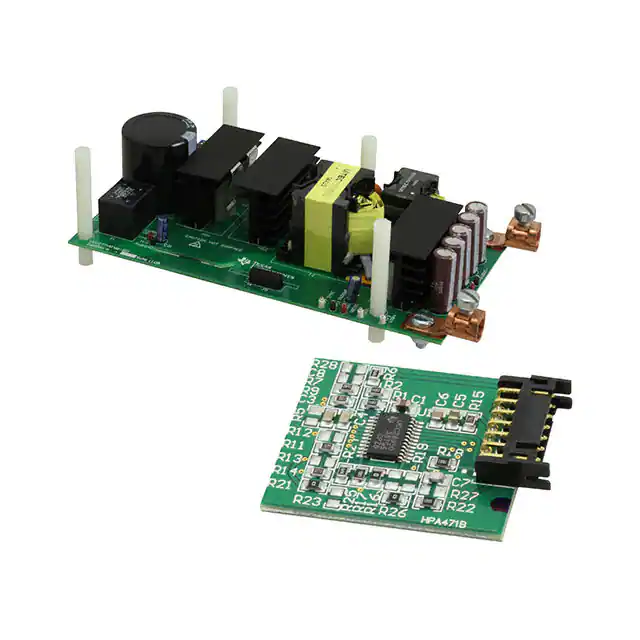

UCC27714EVM-551EVAL BOARD UCC27524A UCC27714 |
9 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 600 W | 12V | 50A | 370V ~ 410V | Full-Bridge | - | Board(s) | UCC27524A, UCC27714, UCC28950 |
|
|
BQ25756EEVMEVAL BOARD FOR BQ25756E |
9 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 4.2V ~ 36V | 15A | 12V ~ 36V | Buck-Boost | 250kHz | Board(s) | BQ25756E |
|

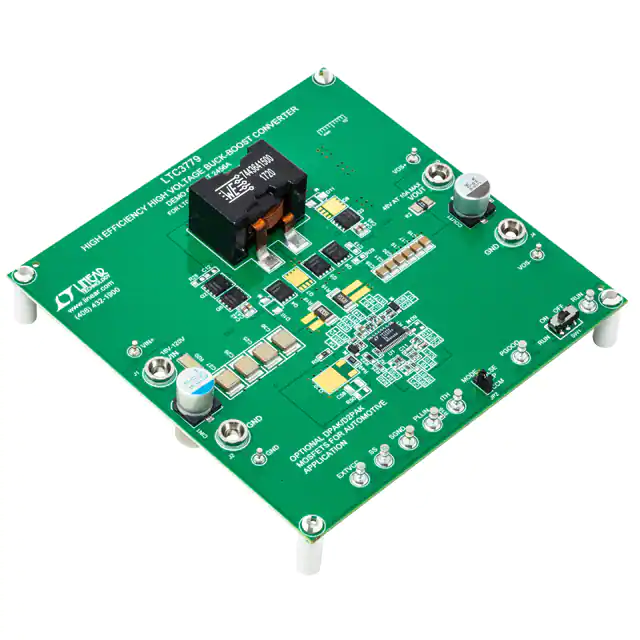

DC2456AEVAL BOARD FOR LTC3779 |
10 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 48V | 10A | 16V ~ 120V | Buck-Boost | 200kHz | Board(s) | LTC3779 |
|

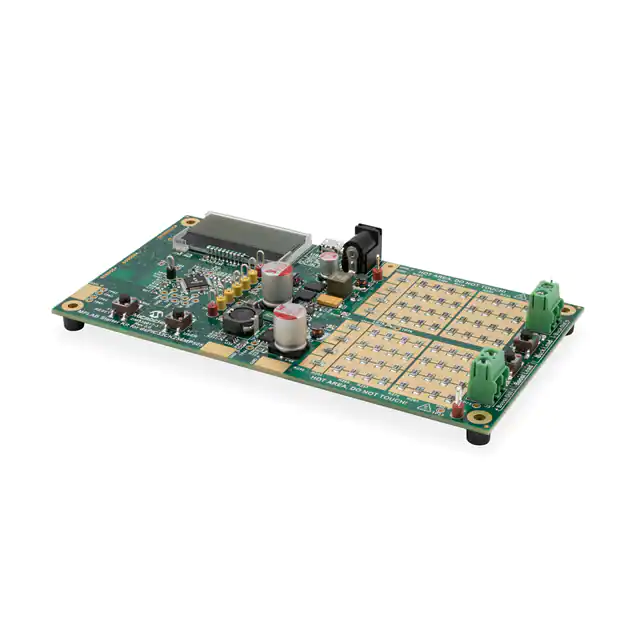

DM330017-3EVAL BOARD FOR DSPIC33CK256MP505 |
5 |
|
Технический лист |
MPLAB® | Bulk | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 3.3V, 15V | 1A, 200mA | 6V ~ 13.8V | Boost, Buck | 500kHz | Board(s), Cable(s), Power Supply | dsPIC33CK256MP505 |
|

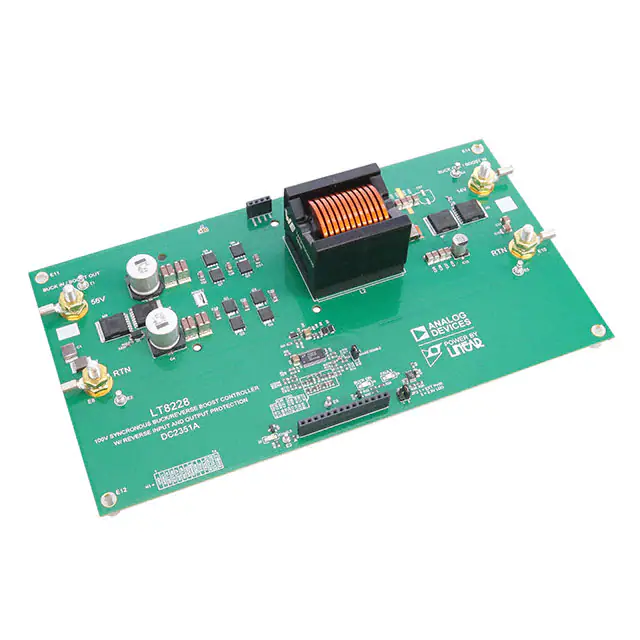

DC2351AEVAL BOARD FOR LT8228 |
17 |
|
Технический лист |
- | Bulk | Active | DC/DC, Bidirectional | 2 Non-Isolated Outputs | - | 12V or 48V | 35A or 7A | 8V ~ 14V or 36V ~ 56V | Buck-Boost | 150kHz | Board(s) | LT8228 |
|

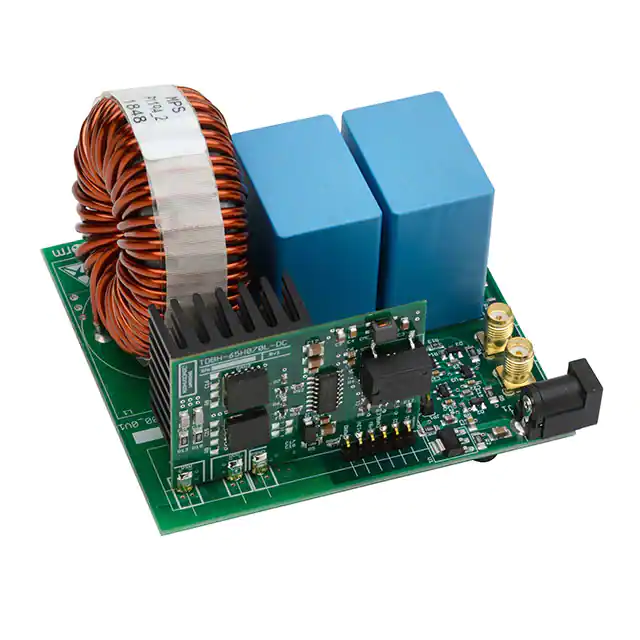

TDHBG1200DC100-KITEVAL BOARD FOR TP65H070L |
4 |
|
Технический лист |
- | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | 1.2 kW | - | 16A | - | Boost, Buck, Half-Bridge | - | Board(s) | TP65H070L |
|
24644RDCDC CONVERTER DEV BOARD |
8 |
|
Технический лист |
- | Bulk | Active | DC/DC Converter | - | - | - | - | - | - | - | Partially Populated Board(s) | - |
|

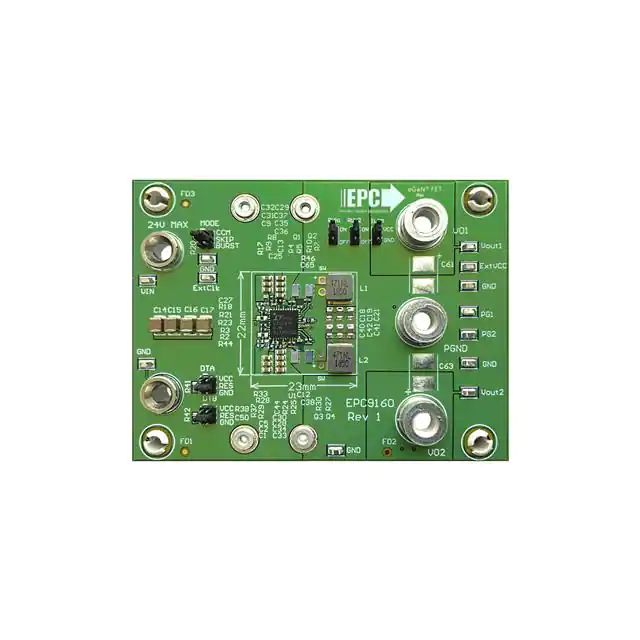

EPC9160DCDC 9-24V/DUALOUT 15A SYNC/BUCK |
12 |
|
- |
eGaN® | Box | Active | DC/DC, Step Down | - | - | - | - | - | Buck | - | Board(s) | - |
|

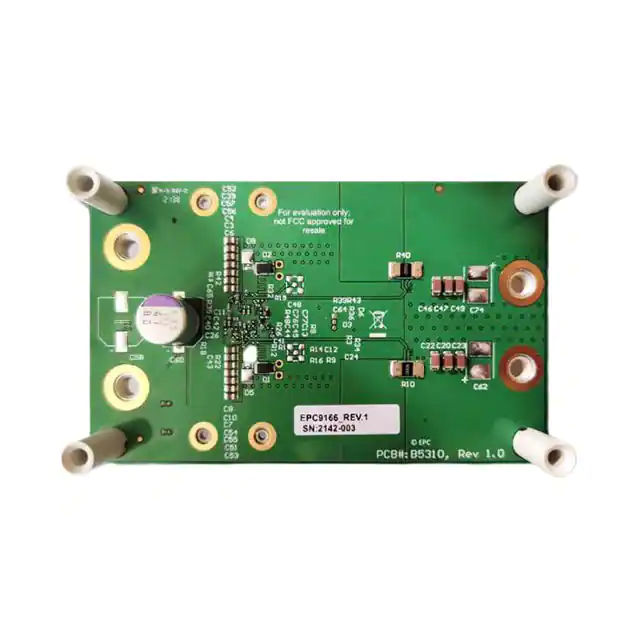

EPC9166DCDC 500W DUAL PH/SYNCBOOST CONV |
25 |
|
Технический лист |
eGaN® | Box | Active | DC/DC, Step Up | - | - | - | - | - | Boost | - | Board(s) | - |
|

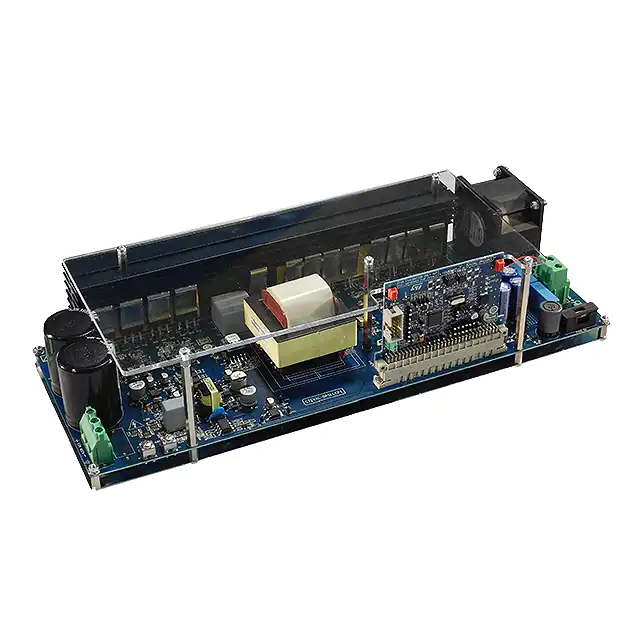

STEVAL-DPSLLCK1EVAL BOARD FOR VIPER27 |
2 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 3 kW | 48V | 62.5A | 375V ~ 425V | - | - | Board(s) | VIPer27 |
|

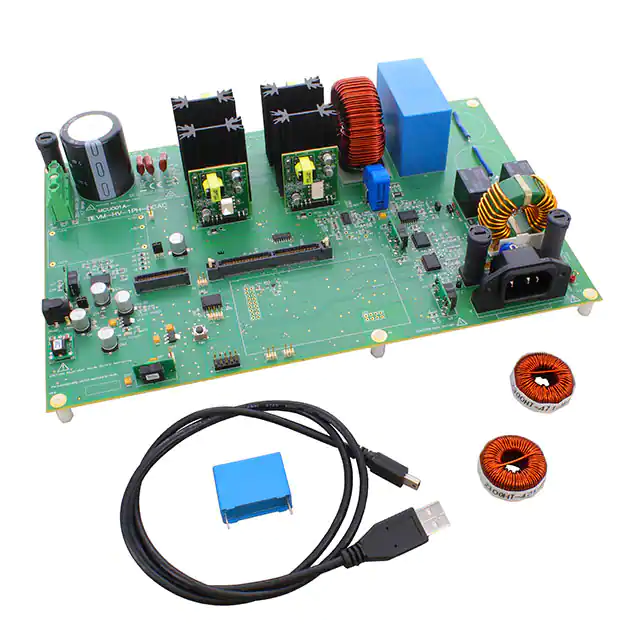

TIEVM-HV-1PH-DCACTIEVM-HV-1PH-DCAC |
3 |
|
Технический лист |
- | Bulk | Active | DC/AC Converter | 1 Non-Isolated Output | - | 110VAC | 4.5A | 380V | - | 20kHz | Board(s), Cable(s) | - |
|
REFDAB11KIZSICSYSTOBO1EVAL BOARD FOR IMBF170R1K0M1 |
17 |
|
Технический лист |
- | Bulk | Active | DC/DC Converter | 1 Isolated Output | 11 kW | - | - | 750V | Flyback | - | Board(s) | IMBF170R1K0M1, IMZ120R030M1H, XMC4400 |
