Оценочные платы DC/DC и AC/DC (автономные) ИБП
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Основное назначение | Выходы и тип | Напряжение - выход | Ток - выход | Напряжение - Вход | Топология регулятора | Частота - Переключение | Содержимое | Используемая ИС/деталь | Мощность - Выход |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVL3439-C-00A5.2V, 3A DUAL-PHASE BOOST CONVER |
15 |
|
- |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 5.2V | 3A | 2.7V ~ 5V | Boost | 2MHz | Board(s) | MP3439 |
|
|
EVQ4423C-L-00A6A, 36V, STEP-DOWN CONVERTER FOR |
6 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 6A | 12V | Buck | 2.2MHz | Board(s) | MPQ4423C |
|

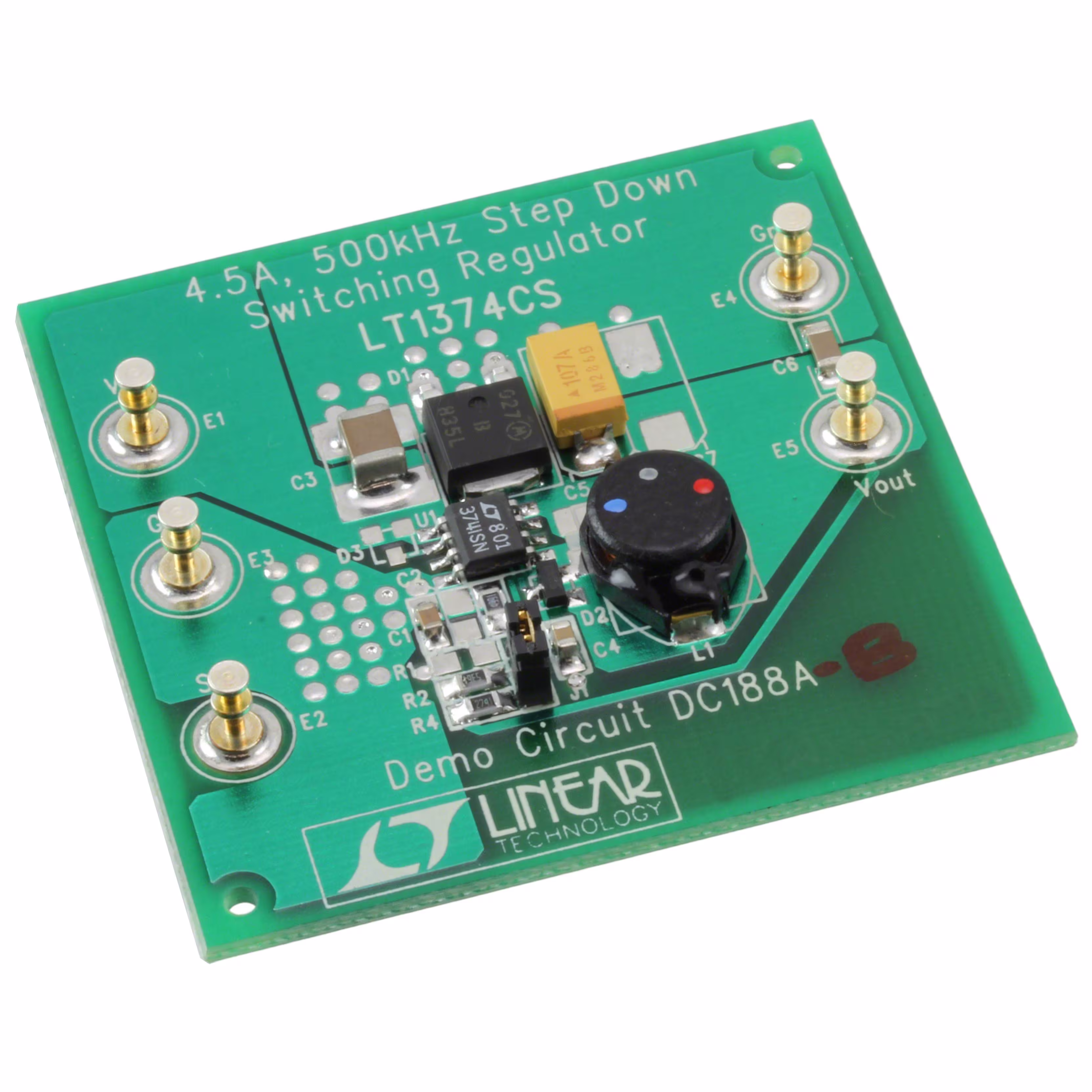

DC188A-AEVAL BOARD FOR LT1374 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 4A | 5.5V ~ 25V | Buck | 500kHz | Board(s) | LT1374 |
|
|
DC1008AEVAL BOARD FOR LTC3543 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3543 |
|
|
LogiCoA001-EVK-001REFERENCE DESIGN FOR LOGICOA SOL |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
|
LSC15-26D1212-03-DEMOEVAL BOARD FOR LSC1526D121203 |
0 |
|
- |
LSC15-26Cxx (15W) | Tray | Obsolete | AC/DC Converter | 2 Non-Isolated Outputs | 15 W | 12V, 12V | 950mA, 300mA | 57 ~ 528 VAC, 80V ~ 745V | Buck | 65kHz | Board(s) | LSC15-26D1212-03 |
|
|
LSC15-26C0512-04-DEMOEVAL BOARD FOR LSC1526C051204 |
0 |
|
- |
LSC15-26Cxx (15W) | Tray | Obsolete | AC/DC Converter | 3 Non-Isolated Outputs | 14.6 W | 5V, 5V, 12V | 1A, 400mA, 400mA | 57 ~ 528 VAC, 80V ~ 745V | Buck | 65kHz | Board(s) | LSC15-26C0512-04 |
|
106990007EVAL BOARD FOR MP2307 |
0 |
|
- |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 17V | 1.8A | 4.5V ~ 23V | Buck | 340kHz | Board(s) | MP2307 |
|
106990003EVAL BOARD FOR LM2596 |
0 |
|
Технический лист |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.25V ~ 35V | 3A | 3.2V ~ 40V | Buck | 65kHz | Board(s) | LM2596 |
|

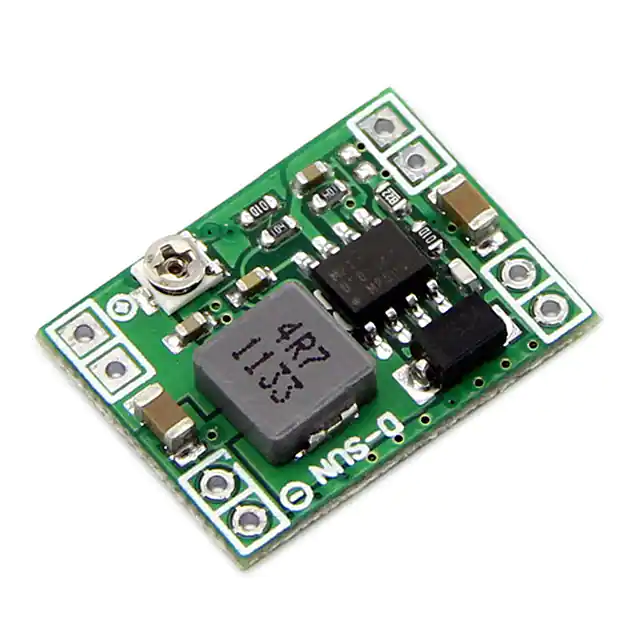

106990005EVAL BOARD FOR MP1584 |
0 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 18V | 3A | 4.5V ~ 28V | Buck | - | Board(s) | MP1584 |
|
PRT-10968EVAL BOARD FOR NCP1402 |
0 |
|
Технический лист |
- | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 200mA | 1V ~ 4V | Boost | - | Board(s) | NCP1402 |
|

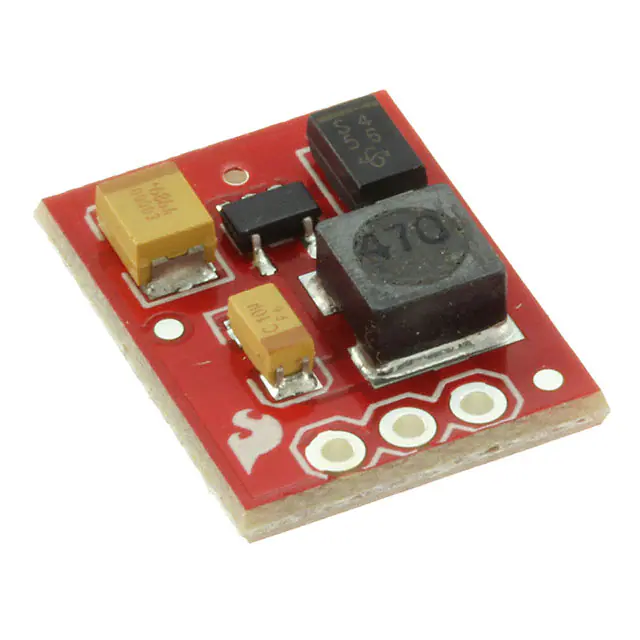

PRT-10967EVAL BOARD FOR NCP1402 |
0 |
|
Технический лист |
- | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 200mA | 1V ~ 3V | Boost | - | Board(s) | NCP1402 |
|
DEMOBOARDIFX81481TOBO1EVAL BOARD FOR IFX81481 |
0 |
|
Технический лист |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5.6V | - | 4.75V ~ 28V | Buck | 305kHz | Board(s) | IFX81481 |
|

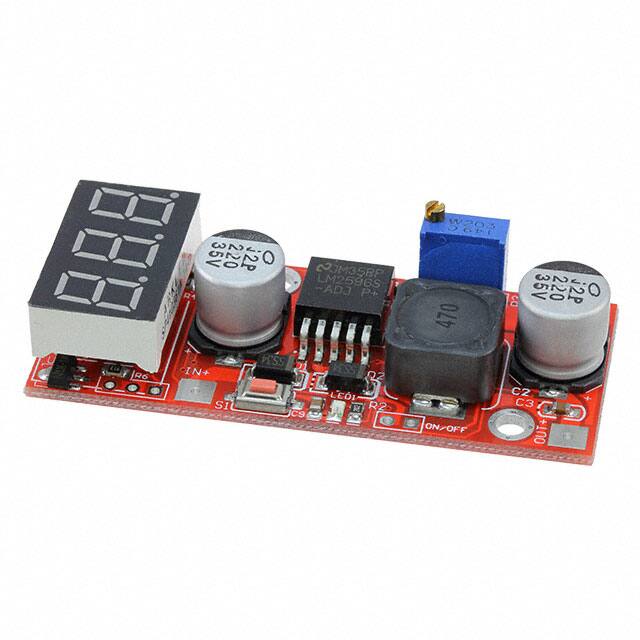

114990167DISPLAY ADJ DC/DC POWER CONV |
0 |
|
Технический лист |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 15 W | 1.3V ~ 25V | 1.5A | 4.5V ~ 28V | Buck | - | Board(s) | - |
|

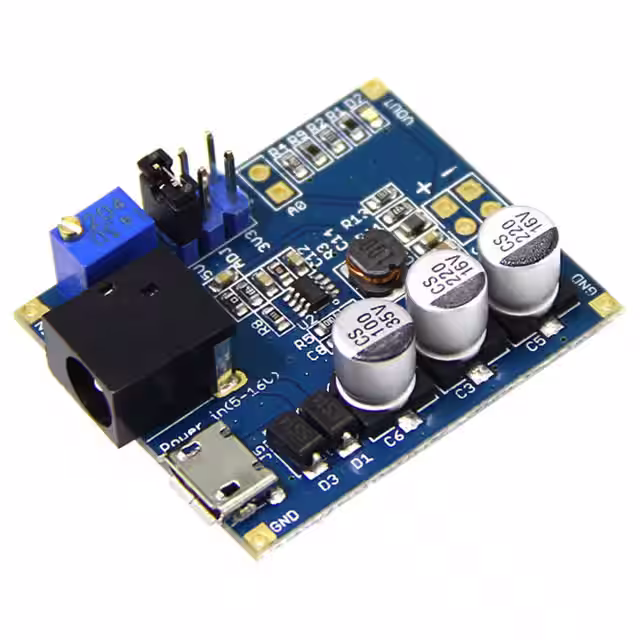

105030005ADJUSTABLE DC/DC POWER CONV |
0 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 12V | 1.5A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | - |
|

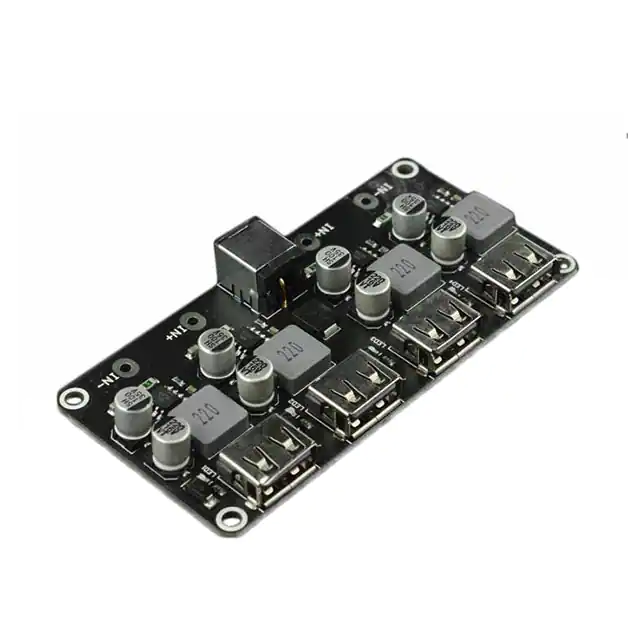

DFR08524-WAY FAST CHARGE BUCK MODULE (C |
0 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | 24 W | 3V ~ 12V | 3A | 6V ~ 32V | Buck | - | Board(s) | - |
|

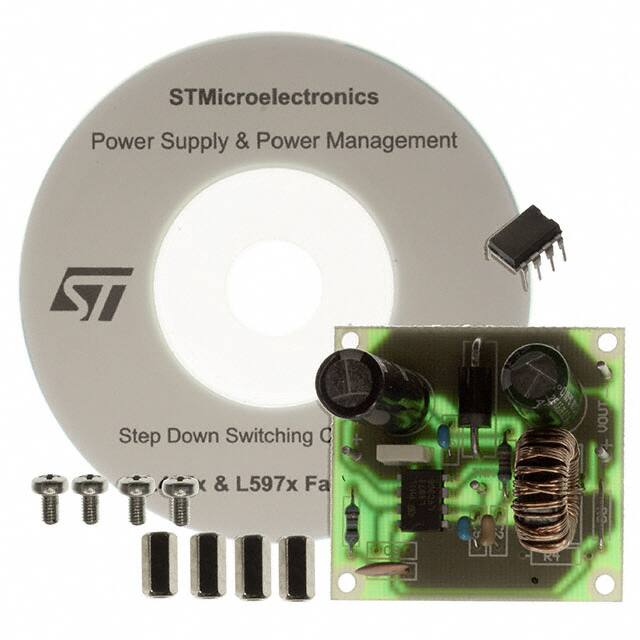

EVAL4971EVAL BOARD FOR L4971 |
0 |
|
Технический лист |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V ~ 40V | 1.5A | 8V ~ 55V | Buck | 100kHz | Board(s) | L4971 |
|
551011367-041EVAL BOARD FOR LM2596 |
0 |
|
Технический лист |
WEBENCH® Buildit Board | Bulk | Obsolete | DC/DC, Step Down | - | - | - | - | - | Buck | - | Unpopulated (Bare) Board(s) | LM2596 |
|
551011367-051EVAL BOARD FOR LM2586 LM2588 |
0 |
|
Технический лист |
WEBENCH® Buildit Board | Bulk | Obsolete | DC/DC, Step Up | - | - | - | - | - | Boost | - | Unpopulated (Bare) Board(s) | LM2586, LM2588 |
|
|
551011367-51/NOPBEVAL BOARD FOR LM2586 LM2588 |
0 |
|
Технический лист |
WEBENCH® Buildit Board | Bulk | Obsolete | DC/DC, Step Up | - | - | - | - | - | Boost | - | Unpopulated (Bare) Board(s) | LM2586, LM2588 |
