Оценочные платы DC/DC и AC/DC (автономные) ИБП
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Основное назначение | Выходы и тип | Напряжение - выход | Ток - выход | Напряжение - Вход | Топология регулятора | Частота - Переключение | Содержимое | Используемая ИС/деталь | Мощность - Выход |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

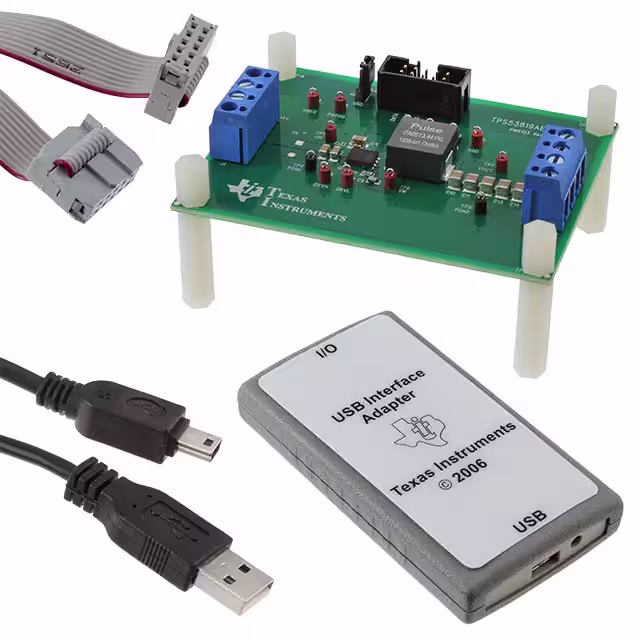

TPS53819AEVM-123EVAL BOARD FOR TPS53819A |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 8V ~ 14V | Buck | 425kHz | Board(s) | TPS53819A |
|

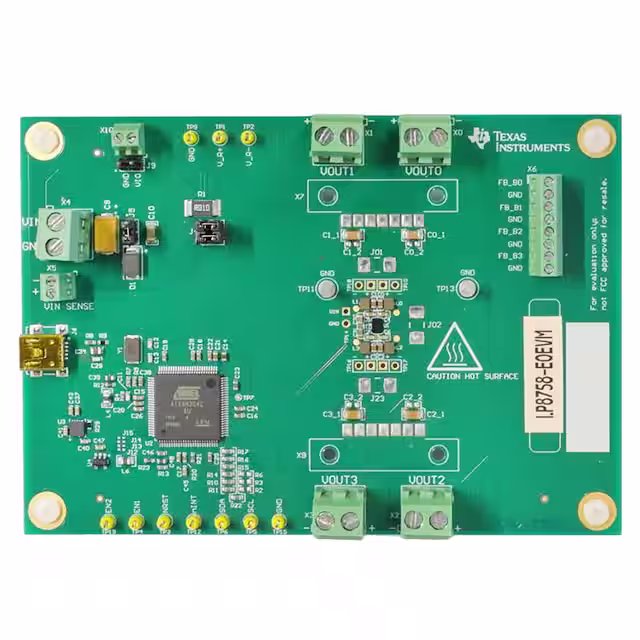

LP8758-E0EVMEVAL BOARD FOR LP8758E0 |
1 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | - | - | Buck | - | Board(s), Cable(s) | LP8758-E0 |
|
LP87644Q1EVMEVAL BOARD FOR LP8764Q1 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | 5A, 5A, 5A, 5A | 3V ~ 5.5V | Buck | 4.4MHz | Board(s), Cable(s) | LP8764-Q1 |
|

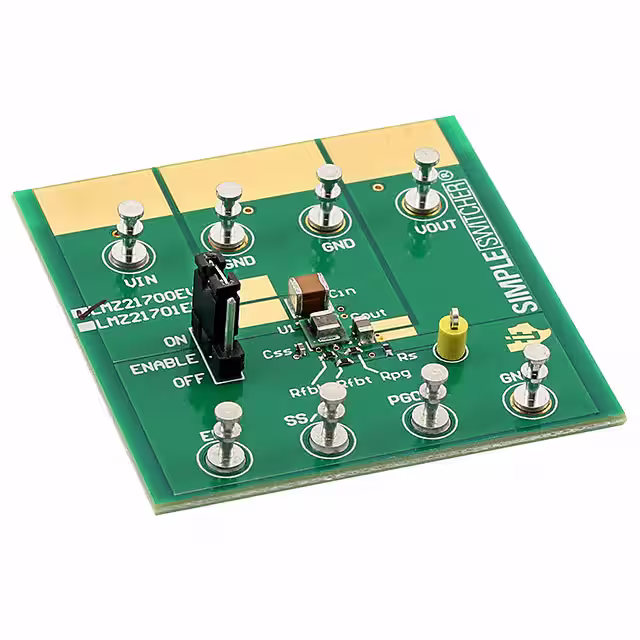

LMZ21700EVMEVAL BOARD FOR LMZ21700 |
0 |
|
Технический лист |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 650mA | 5V ~ 17V | Buck | - | Board(s) | LMZ21700 |
|
MAX20048EVKIT#EVAL BOARD FOR MAX20048 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 4V ~ 25V | - | 2V ~ 36V | Buck-Boost | - | Board(s) | MAX20048 |
|
I6A14A-001-EVK-S1PXEVAL BOARD FOR I6A |
1 |
|
Технический лист |
- | Box | Not For New Designs | DC/DC Converter | 1 Non-Isolated Output | 250 W | 3.3V ~ 24V | 14A | 9V ~ 40V | - | - | Board(s) | i6A |
|

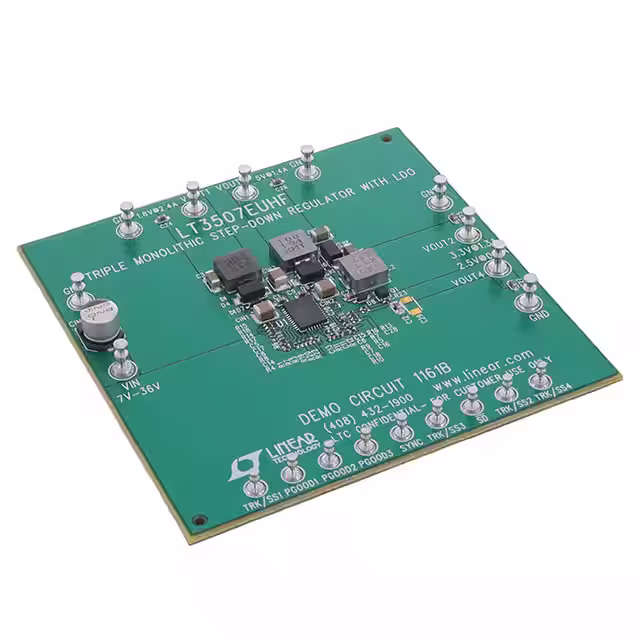

DC1161BEVAL BOARD FOR LT3507 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.8V, 2.5V, 3.3V, 5V | 2.4A, 1.4A, 1.3A, 200mA | 7V ~ 36V | Buck | 450kHz | Board(s) | LT3507 |
|

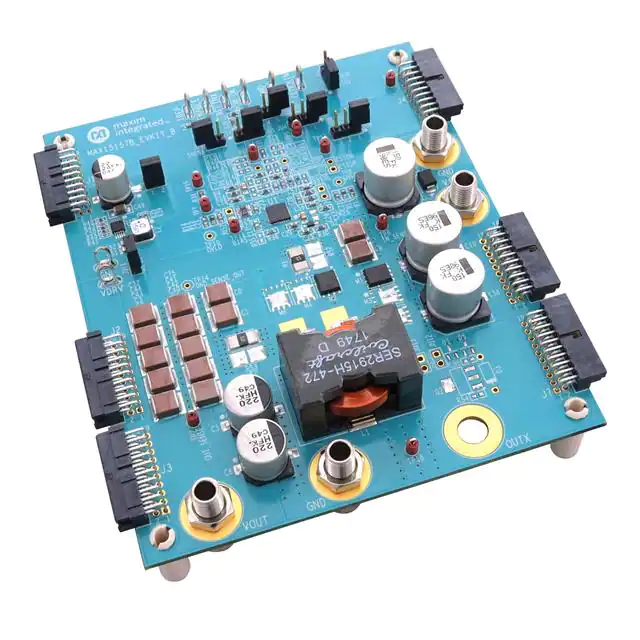

MAX15157BEVKIT#EVAL BOARD FOR MAX15157B |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 200 W | 5V ~ 32V | 15A | 15V ~ 60V | Buck | 600kHz | Board(s) | MAX15157B |
|

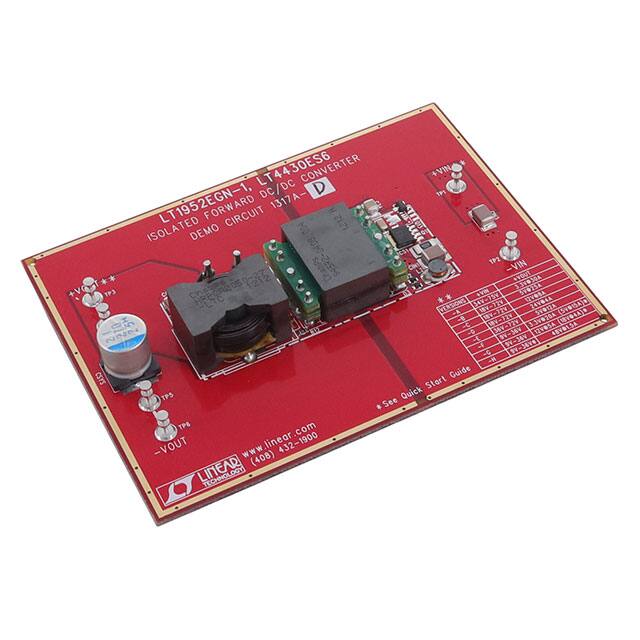

DC1317A-DEVAL BOARD FOR LT19521 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 24V | 5A | 18V ~ 72V | Buck | 220kHz | Board(s) | LT1952-1 |
|
ISL78263EVAL1ZEVAL BOARD FOR ISL78263 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 0.8V ~ 5V, 5V ~ 40V | - | 2.1V ~ 42V | Boost, Buck | - | Board(s) | ISL78263 |
|

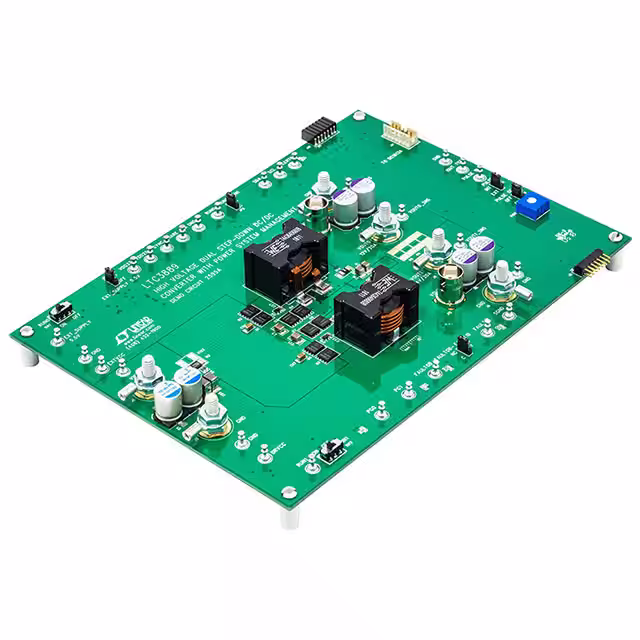

DC2595AEVAL BOARD FOR LTC3889 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V ~ 40V | - | 5V ~ 60V | Buck | - | Board(s) | LTC3889 |
|

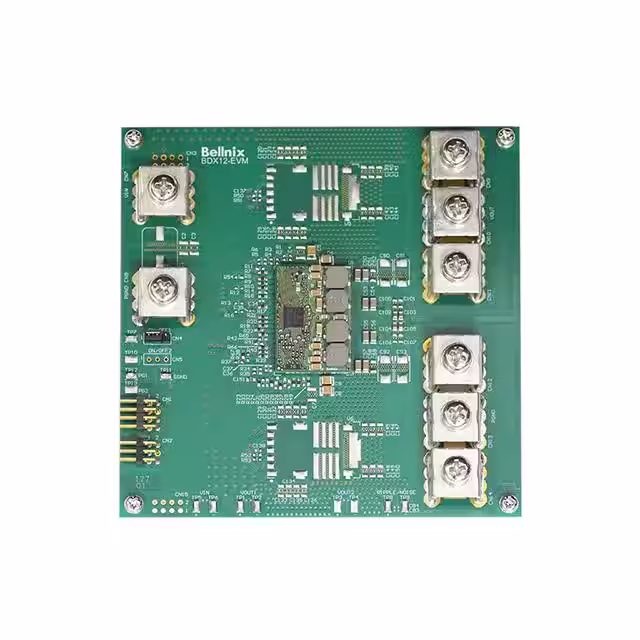

BDX12-EVM-01EVAL BRD BDX-100M(1) |
1 |
|
Технический лист |
BDX | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 100A | 8V ~ 14V | - | 600kHz | Partially Populated Board(s) | - |
|

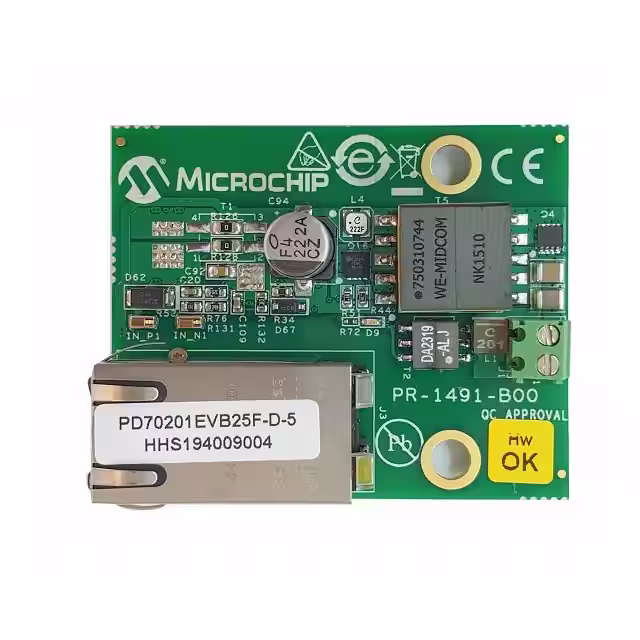

PD70201EVB25F-D-5EVAL BOARD FOR PD70201 |
1 |
|
Технический лист |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 25 W | 5V | 5A | 36V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201 |
|

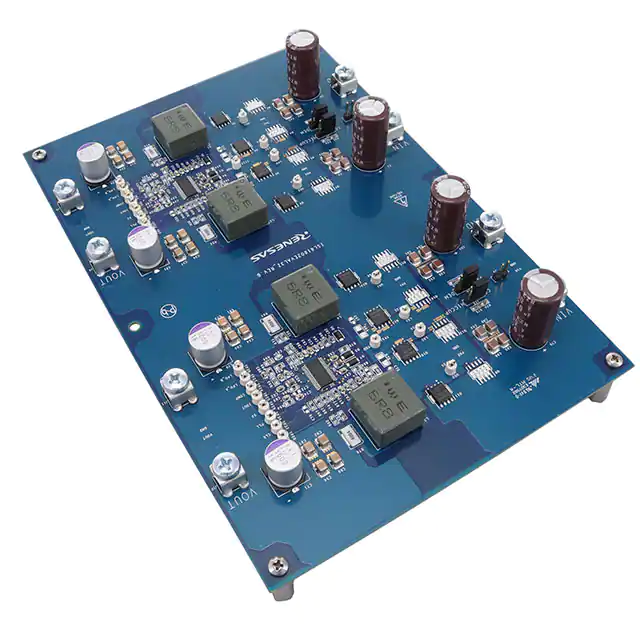

ISL81802EVAL3ZEVAL BOARD FOR ISL81802 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 40A | 18V ~ 80V | Buck | 200kHz | Board(s) | ISL81802 |
|

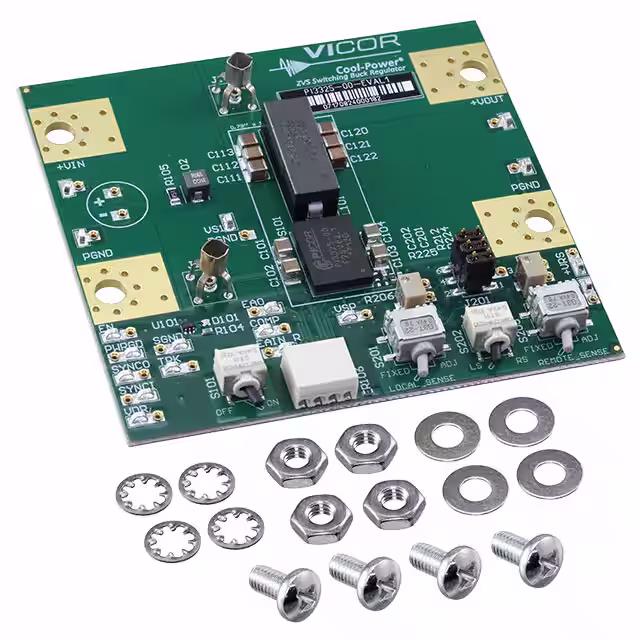

PI3325-00-EVAL1EVAL BOARD FOR PI332500 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 20A | 8V ~ 36V | Buck | - | Board(s) | PI3325-00 |
|

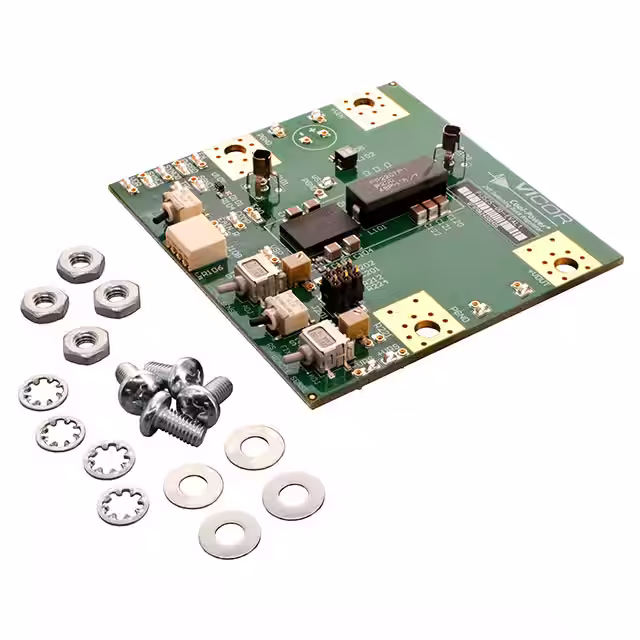

PI3525-00-EVAL1EVAL BOARD FOR PI352500 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | - | - | 5V | 20A | 60V | Buck | - | Board(s) | PI3525-00 |
|

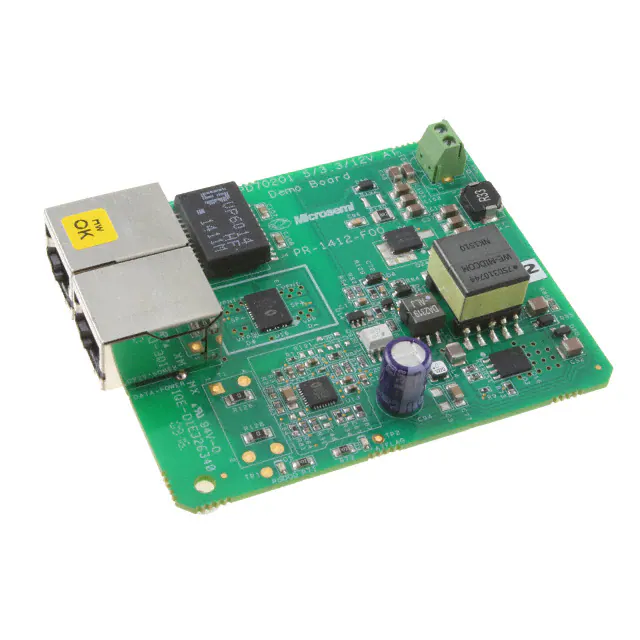

PD70201EVB25F-12EVAL BOARD FOR PD70201 |
1 |
|
Технический лист |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 25 W | 12V | 2.1A | - | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201 |
|
PFCLLCSREVM034EVAL BOARD FOR PFCLLCSREVM034 |
1 |
|
Технический лист |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 168 W | 12V | 14A | 90 ~ 265 VAC | Boost | - | Board(s) | PFCLLCSREVM034 |
|
PI3526-00-EVAL1EVAL BOARD FOR PI352600 |
0 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 18A | 30V ~ 60V | Buck | 700kHz | Board(s) | PI3526-00 |
|
BD7682FJ-LB-EVK-402EVAL BOARD FOR BD7682 |
0 |
|
Технический лист |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 24 W | 24V | 1A | 400 ~ 690 VAC, 300V ~ 1000V | Resonant | - | Board(s) | BD7682 |
