Оценочные платы DC/DC и AC/DC (автономные) ИБП
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Основное назначение | Выходы и тип | Напряжение - выход | Ток - выход | Напряжение - Вход | Топология регулятора | Частота - Переключение | Содержимое | Используемая ИС/деталь | Мощность - Выход |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP5072CB-EVALZEVAL BOARD FOR ADP5072 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | ±15V | 190mA, 90mA | 3V ~ 5.5V | - | - | Board(s) | ADP5072 |
|

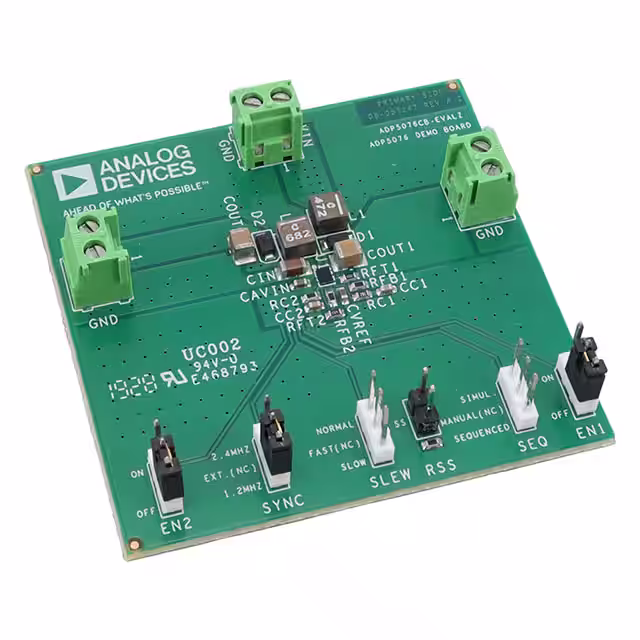

ADP5076CB-EVALZEVAL BOARD FOR ADP5076 |
1 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 30V, 35V | 2A | 2.85V ~ 5.5V | Boost | 1.8MHz | Board(s) | ADP5076 |
|
RP605Z333B-EVEVAL BOARD FOR RP605 |
11 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | RP605 |
|
R1801K001A-EVEVAL BOARD FOR R1801K001A |
2 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.8V | - | 2.3V ~ 5.5V | Buck | - | Board(s) | R1801K001A |
|

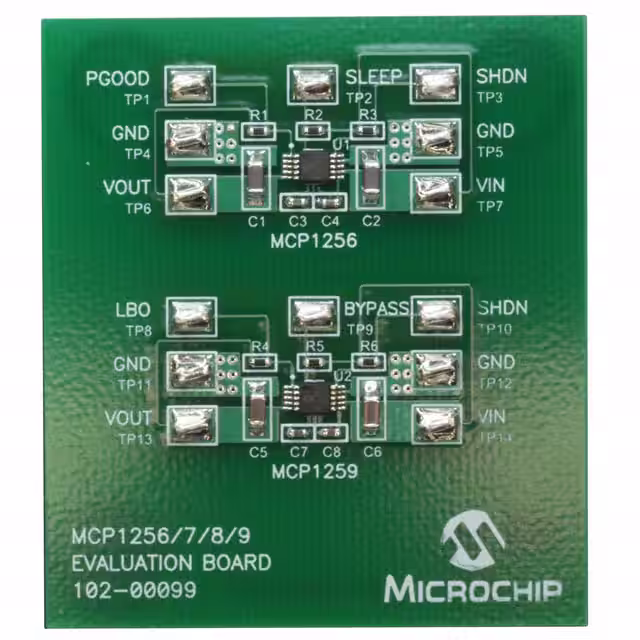

MCP1256/7/8/9EVEVAL BOARD FOR MCP1256 MCP1257 |
2 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 100mA | 1.6V ~ 3.6V | Buck-Boost | 650kHz | Board(s) | MCP1256, MCP1257, MCP1258, MCP1259 |
|

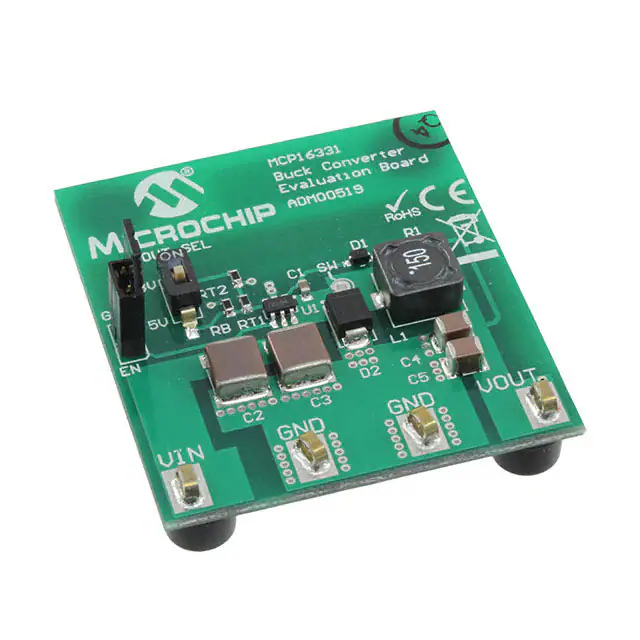

ADM00519EVAL BOARD FOR MCP16331 |
2 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 500mA | 6V ~ 50V | Buck | 500kHz | Board(s) | MCP16331 |
|
ADM00867EVAL BOARD FOR MCP1641X |
2 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 200mA | 0.8V ~ 5.25V | Boost | 500kHz | Board(s) | MCP1641x |
|

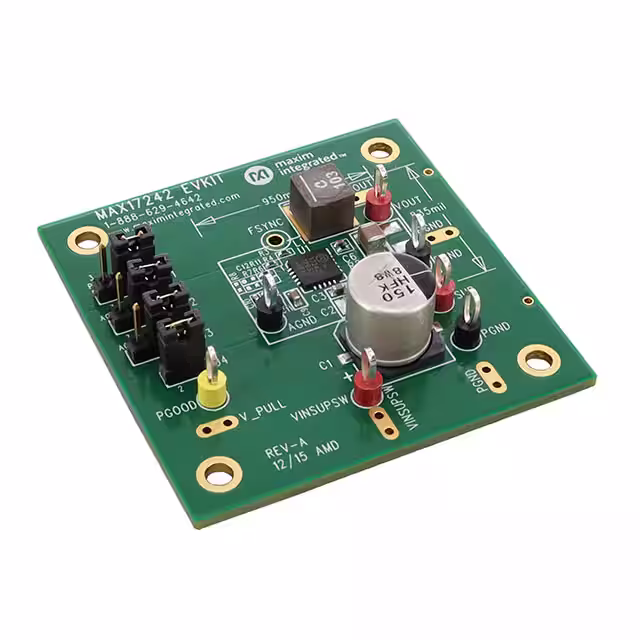

MAX17242EVKIT#EVAL BOARD FOR MAX17242 |
4 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3.5V ~ 36V | Buck | 400kHz | Board(s) | MAX17242 |
|
TPS65136EVM-265EVAL BOARD FOR TPS65136 |
3 |
|
Технический лист |
- | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | 4.6V, -5V | 80mA, 80mA | 2.3V ~ 5.5V | Buck-Boost | - | Board(s) | TPS65136 |
|

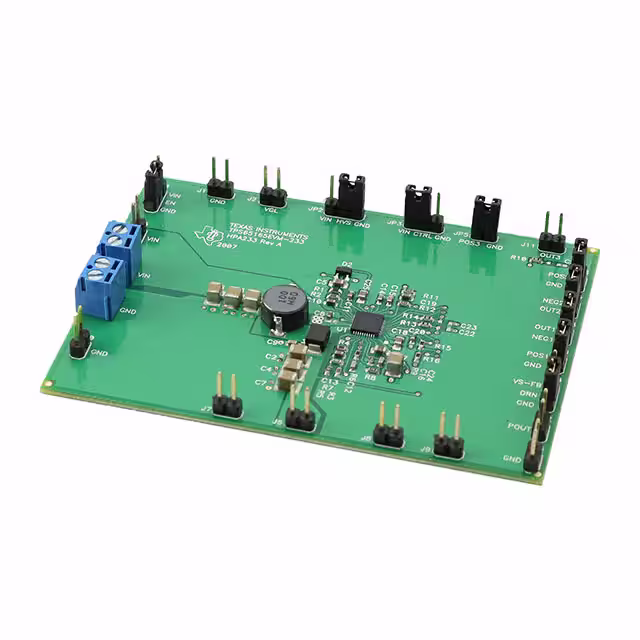

TPS65165EVM-233EVAL BOARD FOR TPS65165 |
2 |
|
Технический лист |
- | Box | Active | Special Purpose DC/DC, LCD Supply | 3 Non-Isolated Outputs | 16.4 W | 15V, 23.8V, -5V | 1A, 50mA, 50mA | 4.5V ~ 5.5V | Boost | 600kHz | Board(s) | TPS65165 |
|

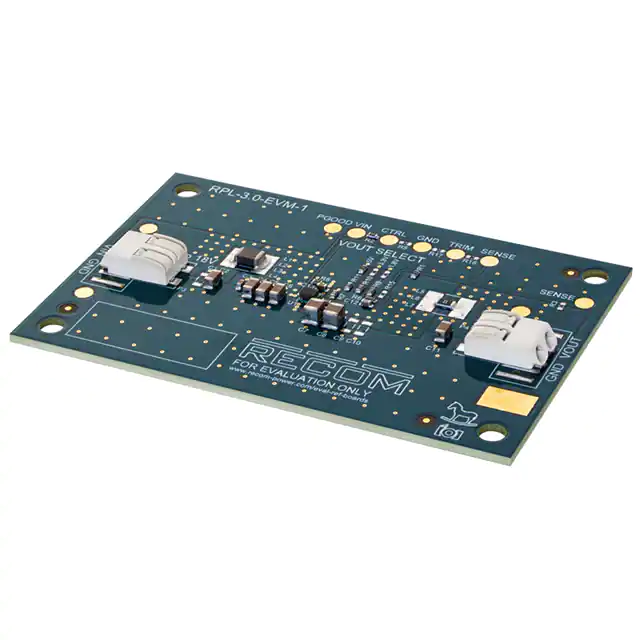

RPL-3.0-EVM-1EVAL BOARD FOR RPL3.0 |
2 |
|
Технический лист |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 1.8V, 3.3V, 5V | 3A | 4V ~ 18V | Buck | - | Board(s) | RPL-3.0 |
|

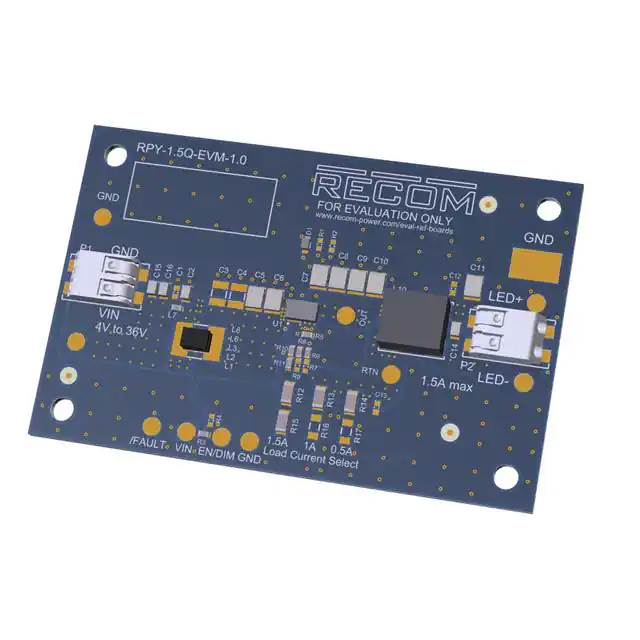

RPY-1.5Q-EVM-1EVAL BOARD FOR RPY1.5Q |
2 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1.5A | 4V ~ 36V | Buck | - | Board(s) | RPY-1.5Q |
|

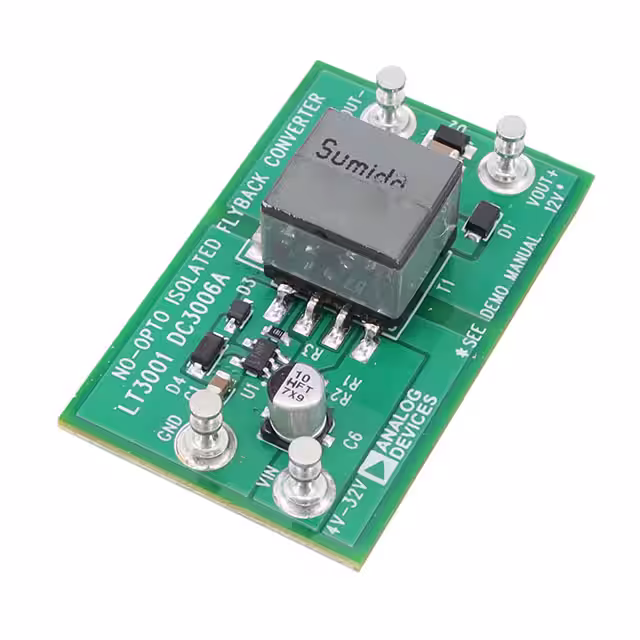

DC3006AEVAL BOARD FOR LT3001 |
1 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 12V | 300mA | 4V ~ 32V | Flyback | - | Board(s) | LT3001 |
|
ADM00891EVAL BOARD FOR MIC2253 |
4 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 3.5A | 2.5V ~ 10V | Boost | 1MHz | Board(s) | MIC2253 |
|
MAX17243EVKIT#EVAL BOARD FOR MAX17243 |
2 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 5.6V ~ 36V | Buck | 2.2MHz | Board(s) | MAX17243 |
|
PI3545-00-EVAL1EVAL BOARD FOR PI354500 |
4 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 10A | 36V ~ 60V | Buck-Boost | 600kHz | Board(s) | PI3545-00 |
|

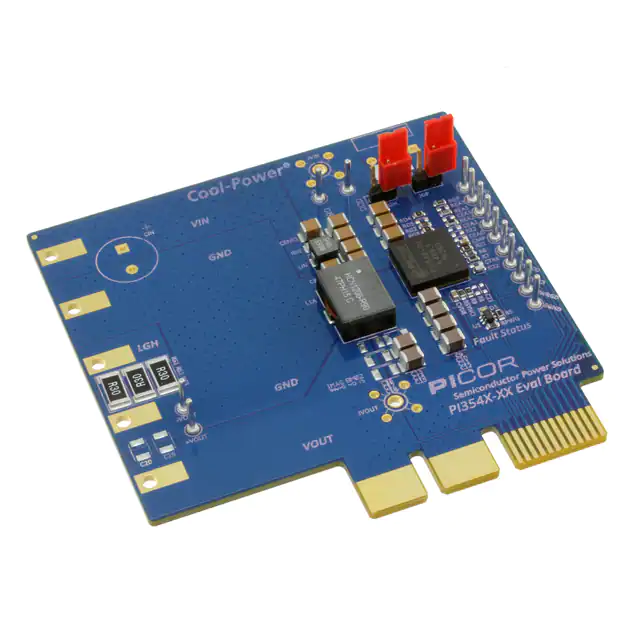

PI3546-00-EVAL1EVAL BOARD FOR PI354600 |
2 |
|
Технический лист |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 9A | 36V ~ 60V | Buck-Boost | 800kHz | Board(s) | PI3546-00 |
|
TPSM53603EVMEVAL BOARD FOR TPSM53603 |
23 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 3A | 3.8V ~ 36V | Buck | - | Board(s) | TPSM53603 |
|

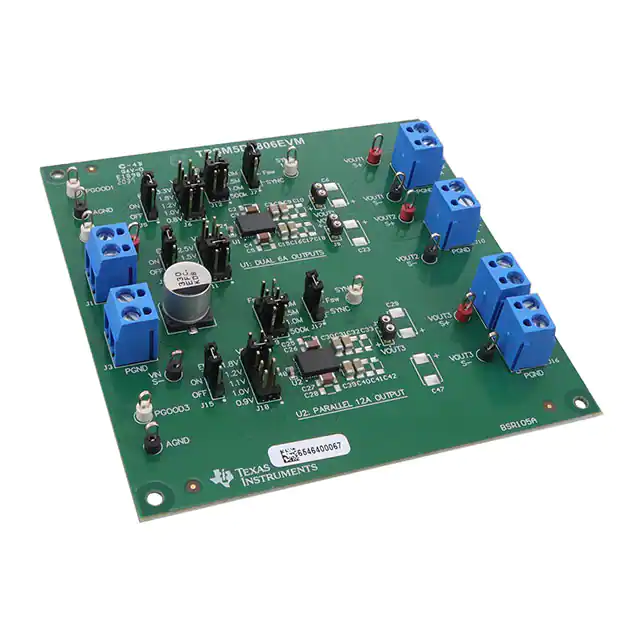

TPSM5D1806EVMEVAL BOARD FOR TPSM5D1806 |
19 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.5V ~ 5.5V | 12A, 6A | 4.5V ~ 16V | Buck | - | Board(s) | TPSM5D1806 |
|
TPSM13604HEVMEVAL BOARD FOR TPSM13604H |
19 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3V ~ 16V | 4A | 5V ~ 36V | Buck | 300kHz | Board(s) | TPSM13604H |
