Оценочные платы DC/DC и AC/DC (автономные) ИБП
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Основное назначение | Выходы и тип | Напряжение - выход | Ток - выход | Напряжение - Вход | Топология регулятора | Частота - Переключение | Содержимое | Используемая ИС/деталь | Мощность - Выход |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM5575BLDT/NOPBEVAL BOARD FOR LM5575 |
22 |
|
Технический лист |
SIMPLE SWITCHER®, WEBENCH® | Box | Obsolete | DC/DC, Step Down | - | - | - | - | - | Buck | 500kHz | Partially Populated Board(s) - Main IC/Module/Part Not Included | LM5575 |
|
TPS82690EVM-646EVAL BOARD FOR TPS82690 |
14 |
|
Технический лист |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.85V | 500mA | 2.3V ~ 4.8V | Buck | 4MHz | Board(s) | TPS82690 |
|
TPS82693EVM-207EVAL BOARD FOR TPS82693 |
8 |
|
Технический лист |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.85V | 800mA | 2.3V ~ 4.8V | Buck | 3MHz | Board(s) | TPS82693 |
|
LM2853-1.8EVAL/NOPBEVAL BOARD FOR LM2853 |
10 |
|
Технический лист |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 3V ~ 5.5V | Buck | 550kHz | Board(s) | LM2853 |
|

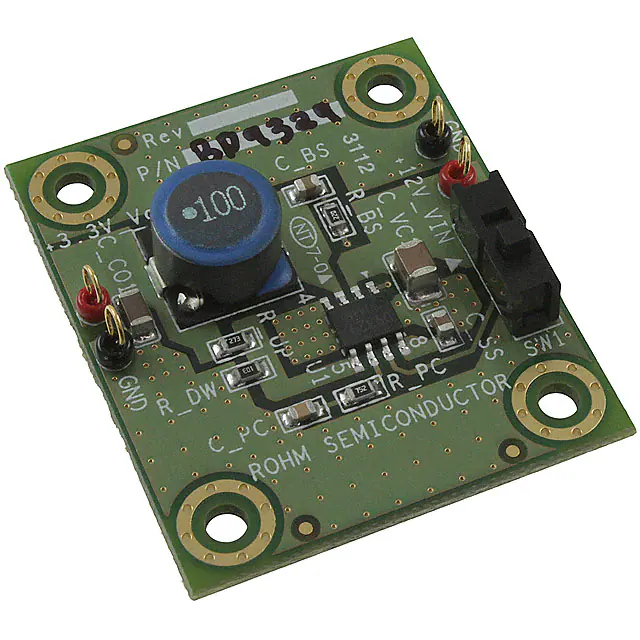

BD9329AEFJ_EVKEVAL BOARD FOR BD9329A |
12 |
|
Технический лист |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 4.2V ~ 18V | Buck | 380kHz | Board(s) | BD9329A |
|

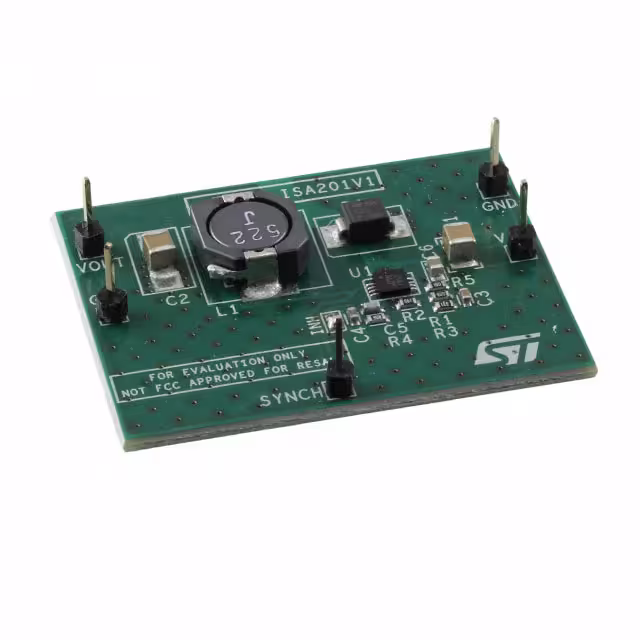

STEVAL-ISA201V1EVAL BOARD FOR L5987 |
17 |
|
Технический лист |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.9V ~ 18V | Buck | 430kHz | Board(s) | L5987 |
|

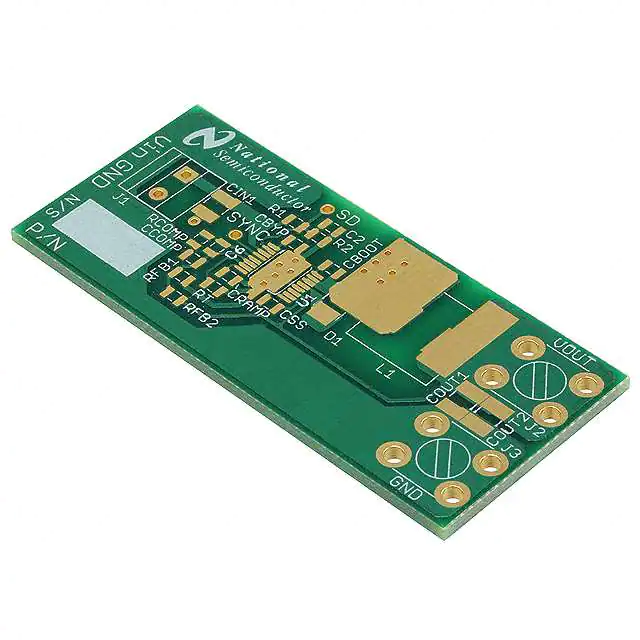

LM5574BLDT/NOPBEVAL BOARD FOR LM5574 |
20 |
|
Технический лист |
SIMPLE SWITCHER®, WEBENCH® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.23V ~ 70V | 500mA | 6V ~ 75V | Buck | - | Unpopulated (Bare) Board(s) | LM5574 |
|

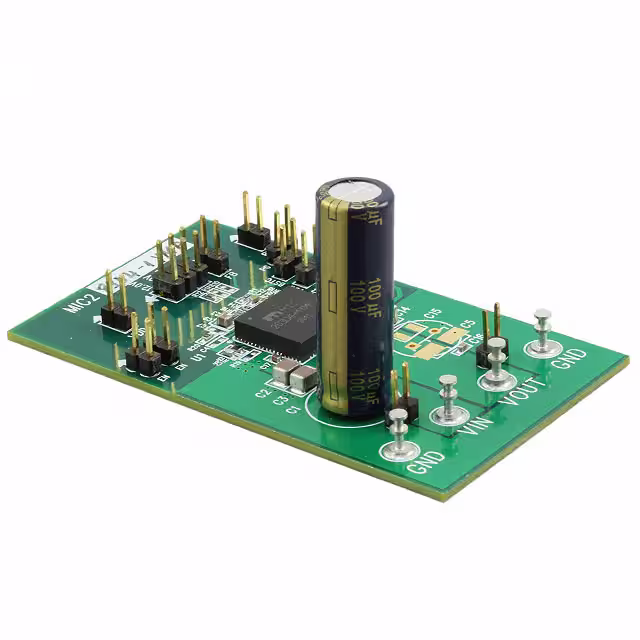

MIC28304-1-12V-EVEVAL BOARD FOR MIC283041 |
19 |
|
Технический лист |
HyperLight Load®™, SuperSwitcher II™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 4.5V ~ 70V | Buck | - | Board(s) | MIC28304-1 |
|

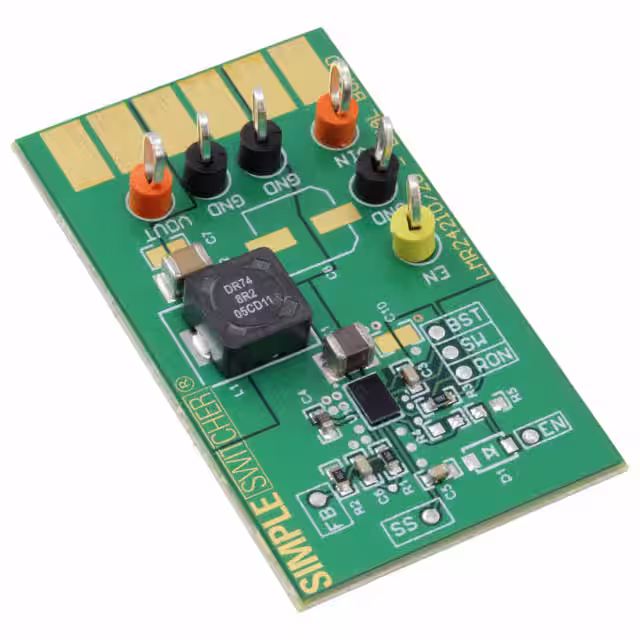

LMR24210EVAL/NOPBEVAL BOARD FOR LMR24210 |
16 |
|
Технический лист |
SIMPLE SWITCHER® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LMR24210 |
|

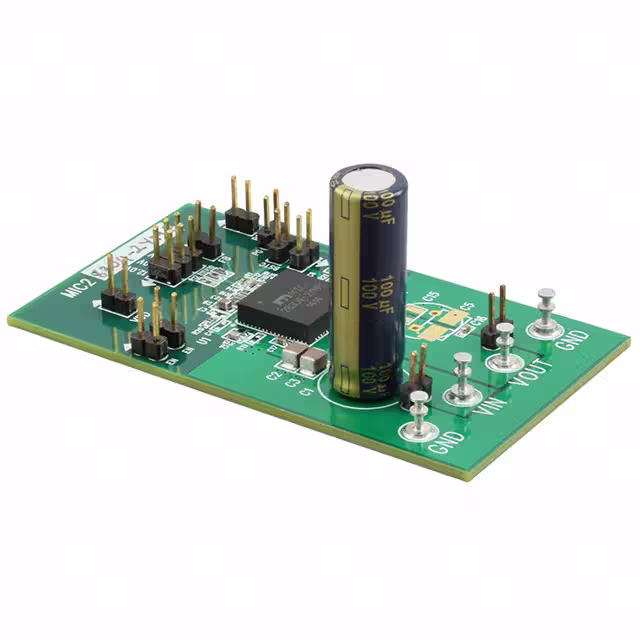

MIC28304-2-5V-EVEVAL BOARD FOR MIC283042 |
13 |
|
Технический лист |
Hyper Speed Control®, SuperSwitcher II™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 4.5V ~ 70V | Buck | - | Board(s) | MIC28304-2 |
|
STEVAL-ISA190V1EVAL BOARD FOR A6986F |
32 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 6V | 1.5A | 4V ~ 38V | Buck | 500kHz | Board(s) | A6986F |
|
STEVAL-ISA187V1EVAL BOARD FOR A6985F |
25 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4V ~ 38V | Buck | 2MHz | Board(s) | A6985F |
|
STEVAL-ISA186V1EVAL BOARD FOR A6985F5V |
22 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 4V ~ 38V | Buck | 2MHz | Board(s) | A6985F5V |
|

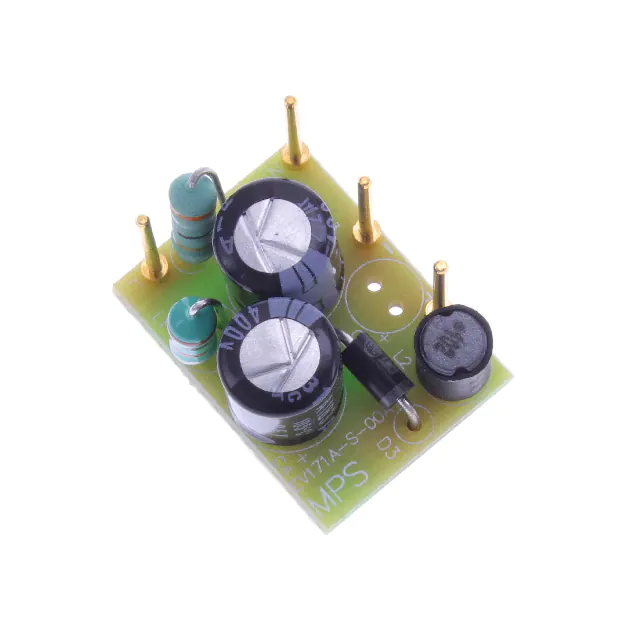

EV171A-S-00AEVAL BOARD FOR MP171A |
8 |
|
Технический лист |
- | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 2 W | 5V | 50mA | 85 ~ 265 VAC | Buck | - | Board(s) | MP171A |
|
STEVAL-ISA200V1EVAL BOARD FOR A6984 |
7 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 400mA | 4.5V ~ 36V | Buck | 250kHz ~ 600kHz | Board(s) | A6984 |
|

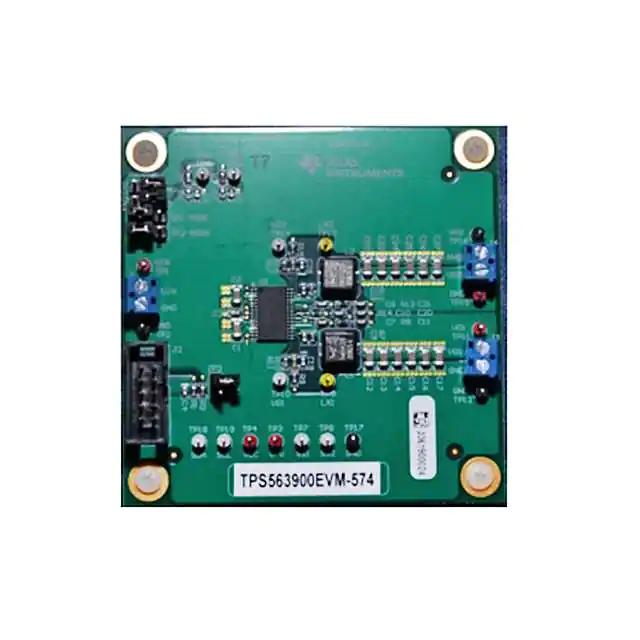

TPS563900EVM-574EVAL BOARD FOR TPS563900 |
11 |
|
Технический лист |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.1V | 3.5A, 3.5A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS563900 |
|
STEVAL-VP22201BEVAL BOARD FOR VIPER222 |
9 |
|
Технический лист |
VIPer™ plus | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | - | 5V | 360mA | 85 ~ 265 VAC | Flyback | 30kHz | Board(s) | VIPer222 |
|
SWT-0001EVAL BOARD FOR TPS62160 |
90 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | 6 W | 1.8V ~ 6V | 1A | 3V ~ 17V | Buck | 2.25MHz | Board(s) | TPS62160 |
|

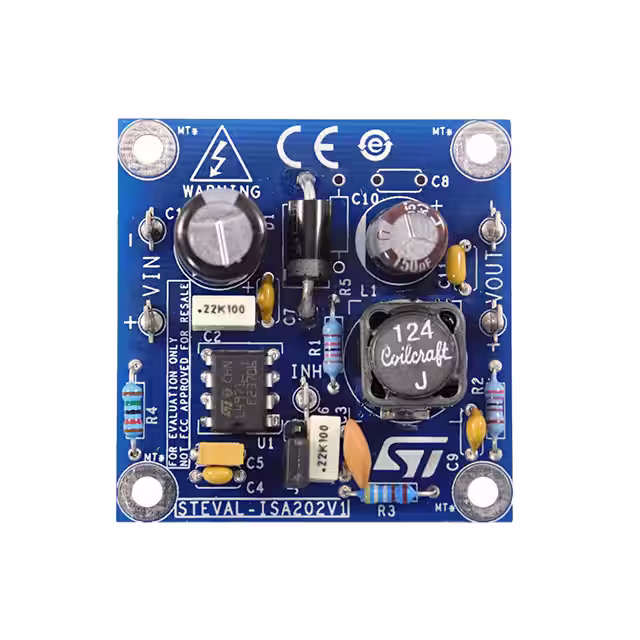

STEVAL-ISA202V1EVAL BOARD FOR L4971 |
14 |
|
Технический лист |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5.1V | 1.5A | 8V ~ 55V | Buck | 200kHz | Board(s) | L4971 |
|

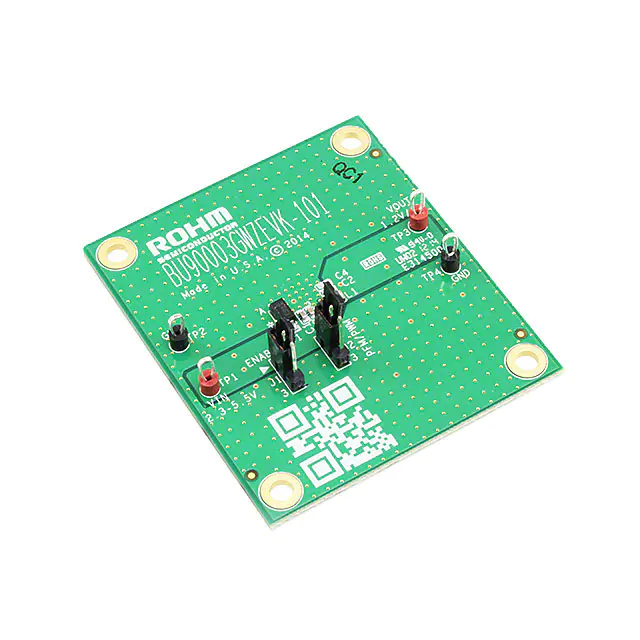

BU90003GWZ-E2-EVK-101EVAL BOARD FOR BU90003 |
26 |
|
Технический лист |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1A | 2.3V ~ 5.5V | Buck | 4MHz | Board(s) | BU90003 |
