Фильтры EMI/RFI (LC, RC-сети)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Порядок фильтра | Технология | Количество каналов | Центральная/граничная частота | Значение затухания | Сопротивление - Канал (Ом) | Ток | Значения | Защита от электростатического разряда | Рабочая температура | Применение | Напряжение - Номинальное | Марка | Квалификация | Тип крепления | Размер/измерение | Высота |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG1784-8-ELCURC NETWORK, 0.5 MFD, 220 OHM, 25 |
184 |
|
- |
* | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RG1986-6-12-ELCURC NETWORK, 0.5 MFD, 100 OHM, 25 |
85 |
|
- |
* | - | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RG1781-8RC NETWORK, 1 MFD, 220 OHM, 125V |
214 |
|
- |
- | Radial | Box | Active | Low Pass | 1st | RC | 1 | - | - | - | - | R = 220Ohm, C = 1µF | No | -40°C ~ 80°C | General Purpose | 200V | - | - | Through Hole | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.780" (19.81mm) |
|
RG1676-16RC NETWORK, 0.5 MFD, 220 OHM, 48 |
116 |
|
- |
- | Block, 4 Lead | Box | Active | Low Pass | 1st | RC | 1 | - | - | - | - | R = 220Ohm, C = 0.5µF | No | - | General Purpose | 1000V (1kV) | - | - | Through Hole | 1.370" L x 1.280" W (34.80mm x 32.51mm) | 3.000" (76.20mm) |
|
MEM2012F50R0T001FILTER LC(PI) 50MHZ SMD |
236 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | 50MHz (Cutoff) | 20dB @ 400MHz ~ 2GHz | - | 200 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 12V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
FN7611-16-M4FILTER LC(PI) 70NH/0.022UH BOLT |
17 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00065 | 16 A | L = 70nH, C = 0.022µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 0.984" Dia x 3.268" L (25.00mm x 83.00mm) | - |
|

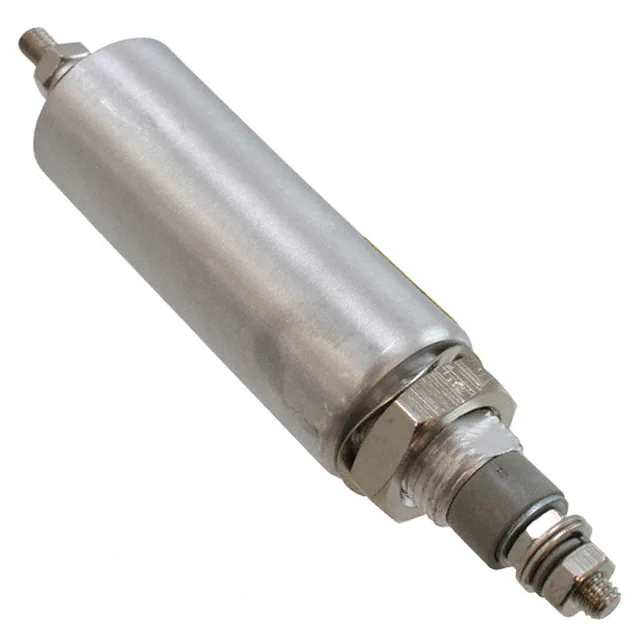

FN7661-32-M4FILTER LC(PI) 70NH/0.1UF BOLT |
3 |
|
- |
FN 766X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.0007 | 32 A | L = 70nH, C = 0.1µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | Bolt Mount | 0.787" Dia x 2.874" L (20.00mm x 73.00mm) | - |
|
NFE31PT470C1E9LFILTER LC(T) 47PF SMD |
828 |
|
- |
EMIFIL®, NFE31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 47pF | No | -40°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.069" (1.75mm) |
|
|
NFL18ZT706H1A3DEMI SUPPRESSION FILTER MONOLITHI |
477 |
|
- |
EMIFIL®, NFL18 | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | 70MHz (Cutoff) | - | - | 75 mA | L = 230nH, C = 70pF | No | -55°C ~ 125°C | General Purpose | 10V | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
4100-003LFFILTER LC(PI) 3000PF CUSTOM |
59 |
|
- |
4100 | Axial, Eyelet | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 15 A | C = 3000pF | No | -55°C ~ 125°C | - | 50V | - | - | Custom | 0.140" Dia x 0.275" L (3.55mm x 6.98mm) | - |
|
FN7612-10-M3FILTER LC(PI) 70NH/0.047UH |
13 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00152 | 10 A | L = 70nH, C = 0.047µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 0.787" Dia x 4.370" L (20.00mm x 111.00mm) | - |
|
FN7611-32-M4FILTER LC(PI) 70NH/0.022UH BOLT |
22 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00065 | 32 A | L = 70nH, C = 0.022µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 0.984" Dia x 3.268" L (25.00mm x 83.00mm) | - |
|
FN7612-32-M4FILTER LC(PI) 70NH/0.1UF BOLT |
16 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00092 | 32 A | L = 70nH, C = 0.1µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 0.984" Dia x 4.528" L (25.00mm x 115.00mm) | - |
|
FN7611-63-M6FILTER LC(PI) 186NH/0.015UH BOLT |
12 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00047 | 63 A | L = 186nH, C = 0.015µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 1.260" Dia x 4.764" L (32.00mm x 121.00mm) | - |
|
|
MEM2012V211RT001FILTER LC(PI) 210MHZ SMD |
999 |
|
- |
MEM | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 5th | LC (Pi) | 1 | 210MHz (Cutoff) | 20dB @ 350MHz ~ 2GHz | - | 100 mA | - | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 10V | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
NFM21HC471R1H3DFILTER LC HIGH FREQ 470PF 0805 |
313 |
|
- |
EMIFIL®, NFM21H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Low Pass | 2nd | LC (T-Type) | 1 | - | - | - | 1 A | C = 470pF | No | -55°C ~ 125°C | - | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
DSS1NB32A331Q91AFILTER LC(T) 330PF TH |
725 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 330pF | No | -40°C ~ 85°C | General Purpose | 100V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
|
MEA1608LC080T001FILTER LC 8PF 280MHZ SMD |
376 |
|
- |
MEA | 0603 (1608 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 280MHz (Cutoff) | 20dB @ 800MHz ~ 4GHz | - | 100 mA | C = 8pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|
|
DSS1NB31H333Q91AFILTER LC(T) 0.033UF TH |
43 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 0.033µF | No | -40°C ~ 85°C | General Purpose | 50V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
|
|
DSS1NB32A470Q91AFILTER LC(T) 47PF TH |
27 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 47pF | No | -40°C ~ 85°C | General Purpose | 100V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
