Выключатели аварийной остановки (E-Stop)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Операция сброса | Схема | Функция переключения | Особенности | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Размеры выреза панели | Тип вывода | Защита от проникновения | Рабочая температура | Напряжение освещения (номинальное) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

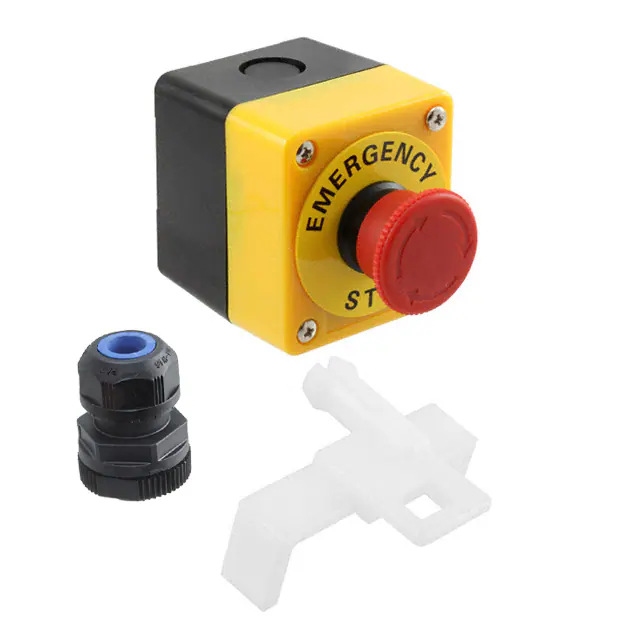

A22EL-M-24A-02BSW E-STOP TWIST RESET 10A 110V |
4 |
|
Технический лист |
A22E | Bulk | Active | Chassis Mount | Twist | DPST-NC | On-Off | Illuminated (Red) | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 24 VAC/DC |
|
73-00002.1SWITCH E-STOP TWIST RESET 2A 30V |
2 |
|
Технический лист |
84 SmartBox | Bulk | Active | Chassis Mount | Twist | DPST-NC | On-Off | Control Box Enclosure | 2A (DC) | - | 30 V | - | Connector | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C | - |
|
A22EL-M-24A-11BSW E-STOP TWIST RESET 10A 110V |
2 |
|
Технический лист |
A22E | Bulk | Active | Chassis Mount | Twist | DPST-NO/NC | On-Off, Off-On | Illuminated (Red) | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 24 VAC/DC |
|
73-00002.2SWITCH E-STOP TWIST RESET 2A 30V |
9 |
|
Технический лист |
84 SmartBox | Bulk | Active | Chassis Mount | Twist | DPST-NC | On-Off | Control Box Enclosure, Illuminated (Red) | 2A (DC) | - | 30 V | - | Connector | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C | - |
|

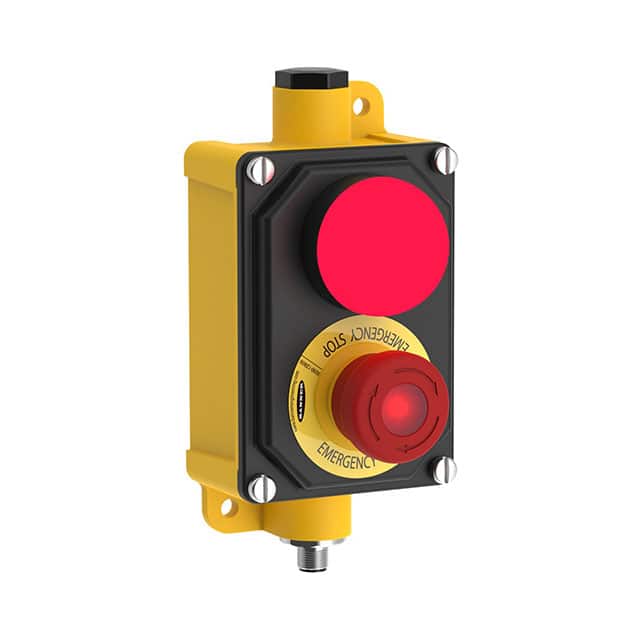

SSA-EB1PL2-12EB1Q12K50SW ESTOP PULL/TWIST RESET 2A 30V |
2 |
|
Технический лист |
SSA-EB | Box | Active | Chassis Mount | Pull or Twist | 3PST-2NC/1NO | On-Off, Off-On | Control Box Enclosure, Illuminated (Red) | 2A (DC) | - | 30 V | - | Connector | IP65 - Dust Tight, Water Resistant | - | 24 VAC/DC |
|
PBES16L10RSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
PBES16L1CRSWITCH ESTOP TWIST RESET 3A 125V |
97 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VDC |
|
|
PBES16L1IRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 14 VAC/DC |
|
|
PBES16L1JRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 28 VAC/DC |
|
|
PBES16L3MRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 33 VAC/DC |
|
|
PBES16L3LRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 60 VAC/DC |
|
|
PBES16L2MRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NO + SPST-NC | On-Off, Off-On | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 33 VAC/DC |
|
|
PBES16L30RSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
PBES16L2KRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NO + SPST-NC | On-Off, Off-On | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 48 VAC/DC |
|
|
PBES16L2LRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NO + SPST-NC | On-Off, Off-On | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 60 VAC/DC |
|
|
PBES16L3KRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 48 VAC/DC |
|
|
PBES16L3ORSWITCH ESTOP TWIST RESET 3A 125V |
49 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 14 VAC/DC |
|
|
PBES16L2NRSWITCH ESTOP TWIST RESET 3A 125V |
49 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NO + SPST-NC | On-Off, Off-On | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 6 VAC/DC |
|
|
PBES16L3HRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 6 VAC/DC |
|
|
PBES16L3JRSWITCH ESTOP TWIST RESET 3A 125V |
50 |
|
Технический лист |
PBES16 | Box | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | - | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 28 VAC/DC |
