Микропроцессоры
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Ядро процессора | Количество ядер/Ширина шины | Скорость | Сопроцессоры/DSP | Контроллеры ОЗУ | Графика Ускорение | Контроллеры дисплея и интерфейса | Ethernet | SATA | USB | Напряжение - Ввод/вывод | Рабочая температура | Марка | Квалификация | Функции безопасности | Тип крепления | Устройство поставщика Упаковка | Дополнительные интерфейсы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KMPC8265AZUPJDCIC MPU MPC82XX 300MHZ 480TBGA |
0 |
|
Технический лист |
480-LBGA Exposed Pad | MPC82xx | Box | Obsolete | PowerPC G2 | 1 Core, 32-Bit | 300MHz | Communications; RISC CPM | DRAM, SDRAM | No | - | 10/100Mbps (3) | - | - | 3.3V | 0°C ~ 105°C (TA) | - | - | - | Surface Mount | 480-TBGA (37.5x37.5) | I2C, SCC, SMC, SPI, UART, USART |
|
TS68C000VC8AIC MPU 8MHZ 64DIL |
0 |
|
Технический лист |
64-CDIP (0.900", 22.86mm) | - | Tube | Obsolete | 68000 | 1 Core, 16/32-Bit | 8MHz | - | - | No | - | - | - | - | 5.0V | -40°C ~ 85°C (TC) | - | - | - | Through Hole | 64-DIL | - |
|
|
T2081NSN8PTBIC MPU QORIQ 1.533GHZ 896FCPBGA |
0 |
|
Технический лист |
896-BFBGA, FCBGA | QorIQ T2 | Tray | Active | PowerPC e6500 | 4 Core, 64-Bit | 1.533GHz | - | DDR3, DDR3L | - | - | 1Gbps (8), 2.5Gbps (4), 10Gbps (4) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | 0°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 896-FCPBGA (25x25) | - |
|

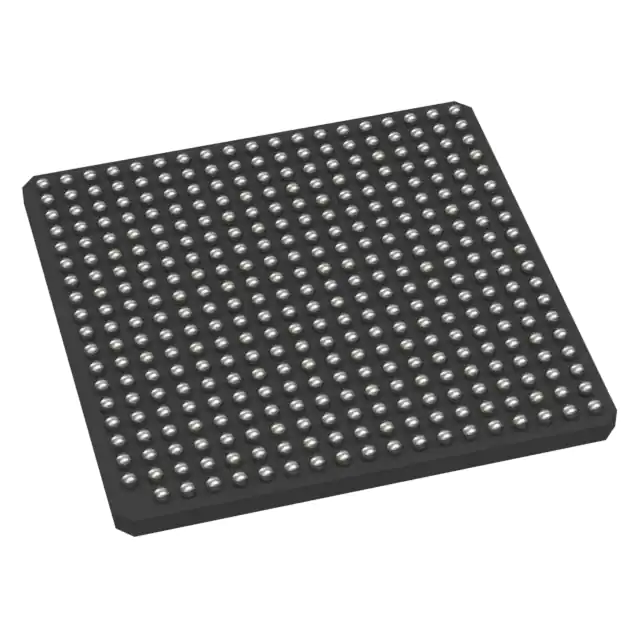

MC7447AVS1267LBIC MPU MPC74XX 1.267GHZ 360LGA |
0 |
|
Технический лист |
360-CLGA, FCCLGA | MPC74xx | Tray | Obsolete | PowerPC G4 | 1 Core, 32-Bit | 1.267GHz | Multimedia; SIMD | - | No | - | - | - | - | 1.8V, 2.5V | 0°C ~ 105°C (TA) | - | - | - | Surface Mount | 360-FCCLGA (25x25) | - |
|
MPC8555ECPXALFIC MPU MPC85XX 667MHZ 783FCPBGA |
0 |
|
Технический лист |
783-BBGA, FCBGA | MPC85xx | Tray | Obsolete | PowerPC e500 | 1 Core, 32-Bit | 667MHz | Communications; CPM, Security; SEC | DDR, SDRAM | No | - | 10/100/1000Mbps (2) | - | USB 2.0 (1) | 2.5V, 3.3V | -40°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 783-FCPBGA (29x29) | DUART, I2C, PCI, SPI, TDM, UART |
|
|
BCM58712DB0KFEB20GQUAD CORE A57 STRATAGX PRODUCT |
0 |
|
- |
- | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MPC8540CVT667JCIC MPU MPC85XX 667MHZ 783FCPBGA |
0 |
|
Технический лист |
783-BFBGA, FCBGA | MPC85xx | Tray | Obsolete | PowerPC e500 | 1 Core, 32-Bit | 667MHz | - | DDR, SDRAM | No | - | 10/100Mbps (1), 10/100/1000Mbps (2) | - | - | 2.5V, 3.3V | -40°C ~ 105°C (TA) | - | - | - | Surface Mount | 783-FCPBGA (29x29) | DUART, I2C, PCI, RapidIO |
|
|
T2080NSN8MQLBIC MPU QORIQ T2 1.2GHZ 896FCPBGA |
0 |
|
Технический лист |
896-BFBGA, FCBGA | QorIQ T2 | Tray | Active | PowerPC e6500 | 4 Core, 64-Bit | 1.2GHz | - | DDR3, DDR3L | - | - | 1Gbps (8), 2.5Gbps (4), 10Gbps (4) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | 0°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 896-FCPBGA (25x25) | - |
|
|
T2081NSE8PTBIC MPU QORIQ 1.533GHZ 896FCPBGA |
0 |
|
Технический лист |
896-BFBGA, FCBGA | QorIQ T2 | Tray | Active | PowerPC e6500 | 4 Core, 64-Bit | 1.533GHz | - | DDR3, DDR3L | - | - | 1Gbps (8), 2.5Gbps (4), 10Gbps (4) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | 0°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 896-FCPBGA (25x25) | - |
|
|
T2081NXE8MQBIC MPU QORIQ T2 1.2GHZ 896FCPBGA |
0 |
|
Технический лист |
896-BFBGA, FCBGA | QorIQ T2 | Tray | Active | PowerPC e6500 | 4 Core, 64-Bit | 1.2GHz | - | DDR3, DDR3L | - | - | 1Gbps (8), 2.5Gbps (4), 10Gbps (4) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | 0°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 896-FCPBGA (25x25) | - |
|
MPC8264AZUPIBBIC MPU MPC82XX 300MHZ 480TBGA |
0 |
|
Технический лист |
480-LBGA Exposed Pad | MPC82xx | Tray | Obsolete | PowerPC G2 | 1 Core, 32-Bit | 300MHz | Communications; RISC CPM | DRAM, SDRAM | No | - | 10/100Mbps (3) | - | - | 3.3V | 0°C ~ 105°C (TA) | - | - | - | Surface Mount | 480-TBGA (37.5x37.5) | I2C, SCC, SMC, SPI, UART, USART |
|

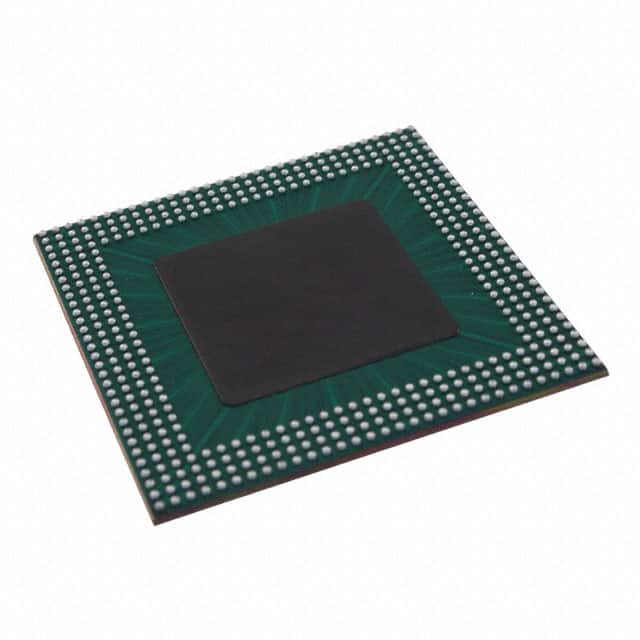

GCIXP1250BAIC MPU STRONGARM 166MHZ 520BGA |
1 |
|
Технический лист |
520-LFBGA | - | Tray | Obsolete | StrongARM | 1 Core, 32-Bit | 166MHz | Data; Microengine | SDRAM | No | - | - | - | - | 3.3V | 0°C ~ 70°C (TA) | - | - | - | Surface Mount | 520-HL-PBGA (40x40) | - |
|
MC68020CRC25EIC MPU M680X0 25MHZ 114PGA |
0 |
|
Технический лист |
114-BPGA | M680x0 | Tray | Obsolete | 68020 | 1 Core, 32-Bit | 25MHz | - | - | No | - | - | - | - | 5.0V | -40°C ~ 85°C (TA) | - | - | - | Through Hole | 114-PGA (34.55x34.55) | - |
|
|
T2080NSE8MQLBIC MPU QORIQ T2 1.2GHZ 896FCPBGA |
0 |
|
Технический лист |
896-BFBGA, FCBGA | QorIQ T2 | Tray | Active | PowerPC e6500 | 4 Core, 64-Bit | 1.2GHz | - | DDR3, DDR3L | - | - | 1Gbps (8), 2.5Gbps (4), 10Gbps (4) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | 0°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 896-FCPBGA (25x25) | - |
|
|
IDT79R4700-100DPIC MPU 100MHZ 208QFP |
0 |
|
Технический лист |
208-BFQFP Exposed Pad | - | Tray | Obsolete | MIPS-I | 1 Core, 64-Bit | 100MHz | System Control; CP0 | - | No | - | - | - | - | 5.0V | 0°C ~ 85°C (TC) | - | - | - | Surface Mount | 208-PQFP (28x28) | - |
|
GCIXP1240AAIC MPU STRONGARM 166MHZ 432BGA |
1 |
|
Технический лист |
432-LBGA | - | Tray | Obsolete | StrongARM | 1 Core, 32-Bit | 166MHz | Data; Microengine | SDRAM | No | - | - | - | - | 3.3V | 0°C ~ 70°C (TA) | - | - | - | Surface Mount | 432-BGA (40x40) | - |
|
|
MPC8540VT833LCIC MPU MPC85XX 833MHZ 783FCPBGA |
0 |
|
Технический лист |
783-BFBGA, FCBGA | MPC85xx | Tray | Obsolete | PowerPC e500 | 1 Core, 32-Bit | 833MHz | - | DDR, SDRAM | No | - | 10/100Mbps (1), 10/100/1000Mbps (2) | - | - | 2.5V, 3.3V | 0°C ~ 105°C (TA) | - | - | - | Surface Mount | 783-FCPBGA (29x29) | DUART, I2C, PCI, RapidIO |
|
|
KMPC8560CVT667JBIC MPU MPC85XX 667MHZ 783FCPBGA |
0 |
|
Технический лист |
783-BFBGA, FCBGA | MPC85xx | Tray | Obsolete | PowerPC e500 | 1 Core, 32-Bit | 667MHz | Communications; CPM | DDR, SDRAM | No | - | 10/100/1000Mbps (2) | - | - | 2.5V, 3.3V | -40°C ~ 105°C (TA) | - | - | - | Surface Mount | 783-FCPBGA (29x29) | I2C, PCI, RapidIO, SPI, TDM, UART |
|
|
SR06-0A00-02SAS3916A0-2-DB |
0 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MPC8548ECPXAQGBIC MPU MPC85XX 1.0GHZ 783FCBGA |
0 |
|
Технический лист |
783-BBGA, FCBGA | MPC85xx | Tray | Obsolete | PowerPC e500 | 1 Core, 32-Bit | 1.0GHz | Signal Processing; SPE, Security; SEC | DDR, DDR2, SDRAM | No | - | 10/100/1000Mbps (4) | - | - | 1.8V, 2.5V, 3.3V | -40°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 783-FCBGA (29x29) | DUART, I2C, PCI, RapidIO |
