Электрические, специальные предохранители
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка/корпус | Упаковка | Состояние продукта | Тип крепления | Тип предохранителя | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Время отклика | Применение | Особенности | Класс | Сертифицирующее агентство | Рабочая температура | Отключающая способность при номинальном напряжении | Размер/измерение | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
157.5701.6401FUSE STRIP 400A 48VDC BOLT MOUNT |
8 |
|
Технический лист |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 400A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 2.4kA | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|
|
157.5701.5351FUSE STRIP 35A 48VDC BOLT MOUNT |
4 |
|
Технический лист |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 35A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 210A | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|

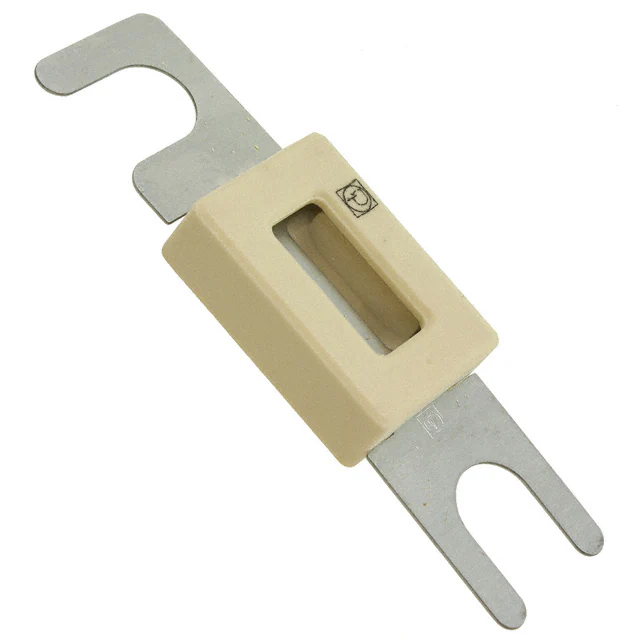

157.5701.5501FUSE STRIP 50A 48VDC BOLT MOUNT |
7,246 |
|
Технический лист |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 50A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 300A | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|
|
157.5701.6151FUSE STRIP 150A 48VDC BOLT MOUNT |
9,988 |
|
Технический лист |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 150A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 900A | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|
157.5701.6101FUSE STRIP 100A 48VDC BOLT MOUNT |
2,202 |
|
Технический лист |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 100A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 600A | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|
157.5701.6421FUSE STRIP 425A 48VDC BOLT MOUNT |
3,047 |
|
Технический лист |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 425A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 2.55kA | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|

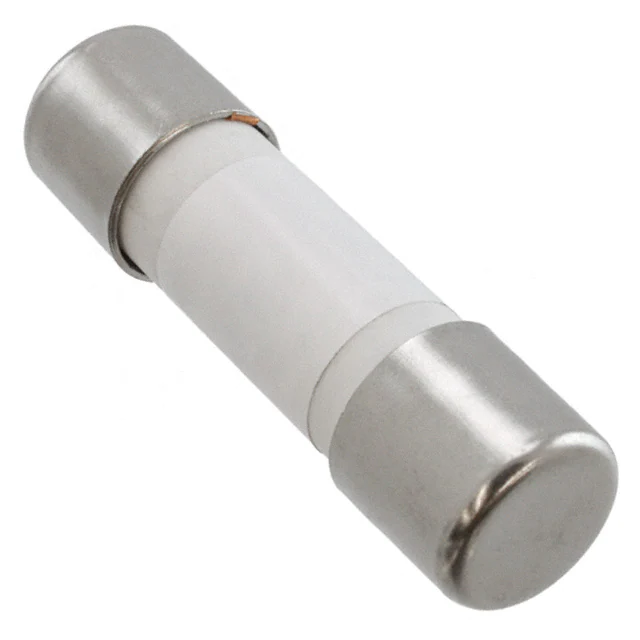

0NLN025.TFUSE CARTRIDGE 25A 250VAC/VDC |
3 |
|
Технический лист |
POWR-GARD® NLN | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 25A | 250 VAC | 250 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA AC, 20kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|
0NLN003.TFUSE CARTRIDGE 3A 250VAC/VDC |
4 |
|
Технический лист |
POWR-GARD® NLN | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 3A | 250 VAC | 250 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA AC, 20kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|

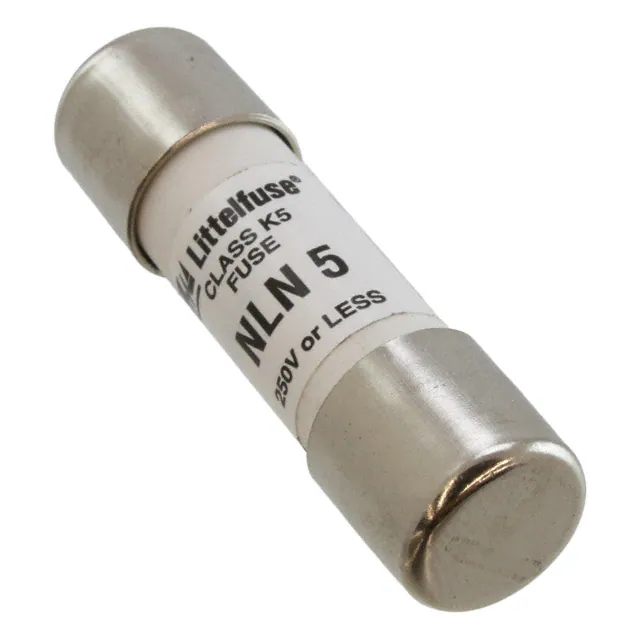

0NLN005.TFUSE CARTRIDGE 5A 250VAC/VDC |
2 |
|
Технический лист |
POWR-GARD® NLN | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 5A | 250 VAC | 250 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA AC, 20kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|
0NLN001.TFUSE CARTRIDGE 1A 250VAC/VDC |
6,630 |
|
Технический лист |
POWR-GARD® NLN | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 1A | 250 VAC | 250 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA AC, 20kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|

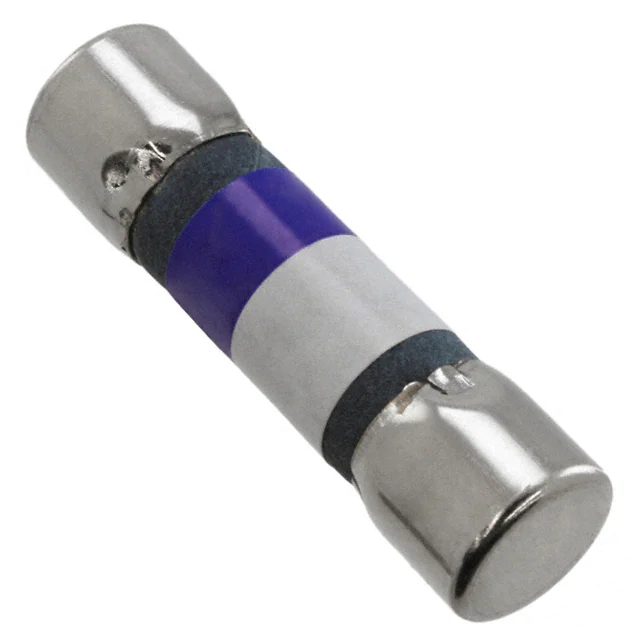

0BLN001.TFUSE CARTRIDGE 1A 250VAC 5AG |
5 |
|
Технический лист |
BLN | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, PSE, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0BLF.500TFUSE CARTRIDGE 500MA 250VAC 5AG |
4 |
|
Технический лист |
BLF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 500mA | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0BLN010.TFUSE CARTRIDGE 10A 250VAC 5AG |
1 |
|
Технический лист |
BLN | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, PSE, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0BLN004.TFUSE CARTRIDGE 4A 250VAC 5AG |
6,008 |
|
Технический лист |
BLN | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 4A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, PSE, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLF001.TFUSE CARTRIDGE 1A 250VAC 5AG |
8,150 |
|
Технический лист |
BLF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLF010.TFUSE CARTRIDGE 10A 250VAC 5AG |
4,726 |
|
Технический лист |
BLF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
FLNR005.TFUSE CARTRIDGE 5A 250VAC/125VDC |
4 |
|
Технический лист |
POWR-GARD® FLNR | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 5A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|
FP540FUSE CARTRIDGE 500VAC 2 PER PK |
3 |
|
Технический лист |
- | 3AB, 3AG, 1/4" x 1-1/4" | - | Active | Requires Holder | Cartridge, Ceramic | 10A | 500 VAC | - | - | Multi-Meters | - | - | cURus | - | 50kA | 0.252" Dia x 1.252" L (6.40mm x 31.80mm) | - | - |
|
0AKLB9250-PDFUSE 25A 1000V STUD MNT |
5,182 |
|
Технический лист |
0AKL | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 25A | - | 1 kVDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 50kA | 0.413" Dia x 1.535" L (10.50mm x 39.00mm) | - | - |
|
0LMF03.2VFUSE CRTRDGE 3.2A 300VAC IN LINE |
9,734 |
|
Технический лист |
POWR-GARD® LMF | Cartridge | Bulk | Active | Requires Holder | Cartridge | 3.2A | 300 VAC | - | Slow Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | 0.610" Dia x 1.820" L (15.49mm x 46.23mm) | - | - |
