DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6KSV-104RFSWITCH ROTARY DIP BCD 0.025A 24V |
185 |
|
Технический лист |
A6KS | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
A6A-16RFSWITCH ROTARY DIP HEX 0.1A 28V |
552 |
|
Технический лист |
A6A | Tray | Active | Hexadecimal | 16 | 100mA | 28VDC | Rotary for Tool | Flush, Recessed | - | - | 0.244" (6.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
90HBJ10PTSWITCH SLIDE DIP SPST 0.025A 24V |
4,174 |
|
Технический лист |
90HB | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6A-16RSSWITCH ROTARY DIP HEX 0.1A 28V |
304 |
|
Технический лист |
A6A | Tray | Active | Hexadecimal | 16 | 100mA | 28VDC | Rotary with Shaft | Raised | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
A6A-10RSWITCH ROTARY DIP BCD 0.1A 28V |
1,448 |
|
Технический лист |
A6A | Bulk | Active | BCD | 10 | 100mA | 28VDC | Rotary for Tool | Raised | - | - | 0.295" (7.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|

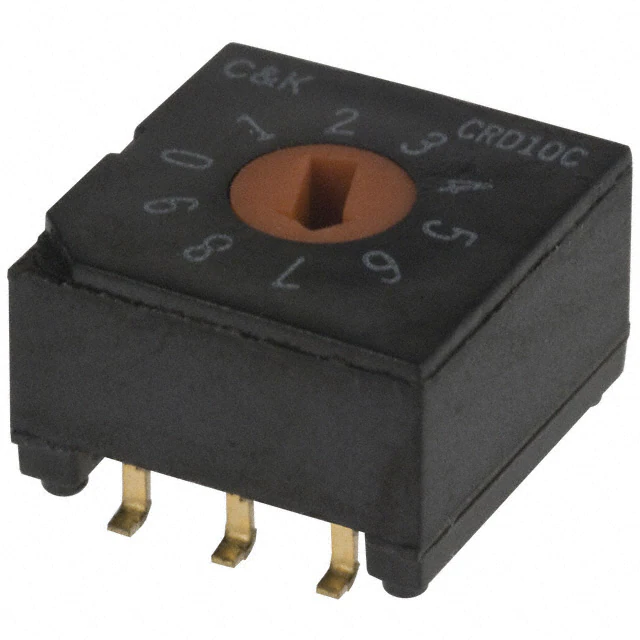

CRD10CM0SBRSW ROTARY DIP BCD COMP 0.4VA 20V |
1,173 |
|
Технический лист |
CRD | Tape & Reel (TR) | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

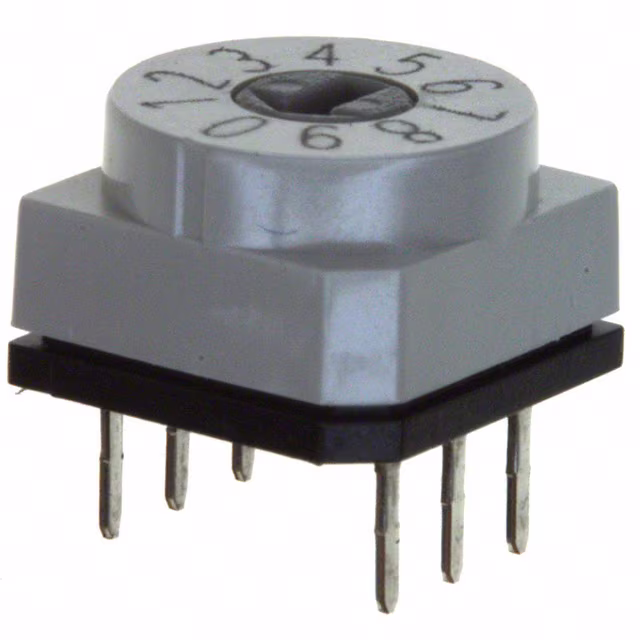

PT65102SW ROTARY DIP BCD COMP 0.15A 24V |
6,876 |
|
Технический лист |
PT65 | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

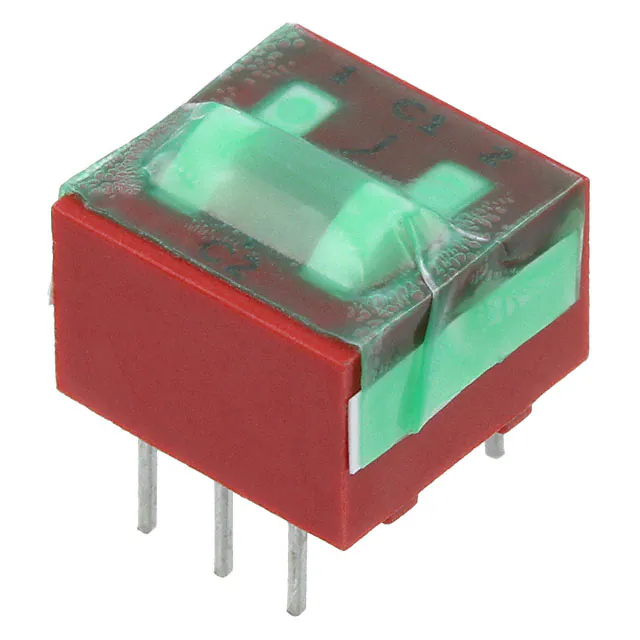

76SC02STSWITCH ROCKER DIP SPDT 0.15A 30V |
4,790 |
|
Технический лист |
76 | Tube | Active | SPDT | 2 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SPA06ABSWITCH SLIDE DIP SPST 0.01A 20V |
815 |
|
Технический лист |
SPA | Tube | Active | SPST | 6 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 60°C |
|
A6KSV-164RFSWITCH ROTARY DIP HEX 0.025A 24V |
246 |
|
Технический лист |
A6KS | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
CRD10CM0ABSW ROTARY DIP BCD COMP 0.4VA 20V |
7,364 |
|
Технический лист |
CRD | Tube | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

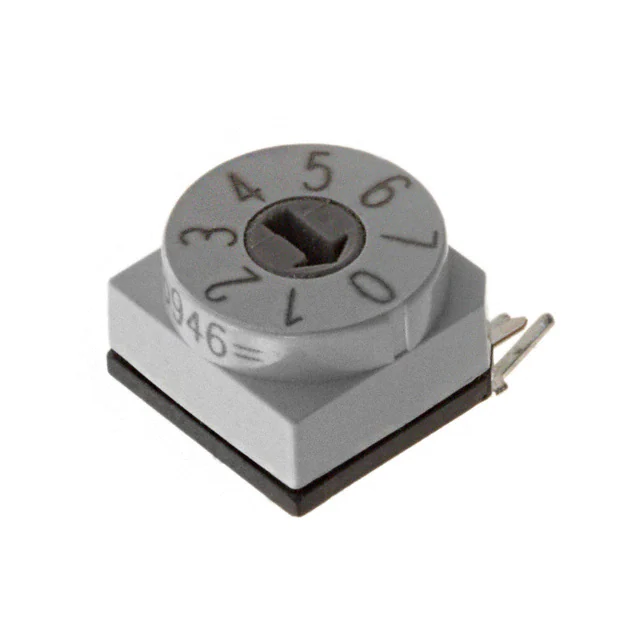

PT65126L508SW ROTARY DIP OCTAL 0.15A 24V |
1,986 |
|
Технический лист |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6KV-104RSSWITCH ROTARY DIP BCD 0.025A 24V |
531 |
|
Технический лист |
A6K | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
A6KV-164RFSWITCH ROTARY DIP HEX 0.025A 24V |
300 |
|
Технический лист |
A6K | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
PT65106SW ROTARY DIP HEX COMP 0.15A 24V |
2,861 |
|
Технический лист |
PT65 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6KS-102RSSWITCH ROTARY DIP BCD 0.025A 24V |
137 |
|
Технический лист |
A6KS | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
A6A-10RWSWITCH ROTARY DIP BCD 0.1A 28V |
469 |
|
Технический лист |
A6A | Tray | Active | BCD | 10 | 100mA | 28VDC | Rotary with Knob | Raised | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
FR01AC16HB-SSW ROTARY DIP HEX COMP 0.1A 5V |
118 |
|
Технический лист |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
CRD16CM0ABSW ROTARY DIP HEX COMP 0.4VA 20V |
8,790 |
|
Технический лист |
CRD | Tube | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
FR01AR16PBSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Технический лист |
FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
