DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDP02H1SBD1SWITCH PIANO DIP SPST 0.025A 24V |
53,875 |
|
Технический лист |
TDP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
A6TN-7104SWITCH SLIDE DIP SPST 0.025A 24V |
4,235 |
|
Технический лист |
A6TN | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6SR-2104SWITCH PIANO DIP SPST 0.025A 24V |
467 |
|
Технический лист |
A6SR | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6T-6104SWITCH SLIDE DIP SPST 0.025A 24V |
258 |
|
Технический лист |
A6T | Tray | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

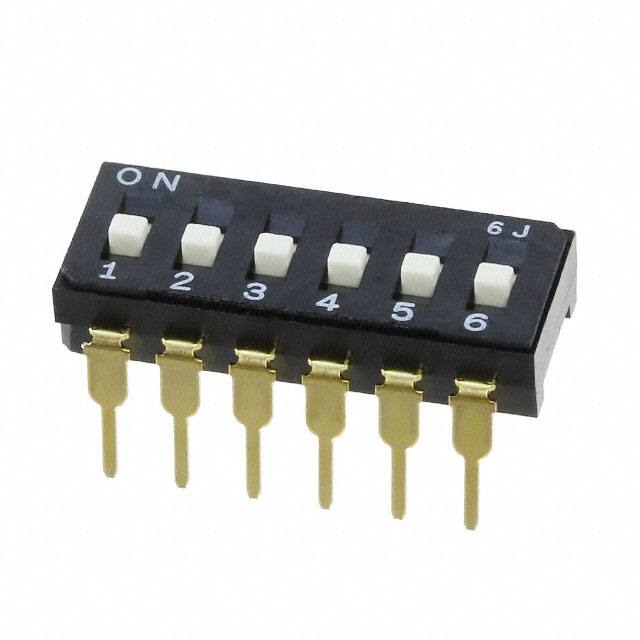

CFS-0602MCSWITCH SLIDE DIP SPST 0.1A 6V |
247 |
|
Технический лист |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.201" (5.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

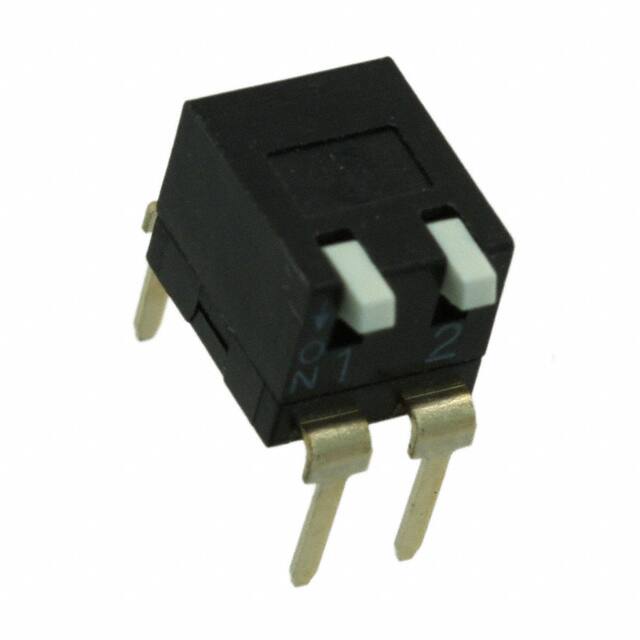

A6TR-2104SWITCH PIANO DIP SPST 0.025A 24V |
191 |
|
Технический лист |
A6TR | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6TR-4104SWITCH PIANO DIP SPST 0.025A 24V |
183 |
|
Технический лист |
A6TR | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
418217270903ASWITCH SLIDE DIP SPST 0.025A 24V |
143 |
|
Технический лист |
WS-DITU | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

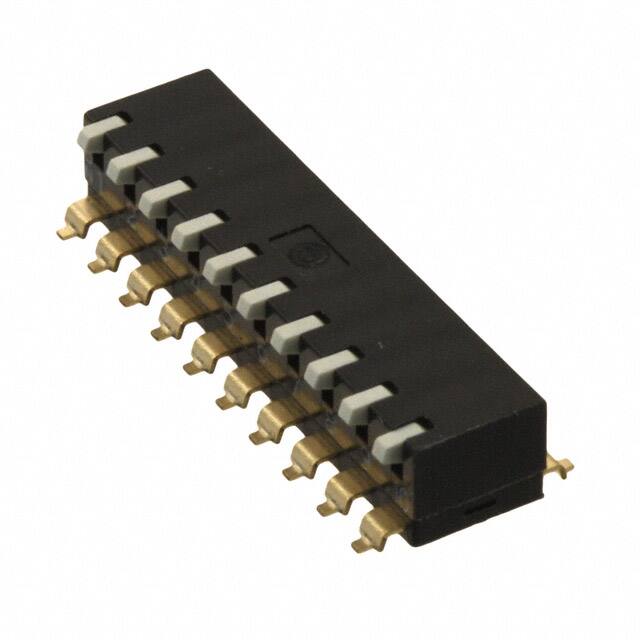

A6SR-0104-PSWITCH PIANO DIP SPST 0.025A 24V |
2,453 |
|
Технический лист |
A6SR | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6TR-4101SWITCH PIANO DIP SPST 0.025A 24V |
465 |
|
Технический лист |
A6TR | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6SN-8101-PSWITCH SLIDE DIP SPST 0.025A 24V |
384 |
|
Технический лист |
A6SN | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
RD10RA8RTTSW ROTARY DIP OCTAL 0.15A 50V |
1,905 |
|
Технический лист |
RD10 | Tube | Active | Octal | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
SDA05H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
725 |
|
Технический лист |
SDA | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6SN-3104-PSWITCH SLIDE DIP SPST 0.025A 24V |
674 |
|
Технический лист |
A6SN | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6TN-8104SWITCH SLIDE DIP SPST 0.025A 24V |
126 |
|
Технический лист |
A6TN | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

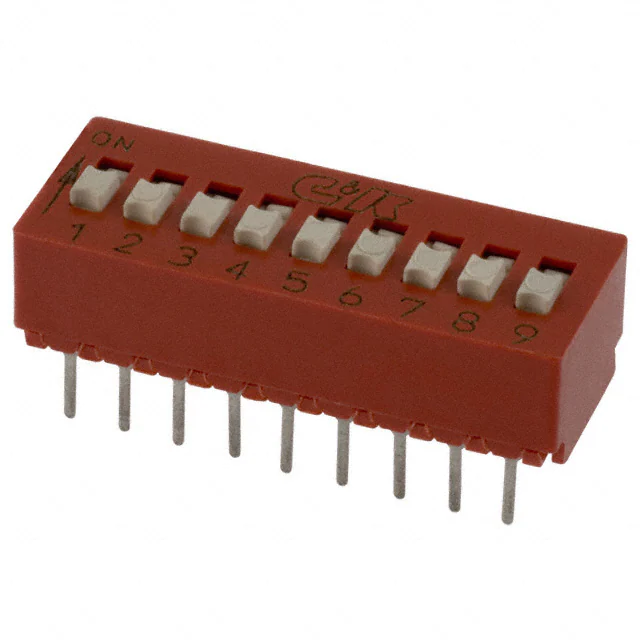

BD09SWITCH SLIDE DIP SPST 0.1A 5V |
2,693 |
|
Технический лист |
BD | Tube | Active | SPST | 9 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RDS-10S-1055-SMT-TRSWITCH ROTARY DIP BCD 0.025A 24V |
1,007 |
|
Технический лист |
RDS-1055-SMT | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RDS-10S-1045-SMT-TRSWITCH ROTARY DIP BCD 0.025A 24V |
945 |
|
Технический лист |
RDS-1045-SMT | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RDS-16S-1055-DSWITCH ROTARY DIP HEX 0.025A 24V |
695 |
|
Технический лист |
RDS-1055 | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RDS-16S-1045-DSWITCH ROTARY DIP HEX 0.025A 24V |
173 |
|
Технический лист |
RDS-1045 | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
