DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DA04SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Технический лист |
DA | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DA06SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Технический лист |
DA | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DA05TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Технический лист |
DA | Tube | Obsolete | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA06TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Технический лист |
DA | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA12TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Технический лист |
DA | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA10TNSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Технический лист |
DA | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA12SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Технический лист |
DA | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DA07TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Технический лист |
DA | Tube | Obsolete | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA10TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Технический лист |
DA | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA10SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Технический лист |
DA | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DA08TSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Технический лист |
DA | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA08SWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Технический лист |
DA | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
TDS10SWITCH SLIDE DIP SPDT 0.025A 24V |
0 |
|
- |
TDS | Tube | Obsolete | SPDT | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Brass | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

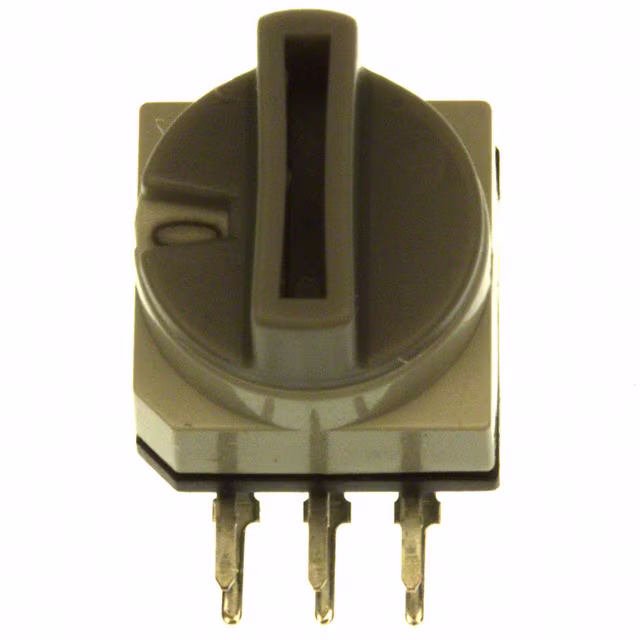

PT65526L254SW ROTARY DIP OCTAL 0.15A 24V |
0 |
|
Технический лист |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
KC1901NSWITCH ROTARY DIP SP9T 0.1A 16V |
0 |
|
Технический лист |
KC1901 | Bulk | Obsolete | SP9T | 9 | 100mA | 16VDC | Rotary with Shaft | Raised | Copper Alloy | Silver | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
|
A6T-3131(VNM)SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6T | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
1825286-4SW ROCKER DIP SPST 0.025A 24V |
0 |
|
Технический лист |
GDR | Tube | Active | SPST | 4 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.309" (7.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
1825286-8SW ROCKER DIP SPST 0.025A 24V |
0 |
|
Технический лист |
GDR | Tube | Active | SPST | 8 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.309" (7.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
JS0404FP4-RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
JS | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
|
206-222STSWITCH SLIDE DIP DPDT 0.05A 24V |
0 |
|
Технический лист |
206 | Tube | Obsolete | DPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
