DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6ER-2104SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6ER | Tray | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-3104SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6ER | Tray | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-4101SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6ER | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6ER-4104SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6ER | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6ER-5101SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6ER | Tray | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-6101SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6ER | Tray | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-6104SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6ER | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6ER-7101SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6ER | Tray | Obsolete | SPST | 7 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|

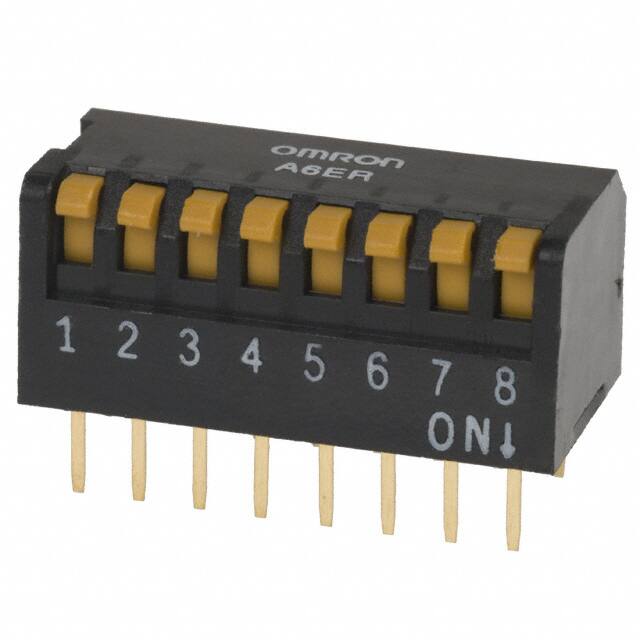

A6ER-8101SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6ER | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6ER-8104SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6ER | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6ER-9101SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6ER | Bag | Obsolete | SPST | 9 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6ER-9104SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6ER | Tray | Obsolete | SPST | 9 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
A6S-0101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Bag | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-2101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Bag | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-3101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Bag | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6S-3102SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Bag | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6S-3104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Bag | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-4101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Bag | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-5101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Bag | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-6101SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Bag | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
