DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

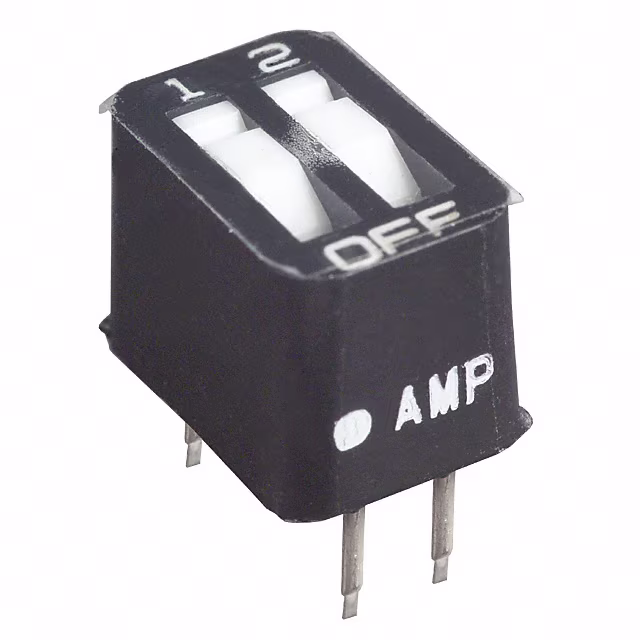

3-435626-6SW ROCKER DIP SPST 0.025A 24V |
0 |
|
Технический лист |
7000 | Tube | Active | SPST | 2 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|

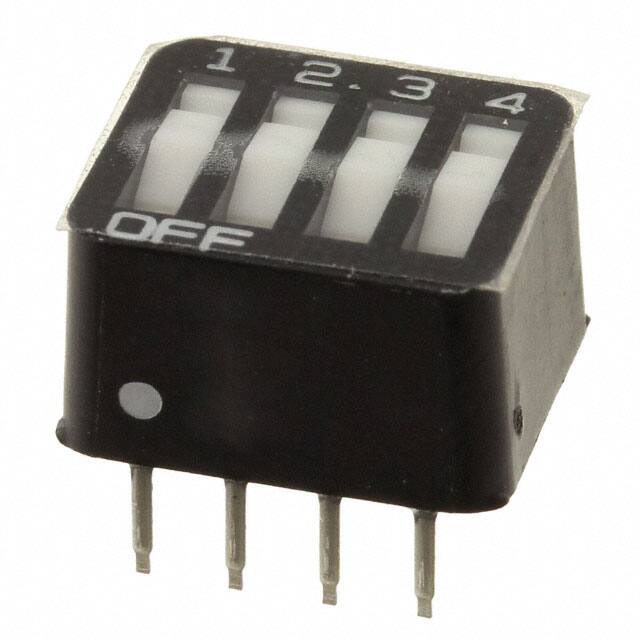

3-435626-8SW ROCKER DIP SPST 0.025A 24V |
0 |
|
Технический лист |
7000 | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|

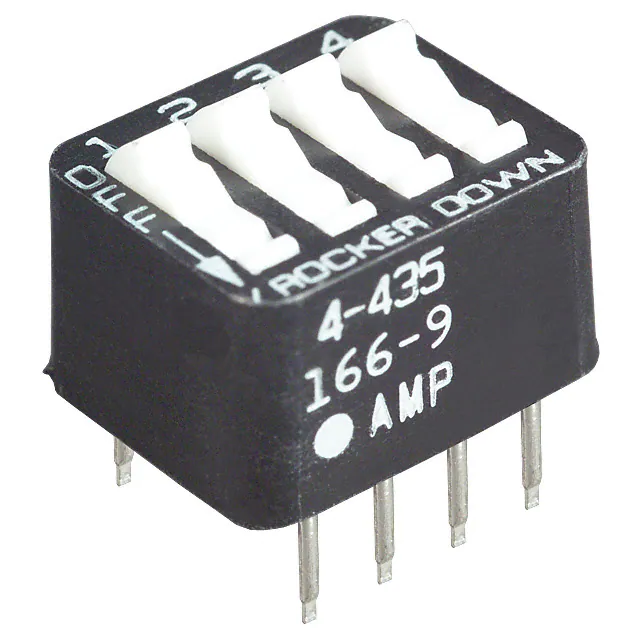

4-435166-9SW ROCKER DIP SPST 0.025A 24V |
0 |
|
Технический лист |
7000 | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
4-435626-0SW ROCKER DIP SPST 0.025A 24V |
0 |
|
Технический лист |
7000 | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
4-435626-4SW ROCKER DIP SPST 0.025A 24V |
0 |
|
Технический лист |
7000 | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
435626-1SW ROCKER DIP SPST 0.025A 24V |
0 |
|
Технический лист |
7000 | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
435626-5SW ROCKER DIP SPST 0.025A 24V |
0 |
|
Технический лист |
7000 | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
54778-1SW ROTARY DIP BCD W/COMP 28V |
0 |
|
Технический лист |
- | Tube | Obsolete | BCD with Complement | 10 | 100mA | 28VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.385" (9.78mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | - |
|

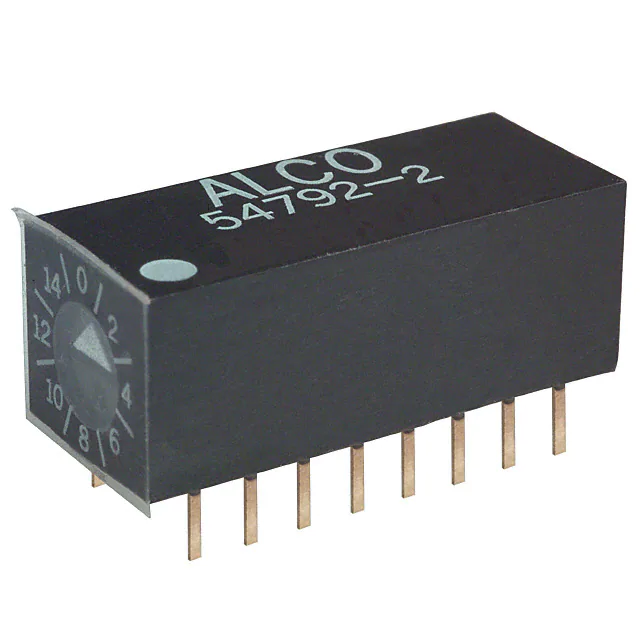

54792-2SW ROTARY DIP HEX W/COMP 28V |
0 |
|
Технический лист |
- | Tube | Obsolete | Hexadecimal with Complement | 16 | 100mA | 28VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.385" (9.78mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | - |
|

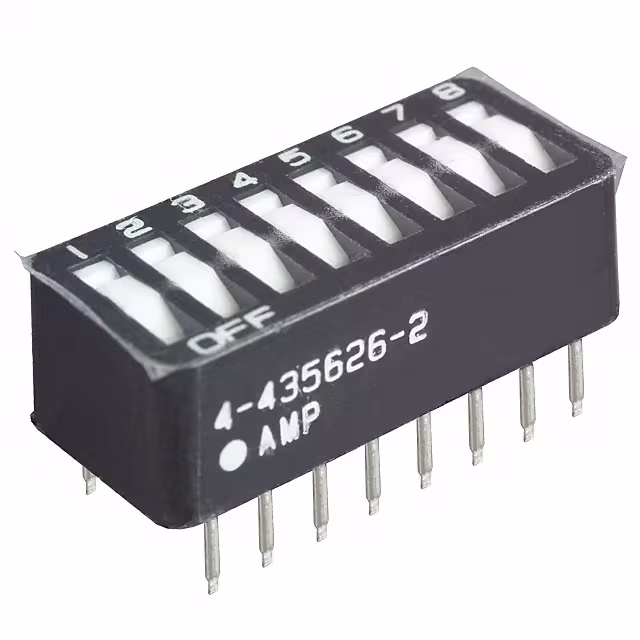

4-435626-2SW ROCKER DIP SPST 0.025A 24V |
0 |
|
Технический лист |
7000 | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|

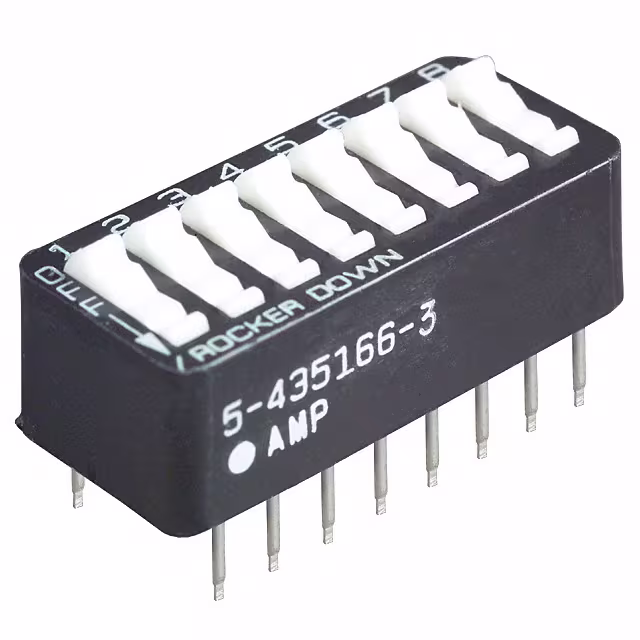

5-435166-3SW ROCKER DIP SPST 0.025A 24V |
0 |
|
Технический лист |
7000 | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
A6S-2102SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6S-4102SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6S-5102SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6S-6102SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6S-7102SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Bag | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
A6S-8102SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6S-9102SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Bag | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6S-0102SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Bag | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6S-2104SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6S | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
