DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

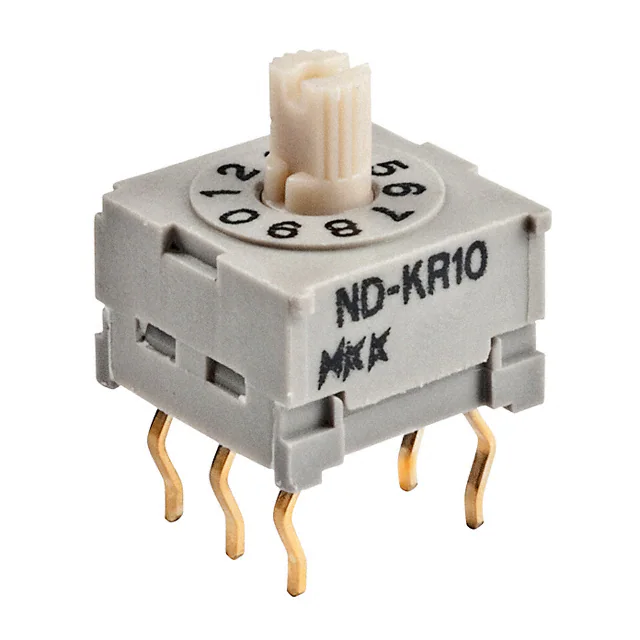

NDKR10PSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Технический лист |
ND | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|
NDKC10PSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Технический лист |
ND | Box | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|
|
NDKC16PSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Технический лист |
ND | Box | Obsolete | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|
|
P60A701L508DIP ROTARY SWITCH P60 10MM |
0 |
|
Технический лист |
P60A | Bulk | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
P60A702L508DIP ROTARY SWITCH P60 10MM |
0 |
|
Технический лист |
P60A | Bulk | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
MRSSH4DC16SMGWTRSW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
Технический лист |
MRSS | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
CD10RM0SBRSWITCH ROTARY DIP BCD 0.4VA 20V |
1 |
|
Технический лист |
CD | Tape & Reel (TR) | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
|
76RSD02TSWITCH ROCKER DIP DPDT 0.15A 30V |
0 |
|
Технический лист |
76 | Tube | Active | DPDT | 2 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.267" (6.78mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
PT65112L508SWITCH ROTARY DIP BCD 0.15A 24V |
0 |
|
Технический лист |
PT65 | Tube | Active | BCD | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65106L508SW ROTARY DIP HEX COMP 0.15A 24V |
0 |
|
Технический лист |
PT65 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65731SWITCH ROTARY DIP 0.15A 24V |
0 |
|
Технический лист |
PT65 | Tube | Active | - | - | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65306L508DIP ROTARY SWITCH P60 10MM |
0 |
|
Технический лист |
PT65 | Bulk | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|
|
PT65306L254DIP ROTARY SWITCH P60 10MM |
0 |
|
Технический лист |
PT65 | Bulk | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|
|
PT65527L254DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65527L508DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65505L254DIP ROTARY SWITCH P60 10MM |
0 |
|
Технический лист |
PT65 | Bulk | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Knob | Raised | Bronze | Gold | 0.406" (10.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|
|
PT65525L254DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65505L508DIP ROTARY SWITCH P60 10MM |
0 |
|
Технический лист |
PT65 | Bulk | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.406" (10.30mm) | Through Hole, Right Angle | PC Pin | 0.200" (5.08mm) | Yes | - | -20°C ~ 70°C |
|
|
PT65524L508DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65525L508DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
