DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NDSR06TVDIP SWITCH ND STANDARD |
0 |
|
Технический лист |
NDS | Bulk | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
CFP-1011MBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 10 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-1012MBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 10 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-1012MCSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 10 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-1002MCSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 10 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-1002MBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 10 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-1011MCSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 10 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-1001MBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 10 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-1001MCSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 10 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SSV10SWITCH SLIDE DIP SPST 0.4VA 20V |
0 |
|
Технический лист |
SSV | Tube | Obsolete | SPST | 10 | 0.4VA | 20VAC/DC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
MRD10SSWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
- |
MRD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.130" (3.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -10°C ~ 85°C |
|
|
MRD16SSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
- |
MRD | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.130" (3.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -10°C ~ 85°C |
|
|
SMRR8010C-1SWITCH ROTARY DIP BCD 0.03A 15V |
0 |
|
- |
SMR | Tube | Active | BCD | 10 | 30mA | 15VDC | Rotary with Shaft | Raised | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 85°C |
|
|
SMRR8016C-1SWITCH ROTARY DIP HEX 0.03A 15V |
0 |
|
- |
SMR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 85°C |
|
|
SMRR8110C-1SW ROTARY DIP BCD COMP 0.03A 15V |
0 |
|
- |
SMR | Tube | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary with Shaft | Raised | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 85°C |
|
|
SMRR8116C-1SW ROTARY DIP HEX COMP 0.03A 15V |
0 |
|
- |
SMR | Tube | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 85°C |
|
|
IKN0404000SWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
Технический лист |
IKN | Tape & Reel (TR) | Obsolete | SPST | 4 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.112" (2.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 100°C |
|
|
S-2150WSWITCH ROTARY DIP SP4T 0.1A 5V |
0 |
|
Технический лист |
S-2050 | Tray | Active | SP4T | 4 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
S-2151WSWITCH ROTARY DIP SP4T 0.1A 5V |
0 |
|
Технический лист |
S-2050 | Tray | Active | SP4T | 4 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|

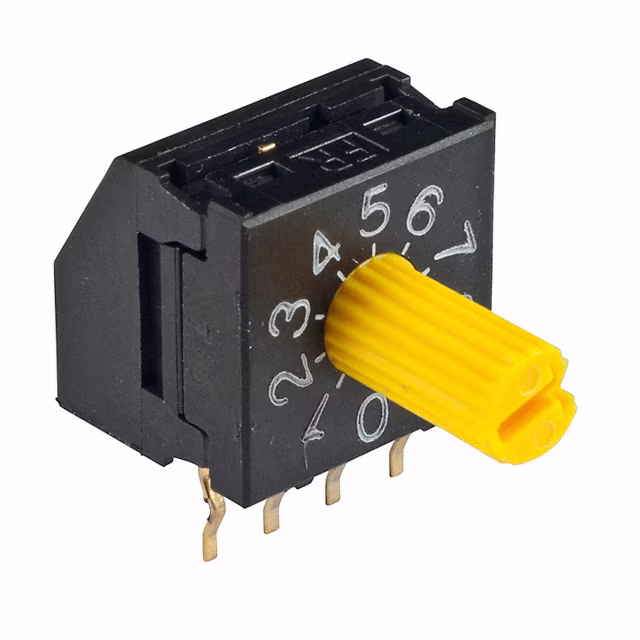

FR01KC10H-06XLSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Технический лист |
FR01 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
