DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6D-5103SWITCH SLIDE DIP SPST 0.03A 30V |
0 |
|
Технический лист |
A6D | Tube | Active | SPST | 5 | 30mA | 30VDC | Slide (Standard) | Raised | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
|
76HPSB06GWRSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Технический лист |
76HP | Tape & Reel (TR) | Obsolete | SPST | 6 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
5-1825059-1SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
ADF | Tape & Reel (TR) | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
2-2396234-9SWITCH ROTARY DIP 16P VERT SMD |
0 |
|
Технический лист |
MRSS | Bulk | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
2396234-9SWITCH ROTARY DIP HEX COMP 0.4VA |
0 |
|
Технический лист |
MRD | Bulk | Active | Hexadecimal Complement | - | 0.4VA | - | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | - | - | - | - | - | - | - |
|
|
2-2396234-4SWITCH ROTARY DIP 10P VERT SMD |
0 |
|
Технический лист |
MRSS | Bulk | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
MPG306BTSW PIANO DIP DPST 0.025A 24V |
0 |
|
Технический лист |
MPG | Tube | Active | DPST-NO/NC | 6 | 25mA | 24VDC | Piano | Raised | Brass | Gold | 0.381" (9.68mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -25°C ~ 70°C |
|
|
FD01FR16P-SSWITCH ROTARY DIP HEX 100MA 5V |
0 |
|
Технический лист |
FD01 | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FD01FC10P-SSW ROTARY DIP BCD COMP 100MA 5V |
0 |
|
Технический лист |
FD01 | Tube | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FD01FC16P-SSW ROTARY DIP HEX COMP 100MA 5V |
0 |
|
Технический лист |
FD01 | Tube | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FD01FR10P-SSWITCH ROTARY DIP BCD 100MA 5V |
0 |
|
Технический лист |
FD01 | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
P36SMT103TRDIP ROTARY SWITCH P25 7MM LOW |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
97R08TSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
97 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

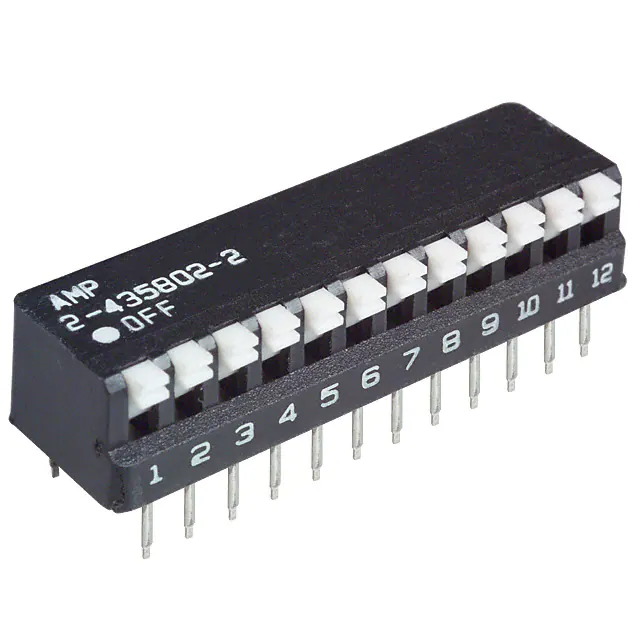

2-435802-2SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
7000 | Tube | Active | SPST | 12 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
DRD10CRASW ROTARY DIP BCD COMP 0.4VA 20V |
0 |
|
Технический лист |
DRD | Tube | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
94HCB16WRTSWITCH ROTARY DIP HEX 0.1A 50V |
0 |
|
Технический лист |
94H | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
A6SN-0104-R100SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
A6SN | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
P36SSG10DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SA-7110BSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Технический лист |
SA-7000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SA-7110CSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Технический лист |
SA-7000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.252" (6.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
