DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH-7030MASW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
- |
SH-7000 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.148" (3.75mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SH-7070MASW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
- |
SH-7000 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.148" (3.75mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SH-7070MBSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
- |
SH-7000 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KAT1110ESWITCH SLIDE DIP SPDT 0.025A 24V |
0 |
|
Технический лист |
KAT | Tube | Obsolete | SPDT | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
|
CRE04RRDM1ASW ROTARY DIP BCD 150MA 42VDC |
0 |
|
Технический лист |
CRE | Bulk | Active | BCD | 4 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.463" (11.75mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
CVS-02BSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
Технический лист |
CVS | Bulk | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
RTE1610N44SWITCH ROTARY DIP HEX 0.1A 30V |
0 |
|
Технический лист |
RTE | Tube | Active | Hexadecimal | 16 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE1612N44SWITCH ROTARY DIP HEX 0.1A 30V |
0 |
|
Технический лист |
RTE | Tube | Active | Hexadecimal | 16 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE1000N34SW ROTARY DIP GRAY CODE 0.1A 30V |
0 |
|
Технический лист |
RTE | Bulk | Active | Gray Code | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE1002R14SWITCH ROTARY DIP BCD 0.1A 30V |
0 |
|
Технический лист |
RTE | Bulk | Active | BCD | 10 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | - | Through Hole, Reverse | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

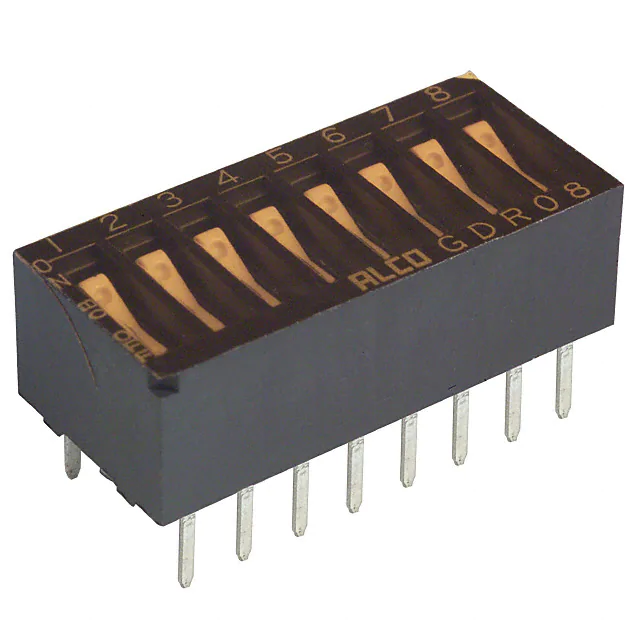

1825286-7SW ROCKER DIP SPST 0.025A 24V |
0 |
|
- |
GDR | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
SD05H0SBRSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Технический лист |
SD | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
KAN1110RR-ONSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
KAN | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.064" (1.63mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
JS0204AP4-RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
JS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
3-5435802-8SWITCH PIANO DIP SPST |
0 |
|
Технический лист |
7000 | Tube | Active | SPST | 8 | - | - | Piano | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|
3-435640-9SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Технический лист |
7100 | Bulk | Active | SPST | 8 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
|
IKD0303101DIP SWITCH IKD 24VDC |
0 |
|
Технический лист |
IKD | Bulk | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
RDTAR10R1TSWITCH ROTARY DIP BCD 0.15A 42V |
0 |
|
Технический лист |
RDT | Tube | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
RDTCR16R1TSWITCH ROTARY DIP HEX 0.15A 42V |
0 |
|
Технический лист |
RDT | Tube | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
RDTCR16R2TSWITCH ROTARY DIP HEX 0.15A 42V |
0 |
|
Технический лист |
RDT | Tube | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
