DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
418317170902SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RDTAR04P1TSWITCH ROTARY DIP BCD 0.15A 42V |
0 |
|
Технический лист |
RDT | Tube | Active | BCD | 4 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RDS4-4S-1012-73-RA-508-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
0 |
|
Технический лист |
RDS4-1012-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS4-4S-1012-73-RA-254-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
0 |
|
Технический лист |
RDS4-1012-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS7-4S-1011-73-RA-254-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
0 |
|
Технический лист |
RDS7-1011-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS7-4S-1011-73-RA-508-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
0 |
|
Технический лист |
RDS7-1011-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAC02LAGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
KAC | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.217" (5.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
BPA03SBRSWITCH PIANO DIP SPST 100MA 5VDC |
0 |
|
Технический лист |
BPA | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
GDP04SSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
GDP | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.343" (8.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
ADP05SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
ADP | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
CHP-081TBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
Технический лист |
CHP | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
CHP-080TASWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
Технический лист |
CHP | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHP-080TBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
Технический лист |
CHP | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

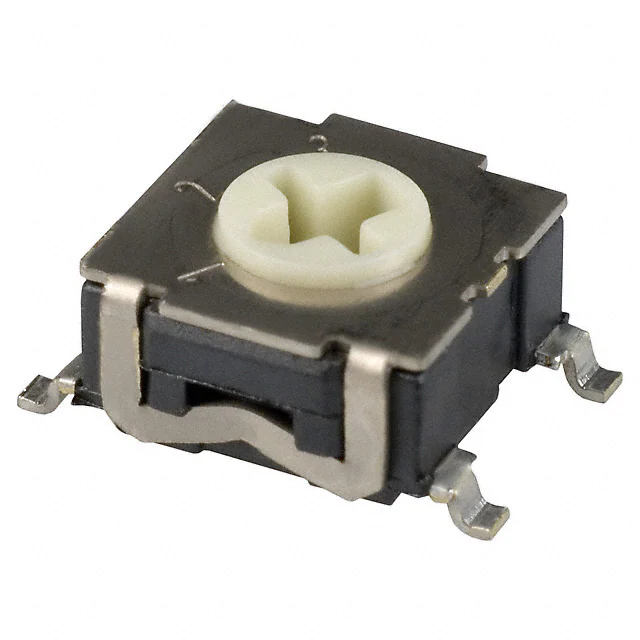

RTE0300G04SWITCH ROTARY DIP SP3T 0.1A 30V |
0 |
|
Технический лист |
RTE | Tape & Reel (TR) | Obsolete | SP3T | 3 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
SDA09H1SBDRSWITCH SLIDE DIP SPST 100MA 5VDC |
0 |
|
Технический лист |
SDA | Tape & Reel (TR) | Active | SPST | 9 | 100mA | 5VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.215" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
97C02RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
97 | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
RDS3-4S-1065-1-SMT-TRSWITCH ROTARY DIP SPST 0.15A 42V |
0 |
|
Технический лист |
RDS3-1065-SMT | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.437" (11.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-4S-1065-1-SMT-TRSWITCH ROTARY DIP SPST 0.15A 42V |
0 |
|
Технический лист |
RDS6-1065-SMT | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.437" (11.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

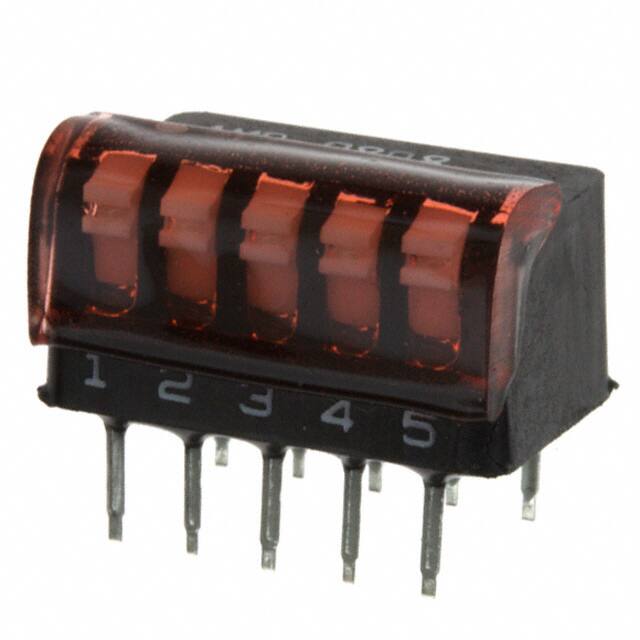

1-5435802-6SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
7000 | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
MDG201STTRANSFER DIP SWITCH MDG |
0 |
|
- |
MDG | Bulk | Active | DPST-NO/NC | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Brass | Gold | 0.303" (7.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
