DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7829S-1-051SWITCH ROTARY DIP SPDT 0.1A 16V |
0 |
|
Технический лист |
7829 | Tube | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Raised | - | - | 0.330" (8.38mm) | Through Hole, Right Angle | PC Pin | - | Yes | - | -55°C ~ 125°C |
|
|
CFS-0403MCSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
Технический лист |
CFS | Tube | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFS-0403MBSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
Технический лист |
CFS | Tube | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

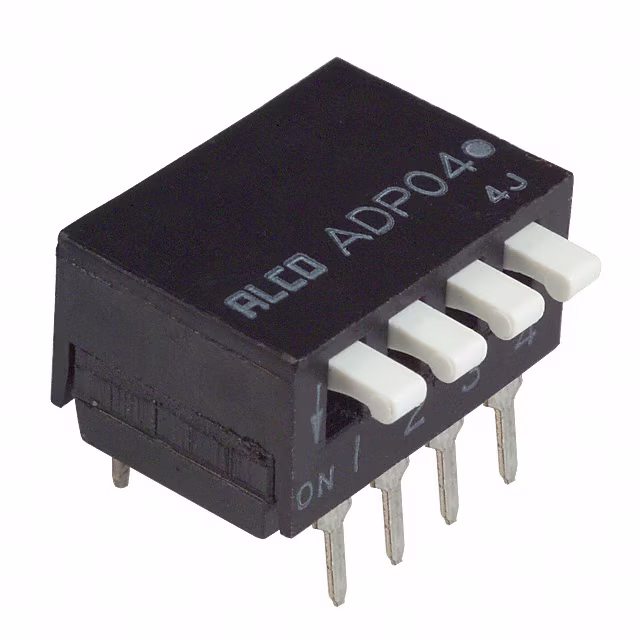

ADP04SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
- |
ADP | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADPA04SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
ADPA | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
KT12ETHSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
KT | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KT12RTHSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
KT | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
NDIR06STSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
NDI | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
NDA06VSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
NDA | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
DM09SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
DM | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAD08TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
KAD | Tape & Reel (TR) | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.110" (2.80mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
KAC08LGGRSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Технический лист |
KAC | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.201" (5.10mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
ADF06SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
ADF | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
EMR02TVTRDIP SWITCH DM LOW PROFILE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
206-216RASWITCH SLIDE DIP DPST 0.05A 24V |
0 |
|
Технический лист |
206RA | Tube | Active | DPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
206-125RASTSWITCH SLIDE DIP SPDT 0.05A 24V |
0 |
|
Технический лист |
206RA | Tube | Active | SPDT | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
BPA01SBRSWITCH PIANO DIP SPST 100MA 5VDC |
0 |
|
Технический лист |
BPA | Bulk | Active | SPST | 1 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
418117270909SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
WS-DITV | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
NDIR08HTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
NDI | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
1977282-1SWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
Технический лист |
ADE | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | - | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
