DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
219-4MSTSWITCH SLIDE DIP SPST 0.1A 20V |
13,484 |
|
Технический лист |
219 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
219-5MSTSWITCH SLIDE DIP SPST 0.1A 20V |
18,196 |
|
Технический лист |
219 | Tube | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
219-4MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
12,295 |
|
Технический лист |
219 | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

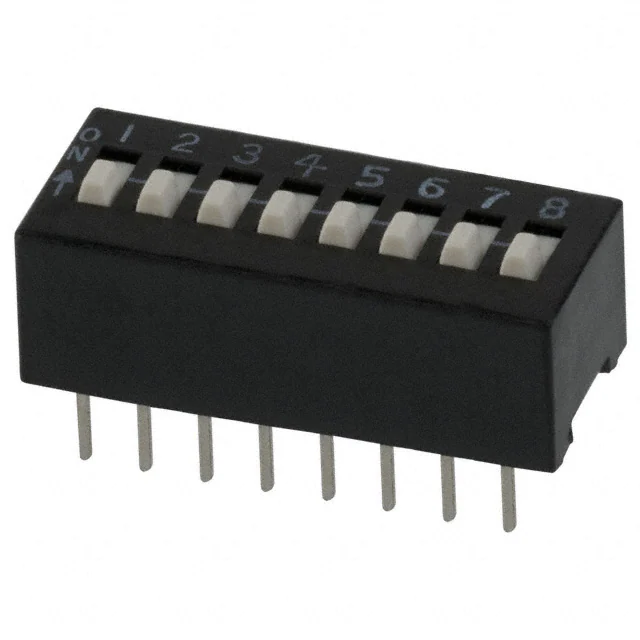

208-8SWITCH SLIDE DIP SPST 0.05A 24V |
3,043 |
|
Технический лист |
208 | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
204-211STSWITCH SLIDE DIP DPST 0.05A 24V |
25,944 |
|
Технический лист |
204 | Tube | Active | DPST | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
219-4LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
19,765 |
|
Технический лист |
219 | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
219-5LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
37,090 |
|
Технический лист |
219 | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

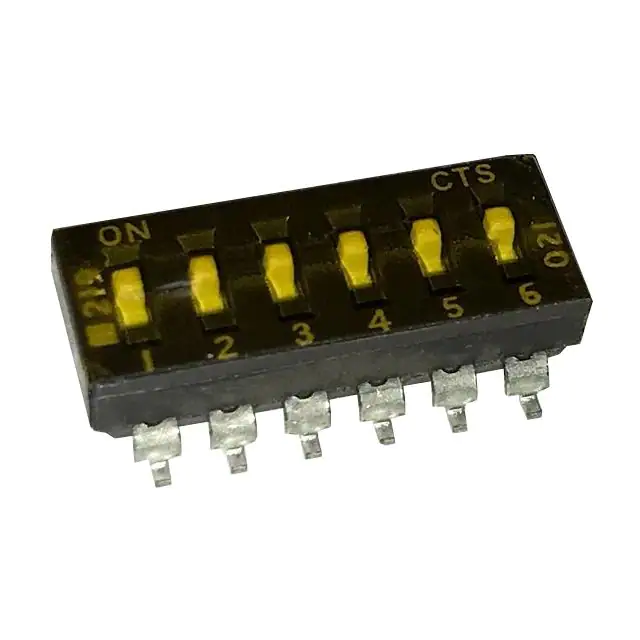

219-6MSTSWITCH SLIDE DIP SPST 0.1A 20V |
4,666 |
|
Технический лист |
219 | Tube | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
195-4MSTSWITCH PIANO DIP SPST 0.05A 24V |
7,955 |
|
Технический лист |
195 | Tube | Active | SPST | 4 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
206-2STSWITCH SLIDE DIP SPST 0.05A 24V |
14,098 |
|
Технический лист |
206 | Tube | Active | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

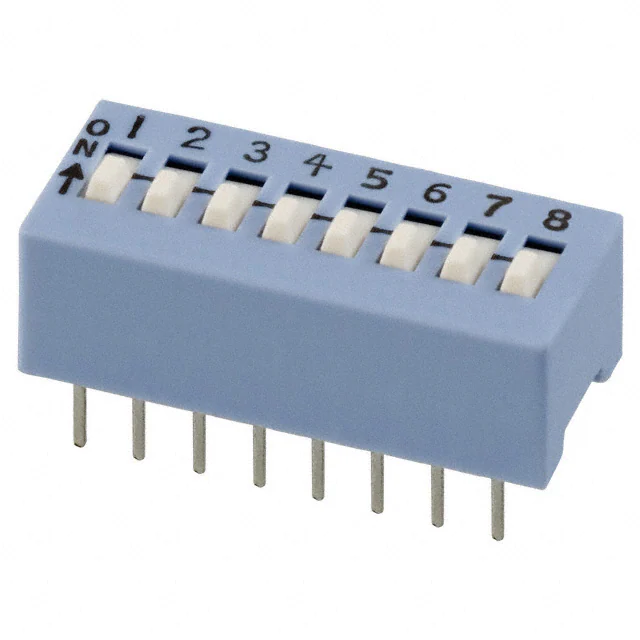

206-8SWITCH SLIDE DIP SPST 0.05A 24V |
6,920 |
|
Технический лист |
206 | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
1-1825059-3SWITCH SLIDE DIP SPST 0.025A 24V |
77,621 |
|
Технический лист |
ADF | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
219-5LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
653 |
|
Технический лист |
219 | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-4STSWITCH SLIDE DIP SPST 0.05A 24V |
10,954 |
|
Технический лист |
206 | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

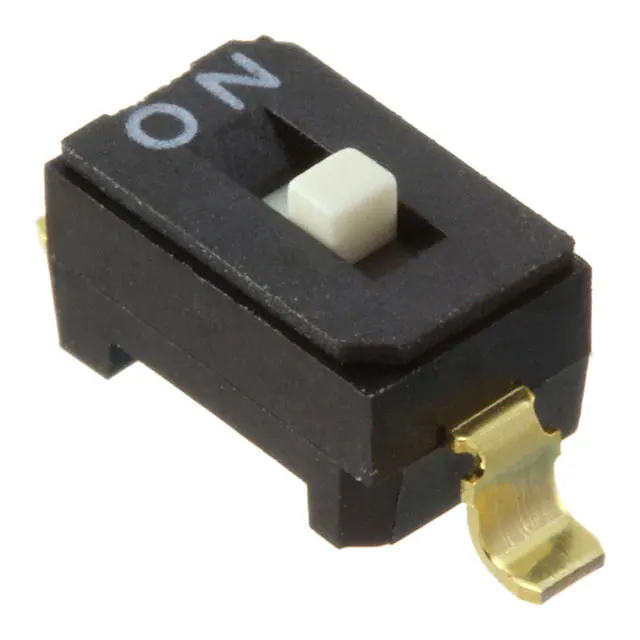

CFS-0102TBSWITCH SLIDE DIP SPST 0.1A 6V |
5,022 |
|
Технический лист |
CFS | Tape & Reel (TR) | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0102TASWITCH SLIDE DIP SPST 0.1A 6V |
4,189 |
|
Технический лист |
CFS | Tape & Reel (TR) | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CJS-1200TB1SWITCH SLIDE SPDT 100MA 6V |
710 |
|
Технический лист |
CJS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | - | -40°C ~ 85°C |
.jpg)
|
219-8MSTSWITCH SLIDE DIP SPST 0.1A 20V |
72,191 |
|
Технический лист |
219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
219-8LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
12,840 |
|
Технический лист |
219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
CFS-0100TBSWITCH SLIDE DIP SPST 0.1A 6V |
500 |
|
Технический лист |
CFS | Tape & Reel (TR) | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
