DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

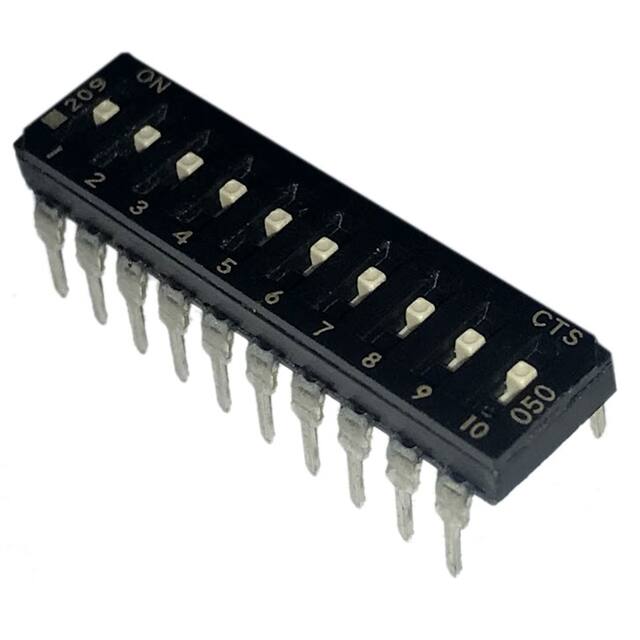

209-10LPSSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Технический лист |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
209-10LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Технический лист |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
209-10LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Технический лист |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
209-10LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Технический лист |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10MSDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Технический лист |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10MSFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Технический лист |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Технический лист |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
KJ04EXTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
KJ | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KG08ETSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
KG | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
193-4MSNSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Технический лист |
193 | Tube | Active | SPST | 4 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
DS04-254-2-07BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
DS04-254-SMT | Tape & Reel (TR) | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAS1104RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
KAS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAS1103RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
KAS | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

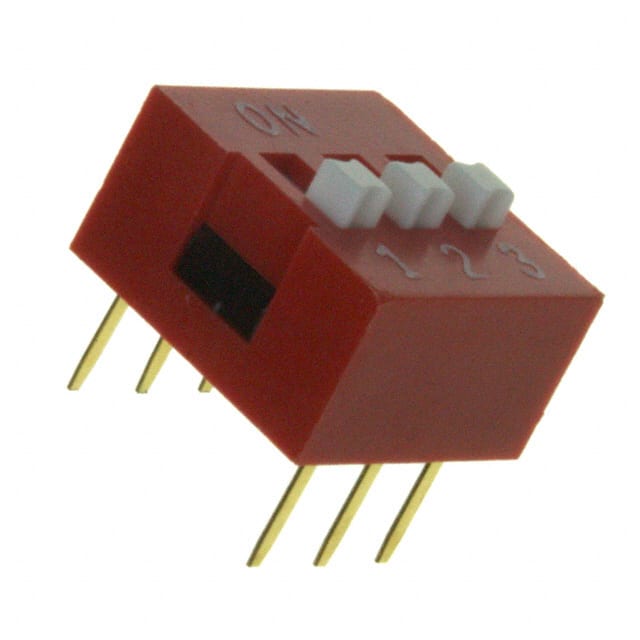

KAS1103ESWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
KAS | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
193-3MSRSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Технический лист |
193 | Tape & Reel (TR) | Active | SPST | 3 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
193-3MSRNSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Технический лист |
193 | Tape & Reel (TR) | Active | SPST | 3 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
KT08RTHSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
KT | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KT08ETHSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Технический лист |
KT | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
CAS-120TA1SWITCH SLIDE SPDT 100MA 6V |
0 |
|
Технический лист |
CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | - | -40°C ~ 85°C |
|
CAS-120TB1SWITCH SLIDE SPDT 100MA 6V |
0 |
|
Технический лист |
CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | - | -40°C ~ 85°C |
