DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
76SD01STSWITCH ROCKER DIP DPDT 0.15A 30V |
869 |
|
Технический лист |
76 | Tube | Active | DPDT | 1 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

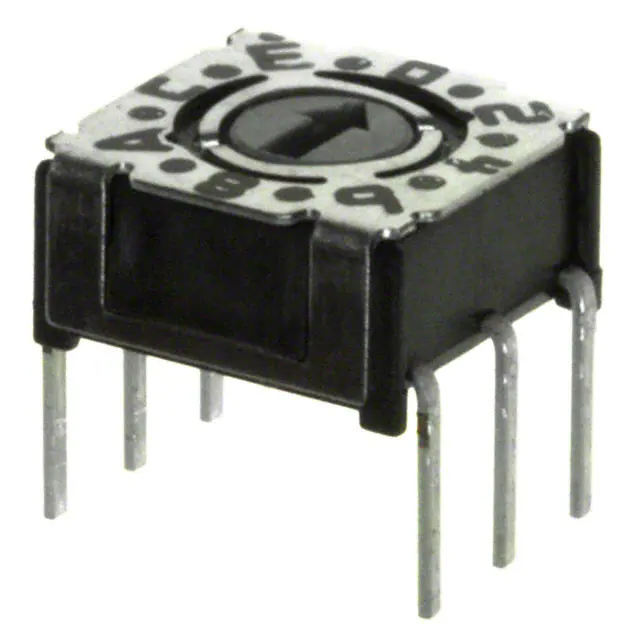

P36103SWITCH ROTARY DIP HEX 0.1A 24V |
1,757 |
|
Технический лист |
P36 | Tube | Active | Hexadecimal | 16 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.143" (3.63mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -50°C ~ 125°C |
|
P36S106SW ROTARY DIP HEX COMP 0.1A 24V |
1,971 |
|
Технический лист |
P36S | Tube | Active | Hexadecimal Complement | 16 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -30°C ~ 90°C |
|
76SC04TSWITCH ROCKER DIP SPDT 0.15A 30V |
1,635 |
|
Технический лист |
76 | Tube | Active | SPDT | 4 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

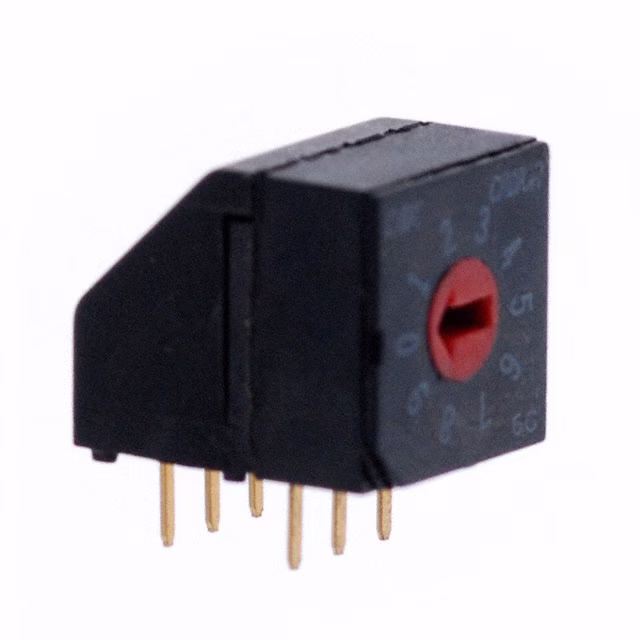

CRD10RM0ABSWITCH ROTARY DIP BCD 0.4VA 20V |
16,794 |
|
Технический лист |
CRD | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
76STC04TSWITCH TOGGLE DIP SPDT 0.15A 30V |
3,185 |
|
Технический лист |
76 | Tube | Active | SPDT | 4 | 150mA | 30VDC | Toggle | Raised | Copper Alloy | Gold | 0.467" (11.86mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

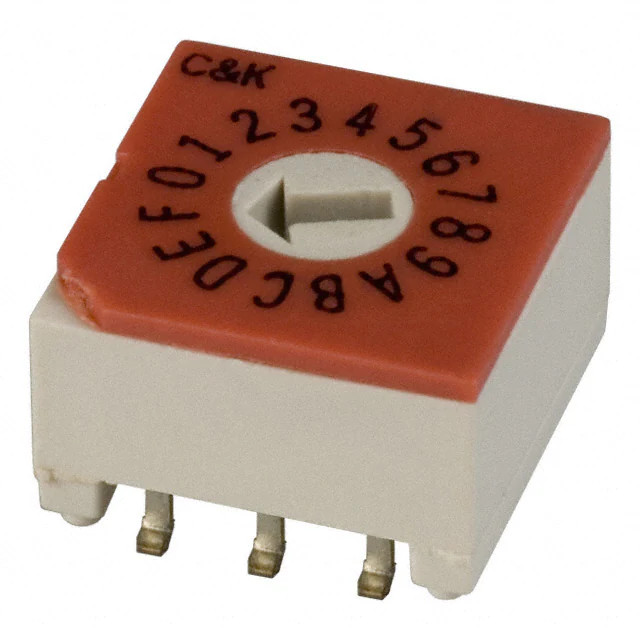

CRD16CM0SBSW ROTARY DIP HEX COMP 0.4VA 20V |
1,620 |
|
Технический лист |
CRD | Tube | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

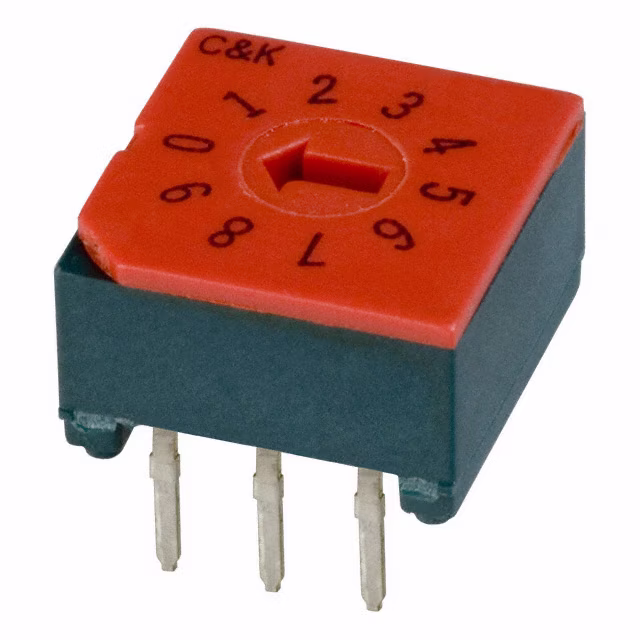

CRD10RM0CBSWITCH ROTARY DIP BCD 0.4VA 20V |
6,561 |
|
Технический лист |
CRD | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

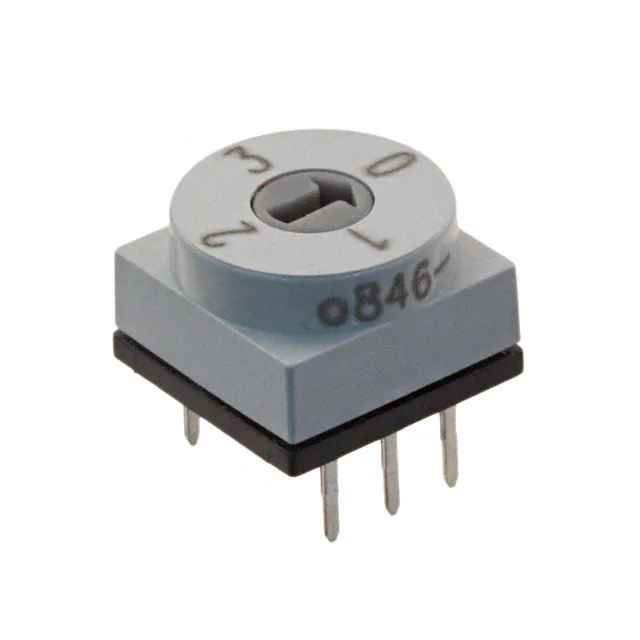

PT65121SWITCH ROTARY DIP SP4T 0.15A 24V |
2,517 |
|
Технический лист |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
CD10RM0SBSWITCH ROTARY DIP BCD 0.4VA 20V |
16,450 |
|
Технический лист |
CD | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
PT65501SWITCH ROTARY DIP BCD 0.15A 24V |
264 |
|
Технический лист |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

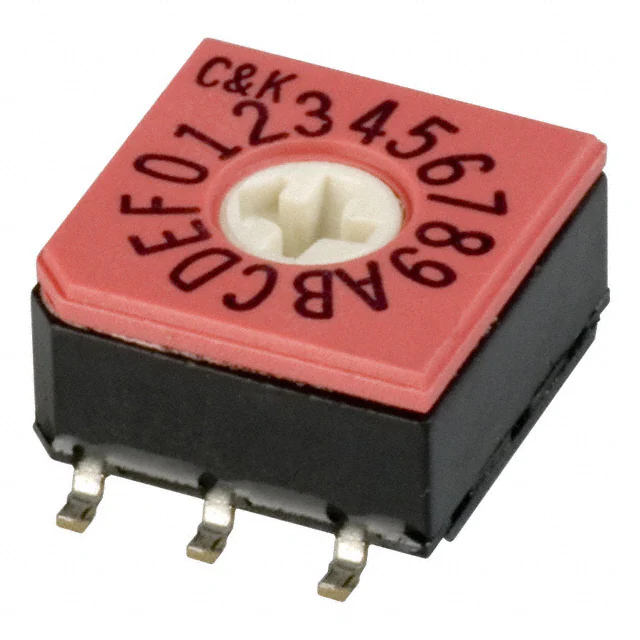

CD16RM0SBRSWITCH ROTARY DIP HEX 0.4VA 20V |
1,460 |
|
Технический лист |
CD | Tape & Reel (TR) | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
|
CD16RM0SBSWITCH ROTARY DIP HEX 0.4VA 20V |
38,283 |
|
Технический лист |
CD | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|

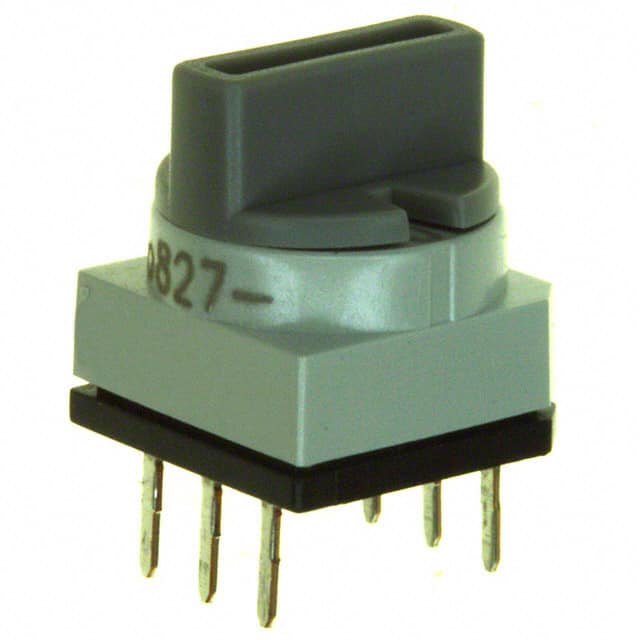

PT65503SWITCH ROTARY DIP HEX 0.15A 24V |
5,383 |
|
Технический лист |
PT65 | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
CD08RM0SBSW ROTARY DIP OCTAL 0.4VA 20V |
273 |
|
Технический лист |
CD | Tube | Active | Octal | 8 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|

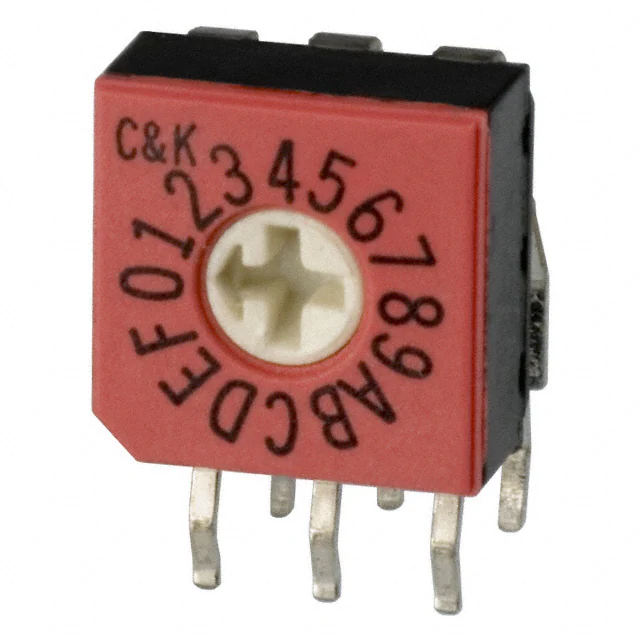

CD16RM0ABSWITCH ROTARY DIP HEX 0.4VA 20V |
1,678 |
|
Технический лист |
CD | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
CD08RM0ABSW ROTARY DIP OCTAL 0.4VA 20V |
1,174 |
|
Технический лист |
CD | Tube | Active | Octal | 8 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
DS01-254-S-01BESWITCH SLIDE DIP SPST 0.025A 24V |
1,231 |
|
Технический лист |
DS01-254 | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS01-254-L-02BESWITCH SLIDE DIP SPST 0.025A 24V |
4,686 |
|
Технический лист |
DS01-254 | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

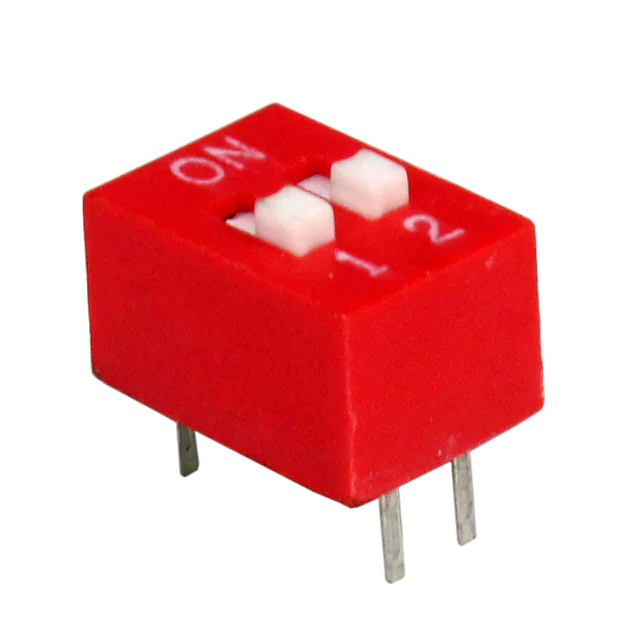

KG02ESWITCH SLIDE DIP SPST 0.025A 24V |
2,265 |
|
Технический лист |
KG | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
