DIP-переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR02FR16PSWITCH ROTARY DIP HEX 0.1A 5V |
63 |
|
Технический лист |
FR02 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
A6RS-162RSSWITCH ROTARY DIP HEX 0.025A 24V |
70 |
|
Технический лист |
A6RS | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
FR01FC16H-SSW ROTARY DIP HEX COMP 0.1A 5V |
70 |
|
Технический лист |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01FC10H-SSW ROTARY DIP BCD COMP 0.1A 5V |
50 |
|
Технический лист |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01KR10H-SSWITCH ROTARY DIP BCD 0.1A 5V |
27 |
|
Технический лист |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01KR16H-06XL-SSWITCH ROTARY DIP HEX 0.1A 5V |
100 |
|
Технический лист |
FR01 | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
78B08RATSWITCH SLIDE DIP SPST 0.15A 30V |
60 |
|
Технический лист |
78 | Tube | Active | SPST | 8 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
76PSB10TSWITCH PIANO DIP SPST 0.15A 30V |
63 |
|
Технический лист |
76 | Tube | Active | SPST | 10 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
97R10STSWITCH SLIDE DIP SPST 0.025A 24V |
94 |
|
Технический лист |
97 | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
FR01KR10P-WSWITCH ROTARY DIP BCD 0.1A 5V |
73 |
|
Технический лист |
FR01 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

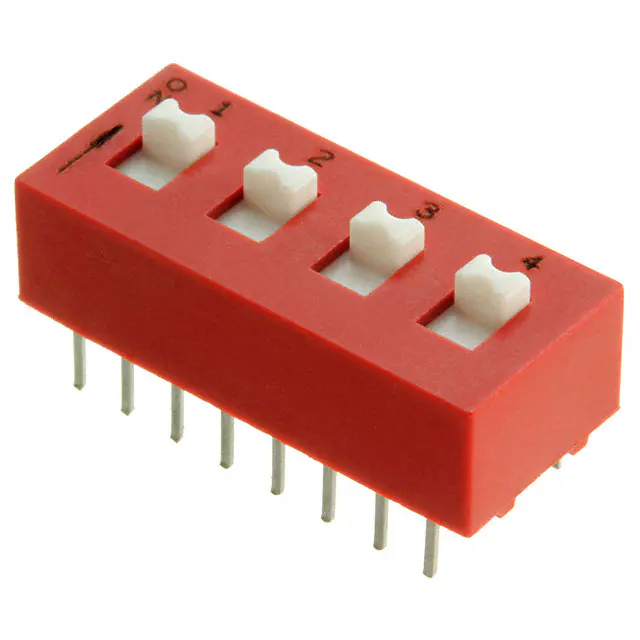

78F04TSWITCH SLIDE DIP DPST 0.15A 30V |
70 |
|
Технический лист |
78 | Tube | Active | DPST | 4 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
90HBW05PTSWITCH SLIDE DIP SPST 0.025A 24V |
52 |
|
Технический лист |
90HB | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6DR-8100SWITCH PIANO DIP SPST 0.03A 30V |
90 |
|
Технический лист |
A6DR | Tray | Active | SPST | 8 | 30mA | 30VDC | Piano | Raised | - | Gold | 0.292" (7.41mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
A6KS-102RFSWITCH ROTARY DIP BCD 0.025A 24V |
90 |
|
Технический лист |
A6KS | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
FR01SR10P-W-SSWITCH ROTARY DIP BCD 0.1A 5V |
50 |
|
Технический лист |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.284" (7.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
FR01SC10P-SSW ROTARY DIP BCD COMP 0.1A 5V |
50 |
|
Технический лист |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.284" (7.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
A6DR-6100SWITCH PIANO DIP SPST 0.03A 30V |
50 |
|
Технический лист |
A6DR | Tube | Active | SPST | 6 | 30mA | 30VDC | Piano | Raised | - | Gold | 0.292" (7.41mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
A6RV-162RSSWITCH ROTARY DIP HEX 0.025A 24V |
64 |
|
Технический лист |
A6RV | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|
A6E-0104-NSWITCH SLIDE DIP SPST 0.025A 24V |
34 |
|
Технический лист |
A6E-N | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
78HJ01GWTSWITCH SLIDE DIP SPDT 0.15A 30V |
48 |
|
Технический лист |
78H | Tube | Active | SPDT | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
